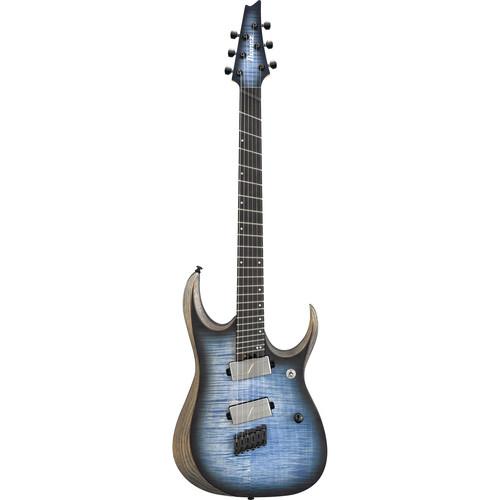

Product description Styled in a cerulean blue burst flat finish, the Ibanez RGD Iron Label Series RGDIM6FM is an electric guitar with a layered body, sporting a flamed maple top, an ash middle, and a mahogany back. The guitar offers a sleek double-cutaway design that facilitates access to the upper registers of the instrument.
The axe's Nitro Wizard, three-piece maple/purpleheart neck measures 25.5 to 26.7". This multi-scale design accommodates the different hand positions guitarists naturally assume when moving around the neck, resulting in a more comfortable experience. Also, its ultimate 26.7" length improves the tone of typical metal down-tuning, ensuring a thicker, richer timbre than a shorter scale would. Its bound ebony fingerboard features 24 jumbo frets, as well as white off-set dot inlays that switch positions after the 12th fret; this makes for a striking, esoteric look.
For electronics, the guitar offers two active Fishman Fluence Modern humbucking pickups, one in the neck and the other in the bridge. A volume knob dictates the overall level, while a three-position pickup selector switches between different pickup configurations. Strings are affixed to the body by means of the fixed Mono-Rail bridge, which isolates each string's vibration and fosters a precise sound. - Nitro Wizard Neck
- A thin, ultra-playable neck with road-tested durability.
- Ebony Fingerboard
- The tight grain of Ebony provides a smooth and dense playing surface that produces a tight low-end with the quick response needed for metal.
- Multi-Scale Neck
- Equalized tension helps to create a more alive and open tone. But the design also improves player comfort. The multi-scale construction ergonomically coordinates with the way a player's hand angles as it moves up and down the neck, facilitating quick, comfortable playing action.
- Fixed Mono-Rail Bridge
- The Mono-Rail bridge delivers excellent string-to-string isolation, meaning that each string vibrates optimally without affecting by the others.
- Luminescent Side-Dot Inlays
- These luminescent side-dots make it easy for you to see where you are on the fingerboard while you play on dark stages.
- General Features
-
- Nitro Wizard 3-piece bolt-on maple/purpleheart neck
- Flamed maple top/ash middle/mahogany back layered body
- Ebony fingerboard
- White split off-set dot inlays
- 24 jumbo frets
- Fixed mono-rail bridge
- Fishman Fluence Modern humbucking pickups (active/ceramic)
- Black hardware
- Neck Dimensions
- Scale: 25.5 to 26.7" / 648.0 to 679.6mm
Width at Nut: 1.7" / 43.0mm
Width at Last Fret: 2.2" / 58.0mm
Thickness at 1st: 0.7" / 19.0mm
Thickness at 12th: 0.8" / 21.0mm
Radius: 15.8" / 400.0mm In the Box Ibanez RGDIM6FM RGD Iron Label Series Multi-Scale Electric Guitar (Cerulean Blue Burst Flat) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ibanez RGDIM6FM RGD Iron Label Series Multi-Scale Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIbanez RGDIM6F Specs | Right/Left Handed | Right-Handed | | Number of Strings | 6 | | Body Type | Solid | | Cutaway | Double-Cutaway | | Body Wood | Top: Maple
Ash, Mahogany | | Neck Type | Bolt-On Neck | | Neck Wood | Maple, Purpleheart | | Fingerboard | Ebony | | Number of Frets | 24 | | Type of Frets | Jumbo | | Scale Length | 25.5" / Multi-scale: 25.5 to 26.7" | | Radius | 400 mil OR | | Nut Width | 43 mm | | Bridge Type | Fixed | | Pickguard | No | | Pickups | Bridge, Neck: Humbucker | | Controls | Tone Control: x 0
Volume Control: x 1 | | Switching | 3-Way Pickup Selector Switch |
