Product description

  • SR Portamento

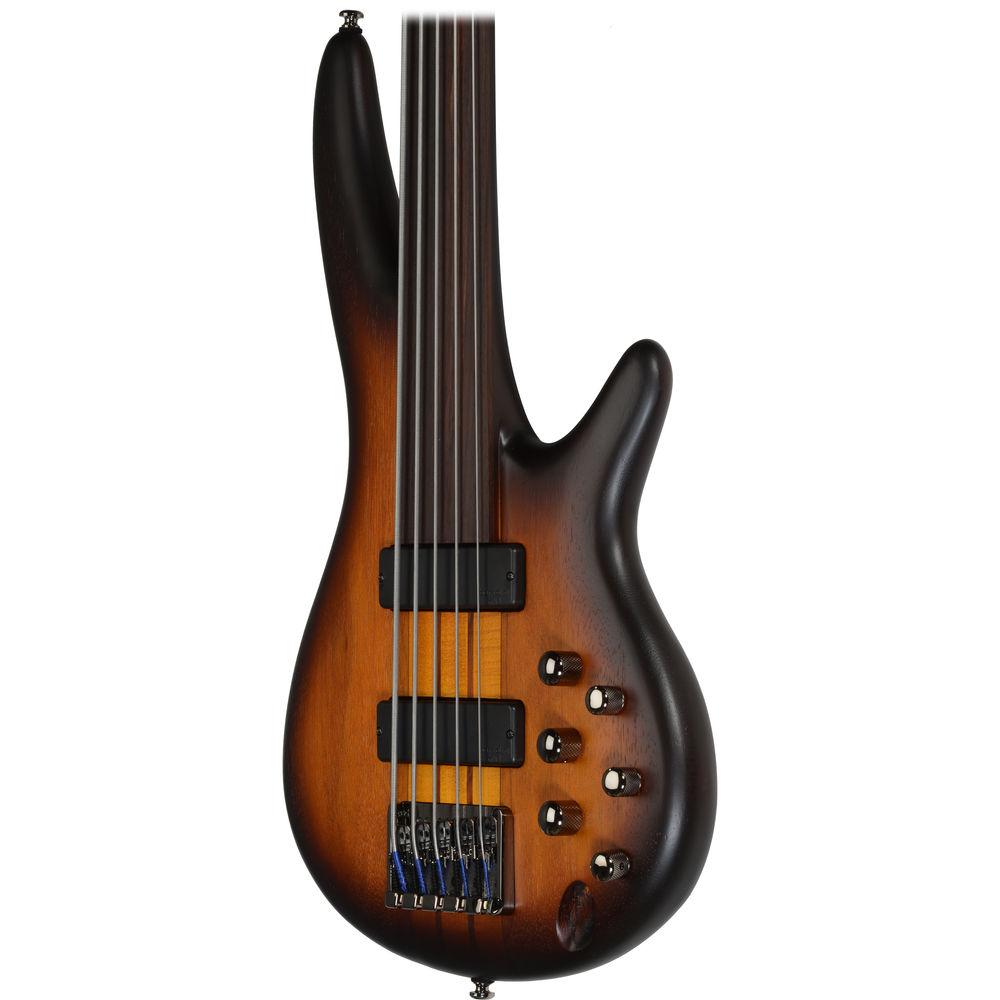

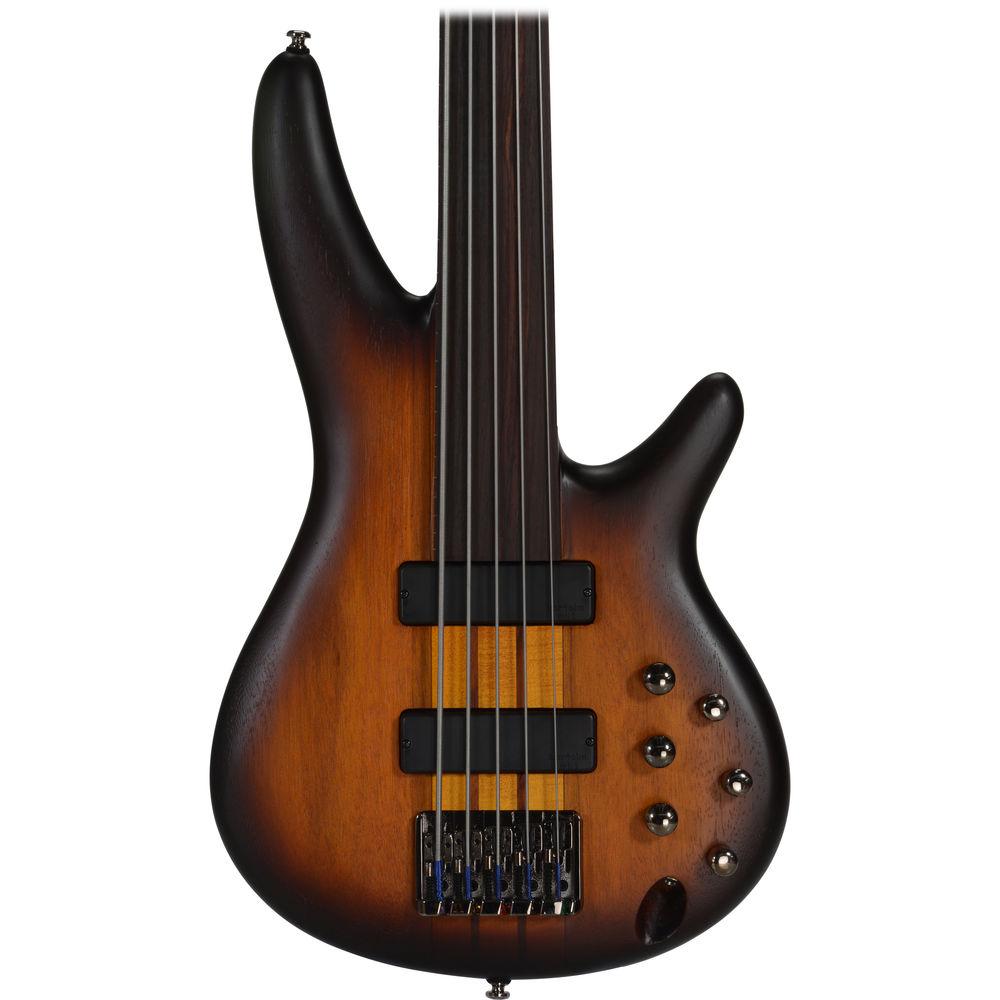

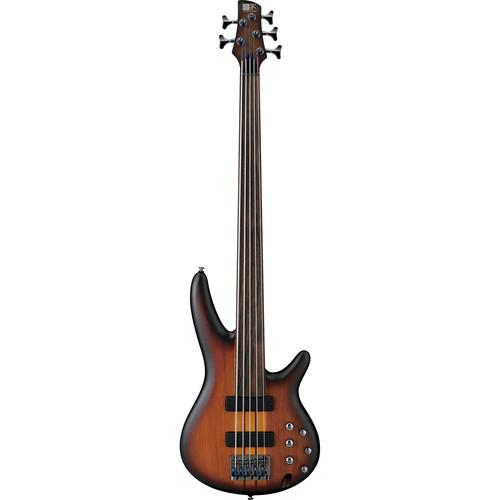

The SR Series SRF705 Bass Workshop from Ibanez is a 5-string fretless electric bass guitar featuring an extended 30-fret, neck-through design, a mahogany wing body, and a brown burst flat finish. The deep cutaway body allows for unencumbered access to the upper regions of the fingerboard, ensuring solid playability. The SRF5 5-piece neck couples maple with bubinga to create stability and strength in a thin design with increased sustain and superior tone. The Bartolini MK-1 pickups provide a wide frequency range with enhanced definition and accuracy. Other features include the AeroSilk Piezo system with active tone control, a 2-band EQ and a custom bridge for the AeroSilk system. There are dedicated volume controls for the Piezo, bridge, and neck pickups. Additional controls provided include treble and bass boost/cut, as well as piezo tone.

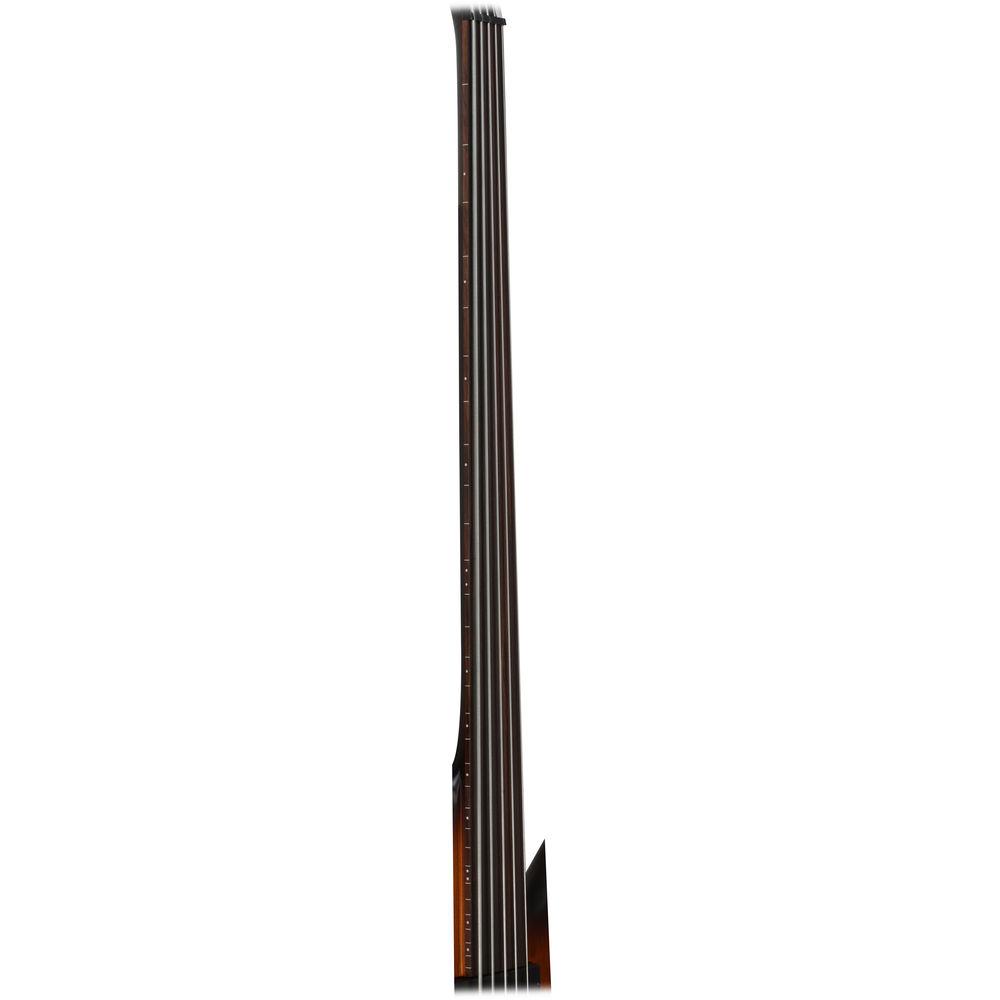

    30-Fret Neck
    • The SR Portamento features an extended 30-fret Rosewood fretboard for playing in upper registers usually only accessible on an upright
    5-Piece SR Maple/Bubinga Through-Neck
    • The SR Portamento features a 5-piece Maple/Bubinga through-neck for increased sustain and superior tone

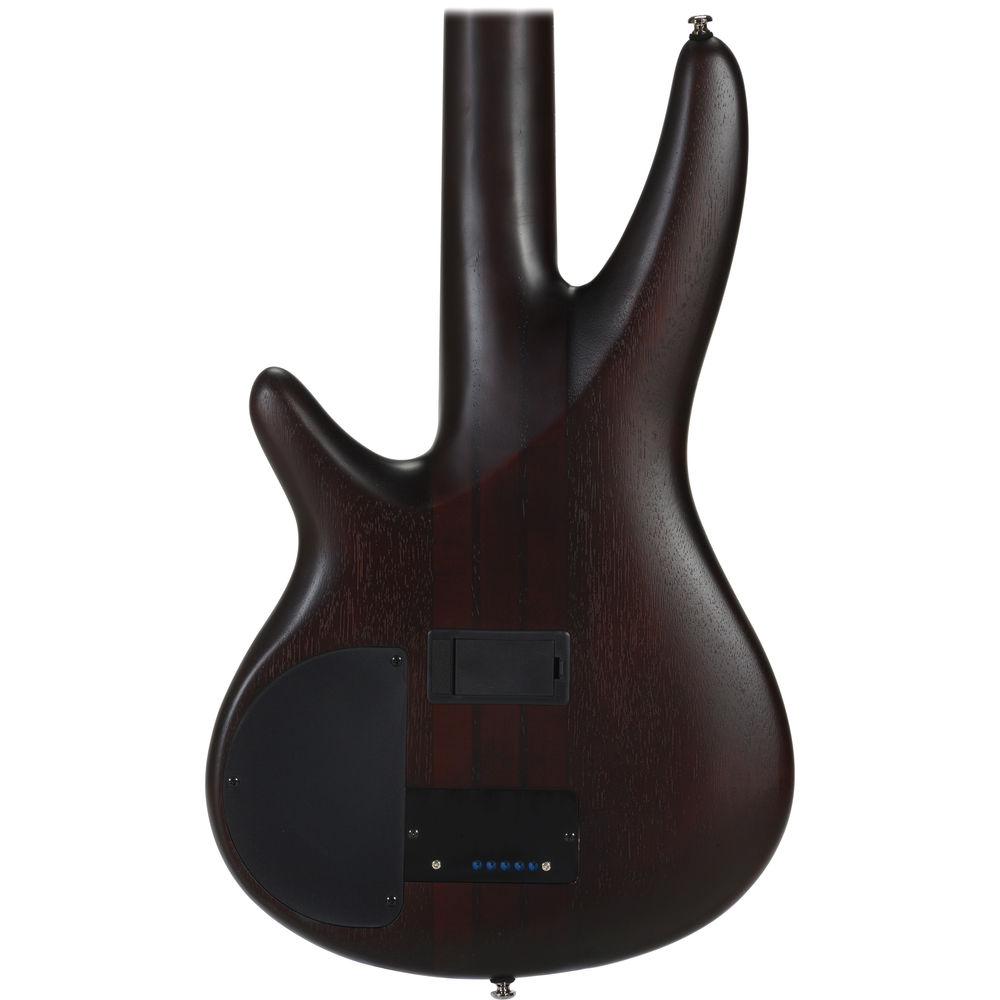

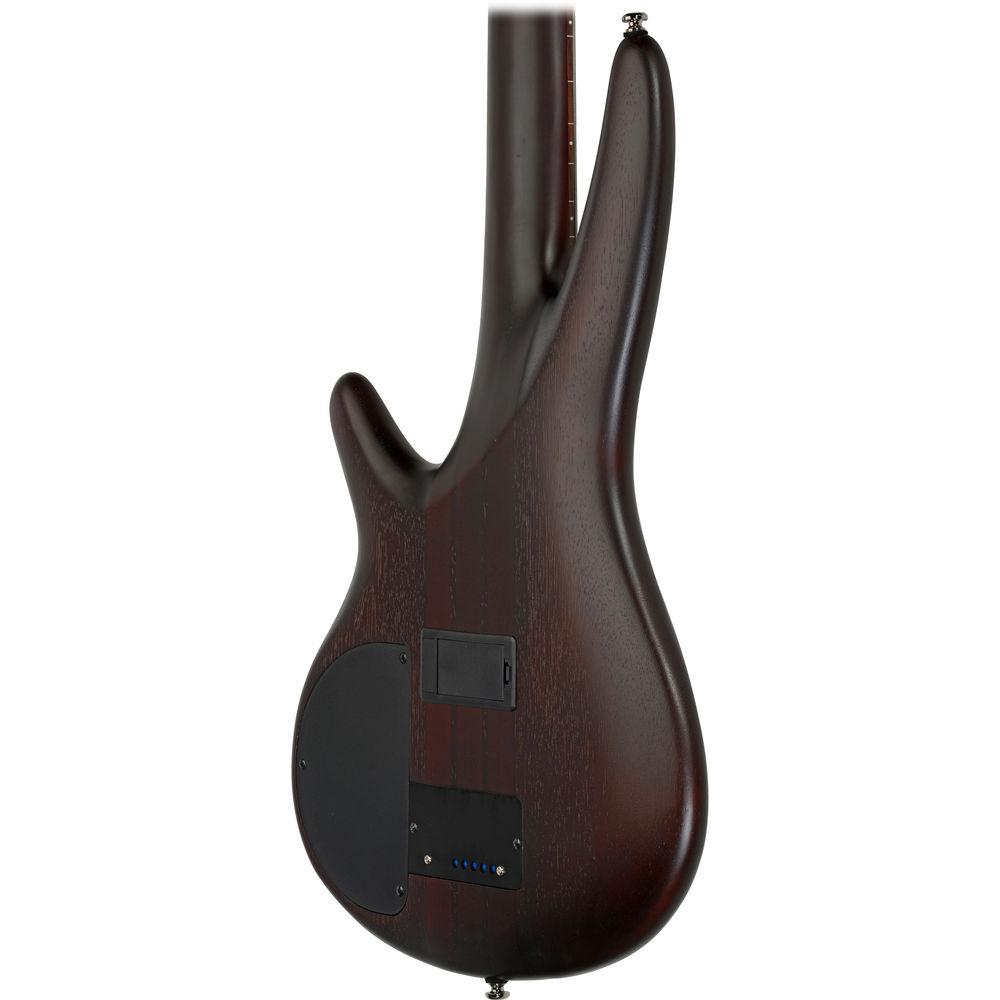

    Piezo Level Control
    • On the back of the SR Portamento are recessed controls assigned to each individual string to control the volume of the Ibanez-exclusive AeroSilk Piezo pickup. Perfect string balance and response can be achieved by adjusting the volume to accommodate different string gauges

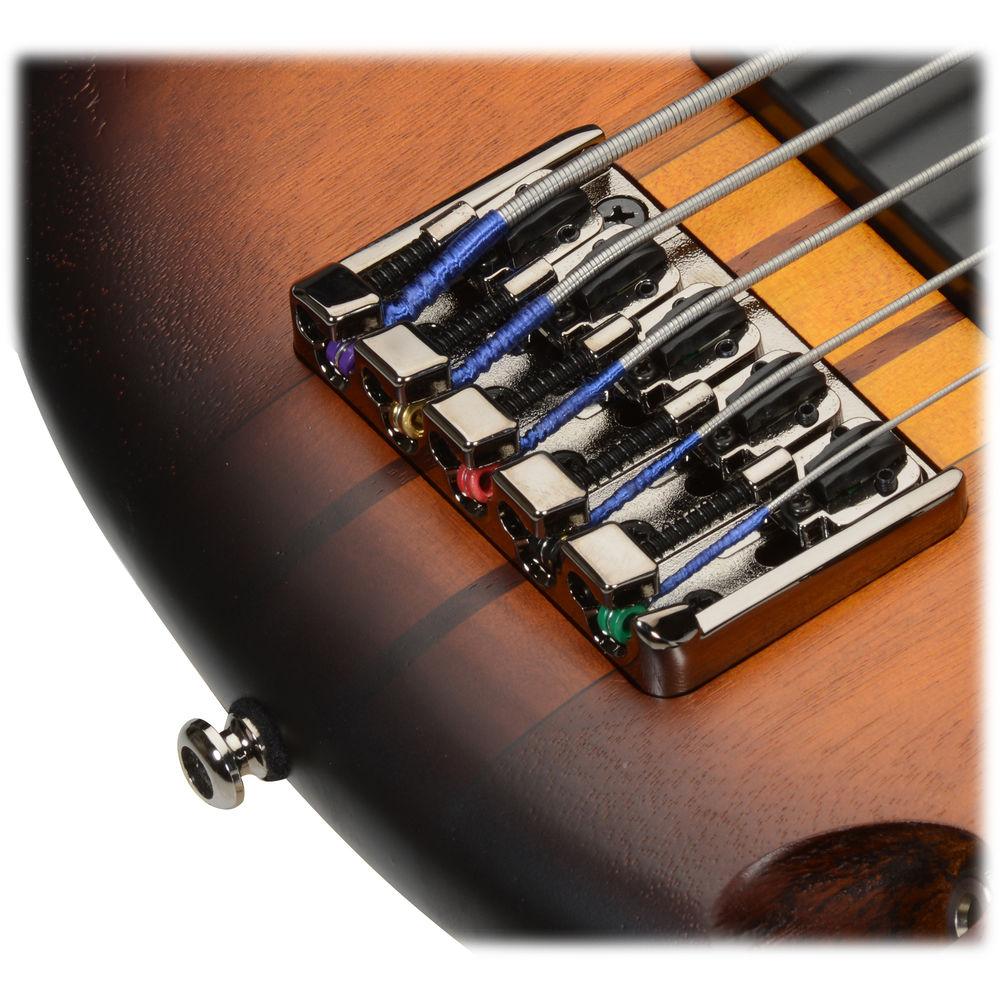

    Custom Bridge for AeroSilk Piezo System
    • The custom bridge is created specifically for the optimum performance of the AeroSilk Piezo pickup system. Unique plastic saddles were designed to work in concert with the piezo pickups and enhance the acoustic "stand-up" quality of the sound

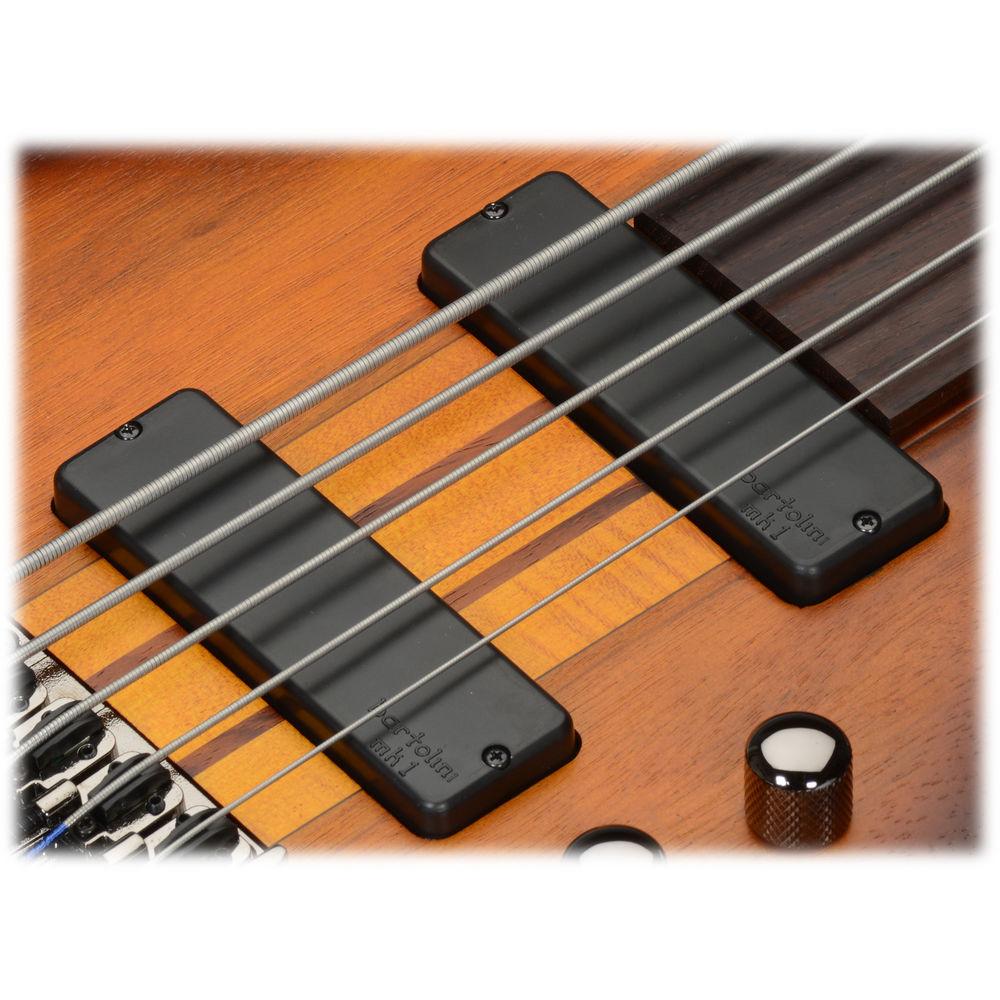

    Bartolini MK-1 Pickups
    • The MK-1 pickups are a split coil design that provides a very wide frequency range and enhanced definition for maximum accuracy. The neck and bridge pickups have equal response, like traditional single coils, but without the hum and noise
    AeroSilk Piezo System w/Active Tone Control
    • The EQ section incorporates the controls of the Bartolini pickups with the AeroSilk Piezo system. Controls include a master volume, balance and bass & treble controls for the Bartolini MK-1 pickups and a master volume and a tone control for the Piezo system
    General Features
    • Neck Type: SRF5 5pc Maple/Bubinga
    • Body: Mahogany wing
    • Fingerboard: Rosewood fingerboard
    • Fret: Fretless
    • Number of Frets: 30
    • Bridge: Custom bridge for AeroSilk Piezo system (16.5mm string spacing)
    • Neck Pickup: Bartolini MK-1 neck pickup (Passive)
    • Bridge Pickup: Bartolini MK-1 bridge pickup (Passive)
    • Equalizer: Ibanez 2-band EQ
    • Hardware Color: Cosmo black
    • Piezo: AeroSilk Piezo system with active tone control
    Neck Dimensions
    • Scale: 34.0" / 864.0mm
    • Width at Nut: 1.8" / 45.0mm
    • Width at Last Fret: 2.7" / 68.0mm
    • Thickness at 1st: 0.8" / 21.5mm
    • Thickness at 12th: 0.9" / 23.5mm
    • Radius: 12.0" / 305.0 mm
UPC: 887802021187 In the Box Ibanez SR Series SRF705 Bass Workshop 5-String Fretless Electric Bass Guitar (Brown Burst Flat)
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Ibanez SR Series SRF705 Bass Workshop 5-String Fretless Electric Bass Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Ibanez SRF705BBF Specs

    Right/Left Handed Right-Handed
    Number of Strings 5
    Body Type Solid
    Cutaway Double-Cutaway
    Body Wood Wings: Mahogany
    Neck Type Neck-Through Construction
    Neck Wood Maple
    Fingerboard Rosewood
    Number of Frets Fretless
    Scale Length 34.0" /
    Radius 12.0" OR
    Nut Width 45 mm
    Bridge Type Fixed
    Pickups Bridge: Humbucker
    Bridge: Piezo
    Neck: Humbucker
    Controls Tone Control: x 3
    Volume Control: x 3
    Package Weight 13.0 lb
    Box Dimensions (LxWxH) 50.0 x 18.0 x 4.5"

    Rating

    90% users recommend this product to others. And what about you?
    Rating: 4.5 of 5

    This product has already been rated by 43 owners. Add your rating and experience with the product.
