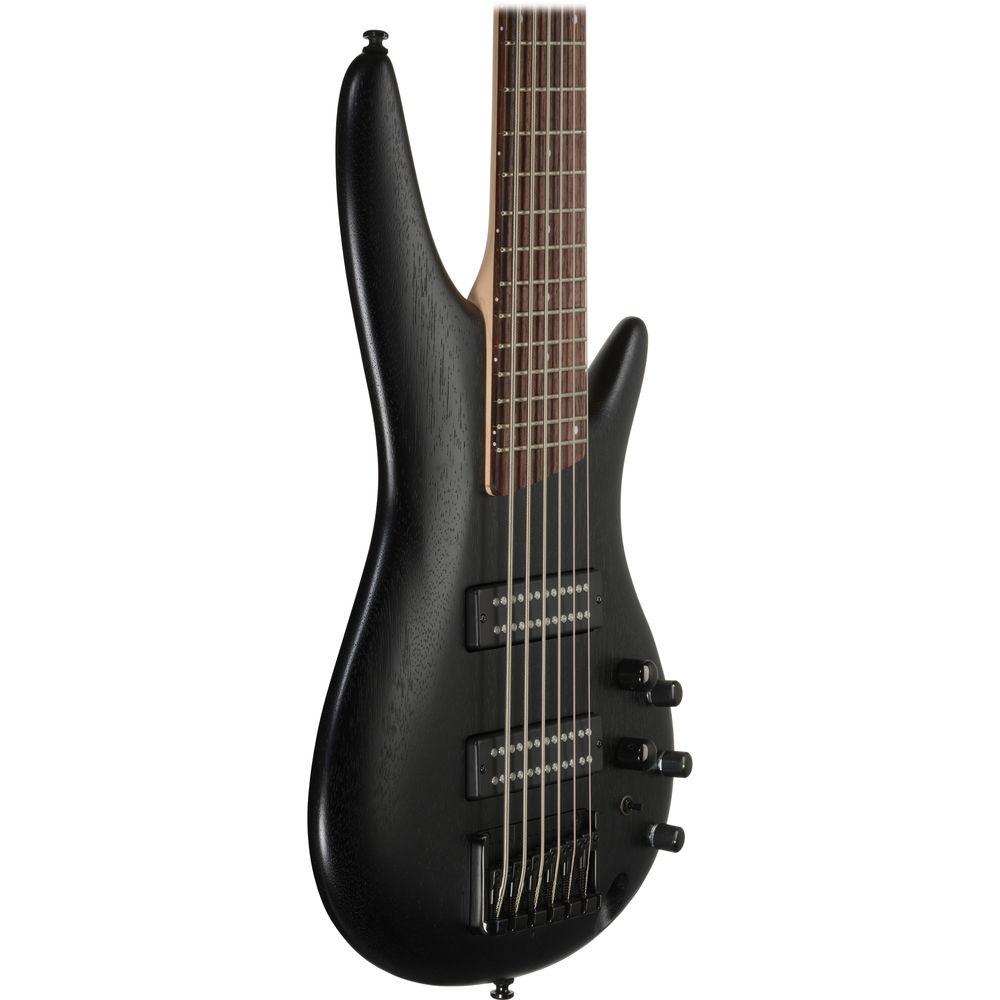

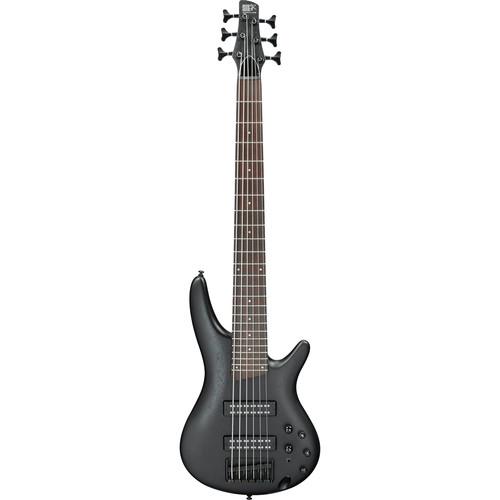

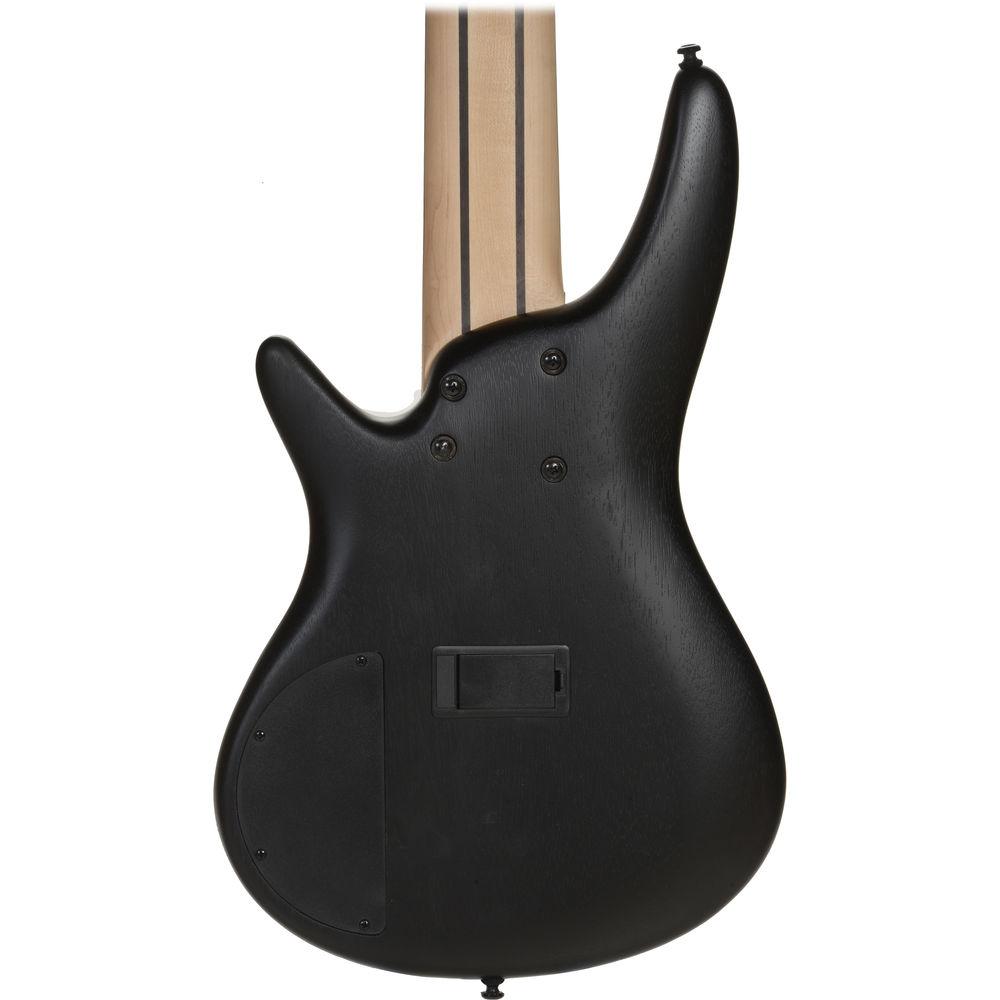

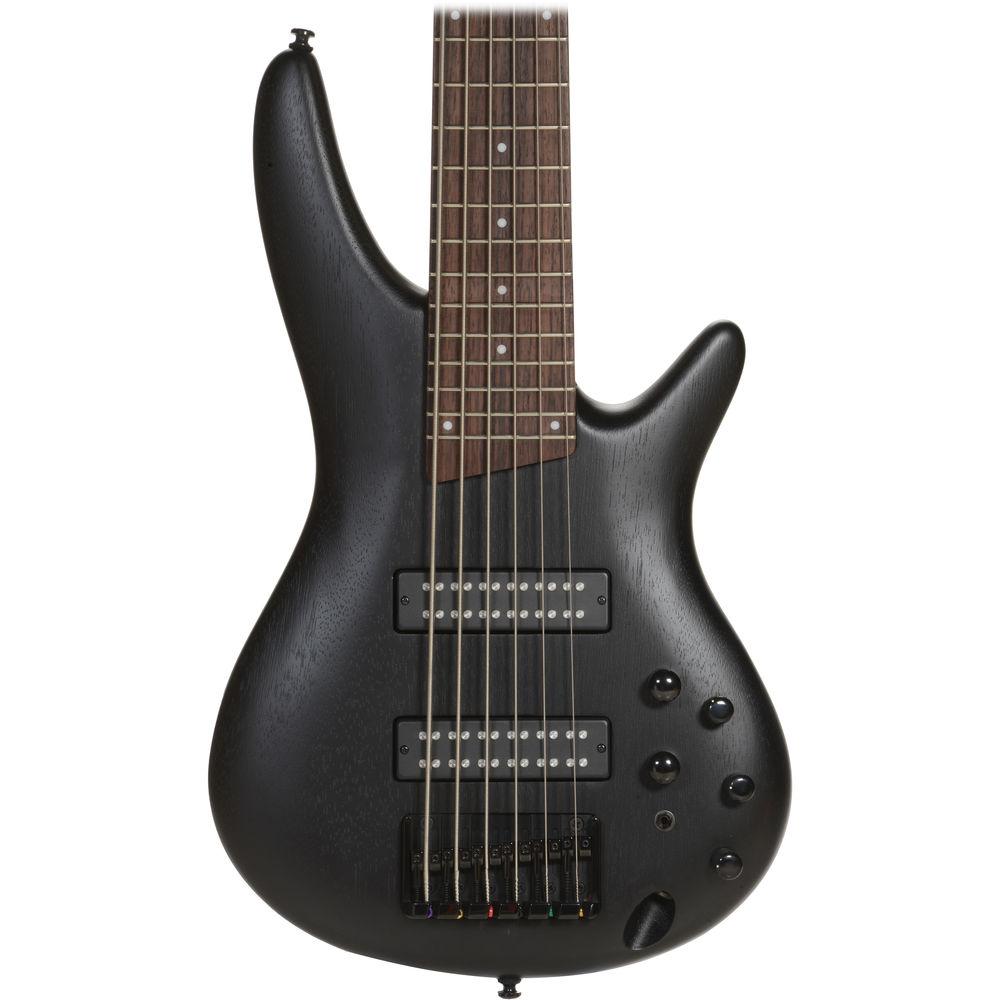

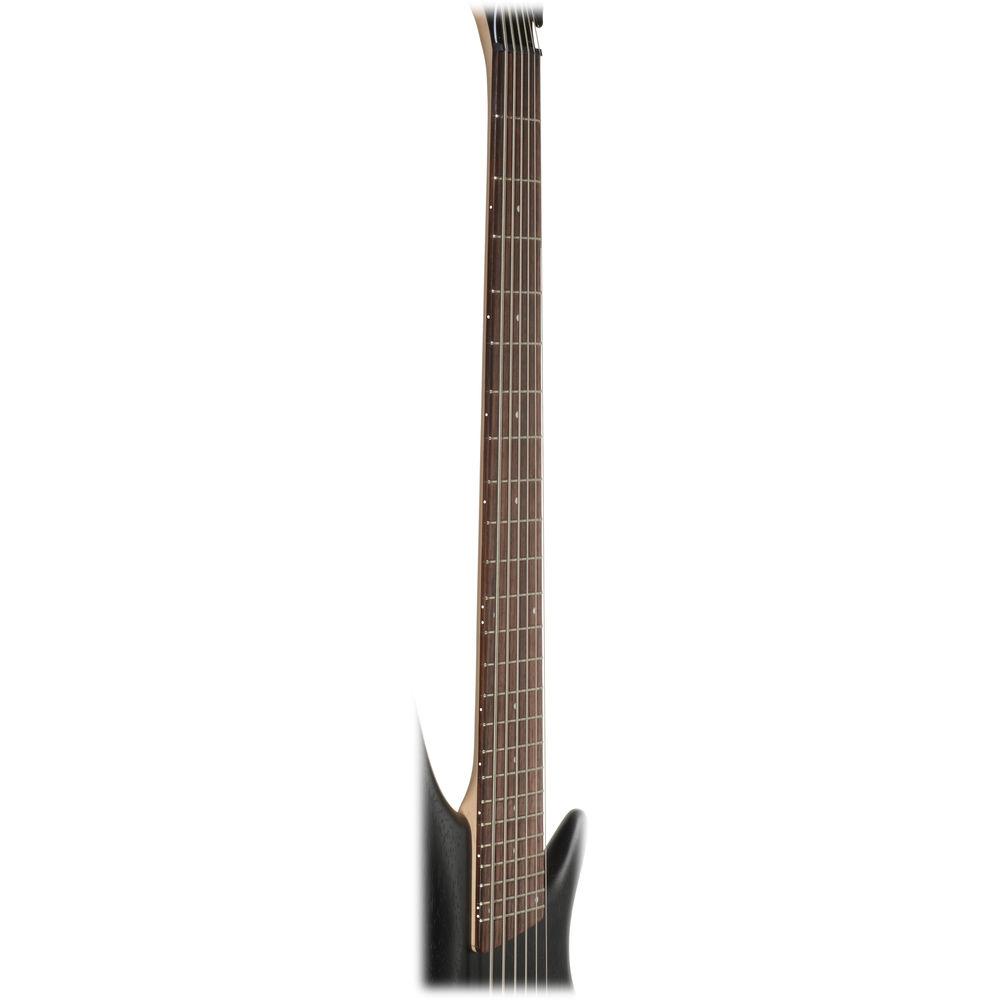

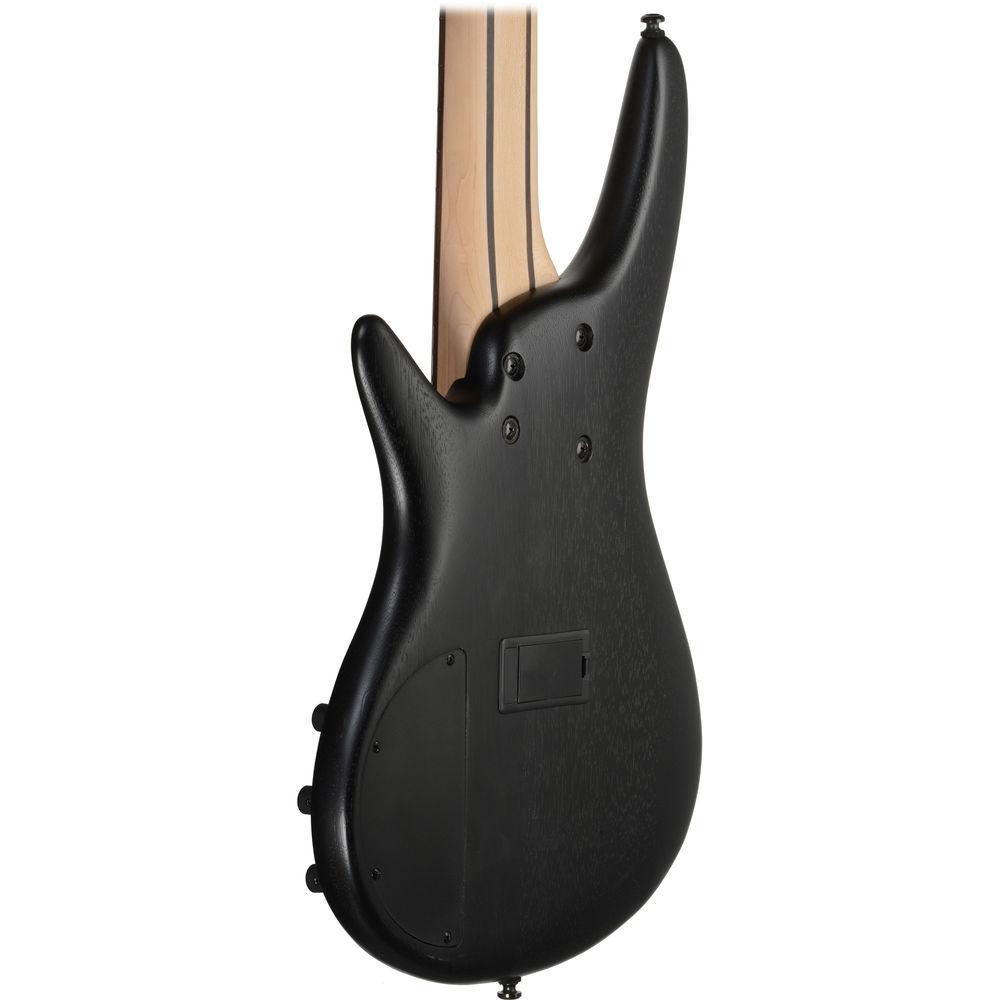

Product description The SR Standard Series SR306EB from Ibanez is a modern 6-string electric bass featuring a mahogany body in a weathered black finish. Its bolt-on SR6 5-piece maple/rosewood neck is fitted with a 24-fret rosewood fingerboard which has white dot inlays. The solid double-cutaway body delivers maximum resonance and sustain, while the SR6 neck is smooth and fast, providing unlimited playability for the most demanding player.

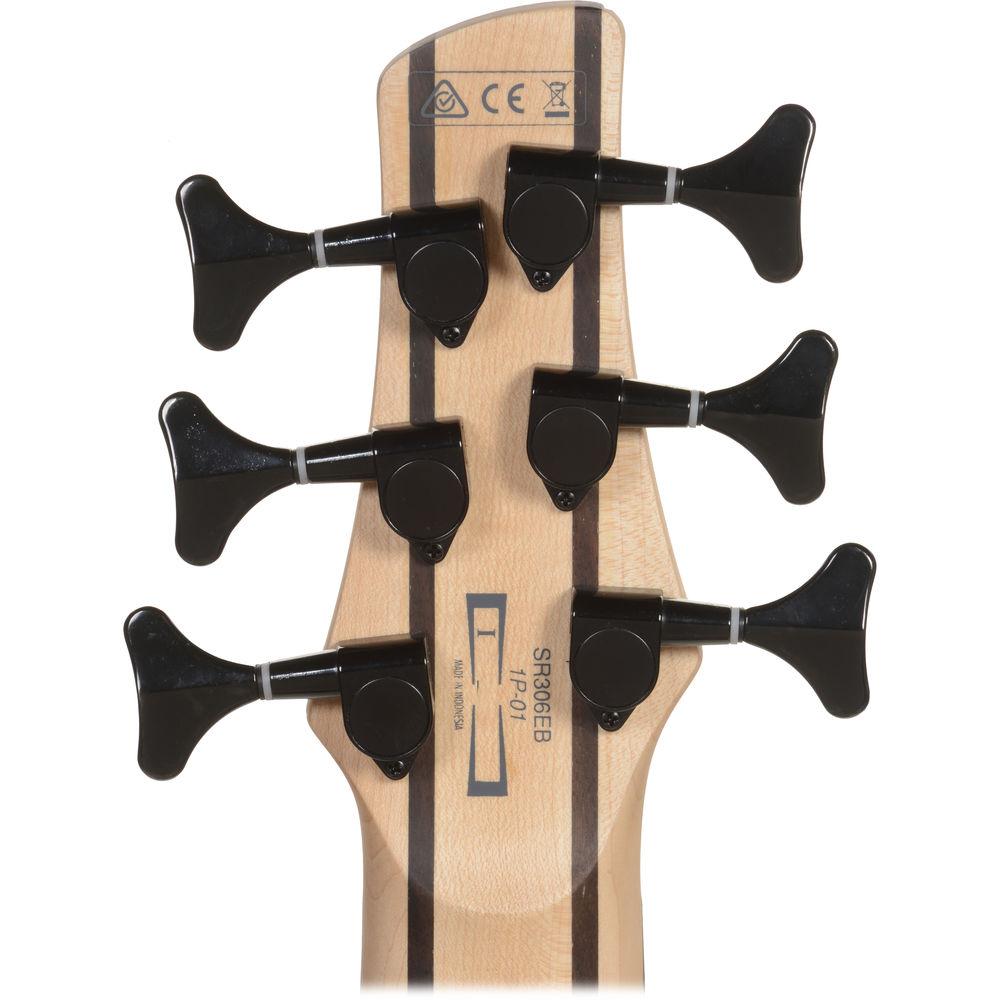

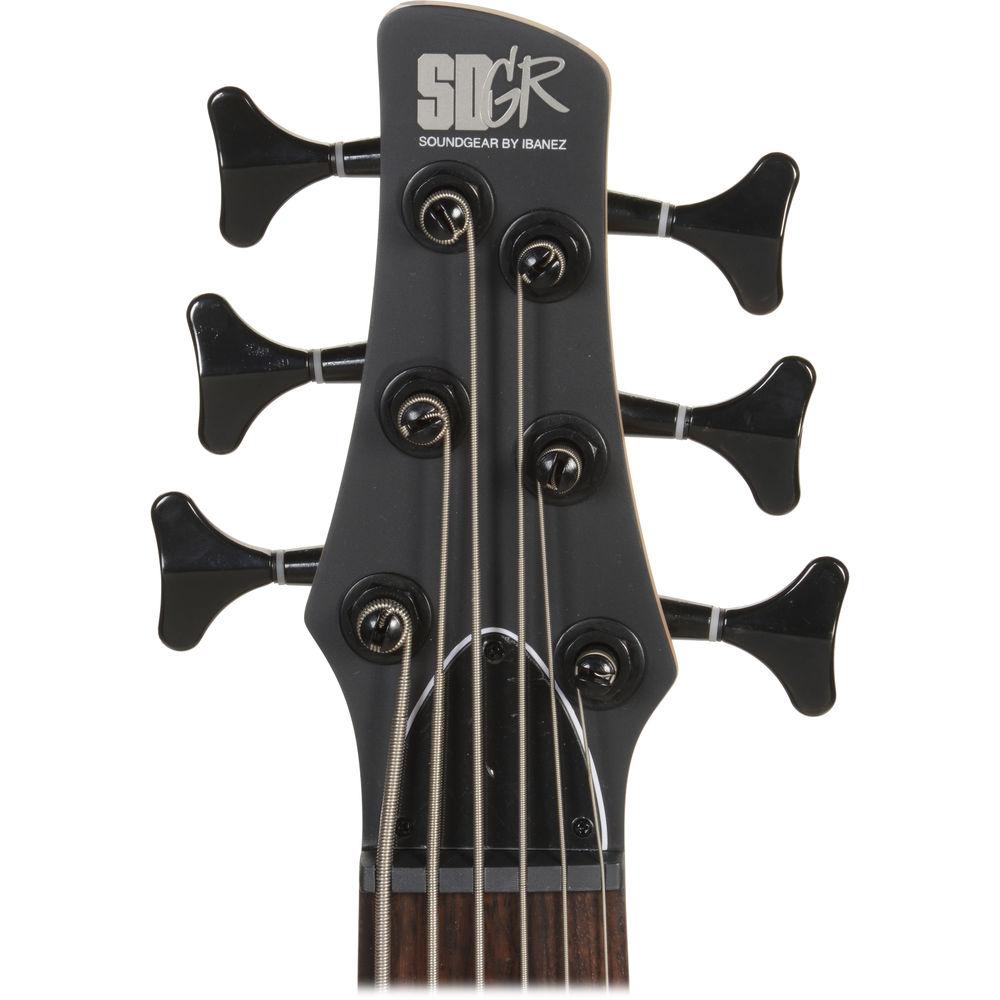

The PowerSpan Dual Coil pickups provide a tone rich in harmonic detail and dynamic expression. A 3-way power tap selector switch allows you to choose between a variety of humbucking and single-coil settings, while the 3-band active EQ provides boost and cut over the treble, mid, and bass frequencies. Volume and balance controls can be used to further regulate the sound. Additionally, the SR306EB is fitted with black hardware, including an Accu-cast B126 bridge, as well as a set of standard die-cast tuners on the headstock. - PowerSpan Dual Coil Pickups
-

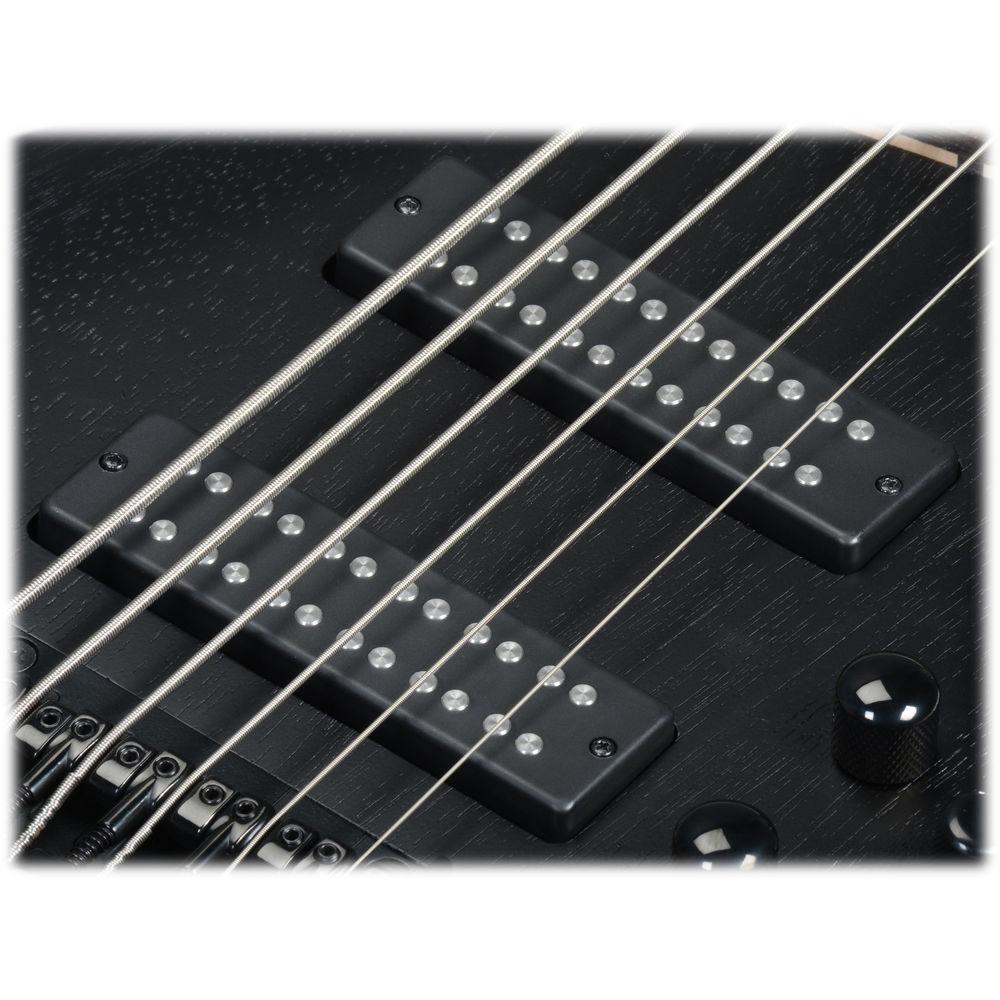

- Developed by Ibanez, the exposed pole pieces of the PDC pickups produce a stronger signal, and increase the response of the higher frequencies without sacrificing low end. The result is a tone rich in harmonic detail and dynamic expression
- Custom 3-Band EQ with 3-Way Power Tap Switch
-
- The 3-band EQ works in conjunction with a coil tap switch for maximum control over a wide variety of professional bass tones. Tap Mode (single coil) creates a punchy, dynamic sound with superior articulation. Series Mode (humbucking) delivers a full, warm tone, and Power Tap Mode provides the best of both worlds—combining the clarity of the single coil with the fat bottom end of the humbucker
- General Features
-
- Neck Type: SR6 5-piece maple/rosewood
- Body: Mahogany body
- Fingerboard: Rosewood with white dot inlays
- Frets: 24, medium

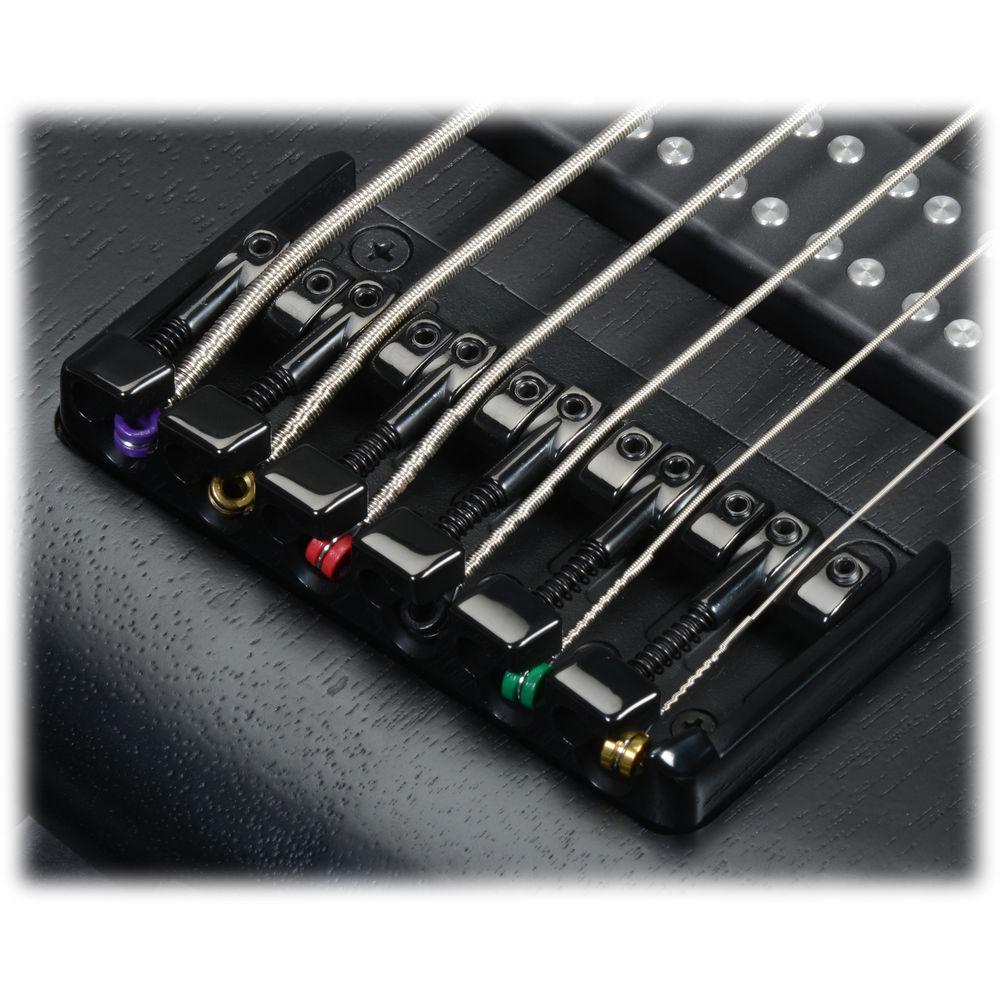

- Bridge: Accu-cast B126 (0.6" / 16.5mm string spacing)
- Neck Pickup: PowerSpan Dual Coil (passive)
- Bridge Pickup: PowerSpan Dual Coil (passive)
- Equalizer: Ibanez Custom Electronics 3-band EQ with 3-way power-tap switch
- Hardware Color: Cosmo black
- Neck Dimensions
-
- Scale: 34" / 864mm
- Width at Nut: 2.1" / 54mm
- Width at Last Fret: 3.3" / 83mm
- Thickness at 1st: 0.8" / 19.5mm
- Thickness at 12th: 0.8" / 21.5mm
- Radius: 15.7" / 400mm
UPC: 887802241530 In the Box Ibanez SR Standard Series - SR306EB - 6-String Electric Bass (Weathered Black) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ibanez SR Standard Series - SR306EB - 6-String Electric Bass in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIbanez SR306E Specs | Right/Left Handed | Right-Handed | | Number of Strings | 6 | | Body Type | Solid | | Cutaway | Double-Cutaway | | Body Wood | Mahogany | | Neck Type | Bolt-On Neck | | Neck Wood | Maple, Rosewood | | Fingerboard | Rosewood | | Number of Frets | 24 | | Type of Frets | Medium | | Scale Length | 34.00" / | | Radius | 15.7" | | Nut Width | 54 mm | | Bridge Type | Fixed | | Pickguard | No | | Pickups | Neck: Humbucker
Bridge: Humbucker | | Controls | Tone Control: x 3
Volume Control: x 1
Balance Control: x 1 | | Switching | 3-Way Pickup Selector Switch | | | | Package Weight | 14.0 lb | | Box Dimensions (LxWxH) | 50.0 x 17.5 x 4.5" |
