User Manual for Ibanez SR5005 Prestige Series 5-String Electric Bass Click to enlarge the picture
Contents of the user manual for the Ibanez SR5005 Prestige Series 5-String Electric
- Product category: Bass Guitars Ibanez
- Brand: Ibanez
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ibanez Bass Guitars
 |
User manual for the Ibanez SR5005 Prestige Series 5-String Electric contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ibanez product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ibanez user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ibanez product will considerably shorten its lifespan!
|

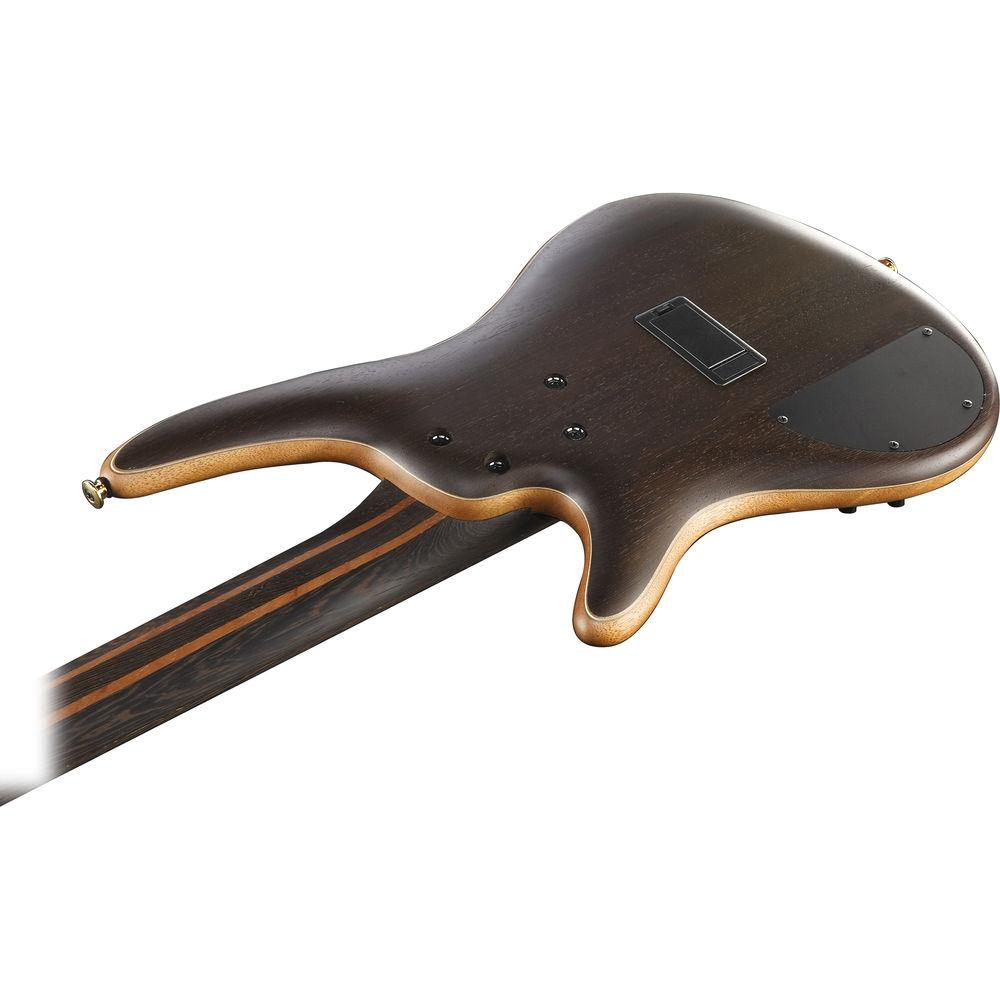

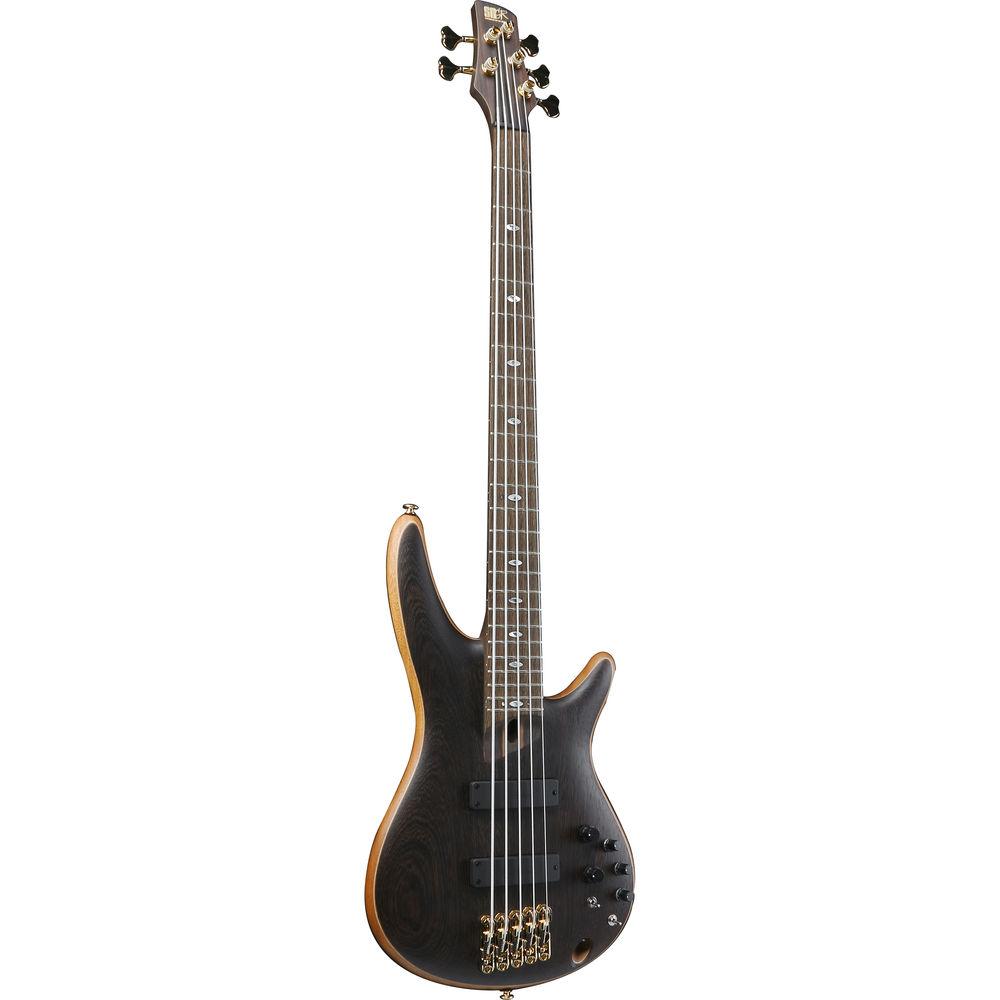

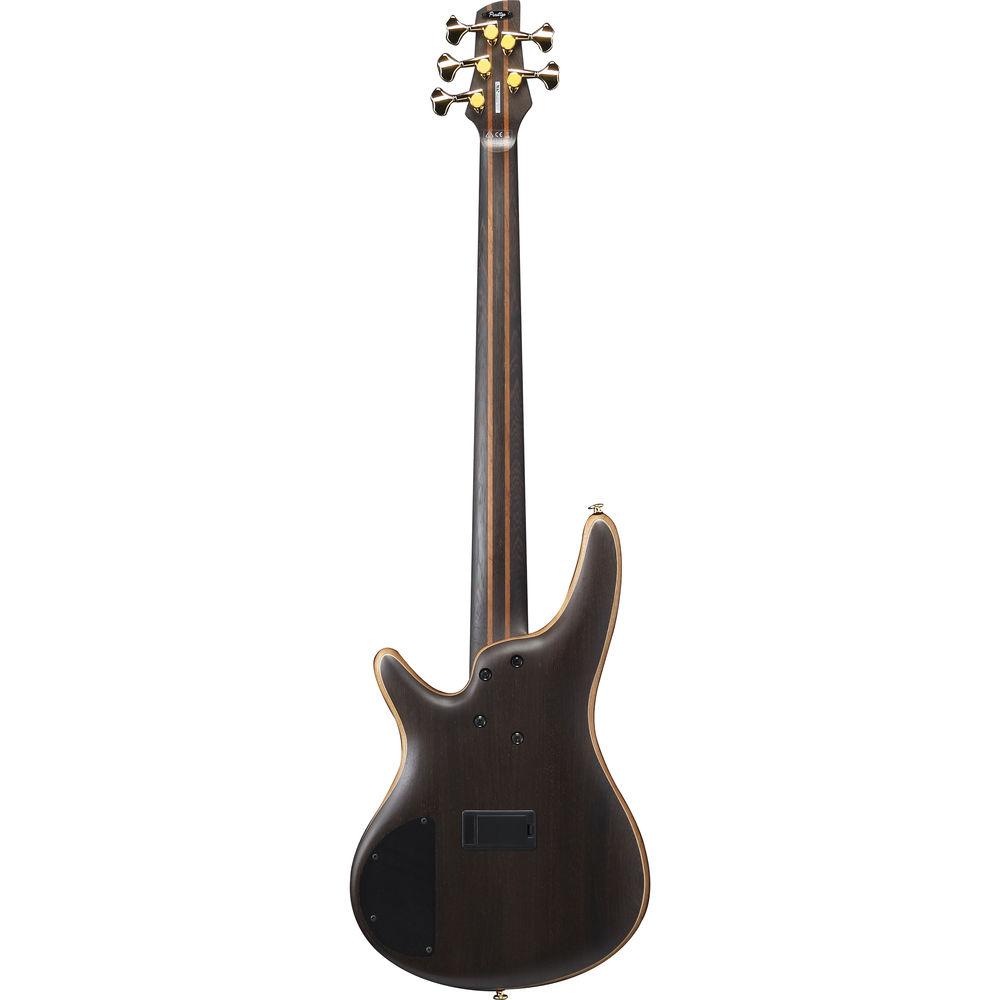

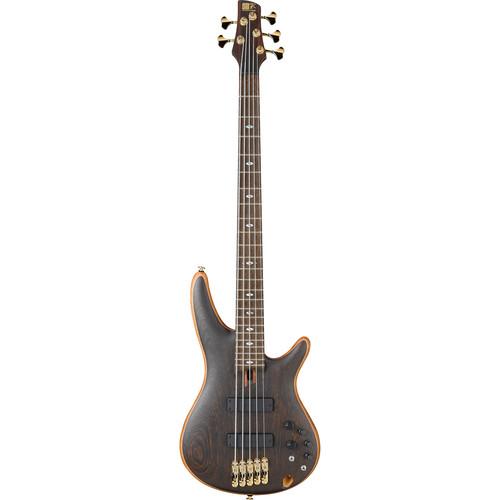

Product description Styled in an oil finish, the Ibanez SR Prestige Series SR5005 is a five-string electric bass featuring a wenge top and an African mahogany body, as well as an Atlas-5, bolt-on, five-piece wenge/bubinga neck with KTS Titanium rods. This neck, measuring 34" in scale, offers a wenge fingerboard with 24 medium frets. Fret positions are demarcated with mother of pearl and abalone oval inlays.
For electronics, the bass features Bartolini Custom soapbar pickups that offer a deep tone in the neck position and a bright timbre in the bridge position. A balance knob gives you a wide tonal palette as you blend between the two.
Complementing the pickups is an active 3-band EQ that provides controls for cut/boost over treble, mid, and bass frequencies. A 3-way, mid-frequency selector switch toggles between 250, 450, and 700 Hz, while the EQ on/off switch turns off the active circuit allowing the treble knob to function as a passive EQ tone circuit. Additionally, the bass is fitted with gold hardware including a Mono-rail V bridge with 16.5mm string-spacing, as well as a set of Gotoh machineheads tuners on the headstock. - Atlas-5 HP 5-Piece Wenge/Bubinga Neck
- The Atlas-5 HP 5-piece wenge/bubinga neck provides tonal clarity and excellent note attack, while its slim grip bolsters playability.
- Mono-Rail V Bridge
- The Mono-rail V with 16.5mm string-spacing provides string isolation. Each bridge is independently and securely locked down to the body to enhance vibration transfer and minimize interference.
- Bartolini Custom Pickups
- These American-made pickups are hand made in California exclusively for Ibanez. They're designed to provide a deep tone in the neck position while retaining a bright tone for the bridge. The pickups are dual-coil designs in a soapbar shape, and the accompanying balance knob allows for a wide tonal.
- Ibanez Custom Electronics 3-Band EQ
- The bass sports an active three-band EQ that boosts and cuts middle, treble, and bass frequencies. A mid-frequency switch lets you choose among center-frequencies in the midrange. If you decide to switch the EQ into passive mode, the active circuit is shut off, and the treble tone control knob becomes the global tone control for the passive circuit.
- Graph Tech BLACK TUSQ XL Nut
- The Graph Tech BLACK TUSQ XL nut offers low friction to keep you in tune and gives clearer sound and sustain.
- Gotoh Machineheads
- The Gotoh machine heads offer superior tuning stability.
- General Features
-
- Neck type: Atlas-5 five-piece wenge/bubinga with KTS Titanium rods
- Body: wenge top / African mahogany body
- Fingerboard: wenge with mother of pearl and abalone oval inlay
- Frets: 24, medium with Prestige fret edge treatment
- Bridge: Mono-rail V bridge (16.5mm string spacing)
- Neck pickup: Bartolini Custom neck pickup (passive)
- Bridge pickup: Bartolini Custom bridge pickup (passive)
- Equalizer: Ibanez custom electronics 3-band EQ with EQ bypass switch (passive tone control on treble pot) and mid-frequency switch
- Nut: Graph Tech BLACK TUSQ XL
- Hardware color: gold
- Case: hardshell case
- Neck Dimensions
-
- Scale: 34.0" / 864.0mm
- Width at nut: 1.8" / 45.0mm
- Width at last fret: 2.6" / 67.0mm
- Thickness at 1st: 0.8" / 19.5mm
- Thickness at 12th: 0.9" / 23.0mm
- Radius: 12.0" / 305.0mm
UPC: 887802057834 In the Box Ibanez SR5005 Prestige Series 5-String Electric Bass (Oil) Hardshell Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ibanez SR5005 Prestige Series 5-String Electric Bass in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIbanez SR5005OL Specs | Right/Left Handed | Right-Handed | | Number of Strings | 5 | | Body Type | Solid | | Cutaway | Double-Cutaway | | Body Wood | Top: Wenge
Mahogany | | Neck Type | Bolt-On Neck | | Neck Wood | Bubinga, Wenge | | Fingerboard | Wenge | | Number of Frets | 24 | | Type of Frets | Medium | | Scale Length | 34.02" / 864 mm | | Radius | 305 mil | | Nut Width | 45 mm | | Bridge Type | Fixed | | Pickguard | No | | Pickups | Bridge, Neck: Bass Soapbar | | Controls | Tone Control: x 3
Volume Control: x 1
Balance Control: x 1 1 x 2-Way EQ Bypass Switch 1 x 3-Way Mid-Frequency Selector Switch | | Switching | None |
