User Manual for Ibanez SR505 SR Series 5-String Electric Bass Guitar Click to enlarge the picture
Contents of the user manual for the Ibanez SR505 SR Series 5-String Electric
- Product category: Bass Guitars Ibanez
- Brand: Ibanez
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ibanez Bass Guitars
 |
User manual for the Ibanez SR505 SR Series 5-String Electric contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ibanez product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ibanez user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ibanez product will considerably shorten its lifespan!
|
Product description The Ibanez SR Series SR505 is a 5-string electric bass guitar featuring a slim-neck design, a mahogany body, and a brown mahogany finish. The deep cutaway body allows for unencumbered access to the upper regions of the fingerboard, ensuring solid playability.The SR5 five-piece neck couples jatoba with walnut to create stability and strength in a thin design. The warm and clear Bartolini MK-1 split-coil pickups offer a tight bottom end and a wide frequency range with enhanced definition, while the 3-band active EQ provides further tone shaping with dedicated bass, treble, and mid controls.Additionally, a 3-way mid-frequency switch (250 Hz, 450 Hz, or 700 Hz) further expands the mid-range shaping capabilities for a more dynamic and ideal tone. - Bartolini MK1 Pickups
-

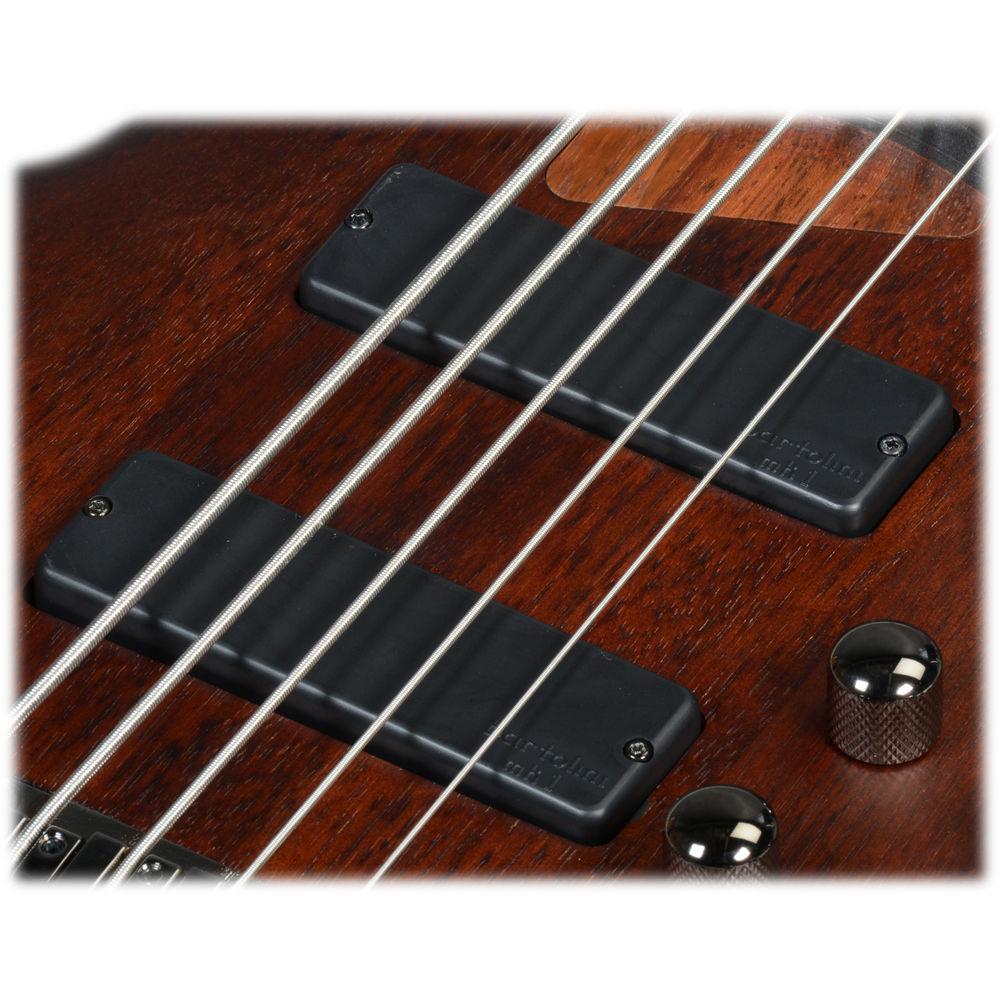

- The MK1 pickups are split coil designs that provide a very wide frequency range and enhanced definition for maximum accuracy. The Neck and Bridge pickups have equal response, like traditional single coils, but without the hum and noise
- General Features
-
- Neck Type: SR5 5pc Jatoba/Walnut
- Body: Mahogany
- Fingerboard: Jatoba fingerboard with abalone oval dot inlay
- Fret: Medium frets
- Number of Frets: 24
- Bridge: Accu-cast B305 bridge (16.5mm string spacing)
- Neck Pickup: Bartolini MK-1 neck pickup (Passive)
- Bridge Pickup: Bartolini MK-1 bridge pickup (Passive)
- Equalizer: Ibanez Custom Electronics 3-band EQ with mid frequency switch
- Hardware Color: Cosmo black
- Neck Dimensions
-
- Scale: 34" / 864mm
- Width at Nut: 1.8" / 45mm
- Width at Last Fret: 2.7" / 68mm
- Thickness at 1st: 0.8" / 19.5mm
- Thickness at 12th: 0.8" / 21.5mm
- Radius: 12" / 305mm
UPC: 606559309412 In the Box Ibanez SR505 SR Series 5-String Electric Bass Guitar (Brown Mahogany) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ibanez SR505 SR Series 5-String Electric Bass Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIbanez SR505BM Specs | Right/Left Handed | Right-Handed | | Number of Strings | 5 | | Body Type | Solid | | Cutaway | Double-Cutaway | | Body Wood | Mahogany | | Neck Type | Bolt-On Neck | | Neck Wood | Jatoba, Walnut | | Fingerboard | Jatoba | | Number of Frets | 24 | | Type of Frets | Medium | | Scale Length | 34.02" / 864 mm | | Radius | 305 mil | | Nut Width | 45 mm | | Bridge Type | Fixed | | Pickguard | No | | Pickups | Bridge, Neck: Bass Soapbar | | Controls | Tone Control: x 3
Volume Control: x 1
Balance Control: x 1 | | Switching | None 3-Way Midrange Selector Switch | | | | Package Weight | 10.0 lb | | Box Dimensions (LxWxH) | 49.0 x 18.5 x 4.0" |
