Product description - Ibanez SR Multi Scale - SRFF805/806

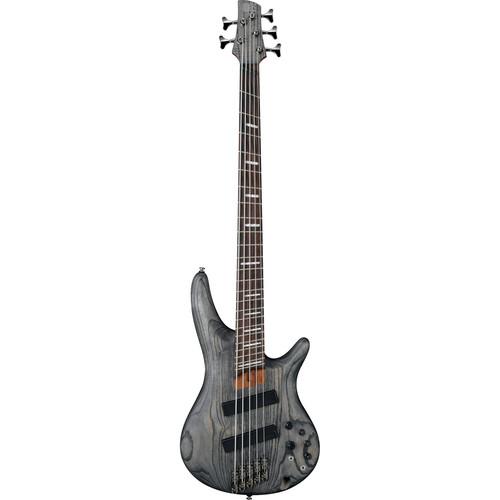

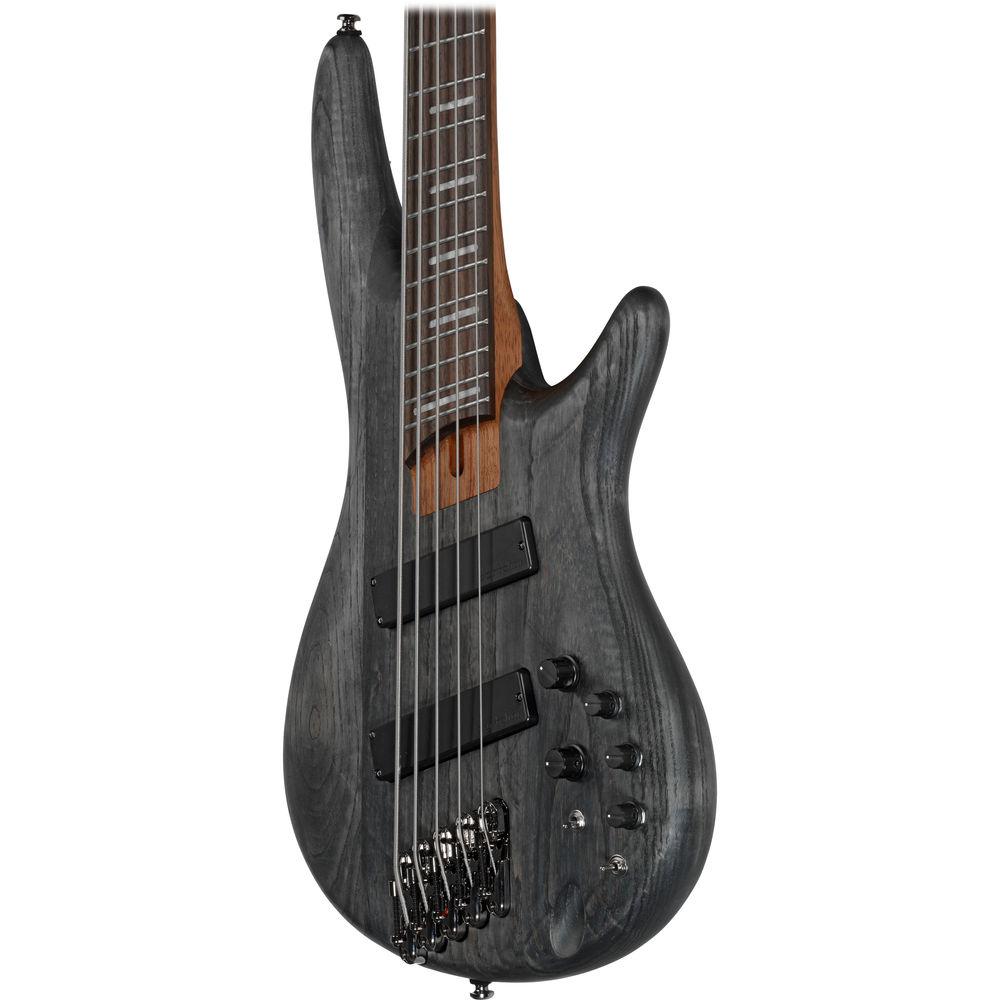

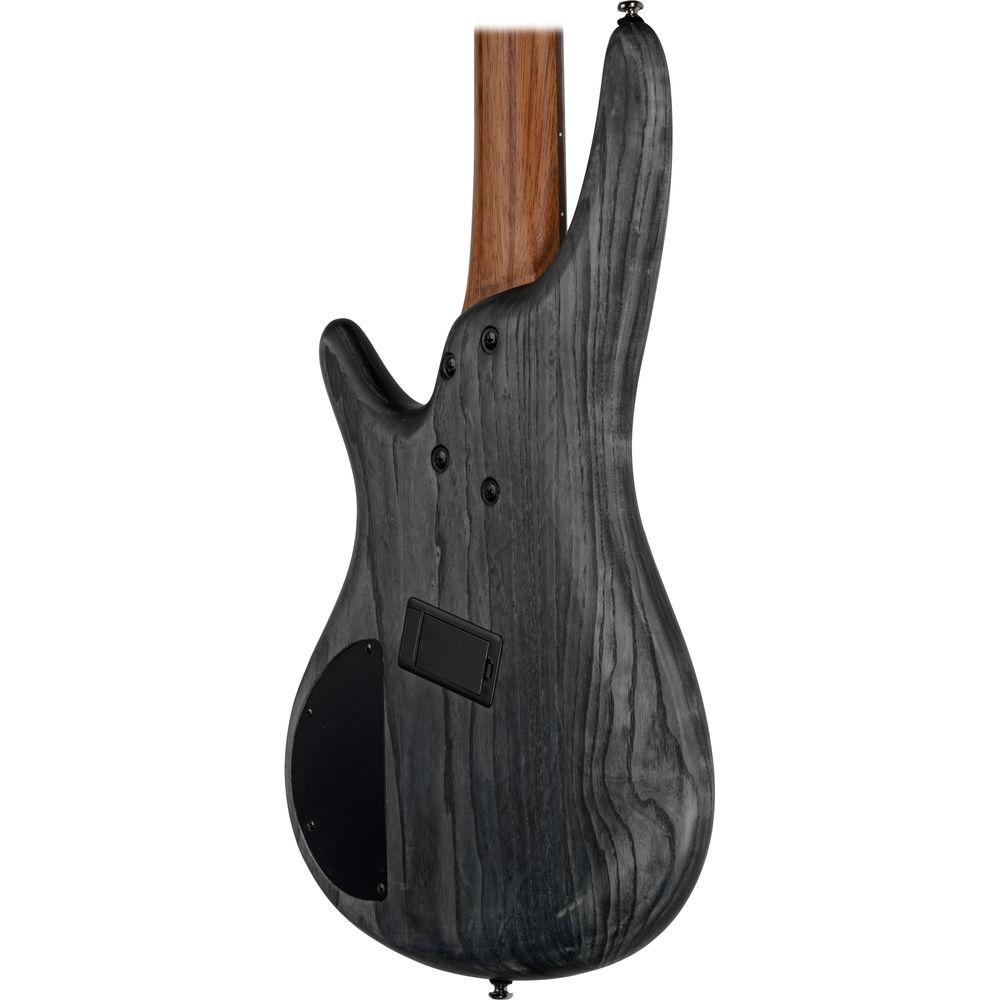

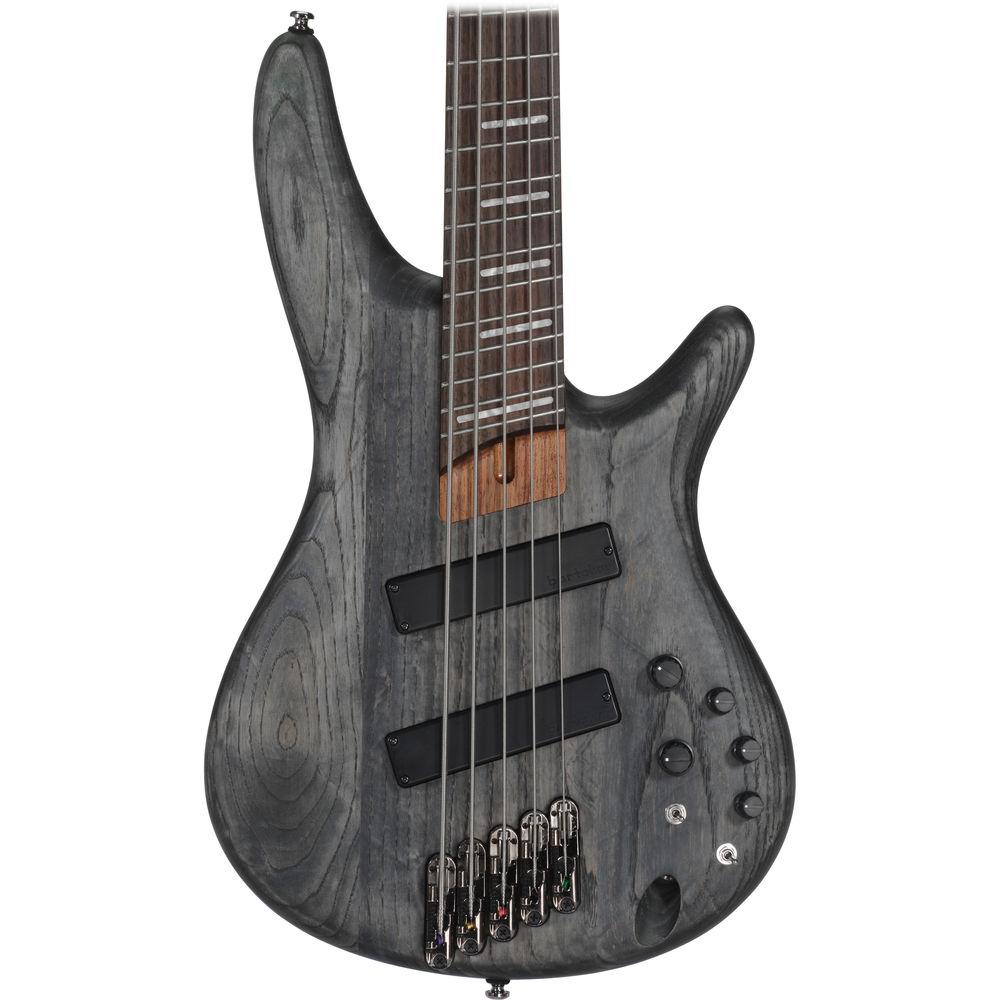

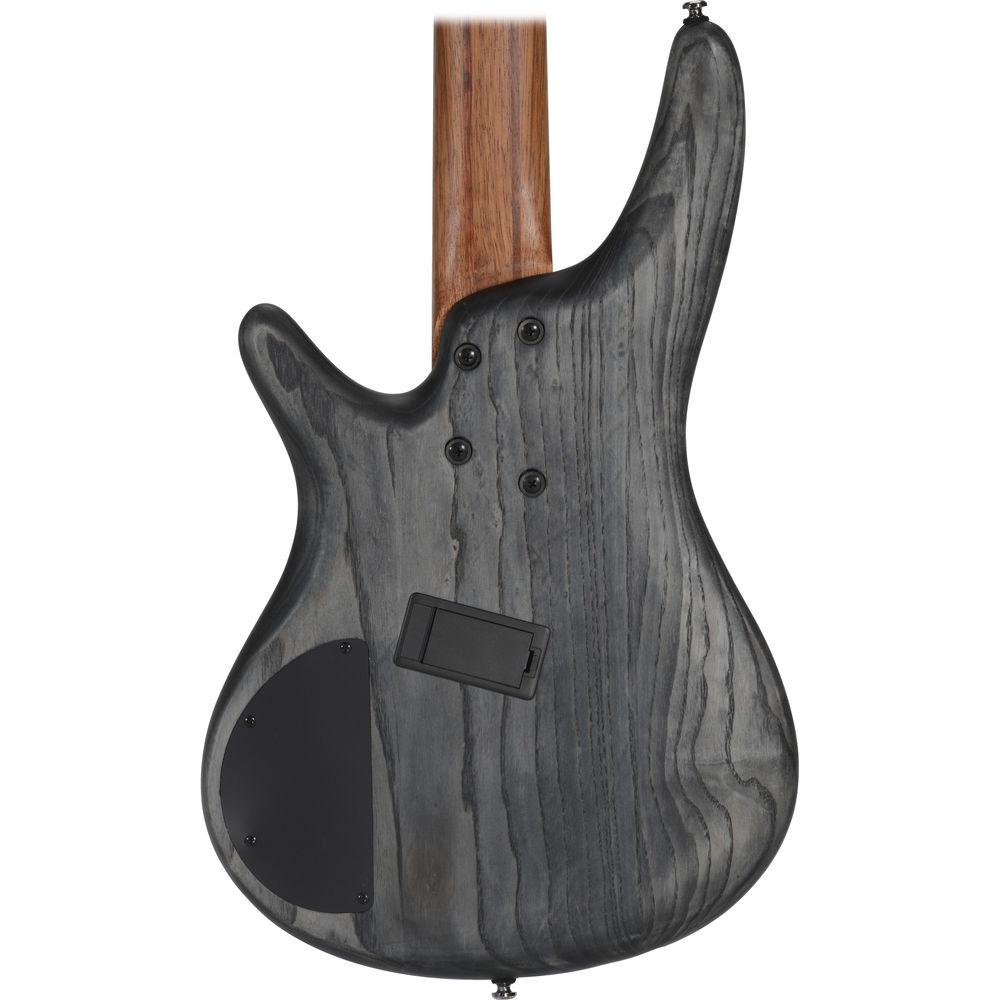

The Ibanez Bass Workshop - SR series SRFF805 from Ibanez is a 5-string electric bass guitar featuring a 5pc jatoba/bubinga neck with fanned frets, an ash body, and a black stained finish. The deep cutaway body allows for unencumbered access to the upper regions of the fingerboard. The SR5 5pc neck couples jatoba with bubinga to create stability and strength in a thin design with increased sustain and superior tone, while the fanned frets help to create a more open tone and provide an enhanced ergonomic playability.
The Bartolini BH-1 pickups provide a wide frequency range with enhanced bottom end and a fuller midrange. Other features include the Mono-rail V bridge, a custom 3-band EQ with bypass, and dedicated volume and balance controls. Additional controls provided include treble, mid, and bass boost/cut, as well as a 3-way mid-frequency selector switch (250, 450, and 700 Hz) and an EQ bypass switch. - Multi-Scale (Fanned) Frets
-

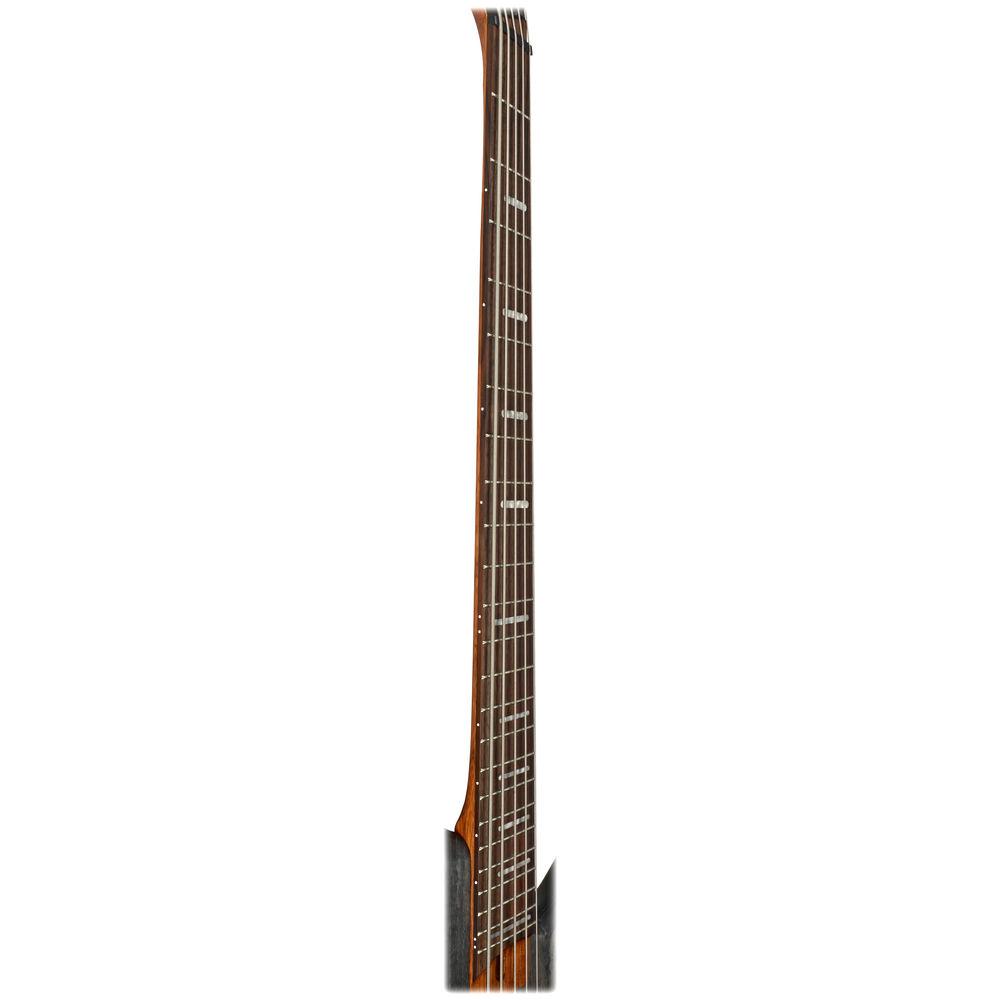

- Equalized tension helps to create a more "alive," open tone. But the design also improves player comfort. The slant of the fanned frets ergonomically coordinates with the way a player's hand angles as it moves up and down the neck, facilitating quick, comfortable playing action
- Ibanez Custom Electronics 3-Band EQ
-
- The custom 3-band EQ with an EQ bypass switch and mid-frequency switch provide precise tonal control, including a switch to choose passive-only operation. When the EQ bypass is activated, the treble tone-control knob becomes the global tone control for the passive circuit

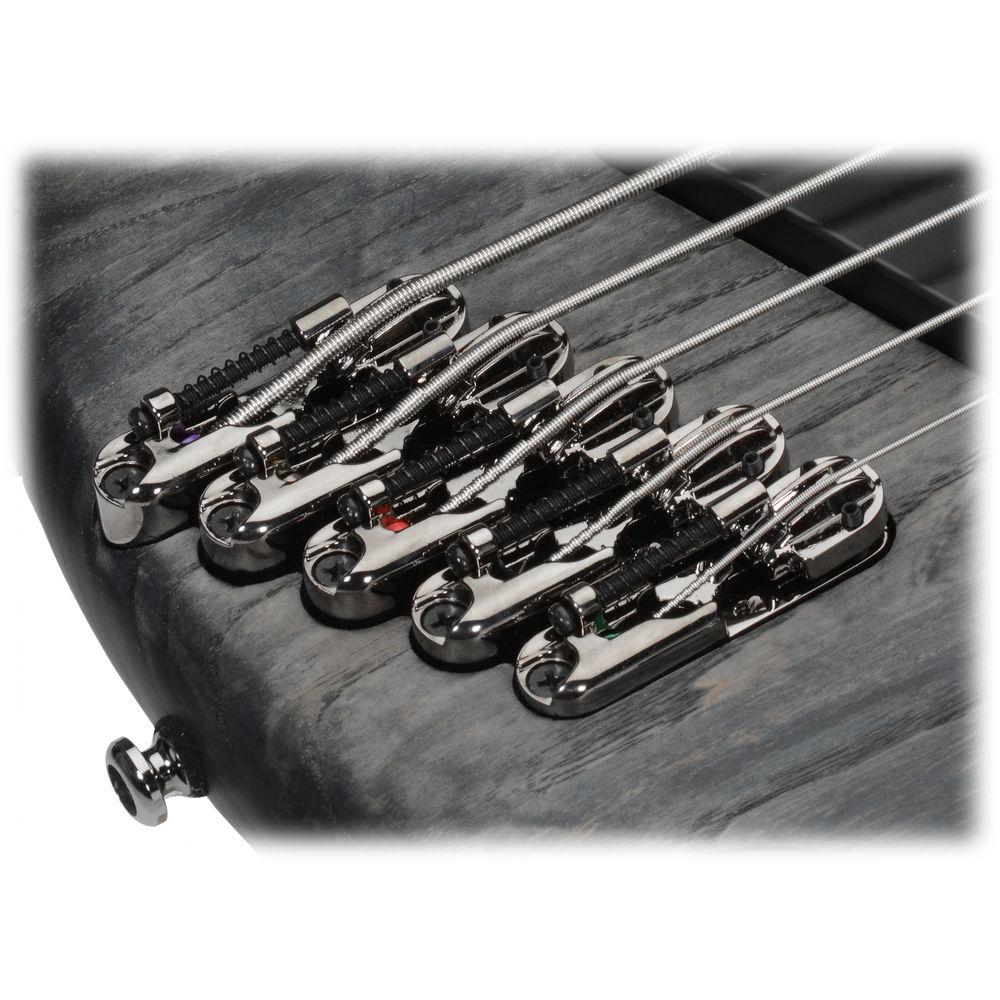

- Mono-Rail V Bridge
-
- The Mono-rail V is the ultimate bridge for bass string isolation. Each bridge is independently and securely locked down to the body for maximum vibration transfer without interference
- Bartolini BH-1 Pickups
-
- Balancing clarity with warmth is the hallmark of the Bartolini BH-1 pickup. Coils with lower resonant frequency provide tighter bottom end and a fuller midrange. The dual-coil style configuration maximizes articulation and a long blade pole piece widens the magnetic field, providing balanced string-to-string pickup response
- General Features
-
- Neck Type: SRFF5 fanned 5pc jatoba / bubinga
- Body: Ash
- Fingerboard: Rosewood fingerboard
- Frets: Fanned 24, medium
- Bridge: Mono-rail V bridge (16.5mm string spacing)
- Neck Pickup: Bartolini BH-1 neck pickup (Passive)
- Bridge Pickup: Bartolini BH-1 bridge pickup (Passive)
- Equalizer: Ibanez Custom Electronics 3-band EQ with EQ bypass switch (passive tone control on treble pot) and mid-frequency switch
- Hardware Color: Cosmo black
- Neck Dimensions
-
- Scale: 35.5" / 901.7mm - 34.0" / 864.0mm
- Width at Nut: 45mm
- Width at Last Fret: 68mm
- Thickness at 1st: 19.5mm
- Thickness at 12th: 23.0mm
- Radius: 305.0mm
UPC: 887802123126 In the Box Ibanez SRFF805 - SR Series Bass Workshop 5-String Electric Bass Guitar (Black Stained) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ibanez SRFF805 - SR Series Bass Workshop 5-String Electric Bass Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIbanez SRFF805BKS Specs | Right/Left Handed | Right-Handed | | Number of Strings | 5 | | Body Type | Solid | | Cutaway | Double-Cutaway | | Body Wood | Wings: Ash | | Neck Type | Bolt-On Neck | | Neck Wood | Bubinga | | Fingerboard | Rosewood | | Number of Frets | 24 | | Type of Frets | Medium | | Scale Length | 35.5" / | | Radius | 12.0" OR | | Nut Width | 45 mm | | Bridge Type | Fixed | | Pickups | Bridge: Humbucker
Neck: Humbucker | | Controls | Tone Control: x 3
Volume Control: x 1
Balance Control: x 1 | | Switching | 3-Way Pickup Selector Switch | | | | Package Weight | 15.15 lb | | Box Dimensions (LxWxH) | 50.2 x 18.0 x 4.5" |
