User Manual for Ibanez SRMS806 SR Workshop Series Multi-Scale 6-String Electric Bass Click to enlarge the picture
Contents of the user manual for the Ibanez SRMS806 SR Workshop Series Multi-Scale
- Product category: Bass Guitars Ibanez
- Brand: Ibanez
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ibanez Bass Guitars
 |
User manual for the Ibanez SRMS806 SR Workshop Series Multi-Scale contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ibanez product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ibanez user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ibanez product will considerably shorten its lifespan!
|

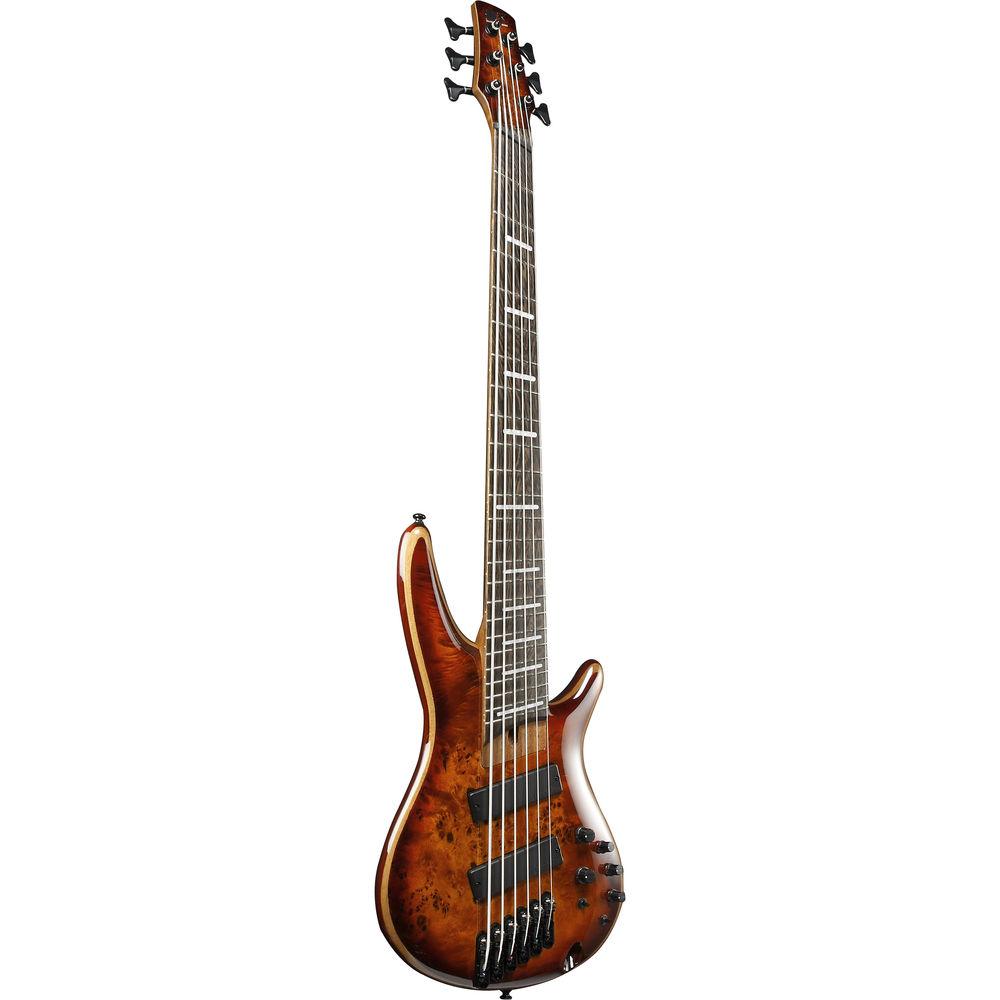

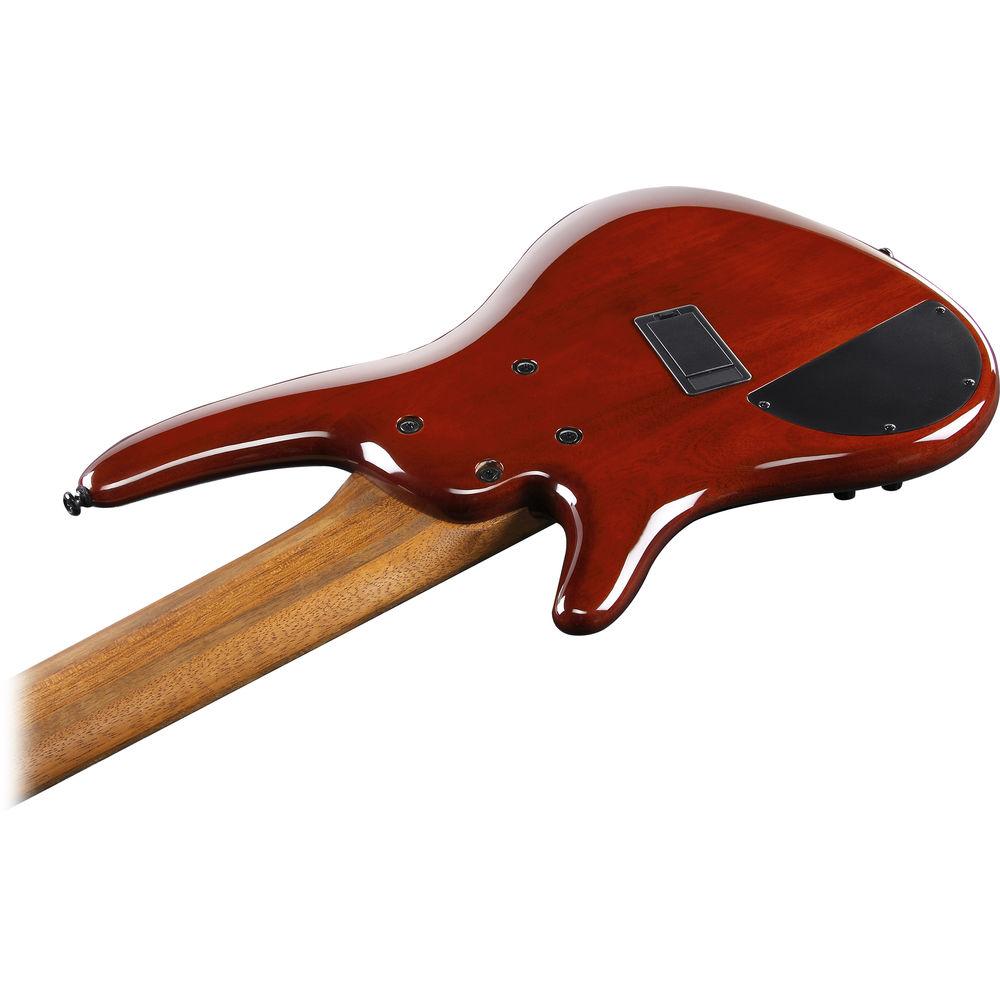

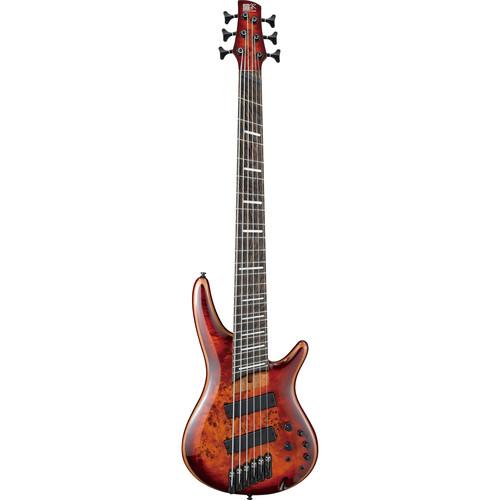

Product description The Ibanez SR Workshop Series SRMS806 is a six-string electric bass guitar featuring a poplar burl top, a walnut and maple body, a double-cutaway design, and a brown topaz burst finish. It sports a five-piece, bolt-on walnut/jatoba neck with a bound panga panga fingerboard, 24 medium frets, and a scale measuring 33.6 to 35.5". This multi-scale design accommodates the different hand positions bassists naturally assume when moving around the neck, resulting in a more comfortable experience. It also helps to engender a more open and alive tone from the instrument.
For electronics, this bass offers two dual-coil Bartolini BH2 pickups, which allow for a wide and balanced frequency range with tight lows, punchy mids, and smooth highs. The pickups are passive, but the bass boasts an active EQ section with a bypass switch and a three-way mid-frequency selector. You'll find controls for treble, mid, and bass boost/cut, as well as volume and balance. Strings are affixed to the body by means of a fixed MR5S bridge. - Multi-Scale
-
- Equalized tension helps to create a more "alive," open tone. But the design also improves player comfort. The slant of the fanned frets ergonomically coordinates with the way a player's hand angles as it moves up and down the neck, facilitating quick, comfortable playing action
- Ibanez Custom Electronics 3-Band EQ
-
- The custom 3-band EQ with an EQ bypass switch and mid-frequency switch provide precise tonal control, including a switch to choose passive-only operation. When the EQ bypass is activated, the treble tone-control knob becomes the global tone control for the passive circuit
- MR5S Bridge
-
- The fixed MR5S bridge facilitates string isolation, as each bridge is independently and securely locked down to the body for maximum vibration transfer without interference. The bridge provides a string spacing of 16.5mm
- Bartolini BH2 Pickups
-
- The Bartolini BH2 pickups provide a tight bottom-end, punchy midrange, and smooth response. Coils with lower resonant frequency provide tighter bottom end and a fuller midrange. The dual-coil style configuration maximizes articulation and a long blade pole piece widens the magnetic field, providing balanced string-to-string pickup response
- General Features
-
- Neck type: SRMS6 multi-scale five-piece jatoba / walnut
- Body: Poplar burl top with walnut and mahogany body
- Fingerboard: Bound panga panga fingerboard with acrylic special inlay
- Frets: 24 medium
- Bridge: MR5S fixed bridge (16.5mm string spacing)
- Neck pickup: Bartolini BH2 neck pickup (Passive)
- Bridge pickup: Bartolini BH2 bridge pickup (Passive)
- Equalizer: Ibanez Custom Electronics 3-band EQ with EQ bypass switch (passive tone control on treble pot) and mid-frequency switch
- Hardware color: Black matte
- Neck Dimensions
-
- Scale: 33.6 to 35.5" / 854.7mm to 901.7mm
- Width at nut: 2.1" / 54.0mm
- Width at last fret: 3.3" / 83.0mm
- Thickness at 1st: 0.8" / 19.5mm
- Thickness at 12th: 0.9" / 23.0mm
- Radius: 400.0mm
In the Box Ibanez SRMS806 SR Workshop Series Multi-Scale 6-String Electric Bass (Brown Topaz Burst) - Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Ibanez SRMS806 SR Workshop Series Multi-Scale 6-String Electric Bass in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIbanez SRMS806 Specs | Right/Left Handed | Right-Handed | | Number of Strings | 6 | | Body Type | Solid | | Cutaway | Double-Cutaway | | Body Wood | Top: Poplar
Mahogany, Walnut | | Neck Type | Bolt-On Neck | | Neck Wood | Jatoba, Walnut | | Fingerboard | Panga Panga | | Number of Frets | 24 | | Type of Frets | Medium | | Scale Length | 34.0" / Multi-Scale: 33.6 to 35.5" | | Radius | 400 mil OR | | Nut Width | 54 mm | | Bridge Type | Fixed | | Pickguard | No | | Pickups | Bridge, Neck: Humbucker | | Controls | Tone Control: x 3
Volume Control: x 1
Balance Control: x 1 EQ Bypass switch and 3-way mid-frequency selector |
