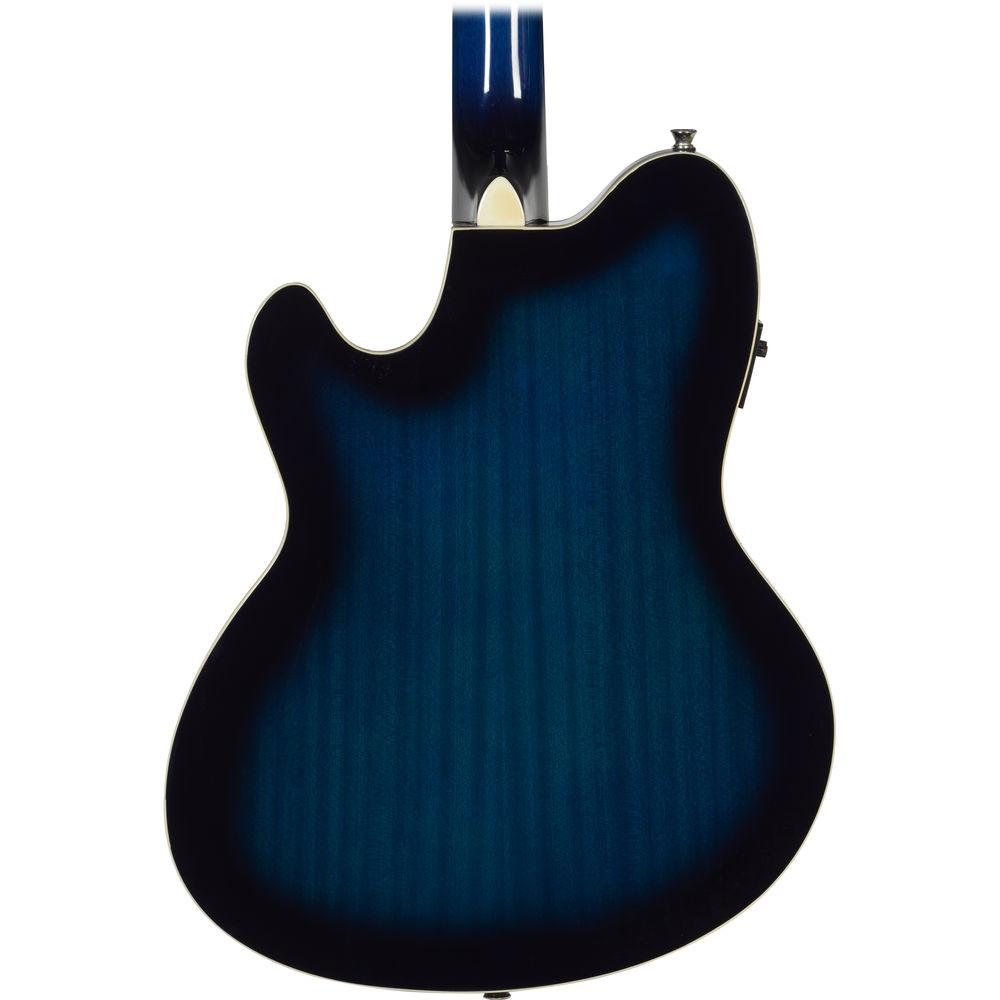

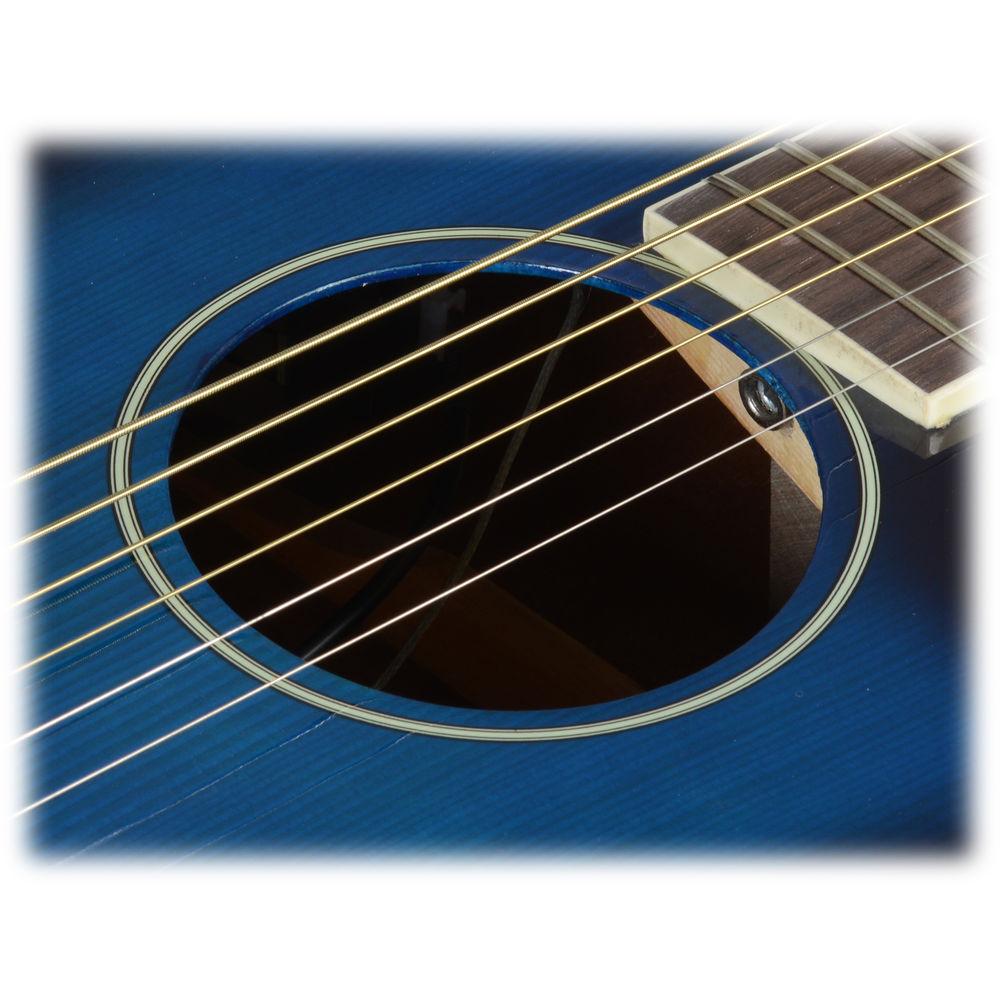

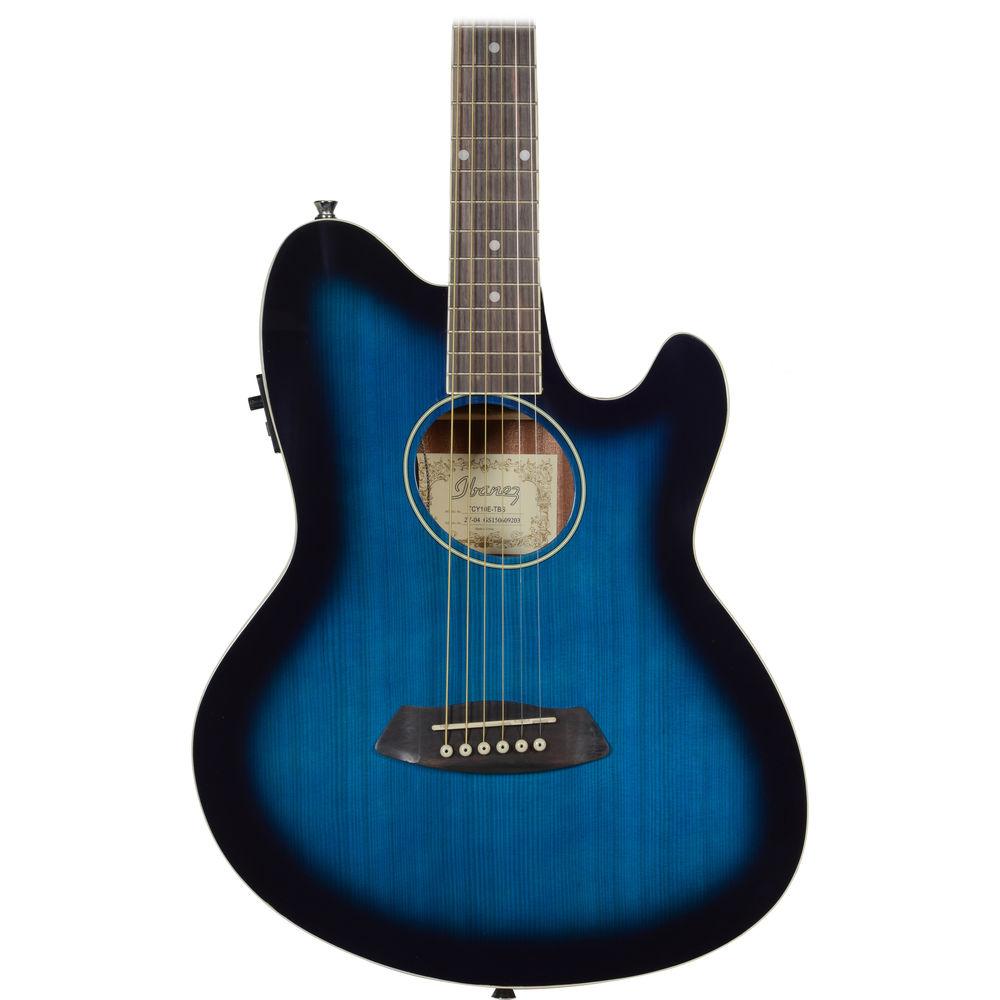

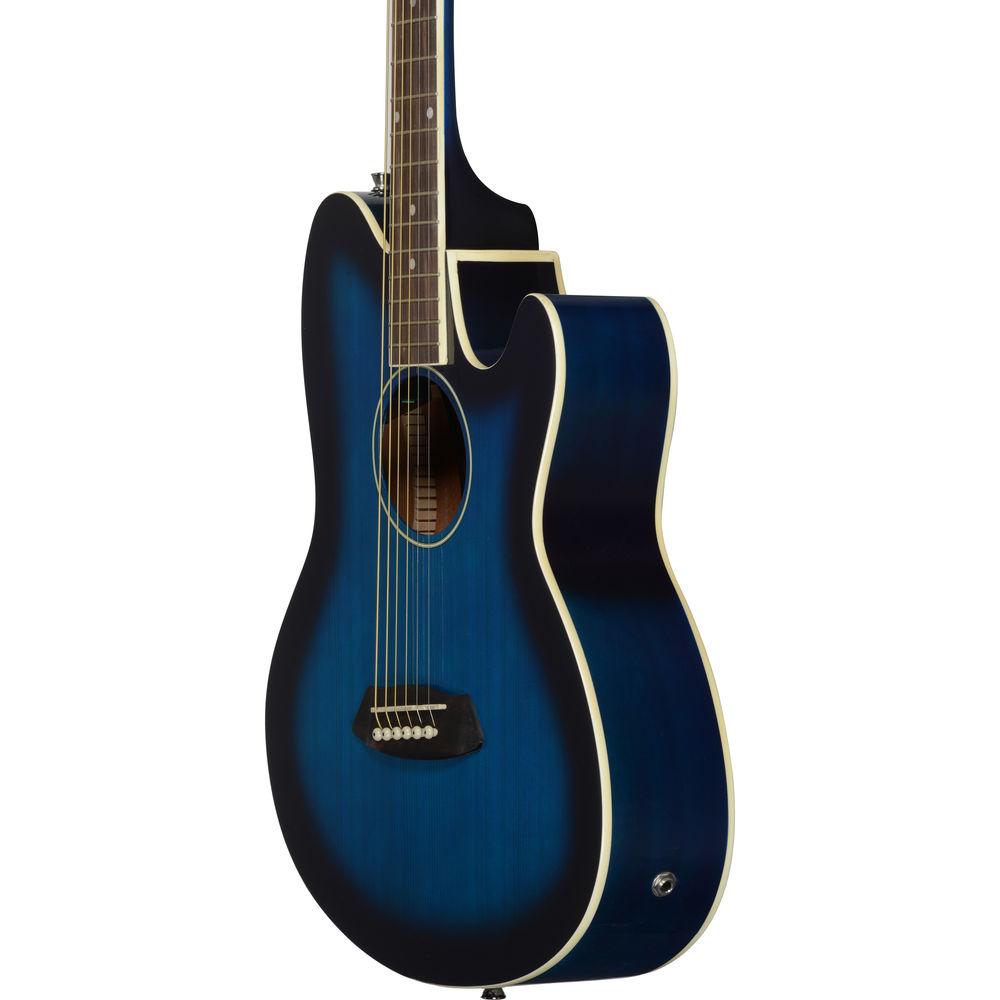

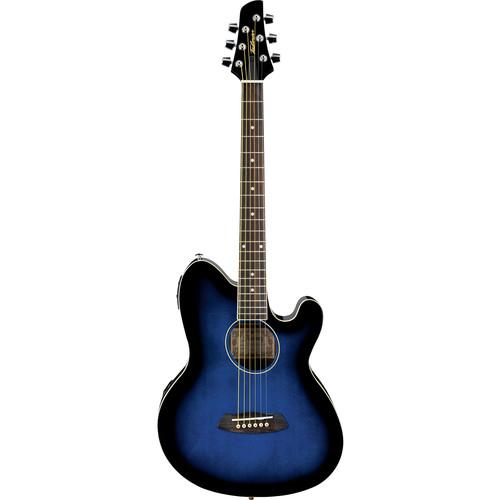

Product description The Talman series TCY10E from Ibanez is an acoustic/electric guitar made from figured ash and mahogany with a transparent blue sunburst high-gloss finish. The double-cutaway Talman body delivers a powerful and balanced acoustic sound with the playability and comfort of an electric. Unplugged or amplified, the instrument is well suited for solo performances or playing with a full band.
The TCY10E is constructed of a high-gloss-finish spruce top, mahogany back, neck, and sides. The fingerboard and bridge are both made of rosewood. Other features include ivory body binding, Ibanez Advantage bridge pins, and chrome die-cast tuners.

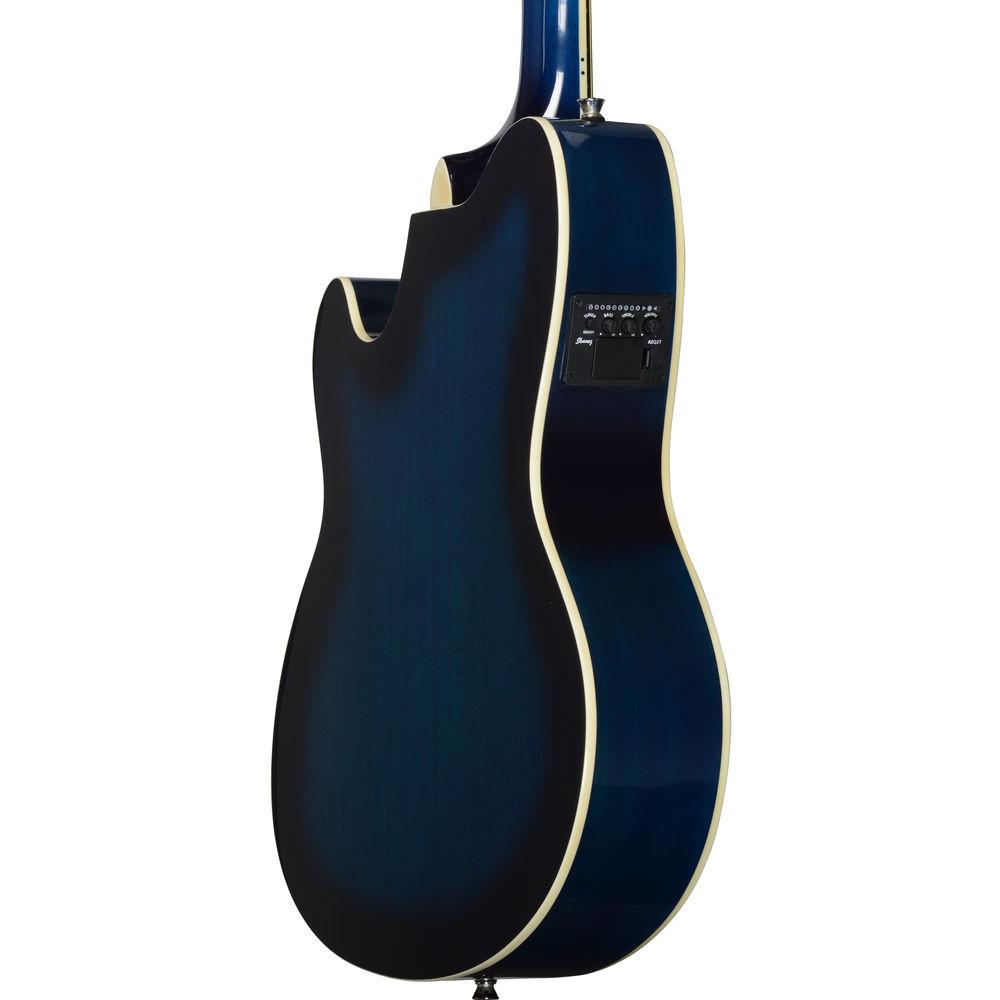

For electronics, the guitar is equipped with an Ibanez undersaddle pickup, an Ibanez AEQ-2T with controls for volume, bass, and treble, and an onboard tuner. The TCY10E ships with a 9V battery and a pack of coated bronze strings. - General Features
-
- Body Shape: Talman double cutaway
- Bracing: X Bracing
- Top: Spruce
- Back and Sides: Mahogany
- Neck: Mahogany

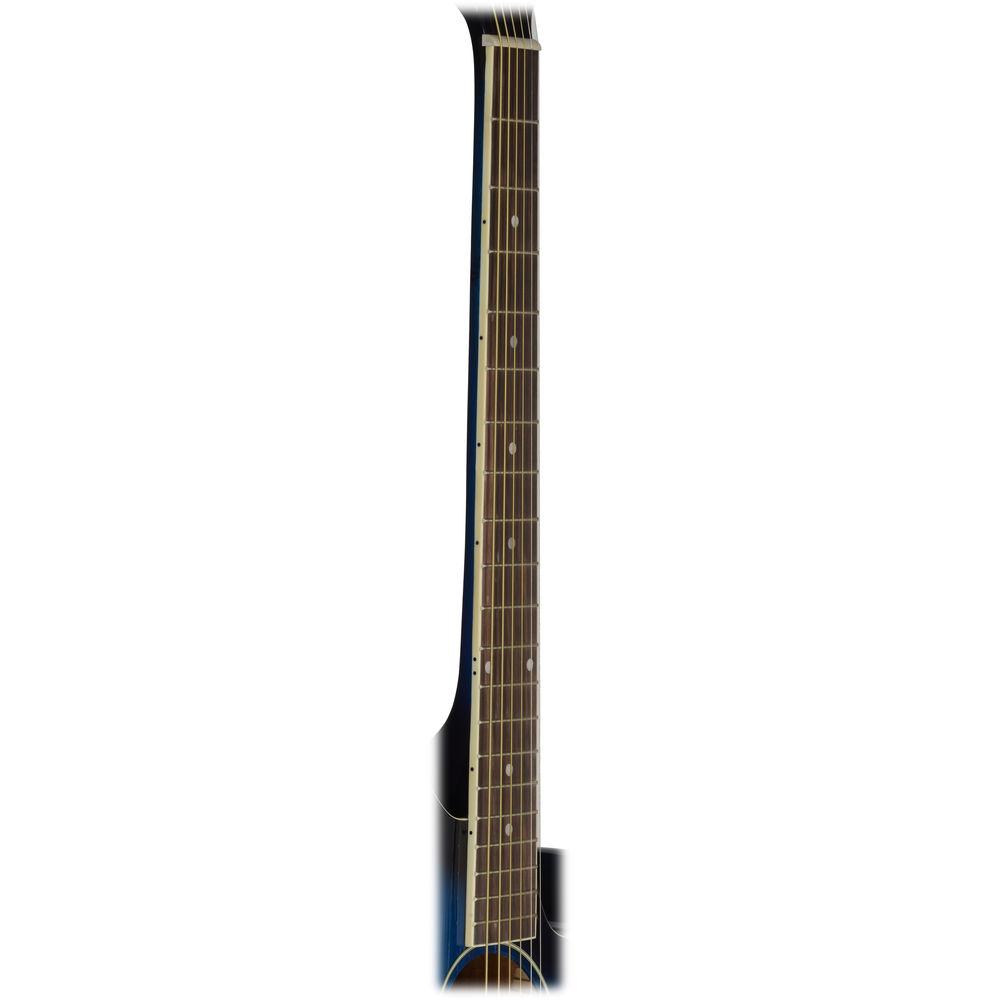

- Fingerboard: Rosewood

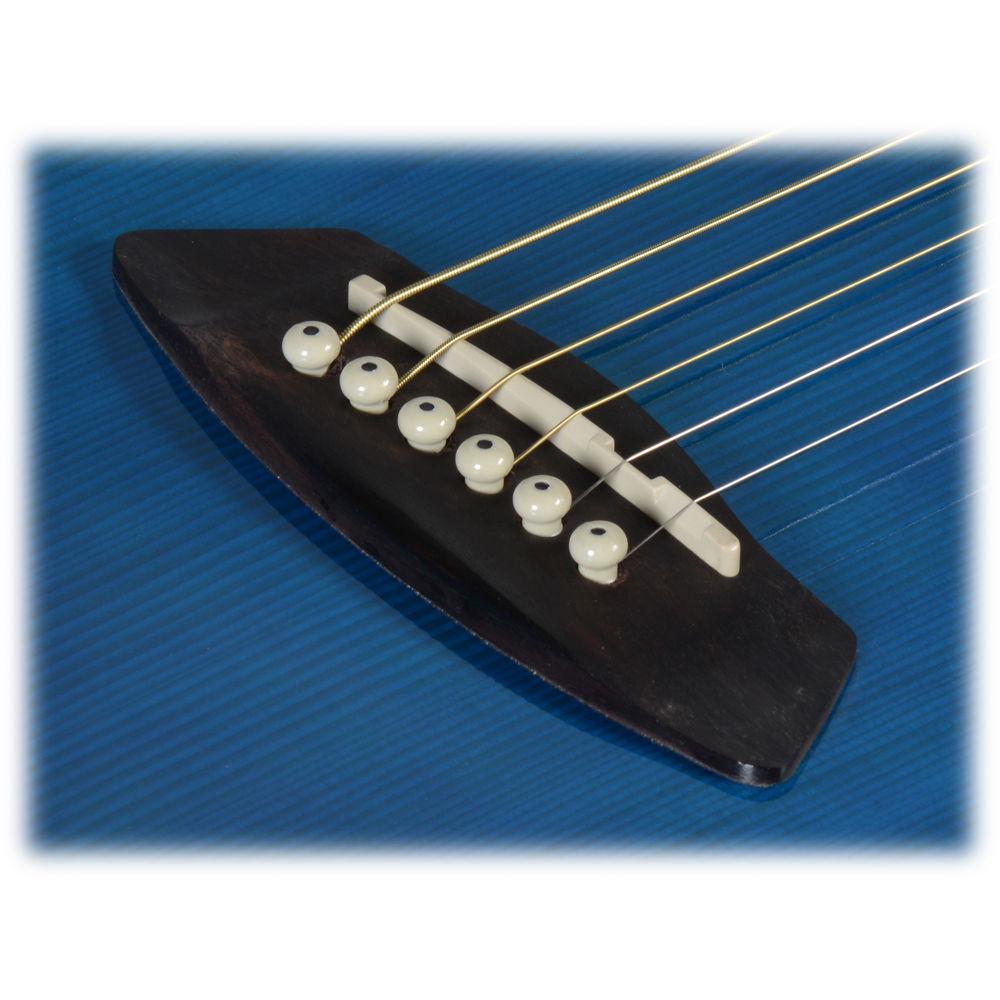

- Bridge: Rosewood
- Body Binding: Ivory

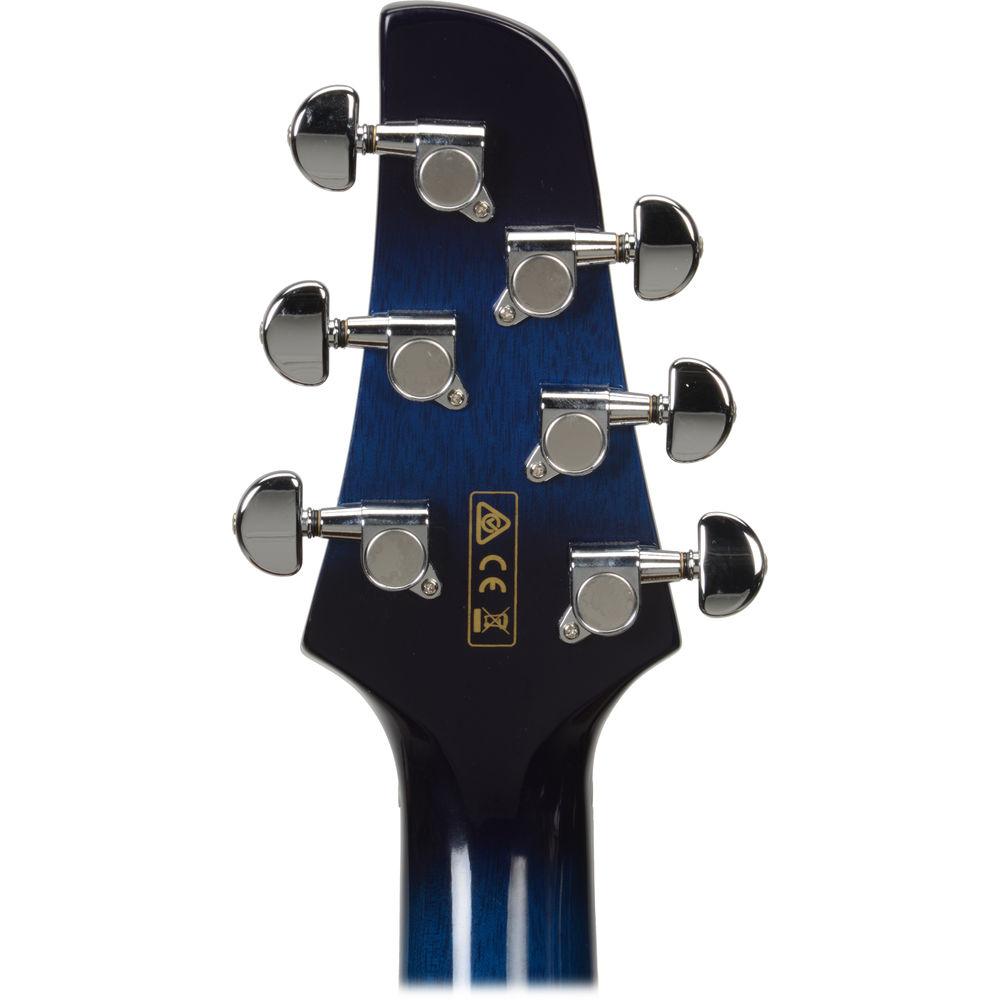

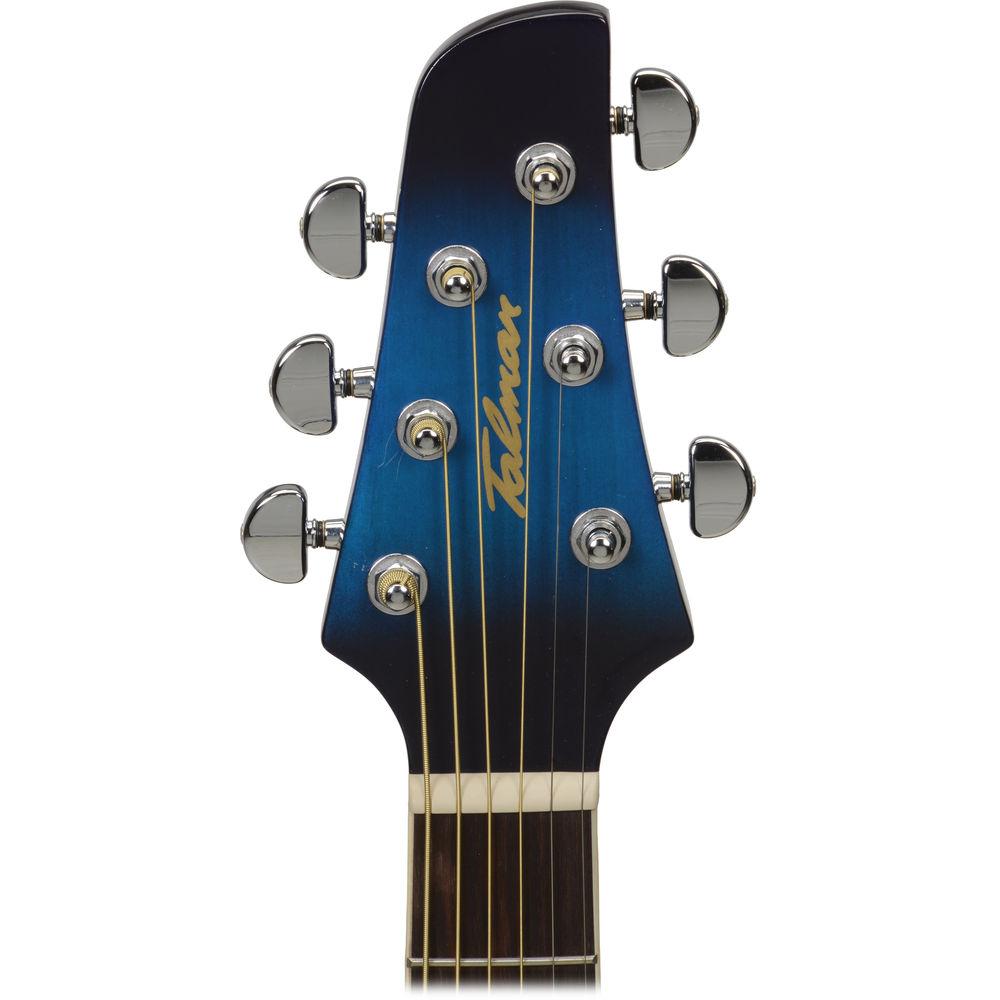

- Tuning Machine: Chrome die-cast tuner
- Number of Frets: 20
- Bridge Pins: Ibanez Advantage
- Strings: Coated bronze strings
- Pickup: Ibanez undersaddle pickup
- Preamp: Ibanez AEQ-2T preamp with onboard tuner
- Output: 1/4" / 6.35mm endpin jack
- Battery: 9V
- Finish Top: Gloss
- Finish Back and Sides: Gloss
- Finish Neck Back: Gloss
- Neck Dimensions
-
- Scale: 25.5" / 648.0mm
- Width at Nut: 1.7" / 42.0mm
- Width at 14th Fret: 2.1" / 54.0mm
- Thickness at 1st: 0.8" / 21.5mm
- Thickness at 7th: 0.9" / 23.5 mm
- Radius: 9.8" / 250.0 mm
- Body Dimensions
-
- Length: 18.0" / 457.2mm
- Width: 14.5" / 368.3mm
- Max Depth: 3.5" / 88.9mm
UPC: 606559519699 In the Box Ibanez TCY10E Talman Series Acoustic/Electric Guitar (Transparent Blue Sunburst) Pack of Coated Bronze Strings 9V Battery Limited 1-Year Warranty on Electronics & Hardware Limited Lifetime Warranty on Materials & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Ibanez TCY10E Talman Series Acoustic Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIbanez TCY10ETBS Specs | Right/Left Handed | Right-Handed | | Number of Strings | 6 | | Cutaway | Double-Cutaway | | Body Wood | Top: Spruce
Back: Mahogany
Sides: Mahogany | | Neck Type | Set Neck | | Neck Wood | Mahogany | | Fingerboard | Rosewood | | Number of Frets | 20 | | Scale Length | 25.5" / | | Radius | 9.8" OR | | Nut Width | 42 mm | | Bridge Type | Rosewood | | Pickguard | Yes | | Pickups | Undersaddle | | Controls | Tone Control: x 2
Volume Control: x 1 | | | | Package Weight | 6.0 lb | | Box Dimensions (LxWxH) | 41.0 x 18.0 x 5.0" |
