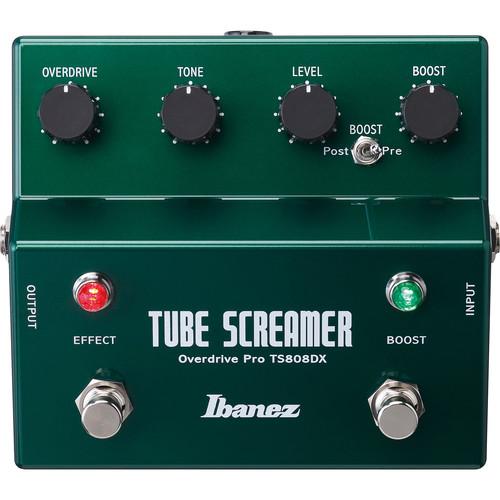

User Manual for Ibanez TS808DX - Tube Screamer w Booster Click to enlarge the picture
Contents of the user manual for the Ibanez TS808DX - Tube Screamer w
- Product category: Effects Pedals Ibanez
- Brand: Ibanez
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ibanez Effects Pedals
|
User manual for the Ibanez TS808DX - Tube Screamer w contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ibanez product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ibanez user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ibanez product will considerably shorten its lifespan!
|
Product description The TS808DX - Tube Screamer w/Booster from Ibanez is a guitar effect overdrive pedal designed to emulate warm, natural tube overdrive. It has uses in many genres and environments, whether playing country or metal, in a bedroom studio or on stage in an arena, this pedal has something to offer. It features the JRC4558D IC chip for that signature soft-clipping sound and a boost circuit that is capable of adding up to 20 dB at the tap of a switch. The pedal also incorporates two individual true bypass switches for total independent control, allowing the Overdrive and Booster to be used separately or in conjunction with each other. A toggle switch places the boost either pre or post the overdrive section and a rear-panel switch offers the option of 9-volt or 18-volt operation. It is powered by a single 9V battery or an optional 9V AC adapter (Ibanez AC509 sold separately). - 1/4" input and output jacks
- Delivers warm, natural tube overdrive sound
- LED indicator shows status of effect and the battery condition
- Works with 9V battery or 9V AC power adapter (Ibanez AC509 sold separately)
- Rugged metal construction assures durability
UPC: 887802015117 In the Box Ibanez TS808DX - Tube Screamer w/Booster Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ibanez TS808DX - Tube Screamer w Booster in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIbanez TS808DX Specs | Controls | Tone, overdrive, level, boost (post & pre) | | Input/Outputs | 1/4" (6.3 mm) jacks | | Input Impedance | 500 kOhms | | Output Impedance | 10 kOhms | | Maximum Output Level | 0 dBm | | Maximum Gain | +30 dB | | Equivalent Input Noise | -100 dBm (IHF-A) | | Power Supply | One 9V battery or external 9V AC adapter (Ibanez AC509 sold separately) | | Dimensions (D x W x H) | 4.7 x 5.4 x 2.0" (12 x 14 x 5.1 cm) | | Weight | 1.8 lb (830 g) including battery | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 6.2 x 5.8 x 2.3" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 46 owners. Add your rating and experience with the product.
