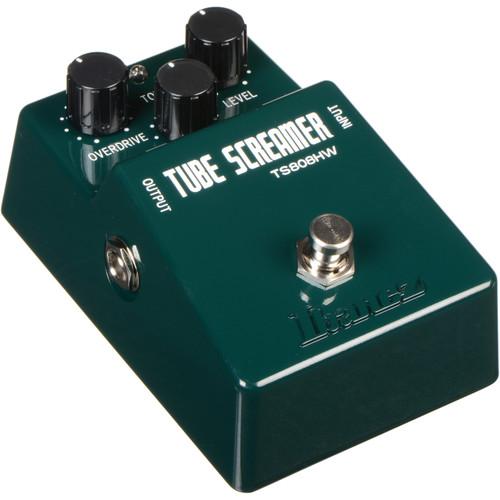

User Manual for Ibanez TS808HW Hand-Wired Tube Screamer Overdrive Pedal Click to enlarge the picture
Contents of the user manual for the Ibanez TS808HW Hand-Wired Tube Screamer Overdrive
- Product category: Effects Pedals Ibanez
- Brand: Ibanez
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ibanez Effects Pedals
|
User manual for the Ibanez TS808HW Hand-Wired Tube Screamer Overdrive contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ibanez product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ibanez user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ibanez product will considerably shorten its lifespan!
|
Product description The Ibanez TS808HW is an iteration of their classic overdrive pedal, the Tube Screamer. Chances are, if your interest in playing the electric guitar has extended you into the world of stompboxes, you have already heard of the Tube Screamer—if not heard it outright. One can describe its timbre as a warm overdrive that's versatile enough to be found on the pedalboards of rock, blues, country, and jazz musicians alike.
This particular version of the Tube Screamer is completely hand-wired and utilizes the same select JRC4558D chips found in the original TS808, as well as high-end Japanese Mogami AWG21 OFC cabling, and it comes encased in a special heavy-duty metal enclosure to ensure durability. It's also equipped with true bypass, ensuring no introduction of signal loss when using this pedal in your signal chain. Like the original TS808, the TS808HW delivers tonal, level, and volume control over your overdrive sound, allowing you to engender textures ranging from the buzzard-like grit of John Scofield to the singular wailing and deftness of Stevie Ray Vaughan.
Available for a limited production run, the hand-wired TS808HW Tube Screamer pedal can be powered by one 9V battery or an optional AC power adapter. UPC: 606559533251 In the Box Ibanez TS808HW Hand-Wired Tube Screamer Overdrive Pedal Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ibanez TS808HW Hand-Wired Tube Screamer Overdrive Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIbanez TS808HW Specs | Controls | Overdrive knob
Tone knob
Level knob
Bypass footswitch | | Audio Connections | 1 x 1/4" instrument input, phone type
1 x 1/4" instrument output, phone type | | Impedance | Input: 500 kOhms
Output: 10 kOhms | | Maximum Output Level | 0 dBm | | Maximum Gain | +30 dB | | Equivalent Input Noise | -100 dBm (IHF-A) | | Power Supply | 1 x 9 V battery or external, optional AC adapter | | Dimensions (D x W x H) | 5.0 x 3.1 x 2.1" / 126.0 x 80.0 x 54.1 mm | | Weight | 23.3 oz / 660.0 g, including battery | | | | Package Weight | 4.5 lb | | Box Dimensions (LxWxH) | 8.8 x 8.1 x 3.2" |
