User Manual for Ibanez WD7 Weeping Demon Wah Pedal Click to enlarge the picture
Contents of the user manual for the Ibanez WD7 Weeping Demon Wah Pedal
- Product category: Effects Pedals Ibanez
- Brand: Ibanez
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ibanez Effects Pedals
 |
User manual for the Ibanez WD7 Weeping Demon Wah Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ibanez product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ibanez user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ibanez product will considerably shorten its lifespan!
|

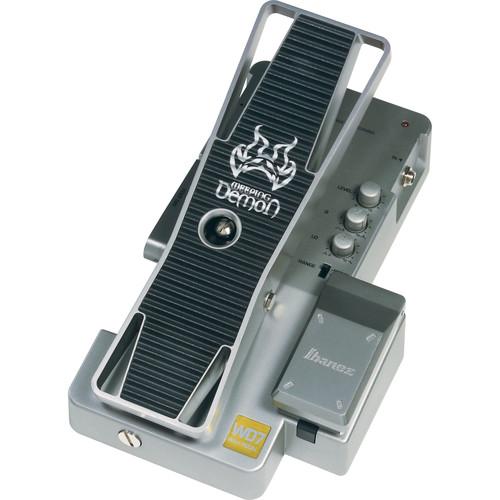

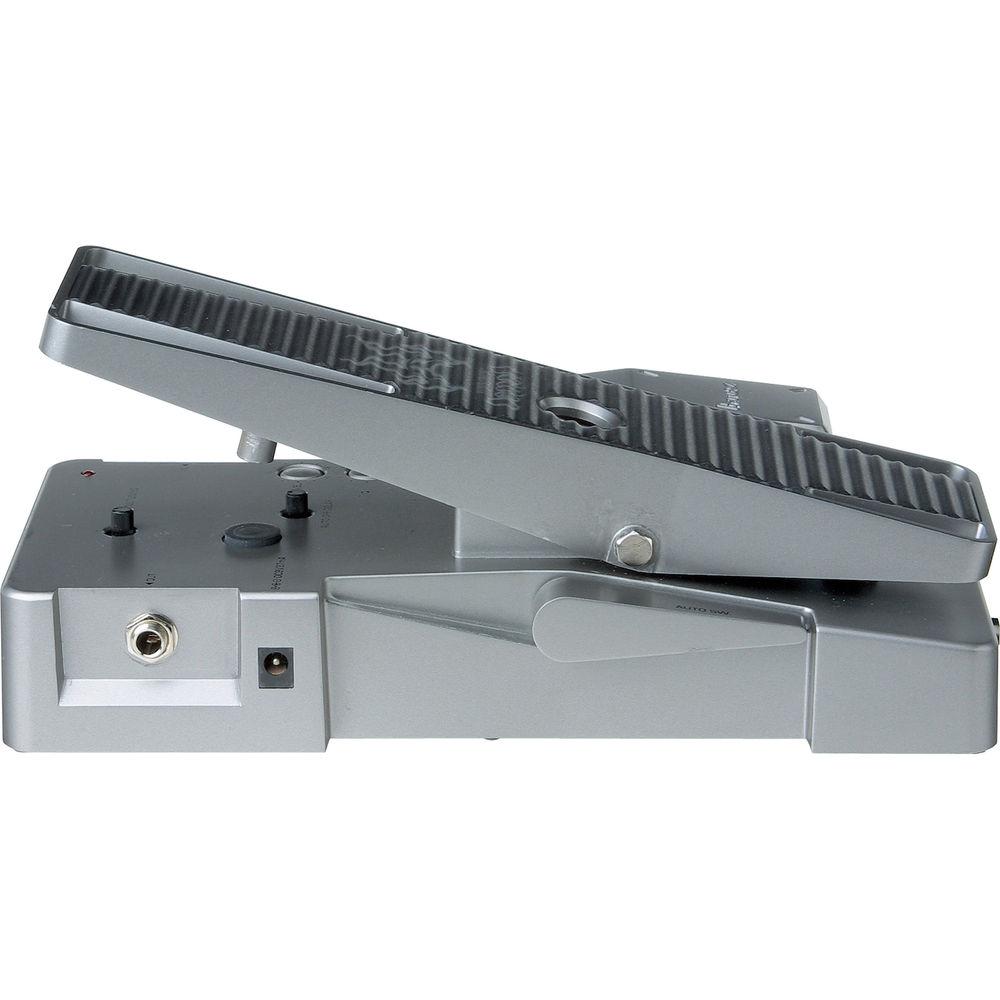

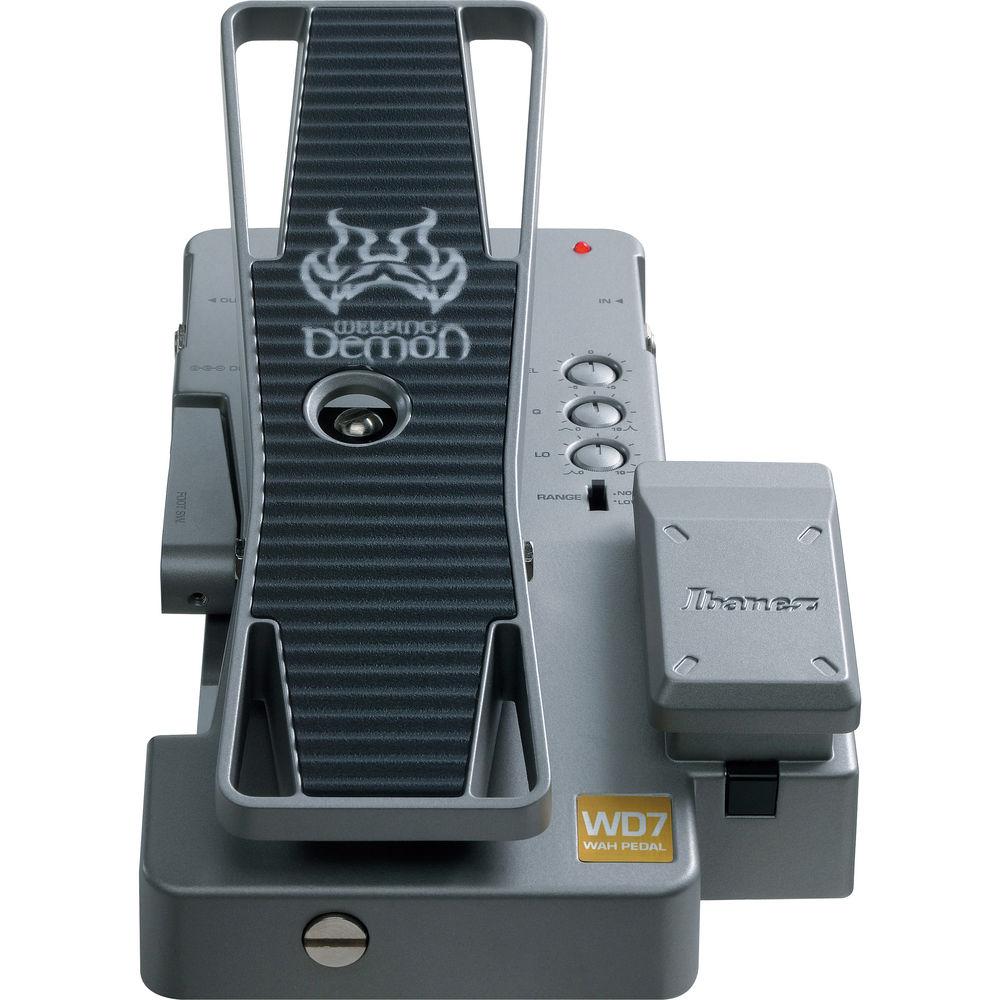

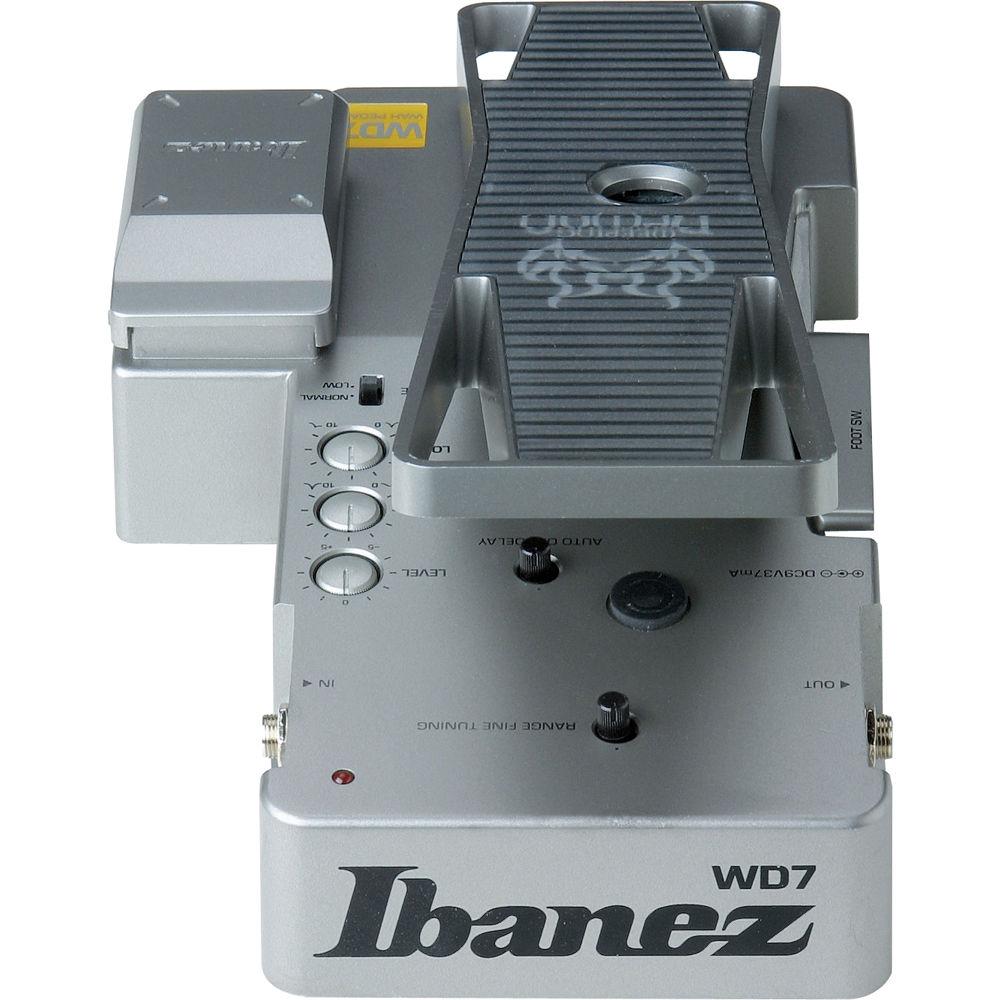

Product description The WD7 Weeping Demon is a versatile wah pedal by Ibanez with a broad array of controls, enabling its use in many playing styles and situations. It features spring and normal footboard action, an independent footswitch, auto-off delay, frequency range selector, frequency range fine tuning, level control, and adjustable Q and low-pass filter (called LO on the pedal). Both the pedal friction and spring tension are also adjustable. The pedal is powered by one 9V battery or an optional AC adapter (sold separately). The WD7 also features an LED indicator that alerts you when the effect is on and serves as a battery check to inform you when to change the battery. The three "Tone-Lok" knobs can be pushed down to rest flush with the pedal's body, which will help maintain their settings and protect them during transportation. The circuitry is true bypass, so that when the effect is off your tone remains uncompromised. - Auto-Off Delay
- In the auto-switch mode, you can set the effect-off either on standard instant-off when the pedal is returned to the full upright position or a delayed-off by turning the control clockwise
- Mode Lever
- Changes the mode so the effect can be turned on and off with the footswitch or with the auto switch (effect turns off when pedal is in the upright position)
- Footswitch
- Allows on-off switching of the effect independent of the footboard when the mode lever is in the footswitch mode
- Spring Tension
- Adjusts the tension of the footboard return-spring in the auto switch mode
- Pedal Friction
- Adjusts the friction of the footboard when in footswitch mode.
- Range Switch and Fine Tuning
- Range switch for switching between low and high frequency response. High is a conventional wah, ideal for guitar, while low is better suited for bass or seven-string guitars
The range fine tuning allows fine tuning within either the low or high range switch settings - Tone-Lok Knobs
- The level, Q, and LO controls are all Tone-Lok knobs, which can be pushed down to lock into a position flush with the pedal's body. This will help maintain the knobs' settings and provides additional safety during transportation.
UPC: 606559314300 In the Box Ibanez WD7 Weeping Demon Wah Pedal Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ibanez WD7 Weeping Demon Wah Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIbanez WD7 Specs | Input/Output | 1/4" TS jacks | | Controls | Level, auto-off delay, footswitch, mode lever, Q, LO, range switch, range fine tuning, | | Adjustments | Spring tension and pedal friction | | Power Supply | 1x 9 V battery or external AC adapter | | Current Consumption | 35 mA maximum | | Dimensions (W x D x H) | 6.1 x 10 x 4.6" (154 x 259 x 117 mm) | | Weight with Battery | 3.5 lbs (1600 g) | | | | Package Weight | 3.9 lb | | Box Dimensions (LxWxH) | 10.9 x 6.3 x 3.5" |
