User Manual for Ice 77mm Circular Polarizer Filter Click to enlarge the picture
Contents of the user manual for the Ice 77mm Circular Polarizer Filter
- Product category: Polarizing Ice
- Brand: Ice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ice Polarizing
|
User manual for the Ice 77mm Circular Polarizer Filter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ice product will considerably shorten its lifespan!
|

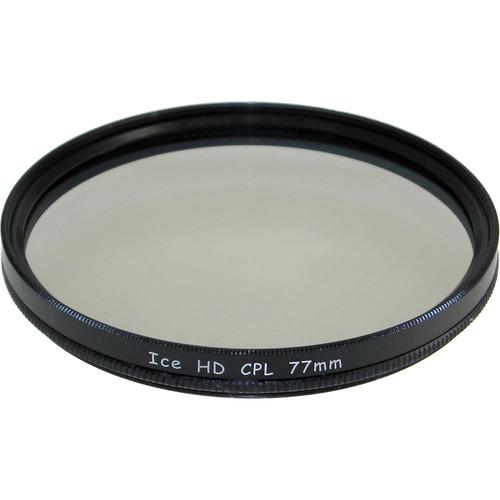

Product description The Ice 77mm Circular Polarizer Filter helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface. The light from the sun naturally becomes partially polarized due to reflecting off electrons in air molecules, causing the light to scatter into what appears as haze. A polarizing filter arranges and filters this directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of this light. This results in a noticeable reduction of glare and reflections from non-metallic surfaces and an increase in the saturation of skies and foliage.
A circular polarizer only differs from a linear polarizer in that it contains a quarter wave plane in addition to the linear polarizing filter. The addition of this quarter wave plane is to circularly polarize the linearly polarized light for the use of auto focus and exposure functions. Due to how the light is broken down and filtered with a linear polarizer, auto focus and exposure accuracy become skewed during use. When the light becomes circularly polarized, it permits the use of these functions.
This filter is constructed from optical glass for clarity as well as color fidelity and features an aluminum-alloy filter ring that can be rotated in order to adjust the intensity of the polarization effect. To prevent internal ghosting and reflections, each glass surface includes eight layers of anti-reflection coating. These coatings also offer greater protection to the filter substrate and helps it to stay clean for longer than with uncoated filters. - Helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface.
- Polarizing filters arrange, and filter, directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of the light.
- Clears up haze in distant landscapes and provides more saturated, vivid colors.
- Strongest effect when used at a 90° angle from the sun.
- Circular polarizers are ideal for use with digital cameras and autofocus lenses where a linear polarizer will often disrupt auto exposure and focus features.
- 2x filter factor reduces exposure by 1 stop.
- Multicoated to prevent internal ghosting and reflections.
- Aluminum-alloy filter ring for durability while remaining lightweight.
- Filter ring can be rotated to adjust the intensity of the polarization effect.
- 77mm front filter threads allow for use with other filters.
- Top knurling to provide a more textured grip when mounting or removing it from a lens.
- Constructed from optical glass for clarity and color fidelity.
- Plastic filter case for storage and transport.
UPC: 723905228835 In the Box Ice 77mm Circular Polarizer Filter Plastic Filter Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ice 77mm Circular Polarizer Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIce ICE-HDCPL77 Specs | Filter Type | Circular Polarizer | | Filter Factor | 2 (1 Stop) | | Shape | Circle | | Circular Size | 77 mm | | Rotating | Yes | | Front Accessory Thread / Bayonet | 77 mm | | Filter Material | Glass | | Coatings | Multi-Coating | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 4.0 x 4.0 x 0.75" |
Rating20% users recommend this product to others. And what about you?
This product has already been rated by 59 owners. Add your rating and experience with the product.
