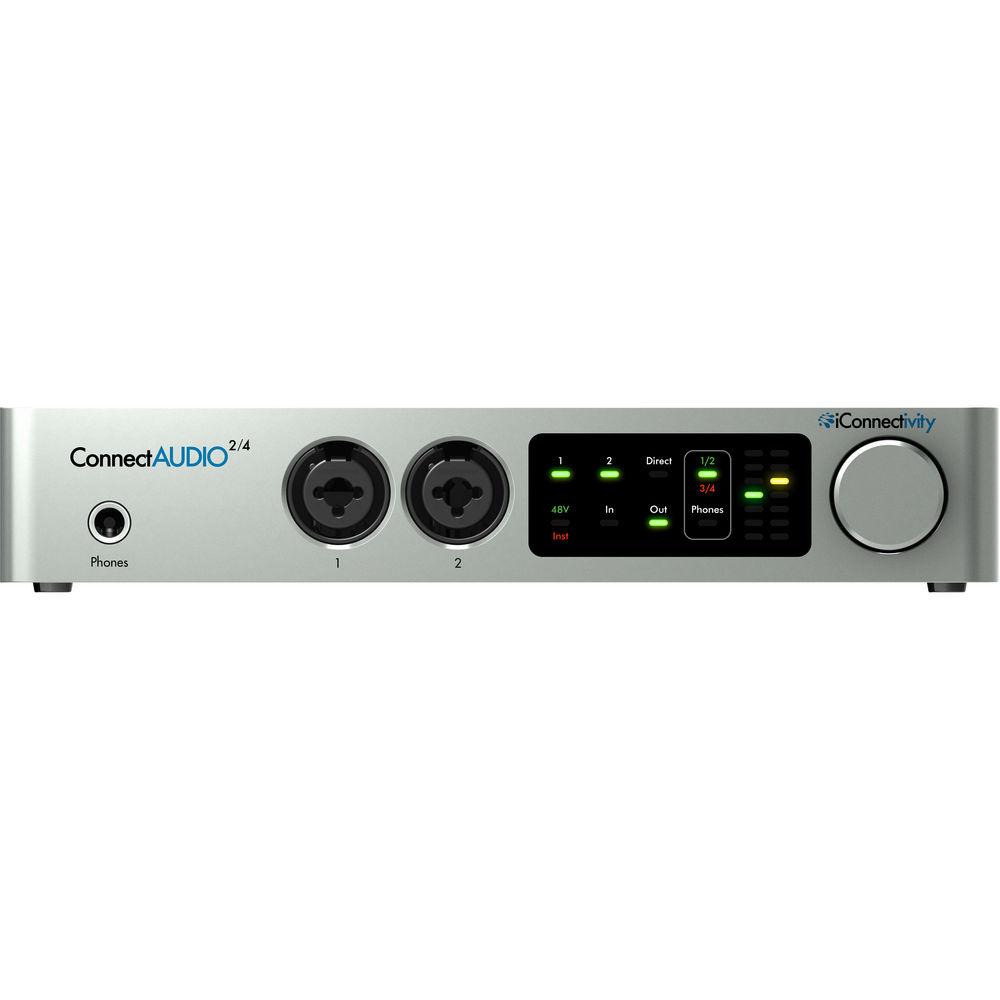

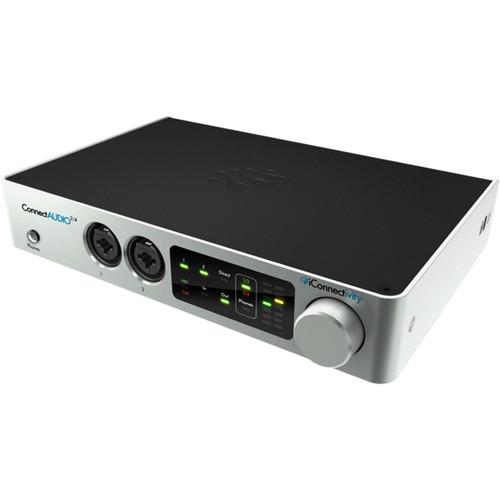

Product description The ConnectAUDIO2/4 from iConnectivity is a two-input, four-output audio and MIDI interface for musicians and DJs. It features two combination microphone/line/instrument inputs, two 1/4" balanced outputs, and an independent headphone output, which is capable of creating a separate headphone mix. A configurable audio paths allow for routing, combining, and monitoring signals as needed, while MIDI I/O connectors allow for the connection of any MIDI device including keyboards, drum machines, and more.
The ConnectAUDIO2/4 utilizes a fully capacitive touch display and control surface for all functions, with full metering and no control software needed. The unit is bus-powered and provides high-resolution audio recording and playback, with 24-bit / 96 kHz AD/DA conversion. The ConnectAUDIO2/4 interface includes Ableton Live Lite, a selection of loops and samples from Big Fish Audio, and a USB cable. -
- High-Resolution Audio: up to 24-bit / 96 kHz AD/DA conversion
- Direct Monitoring capability allows you to monitor input sources without computer latency
- Interactive touch-panel display for touch-control of all interface functionality
- USB audio and MIDI class-compliant
- USB bus-powered
- Two XLR - 1/4" combination mic/line/instrument analog inputs, with +48V phantom power toggle and line/instrument mode selection
- Two 1/4" TRS balanced analog outputs
- One 1/4" stereo headphone output with independent mix control
- MIDI In/Out: 2 x 5-pin DIN
- +48V phantom power for condenser microphones
UPC: 835727000251 In the Box iConnectivity ConnectAudio2/4 - USB Audio and MIDI Interface USB Cable Ableton Live Lite Big Fish Audio Loop and Sample Library Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the iConnectivity ConnectAudio2 4 - USB Audio and MIDI Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

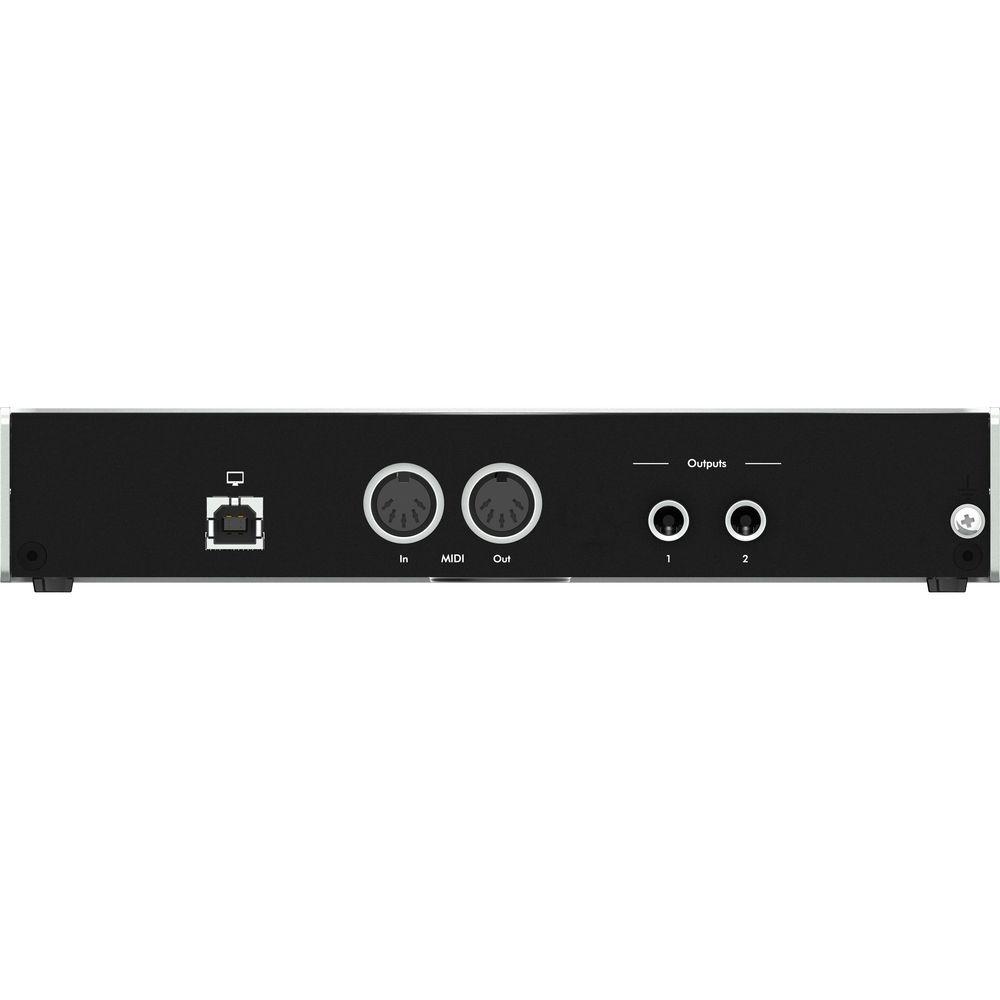

Technical parametersiConnectivity CONNECTAUDIO2/4 Specs | Connections | 2 x XLR/TRS combo microphone/line inputs (front panel)
2 x 1/4" TRS line outputs
1 x 1/4" TRS headphone output
2 x 5-pin DIN MIDI I/O
1 x USB Type-B
1 x Lightning port
1 x power supply input (power supply available separately) | | Bit Depth | 24-bit | | Sampling Rates | 44.1, 48, 88.2, 96 kHz | | Dynamic Range | A/D Dynamic Range: 102 dBA (fs= 48 kHz, 20 Hz to 20 kHz, 24-bit)
D/A Dynamic Range: 104 dBA (fs= 44.1 kHz, 20 Hz to 20 kHz, 24-bit)
| | Microphone Inputs | Gain: 0 to 60 dB (1 dB steps)
Frequency Response: 20 Hz to 20 kHz (+/- 0.2 dB)
SNR: +104 dBA (1 kHz, 1 Vrms, 22 Hz to 22 kHz, lowest gain)
THD+N: -90 dBA (1 kHz, 1 Vrms, 22 Hz to 22 kHz, lowest gain) | | Line / Instrument Inputs | Balanced Inputs
Attenuator: 20 dB (fixed)
Impedance: 800 kOhms (Hi-Z), 45 kOhms (Lo-Z)
SNR: +106 dBA (1 kHz, 2 Vrms, 22 Hz to 22 kHz)
THD+N: -102 dBA (1 kHz, 2 Vrms, 22 Hz to 22 kHz)
Maximum Input Level: 16 Vrms, 26 dBu, 24 dBV (1 kHz, 22 Hz - 22 kHz, A-weighted, 1% THD+N, SNR = +124 dB)
Unbalanced Input
Attenuator: 20 dB (fixed)
Impedance: 800 kOhms (Hi-Z), 45 kOhms (Lo-Z)
SNR: +106 dBA (1 kHz, 2 Vrms, 22 Hz 22 kHz)
THD+N: -89 dBA (1 kHz, 2 Vrms, 22 Hz 22 kHz)
Maximum Input Level: 8 Vrms, 20 dBu, 18 dBV (1 kHz, 22 Hz - 22 kHz, A-weighted, 1% THD+N, SNR = +118 dB) | | Line Outputs | Maximum Output Level: 3.1 Vrms, 12 dBu, 9.8 dBV
Frequency Response: 20 Hz 20 kHz (+/- 0.1 dB)
SNR: +118 dBA (1 kHz, 22 Hz - 22 kHz)
THD+N: -108 dBA (1 kHz, 22 Hz - 22 kHz) | | Headphone Output | Frequency Response: 20 Hz to 20 kHz (+/-0.1 dB)
SNR: +119 dBA (1 kHz, 22 Hz to 22 kHz)
THD+N: -116 dBA (1 kHz, 22 Hz to 22 kHz)
Power Output into 30 Ohms per Channel: 34 mW per channel | | Phantom Power | +48V, individually switchable | | Power Requirements | USB bus power | | Minimum System Requirements | Mac
OS X 10.8 or greater
Available USB port
Windows
Windows 7 or greater
Available USB port
iOS
Camera Connector Kit (CCK)
iOS 6.0 or greater
Core MIDI- / Core Audio-compatible app | | Dimensions (WxDxH) | 8.4 x 1.5 x 5.5" / 214 x 37 x 140 mm | | Weight | 2.1 lb / 1.0 kg | | | | Package Weight | 3.35 lb | | Box Dimensions (LxWxH) | 10.9 x 9.6 x 3.2" |
