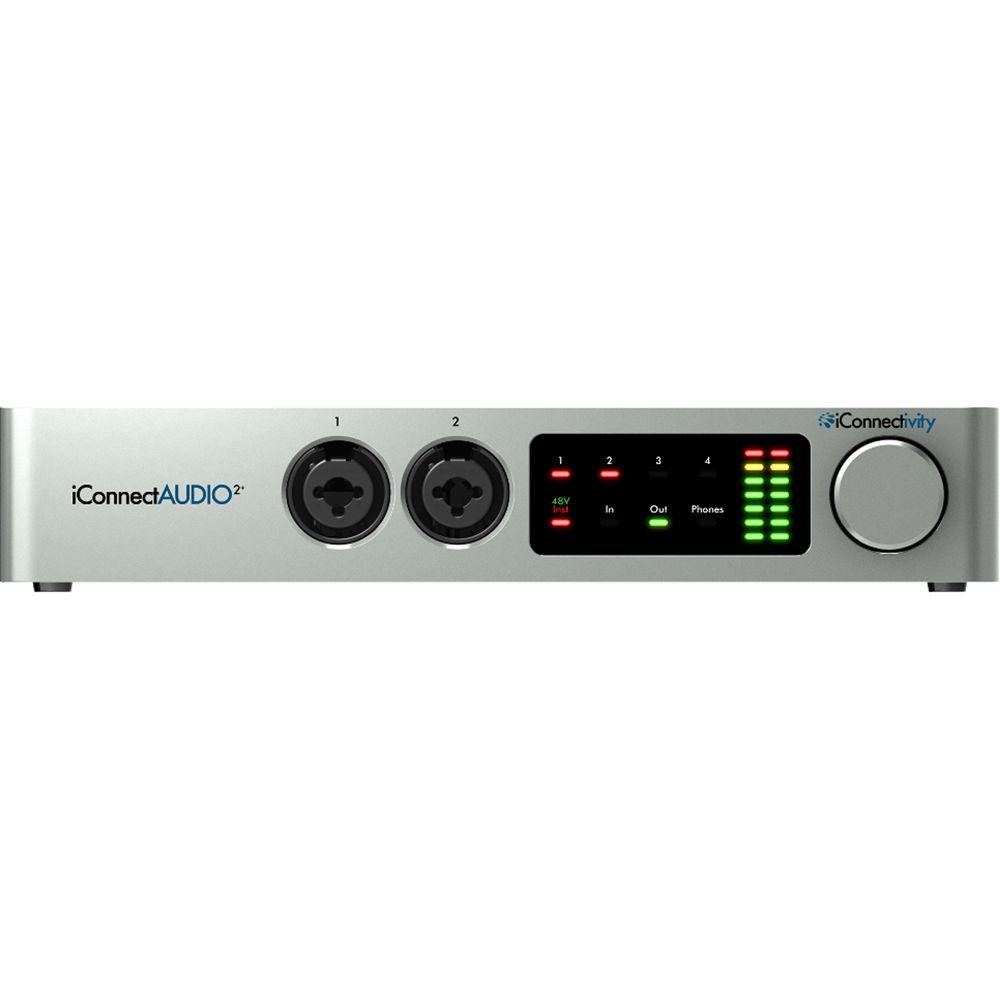

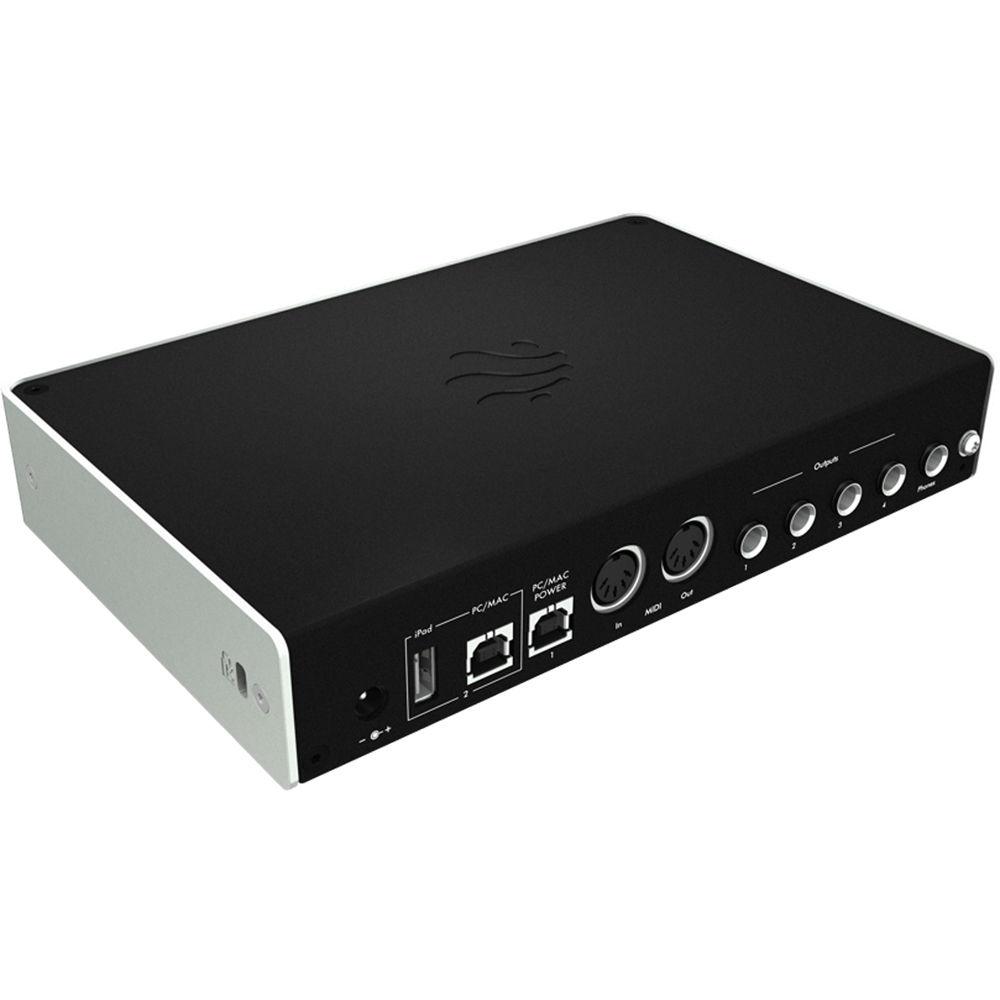

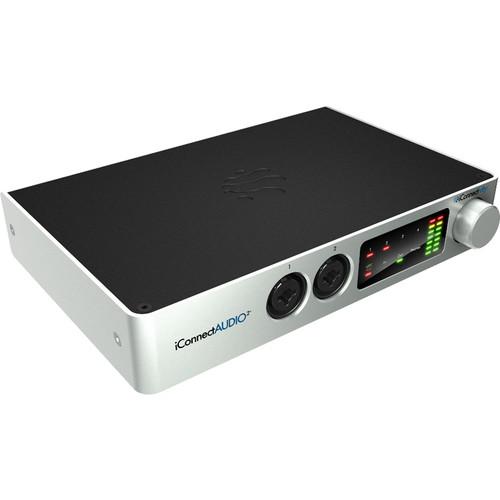

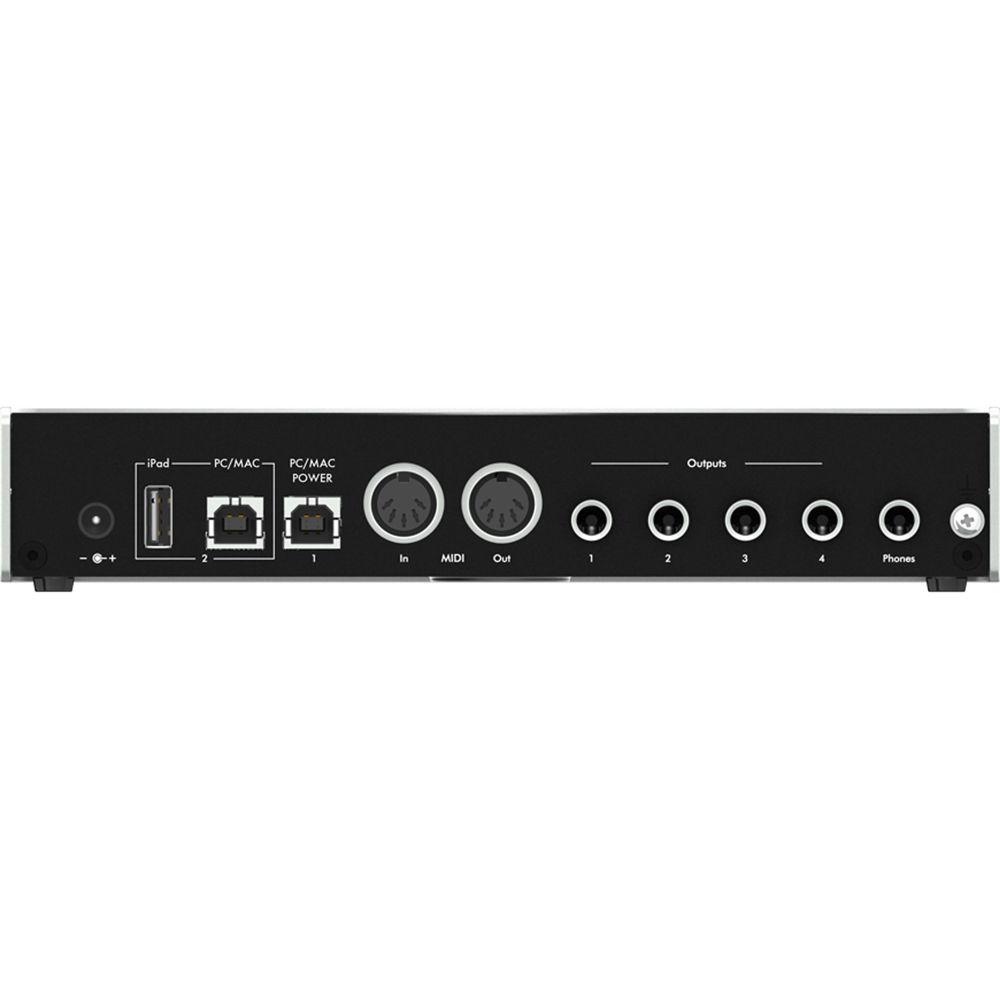

User Manual for iConnectivity iConnectAudio 2 USB Audio and MIDI Interface Click to enlarge the picture
Contents of the user manual for the iConnectivity iConnectAudio 2 USB Audio and
- Product category: Audio Interfaces & Systems iConnectivity
- Brand: iConnectivity
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for iConnectivity Audio Interfaces & Systems
 |
User manual for the iConnectivity iConnectAudio 2 USB Audio and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any iConnectivity product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official iConnectivity user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a iConnectivity product will considerably shorten its lifespan!
|
Product description iConnectAUDIO2+ from iConnectivity is a two-input, six-output audio and MIDI interface for musicians and DJs. It features two combination microphone/line/instrument inputs and three pairs of independent stereo outputs, perfect for DJ and electronic music applications. Configurable audio paths allow for routing, combining, and monitoring signals as needed, while advanced MIDI connectivity, routing, and management solve common connection challenges between MIDI gear and computing devices.
Simultaneous support for two computer devices with full Mac, Windows and iOS compatibility, and the ability to pass audio and MIDI from one to another, opens up multiple creative options for solo or collaborative ventures. One plug brings an iPad into the workflow, or maybe another musician's computer. Just use the software patchbay and everyone's talking audio and MIDI. Route MIDI and audio everywhere and sync everything without cables. The unit is USB bus powered, but can also be powered via an optional external universal power supply that will also power an iPad if part of the setup. - Two combination microphone/line/instrument inputs
- Three pairs of independent stereo outputs perfect for DJ and electronic music applications
- 1/4" stereo headphone output with independent mix
- Advanced MIDI connectivity, routing, and management solve the connection challenges between MIDI gear and computing devices
- Supports two computer devices simultaneously with multi-host device ports for connecting one or two Mac/Windows computers, or one computer plus an iPad
- Up to ten channels of bi-directional digital audio on each of the two device ports, and includes Audio passThru capability from one computer to another
- Individual +48V phantom power toggle and line/instrument mode selection
- iConfig software (Mac, Windows, iPad) for easy audio mixing/routing, and MIDI routing/processing with setups stored in flash memory on the device
- Onboard audio mixer/patchbay
- Interactive display for touch control of all input/output levels and +48V phantom power and line/instrument mode
- USB bus-powered, or use the optional power supply (sold separately) to charge an iPad as well
- USB audio and MIDI Class-Compliant
UPC: 835727000152 In the Box iConnectivity iConnectAudio 2+ USB Audio and MIDI Interface USB Cable Limited 1-Year Warranty User Manual PDF 2.6mbwbraqeasxdcf Table of Contents
|
Upload User Manual
Have you got an user manual for the iConnectivity iConnectAudio 2 USB Audio and MIDI Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersiConnectivity ICAUDIO-02 Specs | | | Max Sample Rate/Resolution | 96 kHz / 24-Bit | | | | Host Connection | 2 x USB Type-B (USB 2.0)
Lightning | | Analog I/O | 2 x Combo XLR / 1/4" Mic/Line Input
4 x 1/4" (6.3 mm) TRS Line Output
1 x 1/4" (6.3 mm) TRS Headphone Output | | Phantom Power | +48 V (Selectable on Individual Inputs) | | Digital I/O | None | | MIDI I/O | 1 x 5-Pin MIDI In
1 x 5-Pin MIDI Out | | | | Frequency Response | Headphone Outputs:
20 Hz to 20 kHz
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 05 owners. Add your rating and experience with the product.
