User Manual for iConnectivity iConnectAUDIO4 Audio MIDI Interface for Mac, PC, and iOS

Click to enlarge the picture
iConnectivity iConnectAUDIO4 Audio MIDI Interface for Mac, PC, and iOS Contents of the user manual for the iConnectivity iConnectAUDIO4 Audio MIDI Interface for
  • Product category: Audio Interfaces & Systems iConnectivity
  • Brand: iConnectivity
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for iConnectivity Audio Interfaces & Systems

iConnectivity iConnectAUDIO4 Audio MIDI Interface for Mac, PC, and iOS iConnectivity iConnectAUDIO4 Audio MIDI Interface for Mac, PC, and iOS iConnectivity iConnectAUDIO4 Audio MIDI Interface for Mac, PC, and iOS
User manual for the iConnectivity iConnectAUDIO4 Audio MIDI Interface for contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any iConnectivity product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official iConnectivity user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a iConnectivity product will considerably shorten its lifespan!



Product description

The iConnectAUDIO4+ from iConnectivity is an audio and MIDI interface that supports multiple iOS, Mac, and PC computer connections simultaneously. The high-quality audio interface offers resolutions up to 24-bit/96 kHz. Inputs include 4 combo XLR/1/4" connections, each with +48V phantom power for connecting condenser microphones. Additionally, inputs 1 & 2 offer balanced line level inputs, while inputs 3 & 4 accept Hi-Z instrument inputs. Four 1/4" TRS balanced outputs allow for the connection of two pairs of studio monitors, while the 1/4" TRS stereo headphone output offers an independent mix for cueing.

The 29 routable MIDI ports, each with 16 channels, offer a total of 464 MIDI channels. Dedicated MIDI I/O is available from standard 5-pin DIN connectors. A USB-host port supports up to 8 class-compliant MIDI peripherals when used with a powered USB hub. Two USB multi-device ports allow for the connection of up to two computer devices (Mac/PC/iOS) at the same time.

The included iConfig software is available for all platforms (Mac/PC/iOS) and allows for simple set up, filtering, routing, and merging of both audio and MIDI signals. Basic configuration can also be achieved from the touch capacitive interactive display and rotary control knob found on the front of the interface. An optional iConnectivity 30-pin connection cable is available for older iOS devices. The iConnectAUDIO4+ ships with a Lightning-to-iConnectivity inline connection cable, a standard USB cable, and a power supply.

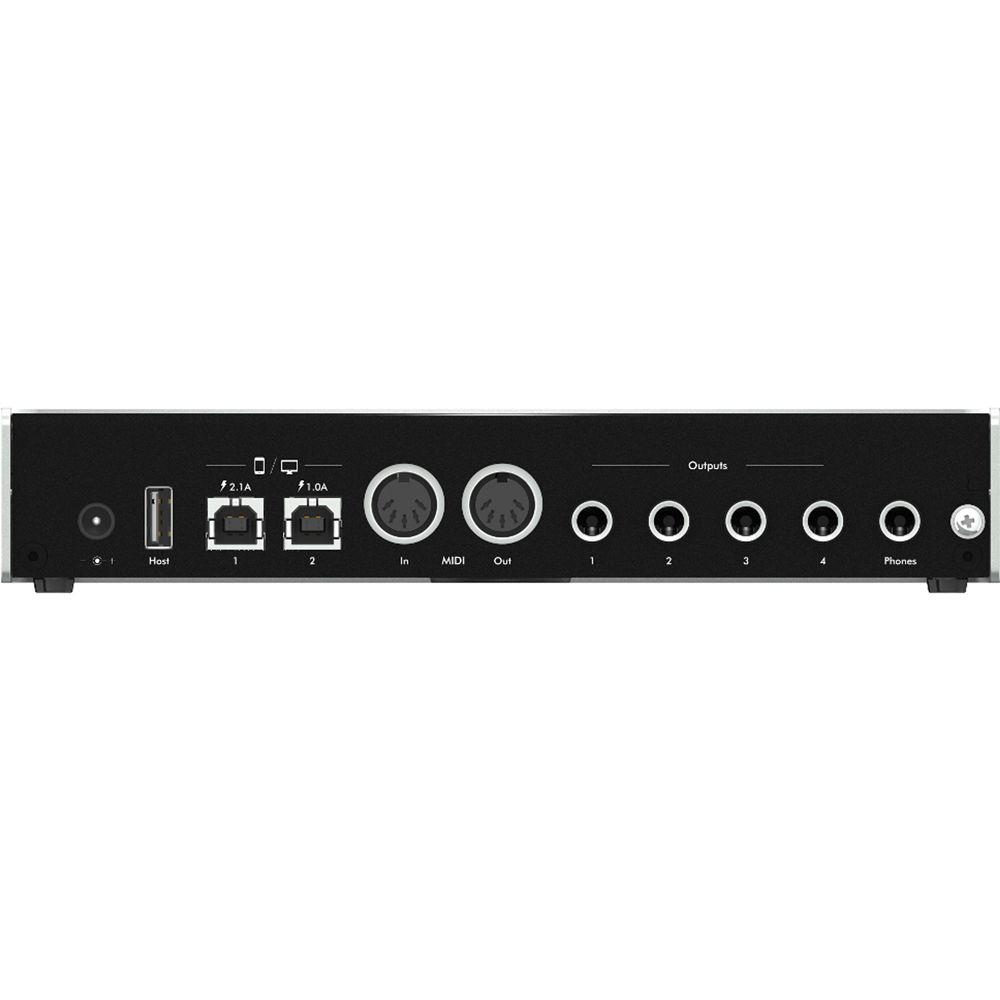

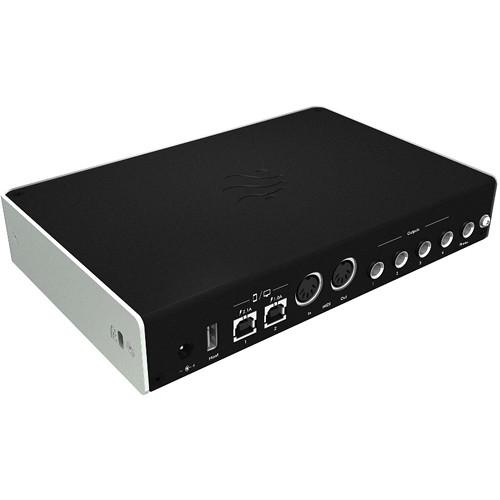

    • Multi-host Device ports – use 2 computer devices (Mac/PC/iOS) at the same time
    • Audio passThru routes audio digitally between computer devices
    • Host port for connecting up to 8 MIDI peripherals (with Class-compliant devices connected to a powered hub)

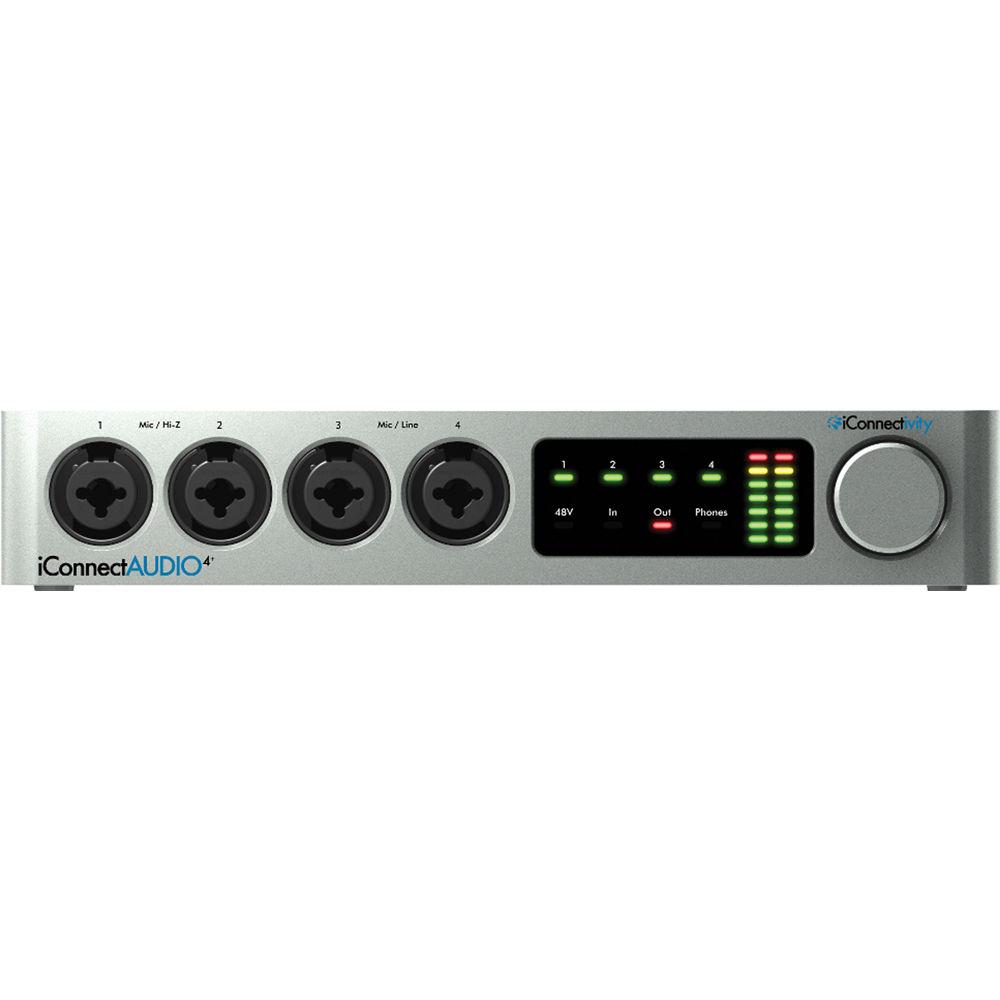

    • 4 XLR ¼” TRS combo analog inputs, each with individual +48V phantom power toggle
    • 4 ¼” TRS balanced analog outputs
    • ¼” Headphone output with independent mix
    • 29 routable MIDI ports: Mac, PC, iOS, 5 pin MIDI DIN and class compliant USB MIDI devices
      • 1 X 1 MIDI DIN in/out
      • iConfig software (Mac, Windows, iOS) makes it simple to set up filtering/routing/merging
      • High-resolution audio - up to 24-bit/96kHz AD/DA conversion
      • USB audio and MIDI Class-Compliant – no drivers needed
      • Charges an iOS device
    UPC: 835727000145 In the Box iConnectivity iConnectAUDIO4+ Audio + MIDI Interface for Mac, PC, and iOS
  • Lightning-to-iConnectivity USB-B Inline Connection Cable (iOS)
  • USB-A to USB-B Cable (Mac or PC)
  • Power Supply
  • Limited 1-Year Warranty
  • User Manual PDF 2.5mb Table of Contents




    Upload User Manual

    Have you got an user manual for the iConnectivity iConnectAUDIO4 Audio MIDI Interface for Mac, PC, and iOS in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    iConnectivity ICAUDIO-04 Specs

    Audio Connections Inputs: 4 x combo XLR/1/4" / 6.35 mm
    Outputs: 4 x balanced TRS 1/4" / 6.35 mm
    Headphone: 1 x balanced TRS 1/4" / 6.35 mm
    MIDI Connectors MIDI In: 1 x 5-pin DIN
    MIDI Out: 1 x 5-pin DIN
    USB USB Host: 1 x USB Type-A connector
    USB Device Port: 2 x USB Type-B connectors
    Gain 0 to 60 dB (1 dB steps)
    Frequency Response 20 Hz to 20 kHz
    Signal to Noise Ratio (SNR) 110dB (1 kHz, 1.2 Vrms, BW: 22 Hz to 22 kHz, A-weighting, unity gain)
    THD + N -99 dB (1 kHz, 1.2 Vrms, BW: 22 Hz to 22 kHz, A-weighting, unity gain)
    Frequency Response 20 Hz to 20 kHz
    Signal-to-Noise Ratio (SNR) 111 dB (1 kHz, 10 Vrms, BW: 22 Hz to 22 kHz, A-weighting)
    THD + N -99 dB (1 kHz, 1.2 Vrms, BW: 22 Hz to 22 kHz, A-weighting)
    Maximum Input Level 11 Vrms, 23 dBu, 21 dBV (1 kHz, BW: 22 Hz to 22 kHz, A-weighting, 1% THD+N, SNR = 116 dB)
    Frequency Response 20 Hz to 20 kHz
    Signal-to-Noise Ratio (SNR) 95 dB (1 kHz, 5 Vrms, BW: 22 Hz to 22 kHz, A-weighting)
    THD + N -92 dB (1kHz, 5 Vrms, BW: 22 Hz to 22 kHz, A-weighting)
    Maximum Input Level 10 Vrms, 22 dBu, 20 dBV (1 kHz, BW: 22 Hz to 22 kHz, A-weighting, 1% THD+N, SNR = 94 dB)
    Maximum Output Level 13 dBu, 11 dBV, 3.6 Vrms
    Signal-to-Noise Ratio (SNR) 115 dB (1 kHz, BW: 22 Hz to 22 kHz, A-weighting)
    THD + N -112 dB (1 kHz, BW: 22 Hz to 22 kHz, A-weighting)
    Signal-to-Noise Ratio (SNR) 100 dB (1 kHz, BW: 22 Hz to 22 kHz, A-weighting)
    THD + N -100 dB (1 kHz, BW: 22 Hz to 22 kHz, A-weighting)
    Power Output Power Output into 30 Ohms Per Channel: 73 mW per channel
    Bit Depth 24-bit resolution
    Dynamic Range A-D Dynamic Range: 102 dB (single-ended)
    D-A Dynamic Range: 106 dB
    Sample Rates Supported Sample Rates: 44.1, 48, and 96 kHz
    Mac System Requirements Mac OS X 10.4 or later*
    One free USB port

    * iConnectAUDIO4+ can be used with OS X 10.4, however configuration of the device with iConfig is limited to OS X 10.6 (64 bit) or greater
    * Mac OS X 10.7 or later recommended, because in OS X 10.6 Apple's RTP-MIDI had issues with Sysex messages greater than 256 bytes (up to 256 bytes were fine, but above that messages were not formatted correctly)
    Windows System Requirements Windows XP SP3 or later
    One free USB port
    iOS System Requirements iOS 4.2 or later
    CoreMIDI-compatible app
    Compatible with iOS devices requiring Lightning connection**

    ** iPhone 3GS, iPhone 4, iPhone 4S, iPod touch 2nd, 3rd and 4th generation, iPad 2nd and 3rd generation need an iConnectivity 30-pin to USB type-B iOS Inline Connection Cable (sold separately).
    Power Universal Power Supply: 100 to 240 VAC, 50/60 HZ
    Power Consumption: 12 VDC, 3 A, 36 W
    Dimensions (W x H x D) 8.4 x 1.5 x 5.5" / 21.4 x 3.7 x 14.0 cm
    Weight 2.1 lb / 1.0 kg
    Package Weight 4.15 lb
    Box Dimensions (LxWxH) 12.0 x 9.6 x 3.3"
