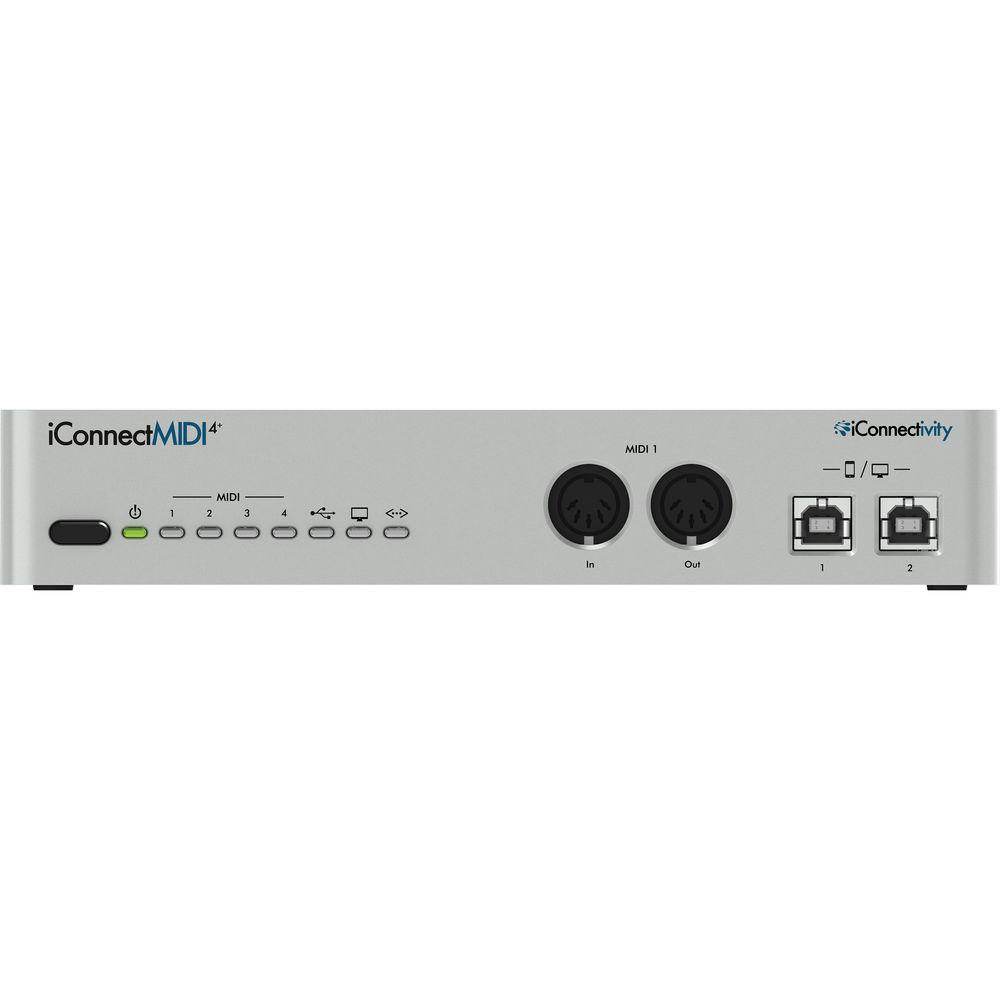

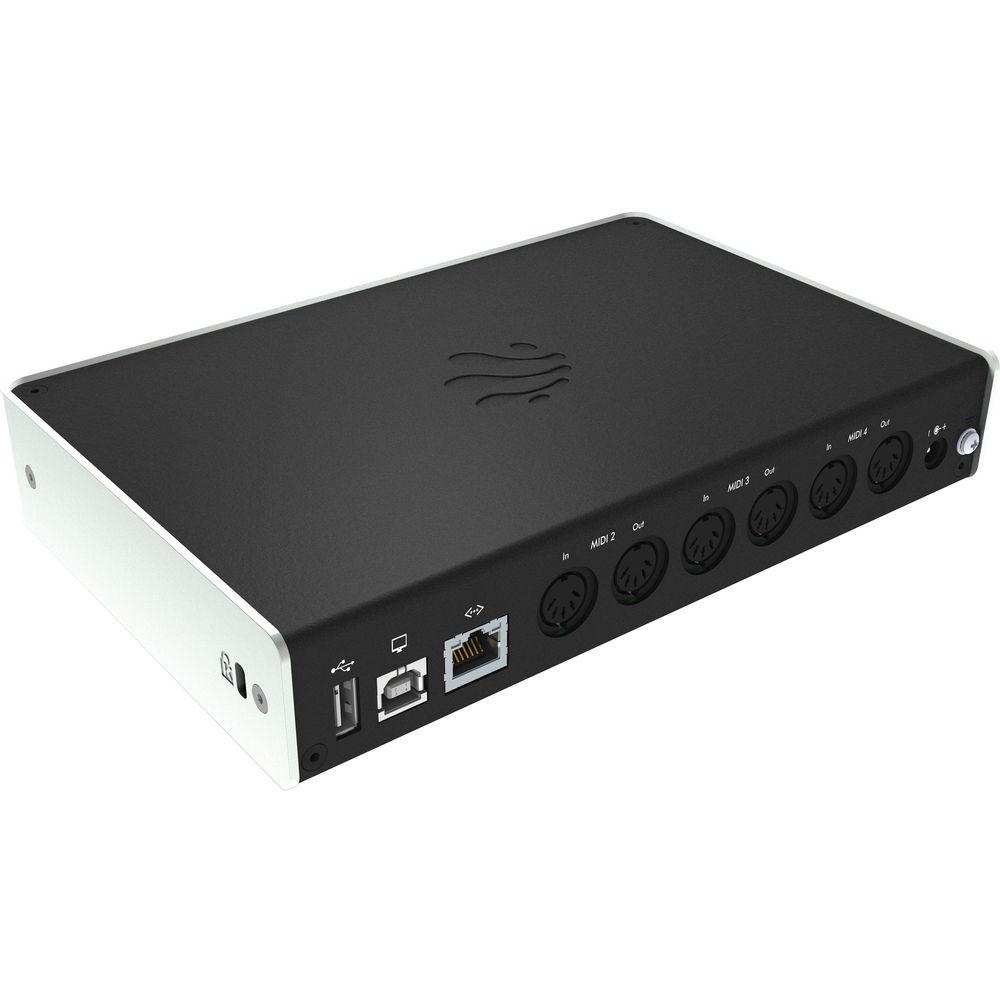

User Manual for iConnectivity iConnectMIDI4 - 4-In 4-Out USB & Lightning iOS MIDI Interface with Ethernet Connectivity Click to enlarge the picture
Contents of the user manual for the iConnectivity iConnectMIDI4 - 4-In 4-Out USB
- Product category: MIDI Interfaces iConnectivity
- Brand: iConnectivity
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for iConnectivity MIDI Interfaces
 |
User manual for the iConnectivity iConnectMIDI4 - 4-In 4-Out USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any iConnectivity product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official iConnectivity user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a iConnectivity product will considerably shorten its lifespan!
|
Product description Featuring plug-and-play functionality when used with Mac or Windows computers, or iOS devices with Lightning connector, the iConnectMIDI4+ from iConnectivity is designed to serve as a four input, four output MIDI interface with an Ethernet port for networked MIDI capabilities. Supporting the standard 16 channels of MIDI I/O per port over its four 5-pin DIN connectors, this interface allows you to connect your computer or iOS device to multiple MIDI controllers, synthesizers, modules, drum machines and more. It also features one USB Type A and three USB Type B connectors for connecting multiple computing devices at once, allowing for advanced MIDI routing and control between all connected peripherals.
In addition to transmitting MIDI, the iConnectMIDI4+'s Audio passThru technology routes audio via USB as well, appearing as an audio interface to your devices' operating systems. This allows you to route audio between your computing devices digitally, as well as MIDI. This can be used in a multitude of applications, such as sequencing and tracking a synth on your iPad with your host DAW, or you could process a software instrument in your DAW through an effects processing app like an amp simulator on your iPhone. - Features:
-
- 4 in & 4 out sets of MIDI DIN connectivity
- Supports 8 additional MIDI devices via USB host port + powered USB hub
- MultiHost capability - connect 3 computing devices directly & more via network
- Network connectivity
- Supports Mac, PC, & iOS computing devices
- Audio passThru Between Up to 3 computing devices
- Integrated MIDI manager with snapshot preset storage - for MIDI thru, MIDI merge, filtering, and advanced routing Control
- USB MIDI class compliant
- Supports over 64 ports of 16 channels of MIDI I/O per port
- Plug and play - no drivers needed
- Charge iOS devices
UPC: 835727000077 In the Box iConnectivity iConnectMIDI4+ - 4-In/4-Out USB & Lightning iOS MIDI Interface with Ethernet Connectivity External Power Supply USB Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the iConnectivity iConnectMIDI4 - 4-In 4-Out USB & Lightning iOS MIDI Interface with Ethernet Connectivity in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

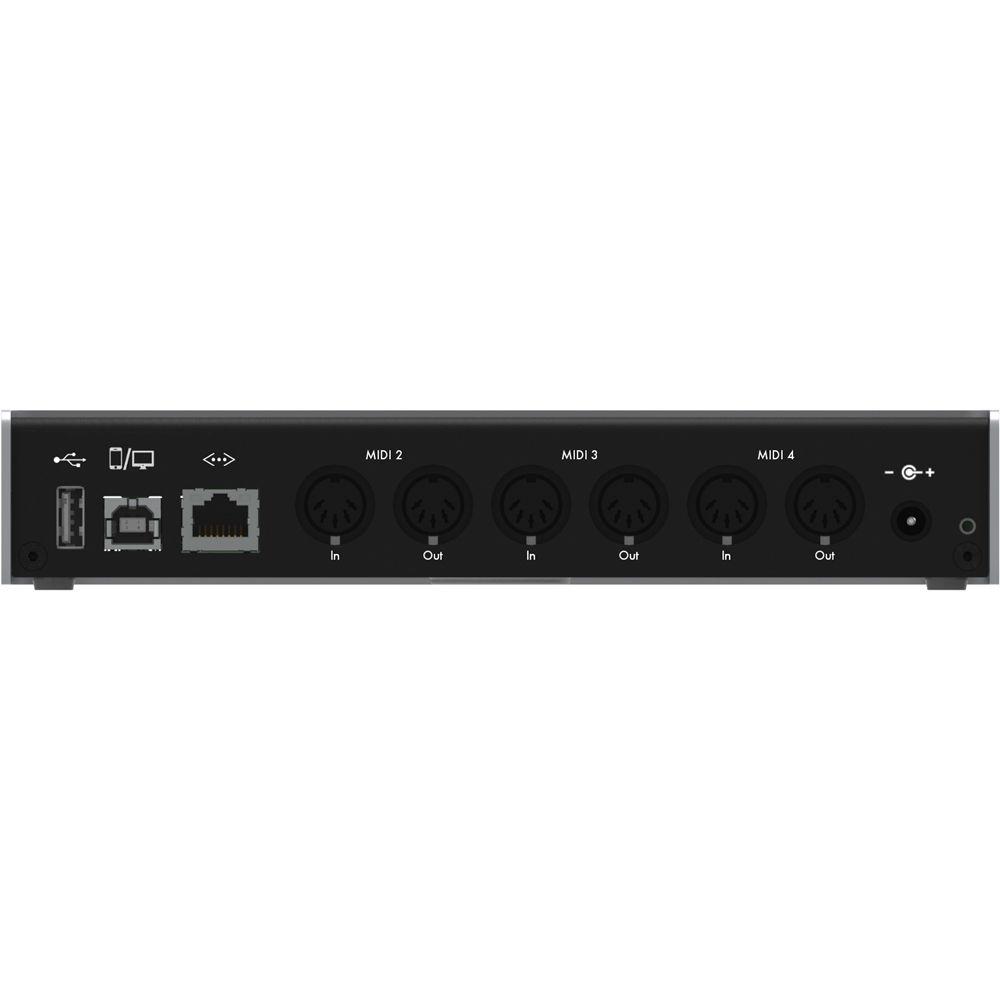

Technical parametersiConnectivity IC-MIDI4-L Specs | Connections | 4 x 5-pin DIN MIDI Input
4 x 5-pin DIN MIDI Output
3 x USB Type B
1 x USB Type A
1 x RJ45 Ethernet
1 x Power Port | | Power Requirements | From included external power supply | | System Requirement | MacOS X 10.4 or greater1 free USB port PCWindows XP SP3 or greater1 free USB port iOS with Lightning ConnectoriOS 4.2 or greaterCoreMIDI compatible app | | Dimensions | 8.43 x 5.51 x 1.46 " (214 x 140 x 37 mm) | | Weight | 2.13 lb (965 g) | | | | Package Weight | 3.45 lb | | Box Dimensions (LxWxH) | 10.0 x 9.055 x 2.52" |
Rating74% users recommend this product to others. And what about you?
This product has already been rated by 81 owners. Add your rating and experience with the product.
