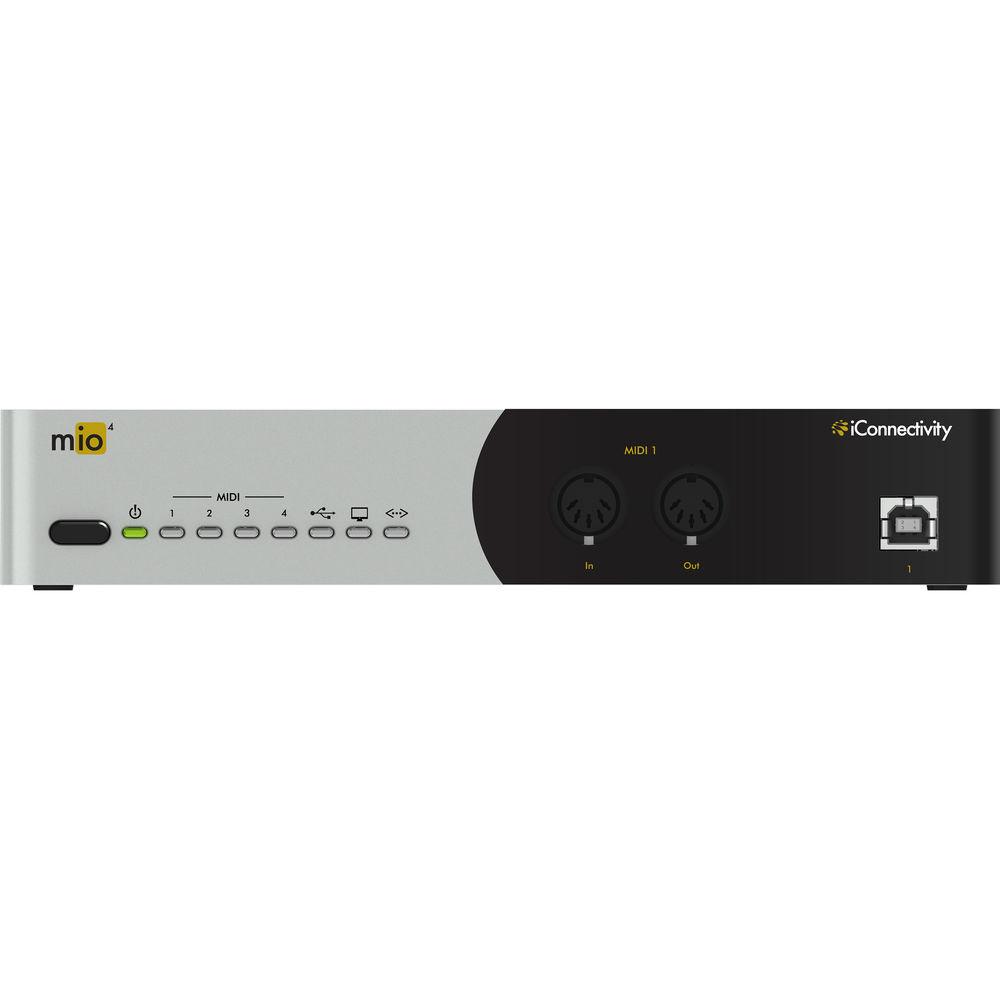

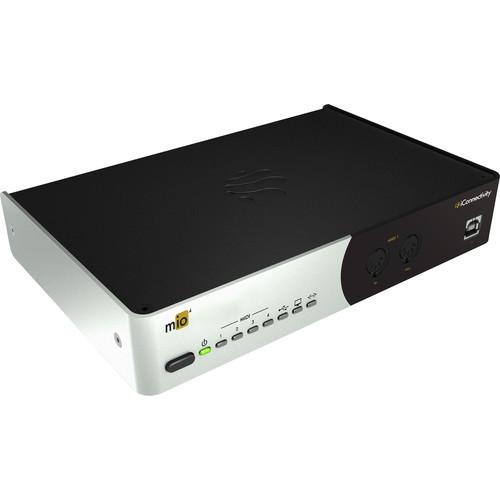

User Manual for iConnectivity mio4 4-Input 4-Output USB MIDI Interface with Ethernet Connectivity Click to enlarge the picture
Contents of the user manual for the iConnectivity mio4 4-Input 4-Output USB MIDI
- Product category: MIDI Interfaces iConnectivity
- Brand: iConnectivity
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for iConnectivity MIDI Interfaces
 |
User manual for the iConnectivity mio4 4-Input 4-Output USB MIDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any iConnectivity product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official iConnectivity user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a iConnectivity product will considerably shorten its lifespan!
|
Product description iConnectivity mio4: 4 In/4 Out Ethernet USB MIDI Interface Read More Featuring a USB MIDI-host port, four pairs of MIDI DIN in/out jacks, multiple-computer support, and Ethernet network MIDI, the mio4 from iConnectivity lets you connect to your vintage or modern MIDI equipment, and create a powerful and flexible workflow for merging, filtering, and routing MIDI messages, whether you're working on your own or collaborating with other musicians.The mio4 enables you to work with two computers at the same time or with several more over the network, and provides a total of 48 configurable 16-channel MIDI ports. Furthermore, it can be and used as a stand-alone interface when powered by the iConnectivity power adapter (available separately).The MIDI routing and processing is simple to set up in the free, downloadable iConfig software for Mac OS X and Windows. The interface is USB class-compliant so there are no drivers to install.The unit is housed in a rugged half-rackspace enclosure and is built to stand up to the rigors of the road. - Connectivity
-
- Four input/output pairs of 5-pin MIDI, and USB MIDI hosting
- Second USB port on rear panel lets you access up to eight USB MIDI devices – via powered USB hub (available separately)
- Supports two Mac/Windows computers at the same time, plus access four more computers over Wi-Fi or wired Ethernet by connecting to your router (available separately)
- Provides 48 user-configurable 16-channel MIDI ports for maximum flexibility
- System Requirements
-
- Mac OS X 10.8 or greater, Windows 7 or greater, iOS devices with camera-connection kit (available separately)
- USB MIDI class-compliant, plug-and-play functionality – no drivers to install
- Configuration Software
-
- Free, downloadable iConfig software for Mac and Windows lets you set up MIDI routing and processing
- Your complete configuration can be saved in non-volatile flash memory on the device, and is remembered when you power up the next time
- Power
-
- USB bus-powered
- May also be powered by the iConnectivity power adapter (available separately), allowing for operation without a computer, and for powering a USB device connected to the USB host jack
- Port Routing
- Each MIDI port on each connection can be routed to any other port and multiple ports can be merged and routed to a single port
- Port Filters
- Filters can be applied to any MIDI input or output port, allowing you to manage the content and volume of MIDI traffic
- Channel Remap
- Each MIDI port has 16 channels of MIDI data, and specific events on any one channel can be remapped to another channel on the same port for customization – channel mapping can be applied to inputs as well as outputs
- Continuous Controller Filters
- Filters can be defined to remove specific continuous controller messages on selected channels of either input or output ports
- Continuous Controller Remap
- Specific continuous controller messages can be remapped to another continuous controller type, to redefine the effect of the controller – remapping can be applied to selected channels on selected inputs or output ports
UPC: 835727000213 In the Box iConnectivity mio4 4-Input / 4-Output USB MIDI Interface with Ethernet Connectivity USB Type-B Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the iConnectivity mio4 4-Input 4-Output USB MIDI Interface with Ethernet Connectivity in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

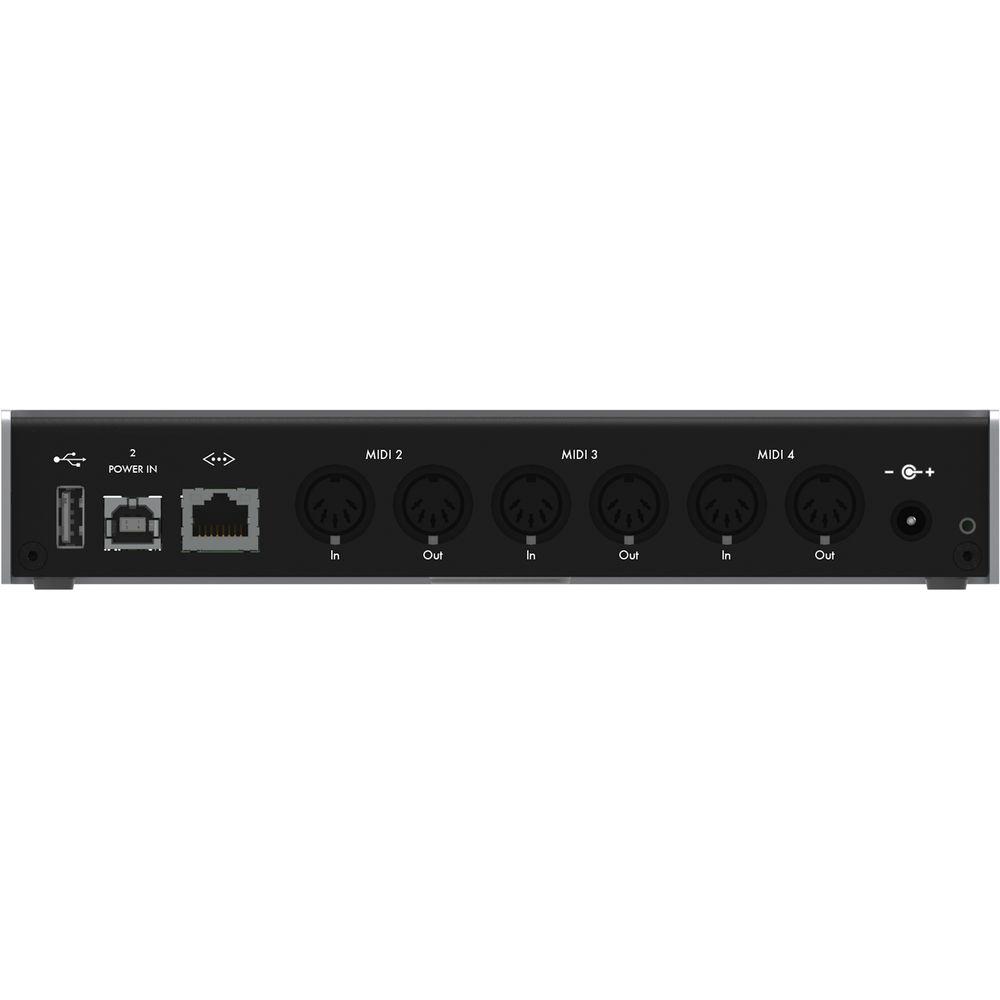

Technical parametersiConnectivity MIDI-MIO4 Specs | Connections | 4 x 5-pin DIN MIDI Input
4 x 5-pin DIN MIDI Output
2 x USB Type-B
1 x USB Type-A
1 x RJ45 Ethernet
1 x Power Port | | Power Requirements | USB bus-powered
iConnectivity power adapter / 9 V @ 2 A, 18 W, 2 mm (available separately) | | MIDI Ports | 48 x user-configurable 16-channel MIDI ports | | System Requirements | Mac OS X 10.8 or greaterWindows 7 or greateriOS Devices:
With camera connection kit (CCK)
CoreMIDI compatible app | | Dimensions (WxHxD) | 8.43 x 1.46 x 5.51" / 214 x 37 x 140 mm | | Weight | 2.13 lb / 966 g | | | | Package Weight | 3.3 lb | | Box Dimensions (LxWxH) | 10.9 x 9.7 x 3.2" |
