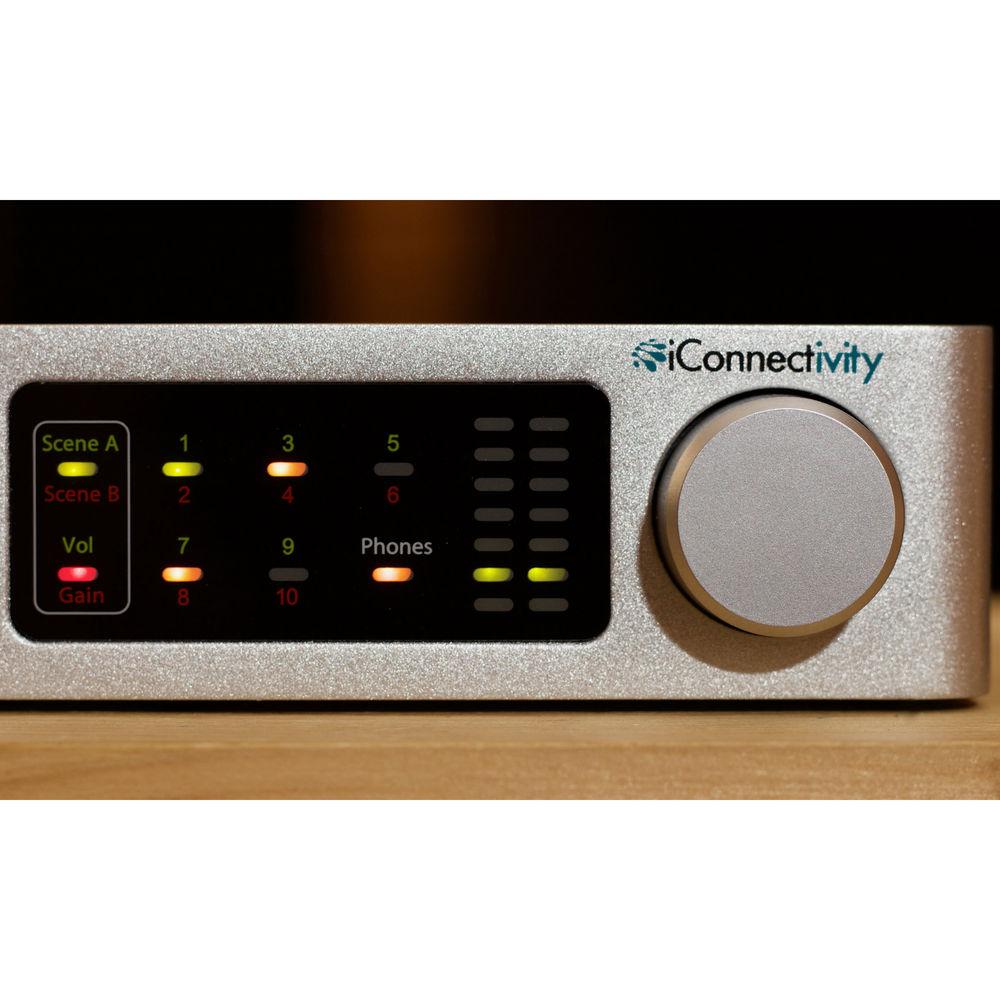

User Manual for iConnectivity PlayAUDIO12 USB Audio and MIDI Interface Click to enlarge the picture
Contents of the user manual for the iConnectivity PlayAUDIO12 USB Audio and MIDI
- Product category: Audio Interfaces & Systems iConnectivity
- Brand: iConnectivity
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for iConnectivity Audio Interfaces & Systems
 |
User manual for the iConnectivity PlayAUDIO12 USB Audio and MIDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any iConnectivity product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official iConnectivity user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a iConnectivity product will considerably shorten its lifespan!
|

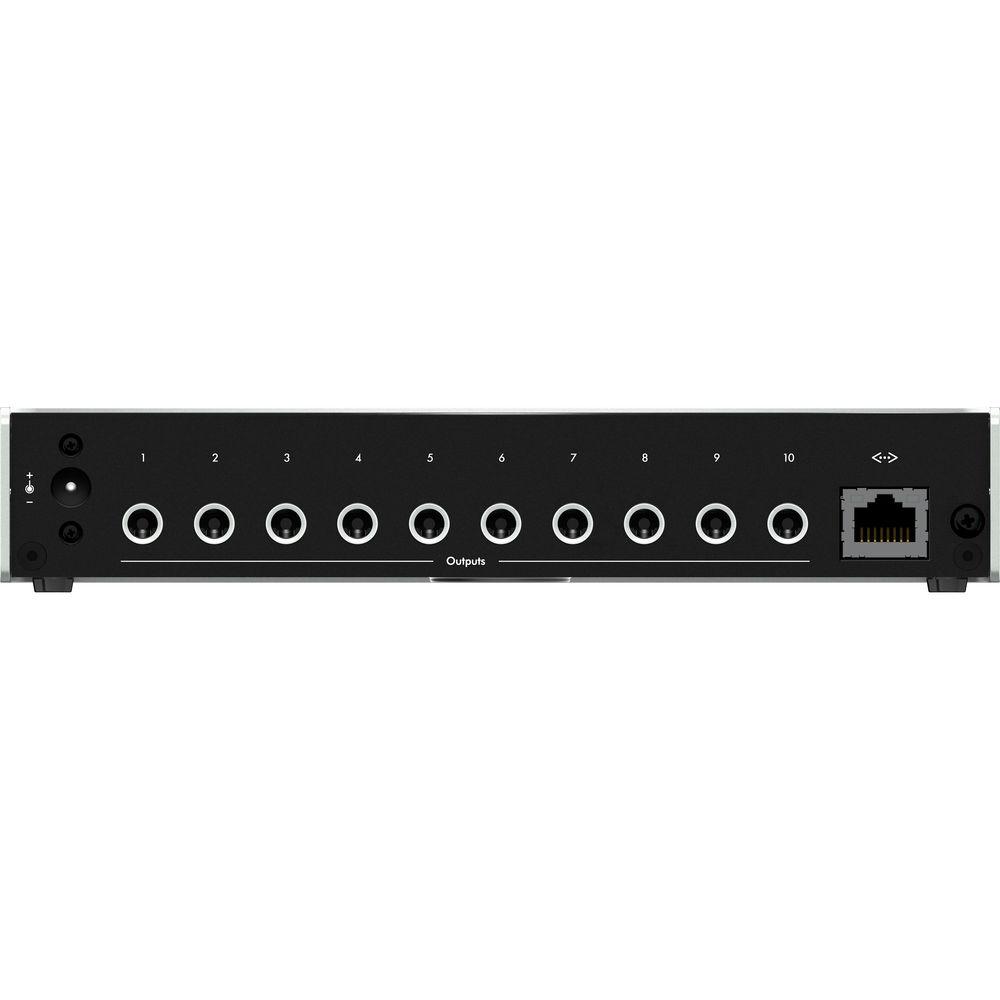

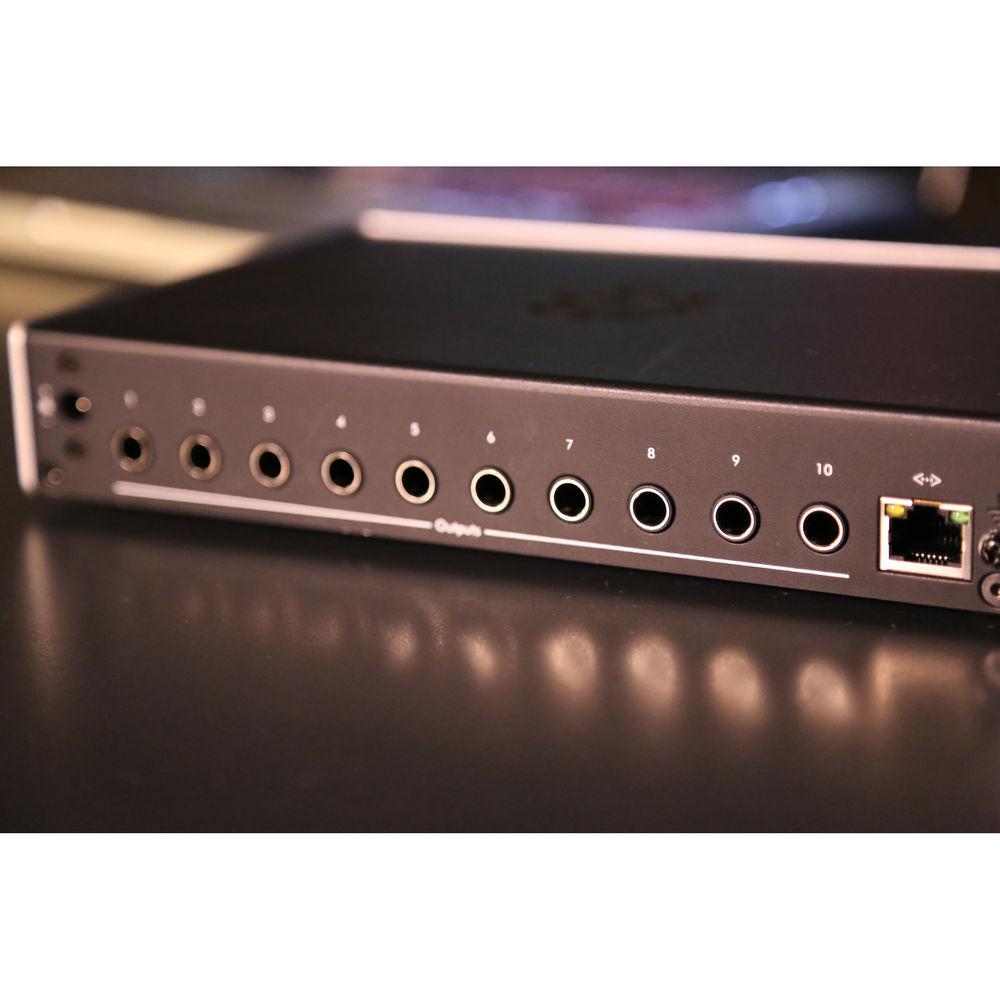

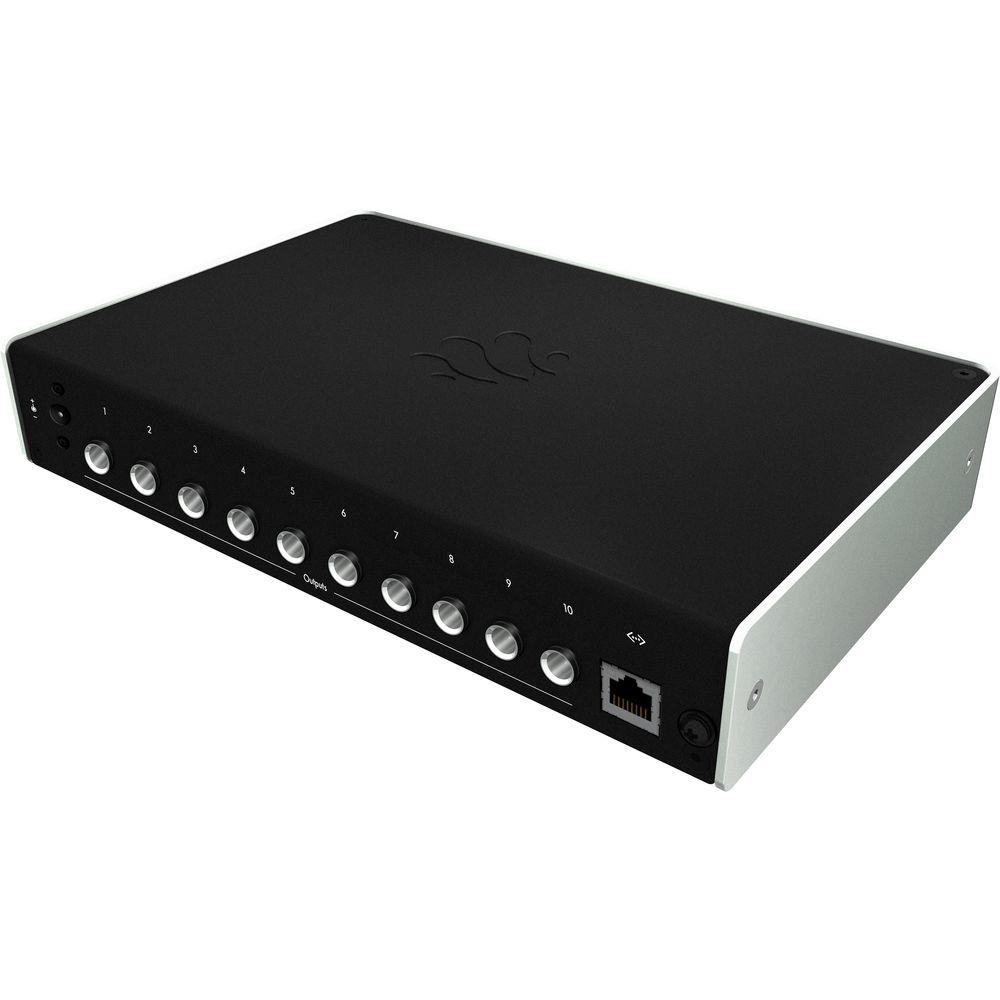

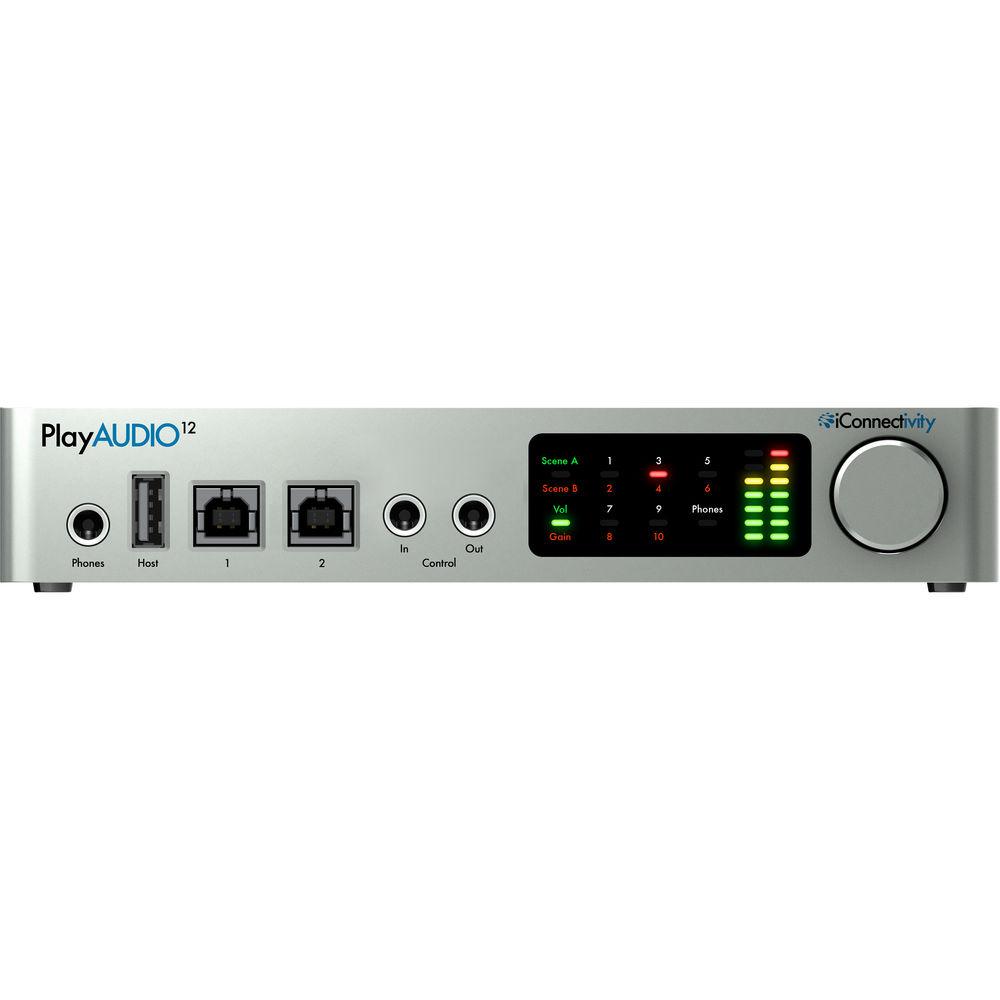

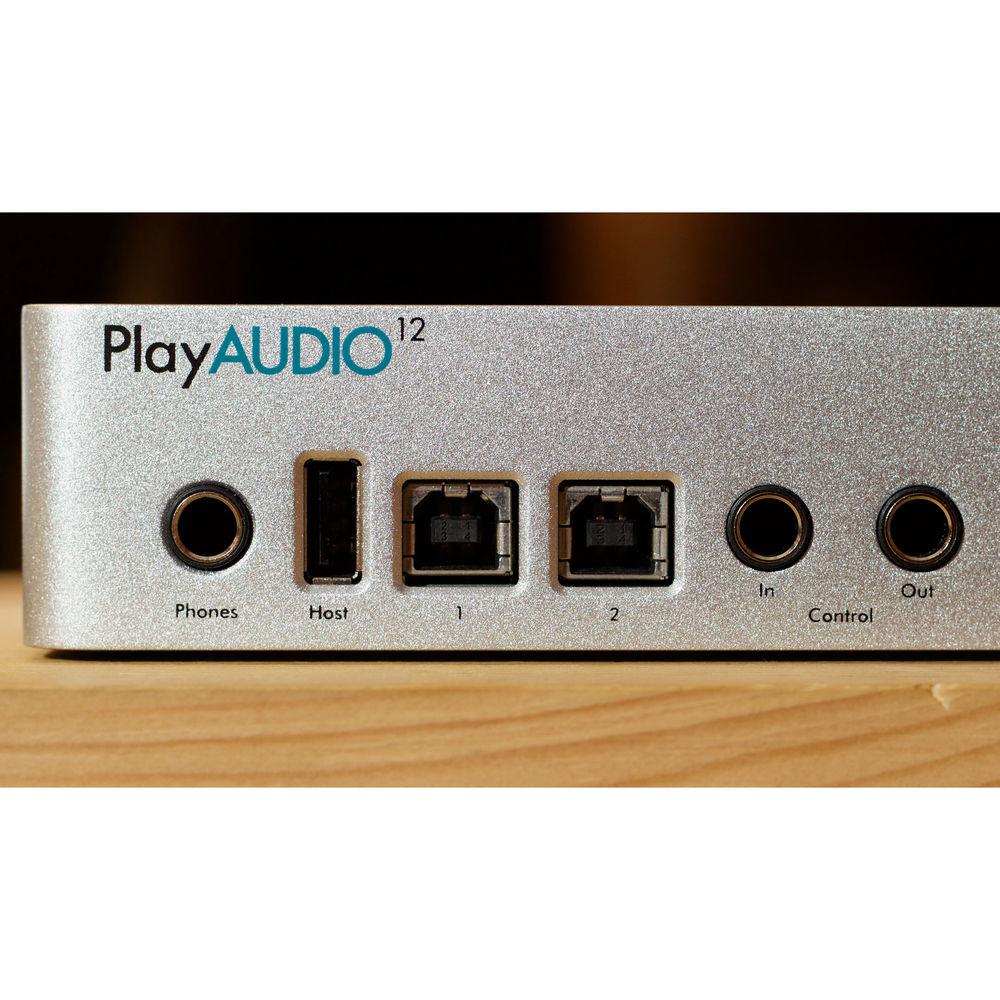

Product description The iConnectivity PlayAUDIO12 is a USB audio interface designed to provide seamless switching between two computer setups for musicians, bands, and audio engineers in concert venues and live stage applications. It supports resolutions up to 24-bit / 96 kHz and is class compliant. By offering two USB Type-B ports for simultaneous connection of two computers, it enables easy system redundancy. Switching can be done manually via the touchscreen LCD or a footswitch connected to the Control In port, or automatically for instant use of a backup system.The PlayAUDIO12 features ten balanced mono 1/4" TRS outputs and one stereo 1/4" TRS headphone jack. A front-panel USB Type-A port allows for easy connection of keyboard controllers and sound modules. MIDI is supported via USB and Ethernet connectivity. MIDI and audio routing is preserved when switching between computers. The PlayAUDIO12 ships with a power supply, one USB Type-A to USB Type-B cable, Ableton Live 9 Lite, and a collection of Big Fish Audio samples and loops. - 10 x 1/4" TRS balanced audio outputs for low-noise connections on any stage (outputs are +48V phantom power resistant)
- 1/4" TRS stereo headphone output for convenient headphone monitoring
- Two USB Type-B ports for simultaneous connection to two computers
- Automatic and manual computer switching modes for seamless switching between connected computers
- Supports up to eight ports of MIDI over USB for USB MIDI controllers and/or modules
- MIDI over Ethernet for rugged long-distance MIDI connections
- Capacitive touch control with clear metering for use on dark stages
- Easy control over key features from the front panel
- Footswitch input allows manual computer switching and/or user-assignable controls
- Control Out connection for slaving additional PlayAUDIO12 units
- Up to 24-bit / 96 kHz resolution
- Class Compliant with USB Audio 2.0 and USB MIDI 1.0
- Includes Ableton Live Lite music-making software and Big Fish Audio samples and loops
UPC: 835727000275 In the Box iConnectivity PlayAUDIO12 USB Audio and MIDI Interface USB Cable Power Supply Limited 1-Year Warranty User Manual PDF 3.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the iConnectivity PlayAUDIO12 USB Audio and MIDI Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersiConnectivity PA12 Specs | | | Max Sample Rate/Resolution | 96 kHz / 24-Bit | | | | Host Connection | 2 x USB Type-B (USB 2.0)
1 x USB Type-A (USB 2.0) | | Analog I/O | 1 x 1/4" (6.3 mm) Footswitch Input
1 x 1/4" (6.3 mm) Control Output
10 x 1/4" (6.3 mm) TRS Balanced Output
1 x 1/4" (6.3 mm) TRS Unbalanced Output | | Digital I/O | 1 x RJ45 / Ethernet (MIDI) In/Out | | MIDI I/O | None | | | | Max Output Level | Outputs:
+13 dBu
+11 dBV | | Headphone Output Power | 73 mW per Channel into 30 Ohms | | Dynamic Range | 115 dB | | THD+N | AD/DA Converters:
-107 dBA
Headphone Outputs:
-100 dBA
Line Outputs:
-116 dBA | | SNR | Headphone Outputs:
100 dBA
Line Outputs:
122 dBA | | | | Sample Rates | 44.1, 48, and 96 kHz | | Bit Depth | Up to 24-Bit | | | | OS Compatibility | macOS 10.8 or Later
Windows 7 or Later
iOS 8 or Later | | Required Hardware | Available USB Port | | | | Dimensions | 8.4 x 1.5 x 5.5" / 214 x 37 x 140 mm | | Weight | 2.1 lb / 1.0 kg | | | | Package Weight | 3.95 lb | | Box Dimensions (LxWxH) | 11.0 x 9.7 x 3.2" |
