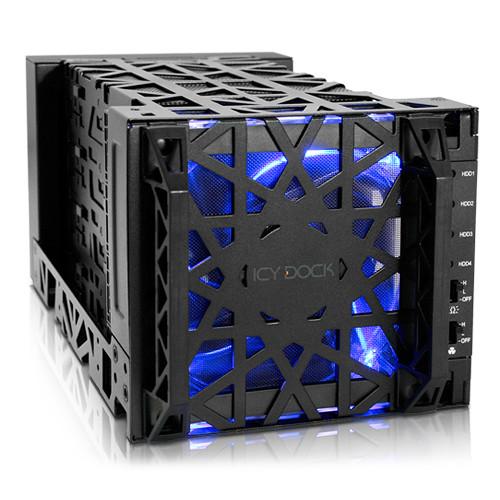

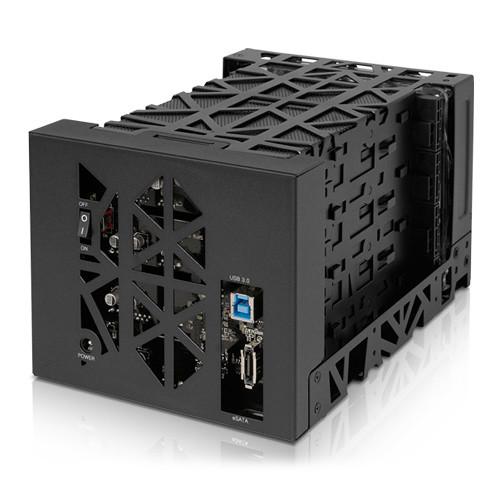

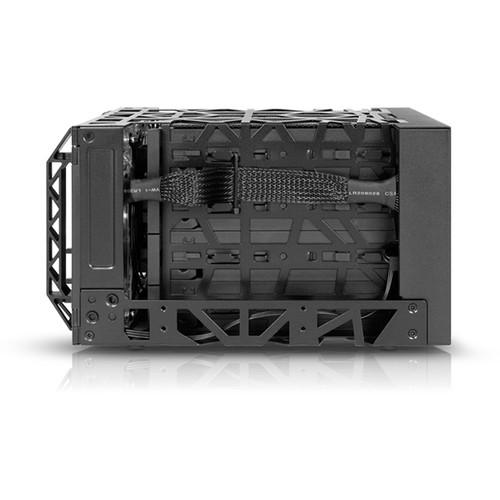

User Manual for Icy Dock Black Vortex 4-Bay USB 3.1 Gen 1 JBOD Enclosure Click to enlarge the picture
Contents of the user manual for the Icy Dock Black Vortex 4-Bay USB
- Product category: Hard Drive Enclosures & Docks Icy Dock
- Brand: Icy Dock
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Icy Dock Hard Drive Enclosures & Docks
 |
User manual for the Icy Dock Black Vortex 4-Bay USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Icy Dock product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Icy Dock user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Icy Dock product will considerably shorten its lifespan!
|
Product description Designed for Windows & Mac computer enthusiasts and gamers who need large amounts of storage, the Black Vortex 4-Bay USB 3.0 JBOD Enclosure from Icy Dock supports up to four 3.5" SATA III 6 Gb/s drive bays and connects to your host system using either its USB 3.0 port at speeds up to 5 Gb/s, or its eSATA port at speeds up to 3 Gb/s. Using the 2.5" to 3.5" HDD/SSD EZ-Convert converters, this JBOD enclosure is also able to support 2.5" hard drives and SSDs.

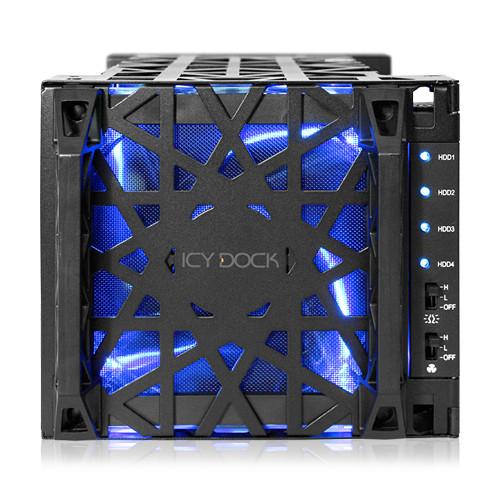

A built-in 120mm fan helps keep the enclosure cool and is also illuminated with a blue LED, while integrated fan and LED brightness controls allow users to configure the fan speed and LED brightness to their liking. Available fan speed and LED brightness controls include high, low, and off, and the fan can also be replaced with an aftermarket 120mm fan so long as it has a 3-pin connector. A removable dust filter helps keep things clean and may be removed for cleaning. When it comes time to replace or swap out a drive, the included EZ-Grip handles allow quick removal of drives from the Black Vortex, after which they may be inserted into a compatible docking station, without needing to remove the EZ-Grip handles.
The Black Vortex 4-Bay USB 3.0 JBOD Enclosure includes six EZ-Grip HDD handles, screws, a power cord & adapter, an eSATA cable, and a USB 3.0 cable. It is protected by a limited 3-year warranty. General Features - Fits 4 x 3.5" SATA III / II / I HDDs

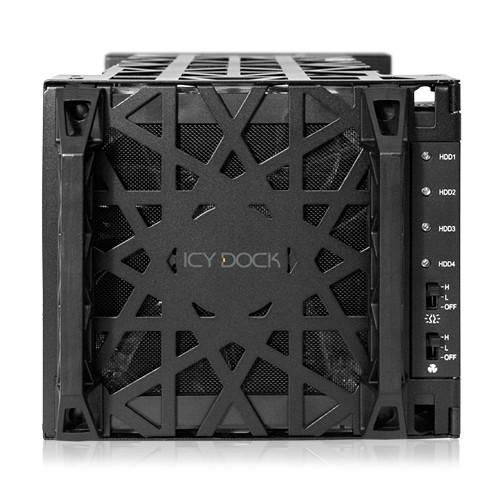

- Easy access LED brightness and Fan speed control (High/Low/off)
- Hard drive activity light for each individual bay

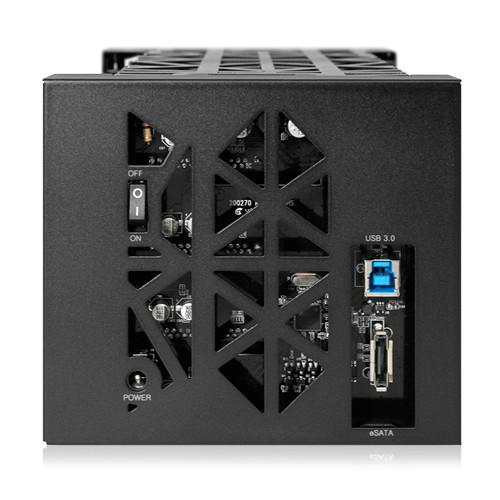

- Plug-and-Play USB 3.0 up to 5 Gb/s speed and backward compatible with USB 2.0
- Supports UASP function for even faster performance
- eSATA port multiplier up to 3 Gb/s speed (eSATA port multiplier required for the host)

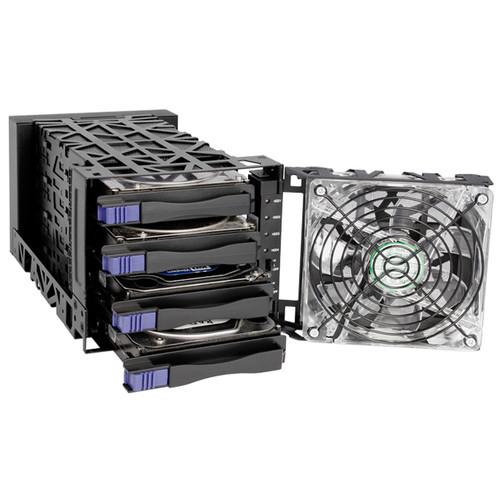

- Front access with removable HDD design to easily install/remove drives

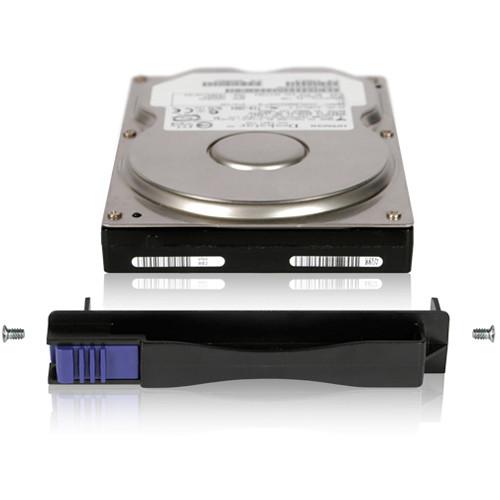

- EZ-Grip handles allow easy installation and compatibility with HDD docking stations
- Includes two bonus EZ-Grip handles that allow you to swap between a total of six drives
- Compatible with ICY DOCK 2.5" to 3.5" HDD/SSD EZ-Convert converters
- 120 mm cooling fan helps effectively keep the drives cool
- Fan is replaceable with aftermarket fans

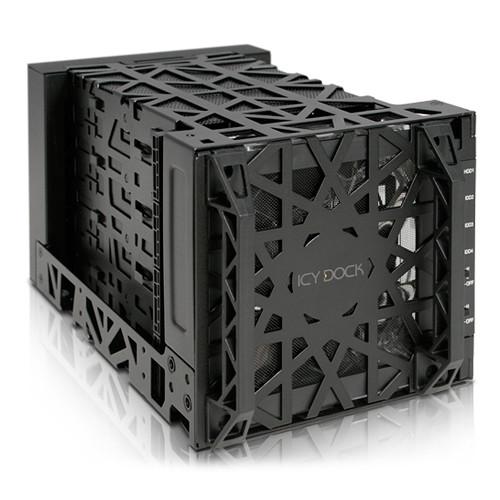

- Metal mesh open frame design helps to allow maximum airflow
- Removable dust filters help prevent dust from entering your system

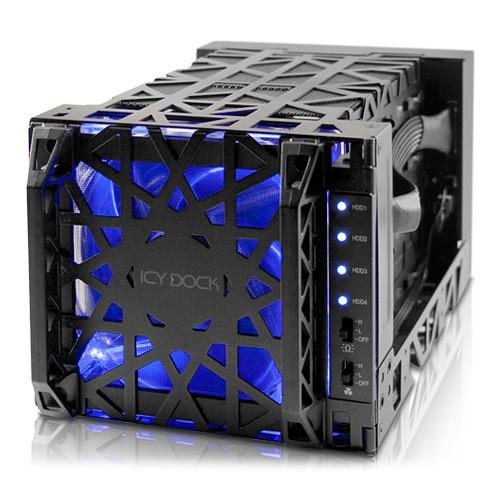

- Ambient blue LED fan glow
UPC: 884826002154 In the Box Icy Dock Black Vortex 4-Bay USB 3.1 Gen 1 JBOD Enclosure 6 x EZ-Grip HDD Handles Screws Power Cord & Adapter USB 3.0 Cable eSATA Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Icy Dock Black Vortex 4-Bay USB 3.1 Gen 1 JBOD Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIcy Dock MB174U3S-4SB Specs | Number of Bays | 4 x 3.5" | | Connections | 1 x USB Type-B (USB 3.1 Gen 1 (5 Gb/s))
1 x eSATA (SATA II (3 Gb/s)) | | Compatible Drive Interface | SATA III | | Operating System Support | Windows, macOS/OS X | | | | Material of Construction | Metal, Plastic | | Cooling | 1 x 120 mm LED Fan | | Status Monitoring | LED Indicator | | Dimensions (W x H x D) | 5.7 x 5.1 x 9.3" / 144.8 x 130.0 x 235.5 mm | | Weight | 46.0 oz / 1303.0 g | | | | Package Weight | 5.55 lb | | Box Dimensions (LxWxH) | 11.6 x 8.7 x 7.6" |
