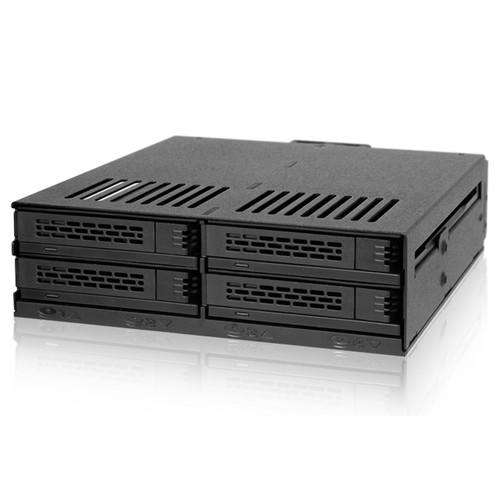

Product description The ExpressCage 4-Bay 2.5" SAS/SATA Drive Cage from Icy Dock occupies a desktop's 5.25" bay to provide your system with four hot-swap 2.5" storage drive bays. These four drive bays support internal 2.5" SSDs and HDDs that feature a SAS or SATA interface. Furthermore, the bays are able to accommodate 7 to 12.5mm tall drives.

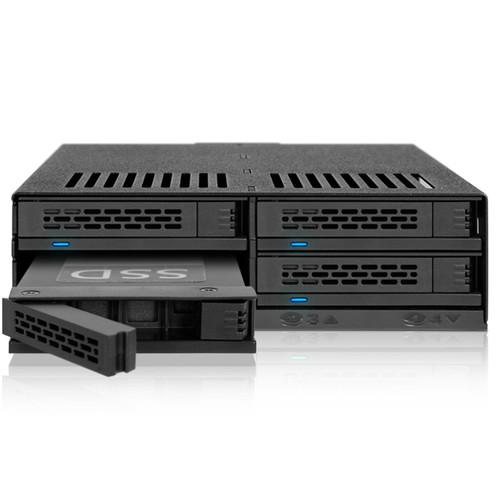

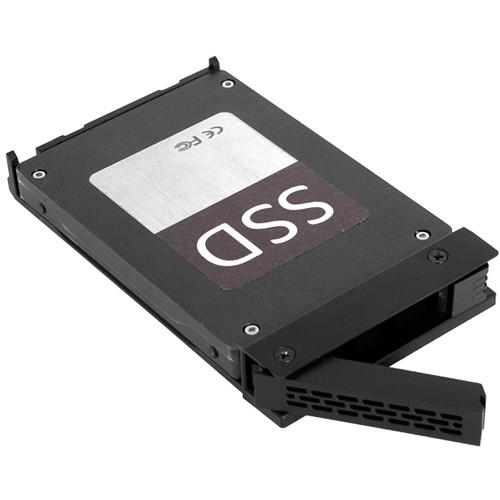

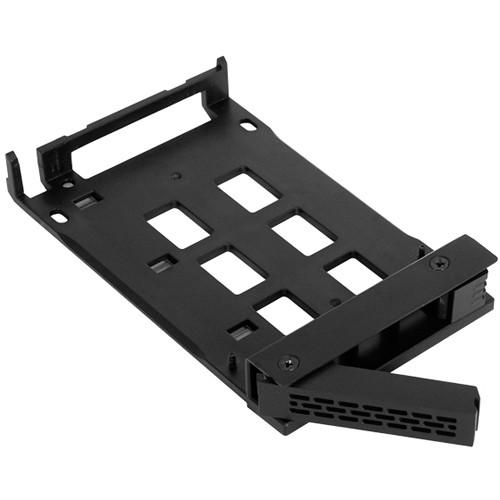

Mounting your drives is quick and easy with ExpressTrays. You can attach a drive to the ExpressTray by simply placing it downward into the built-in screws and pushing the rear tab. Screw holes are also available beneath the tray to provide additional stability.

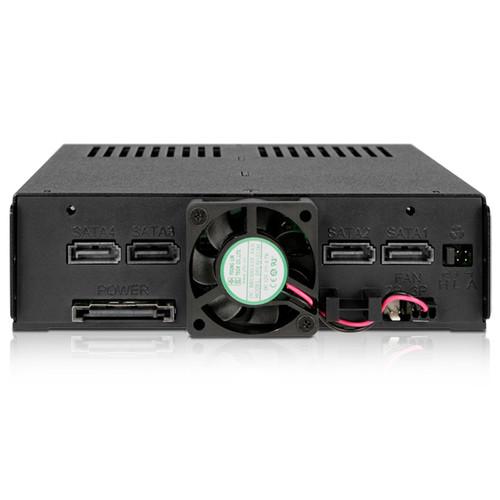

For cooling, a 40mm fan is on board while an adjustable speed jumper lets you set the fan's speed to High, Low, or Auto. Powering all four drives can be accomplished via a single 15-pin SATA power connector. Moreover, Active Power Technology keeps the enclosure powered down until a drive is inserted. - Supports up to four 2.5" SATA/SAS HDDs and SSDs into a single 5.25" bay
- Compatible with SATA III 6 Gbps or a SAS single channel (requires SAS host)
- Hot-swappable bays for quick drive installation
- Accommodates 2.5" drives that are 7mm, 9mm, or 12.5mm tall
- Active Power Technology (APT) - only powers up if there is drive installed in the drive bay

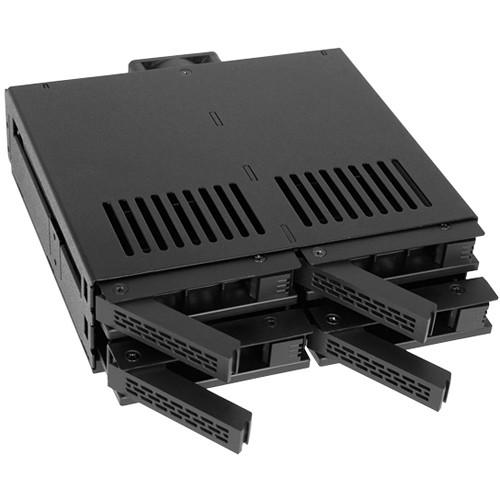

- Removable ExpressTray system for tool-less, easy installation comparable to tray-less designs
- Bottom mounted screw holes for increased stability

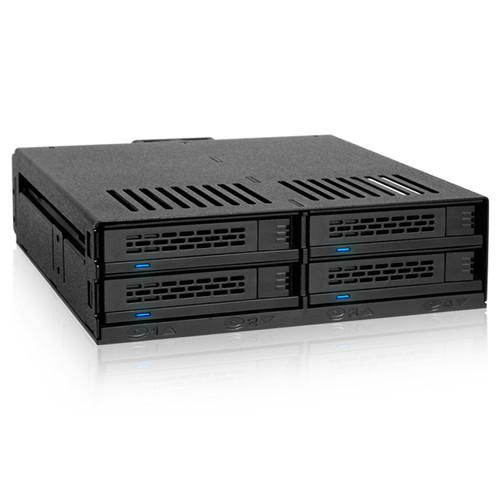

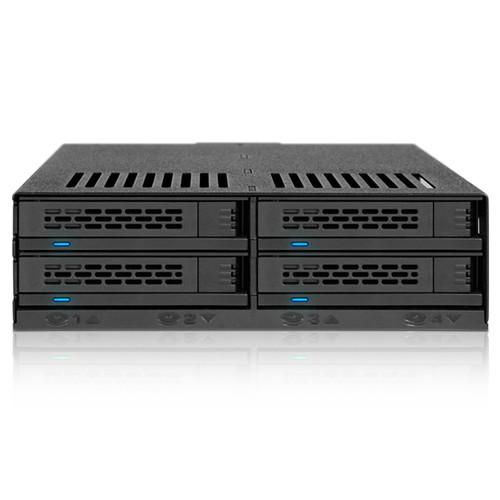

- Blue indicator LED provided for each bay

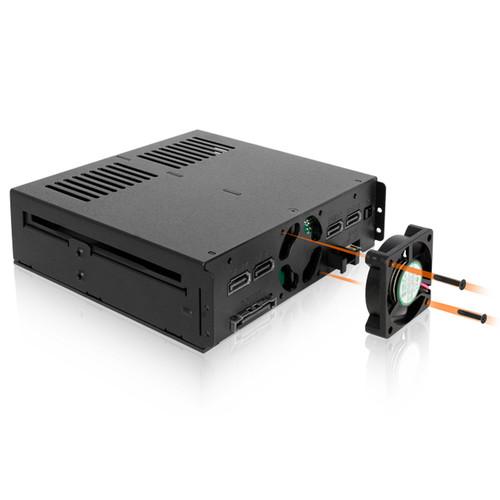

- 40mm upgradeable fan for drive cooling
- 2-pin and 3-pin fan headers to support most aftermarket fan upgrades
- Single 15-pin SATA power connection powers all four drives
- Locking latch design for both 7-pin SATA connector and 15-pin power adapter
- Fan speed control for High, Low, and Auto (smart cooling) settings
- Metal case with heavy duty ABS tray and door latch
UPC: 884826002369 In the Box Icy Dock ExpressCage 4-Bay 2.5" SAS/SATA Drive Cage for 5.25" Bay Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Icy Dock ExpressCage 4-Bay 2.5" SAS SATA Drive Cage for 5.25" Bay in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIcy Dock MB324SP-B Specs | Interface | Host: 4 x 7-pin SATA 6 Gb/s | | Drives Supported | 4 x 2.5" SATA or SAS (single channel) HDDs and SSDs
Drive Height: 7 mm, 9.5 mm, and 12.5 mm | | System Requirements | Single 5.25" half-height device bay | | Connection | Direct SAS/SATA drive | | Material of Construction | Plastic and metal | | Cooling | 40 mm rear fan
Speed Controls: High, Low, and Auto | | Indicator LEDs | Power: solid blue
Access: blinking blue | | Dimensions (L x W x H) | 5.7 x 1.6 x 5.5" / 145.8 x 41.3 x 140.5 mm | | Weight | 15.5 oz / 440.0 g | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 6.1 x 6.1 x 1.9" |
