User Manual for Icy Dock ExpressCage 6-Bay 2.5" SAS SATA Drive Cage for 5.25" Bay Click to enlarge the picture
Contents of the user manual for the Icy Dock ExpressCage 6-Bay 2.5" SAS
- Product category: Hard Drive Enclosures & Docks Icy Dock
- Brand: Icy Dock
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Icy Dock Hard Drive Enclosures & Docks
 |
User manual for the Icy Dock ExpressCage 6-Bay 2.5" SAS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Icy Dock product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Icy Dock user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Icy Dock product will considerably shorten its lifespan!
|

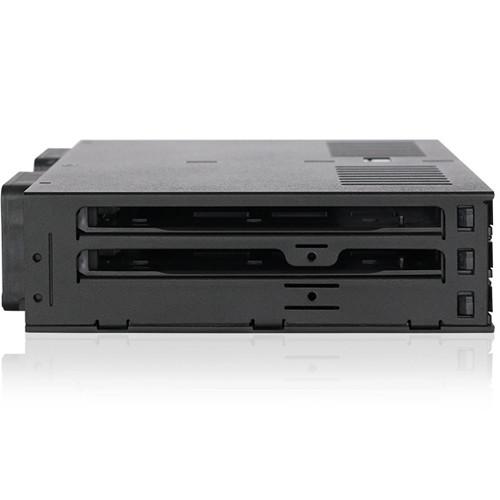

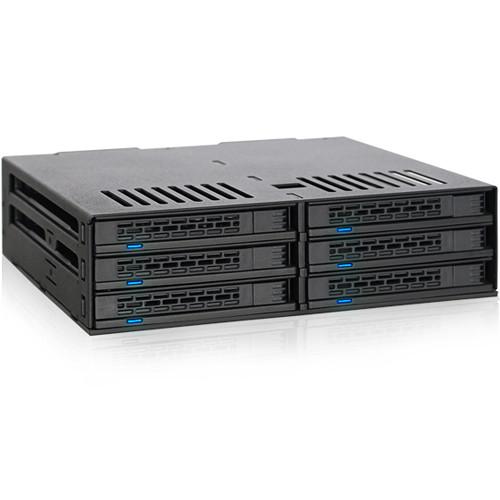

Product description The ExpressCage 6-Bay 2.5" SAS/SATA Drive Cage from Icy Dock occupies a desktop's 5.25" bay to provide your system with six hot-swap 2.5" storage drive bays. These drive bays support internal 2.5" SSDs and HDDs that feature a SAS or SATA interface. Furthermore, the bays are able to accommodate 5 to 9.5mm tall drives.

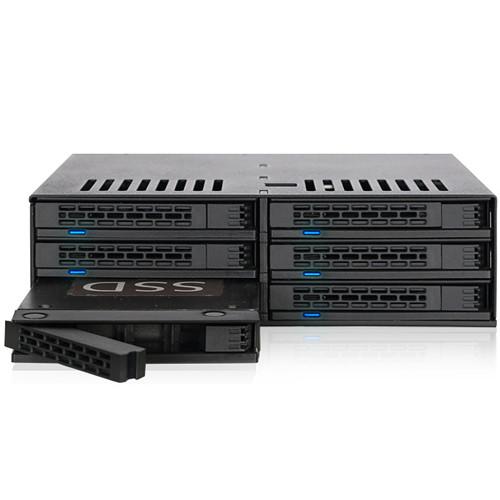

Mounting your drives is quick and easy with the included ExpressTrays, which attach to a drive via built-in screws and a rear tab. Screw holes are also available beneath the tray to provide additional stability.

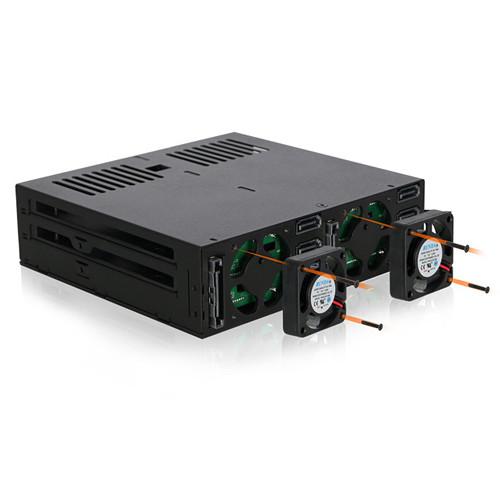

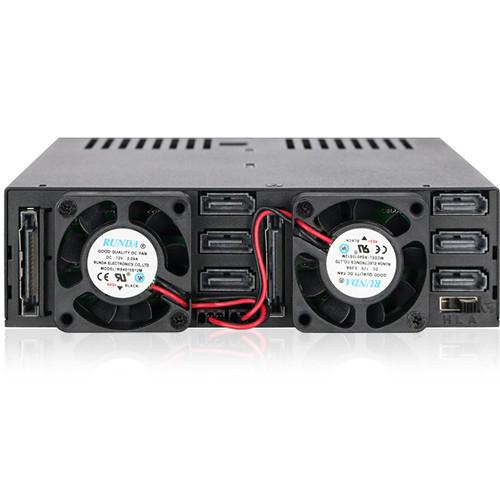

For cooling, two 40mm fans are on board while an adjustable speed jumper lets you set the fan's speed to High, Low, or Auto. Powering all six drives can be accomplished via two 15-pin SATA power connections. Moreover, Active Power Technology keeps the enclosure powered down until a drive is inserted. - Houses up to six 2.5" SATA/SAS HDDs and SSDs in a single 5.25" bay
- Compatible with SATA III 6 Gbps or a SAS single channel (requires SAS host)
- Hot-swappable bays for quick drive installation
- Accommodates 2.5" drives that are 5mm, 7mm, or 9.5mm tall
- Active Power Technology (APT) - only powers up when a drive is installed in a drive bay

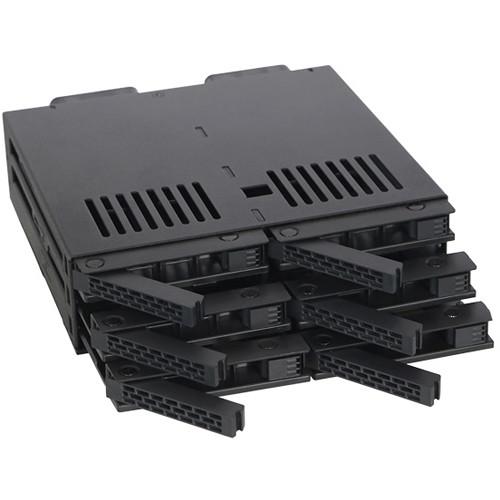

- Removable ExpressTray system for tool-less, easy installation comparable to tray-less designs
- Bottom mounted screw holes for increased stability

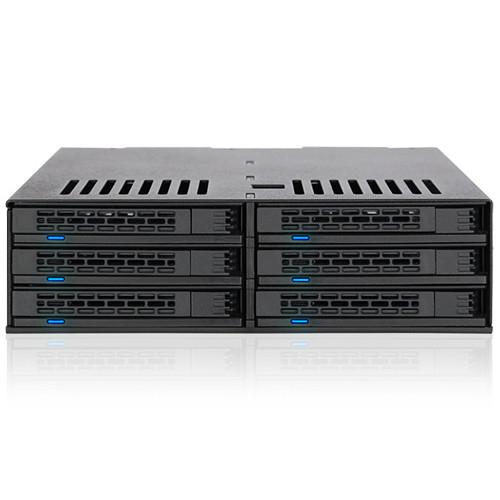

- Blue indicator LED provided for each bay
- Two 40mm upgradeable fans for drive cooling
- 3-pin fan headers to support most aftermarket fan upgrades
- 2 x 15-pin SATA power connections power all six drives
- Locking latch design for both 7-pin SATA connector and 15-pin power adapter
- Fan speed control for High, Low, and Auto (smart cooling) settings
- Metal case with heavy duty ABS tray and door latch

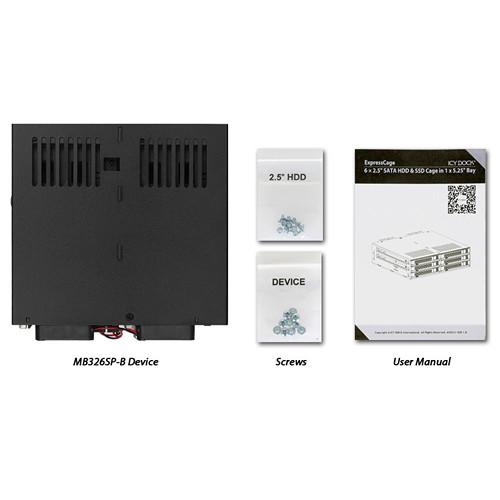

UPC: 884826504726 In the Box Icy Dock ExpressCage 6-Bay 2.5" SAS/SATA Drive Cage for 5.25" Bay Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Icy Dock ExpressCage 6-Bay 2.5" SAS SATA Drive Cage for 5.25" Bay in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIcy Dock MB326SP-B Specs | Number of Bays | 6 x 2.5" | | Maximum 2.5" SATA Drive Height | 9.5 mm | | Compatible Drive Interface | SAS, SATA | | | | Material of Construction | Metal, Plastic | | Cooling | 2 x PWM 40 mm Fans | | Status Monitoring | LED Indicator | | Dimensions (W x H x D) | 5.7 x 1.6 x 5.8" / 145.8 x 41.3 x 146.5 mm | | Weight | 15.4 oz / 438.0 g | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 6.4 x 6.1 x 2.2" |
