User Manual for Icy Dock EZ-Fit Lite Dual 2.5" to 3.5" SSD HDD Mounting Bracket Click to enlarge the picture
Contents of the user manual for the Icy Dock EZ-Fit Lite Dual 2.5"
- Product category: Internal Hard Drive Trays Icy Dock
- Brand: Icy Dock
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Icy Dock Internal Hard Drive Trays
 |
User manual for the Icy Dock EZ-Fit Lite Dual 2.5" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Icy Dock product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Icy Dock user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Icy Dock product will considerably shorten its lifespan!
|

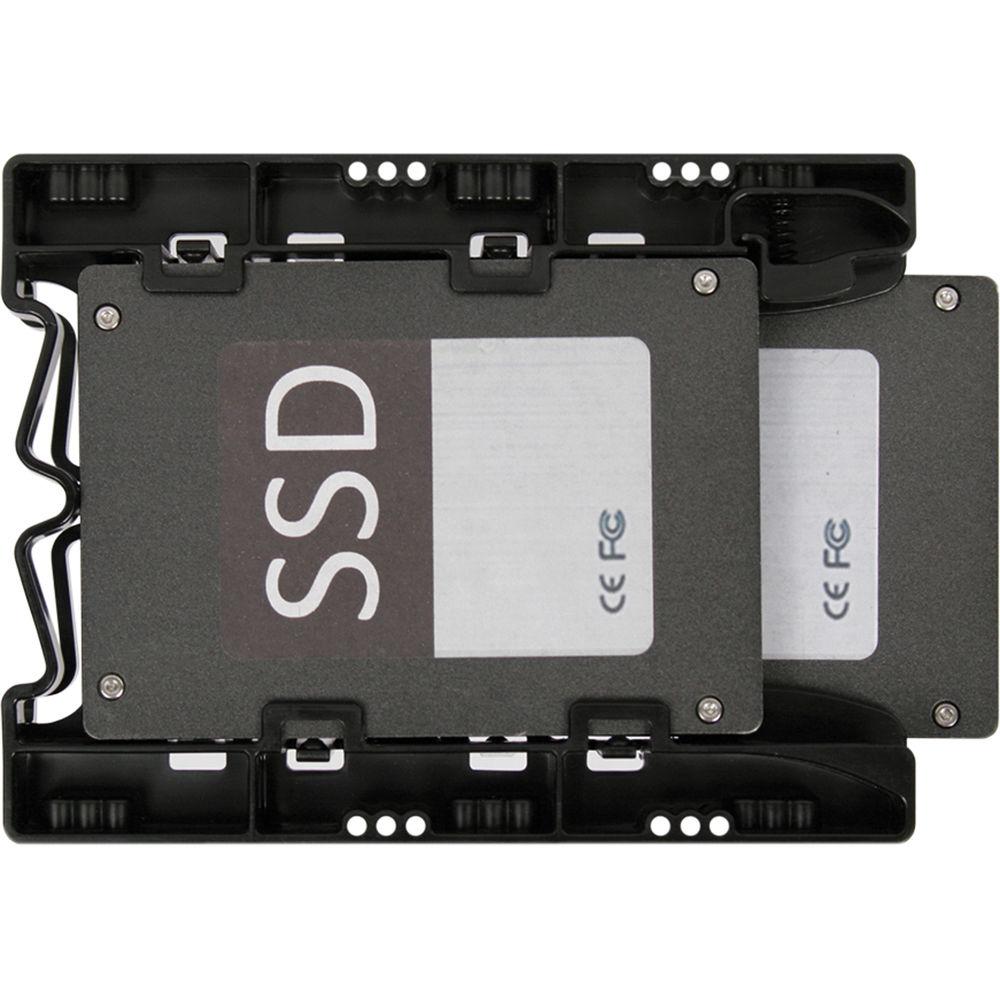

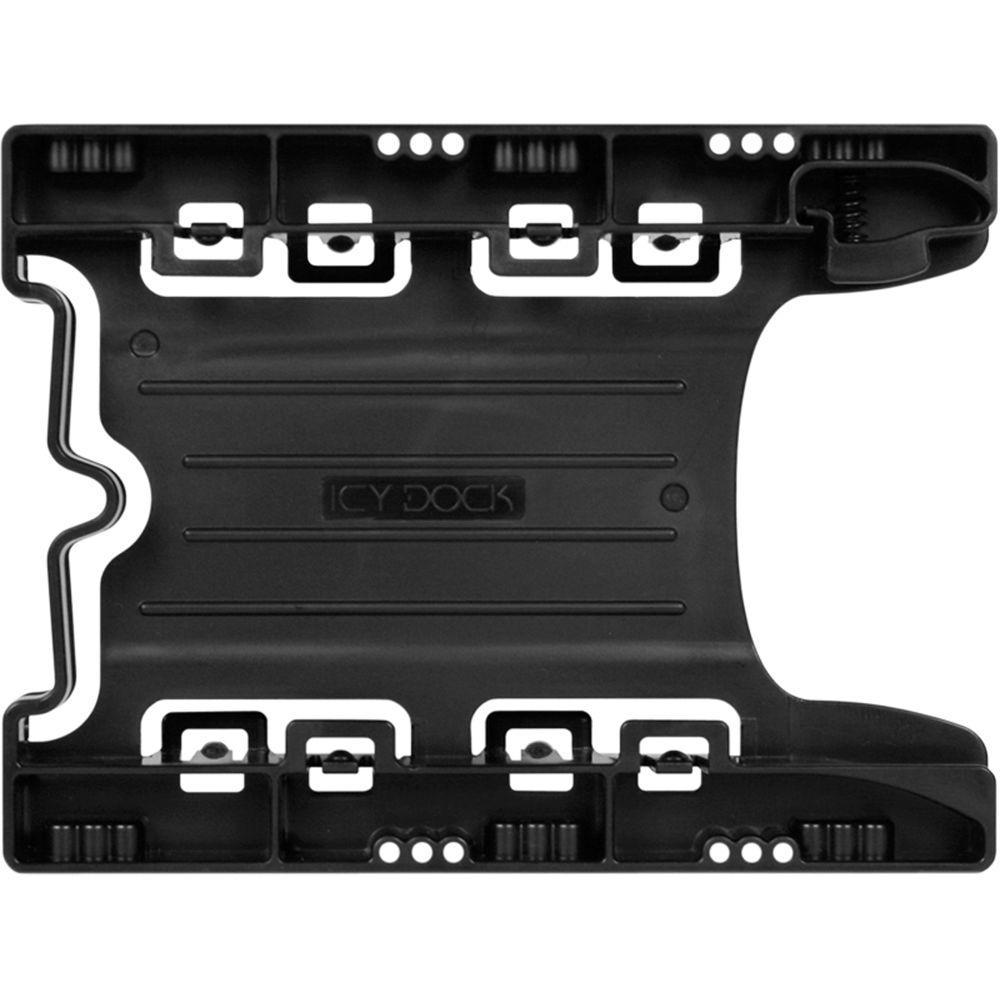

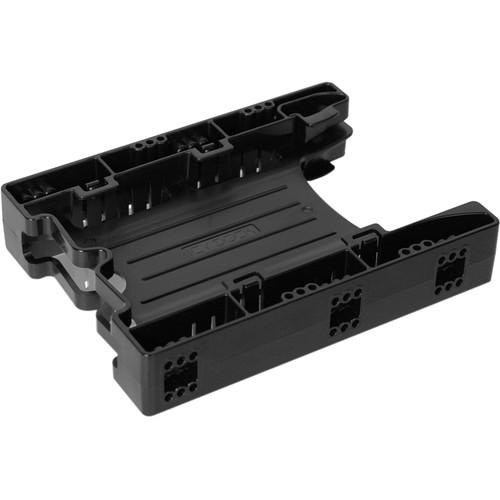

Product description The black EZ-Fit Lite Dual 2.5" to 3.5" SSD/HDD Mounting Bracket from Icy Dock fits one or two 2.5" SATA/IDE Solid State Drives (SSDs) or Hard Disk Drives (HDDs) into one 3.5" drive bay. It supports 2.5" SSDs or HDDs with 7 to 9.5mm drive height. The bracket is ideal for Home Theater PC Systems (HTPC), gaming PCs, or mini-IPX systems. Its tool-less drive installation creates a simple way to install your SSD/HDD. Key Features - Fits two 2.5" SATA/IDE SSDs/HDDs into one 3.5" drive bay

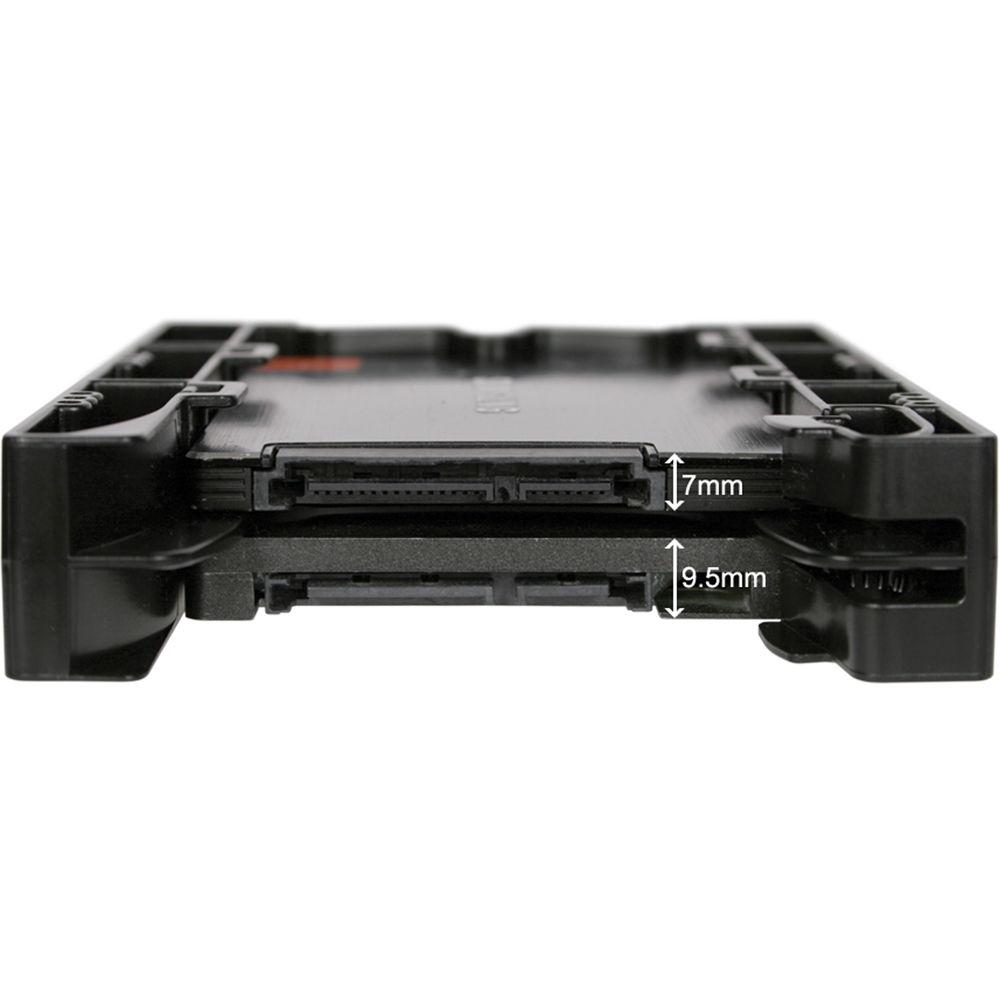

- Compatible with 2.5" SSD and HDD with 7 to 9.5mm drive height
- Anti-vibration design for improved reliability
- Quick release eject mechanism for hassle free tool-less drive installation
- Universally designed screw placement for maximum compatibility
- 60 screw holes provide maximum flexibility of installation
- Tool-Less Drive Installation

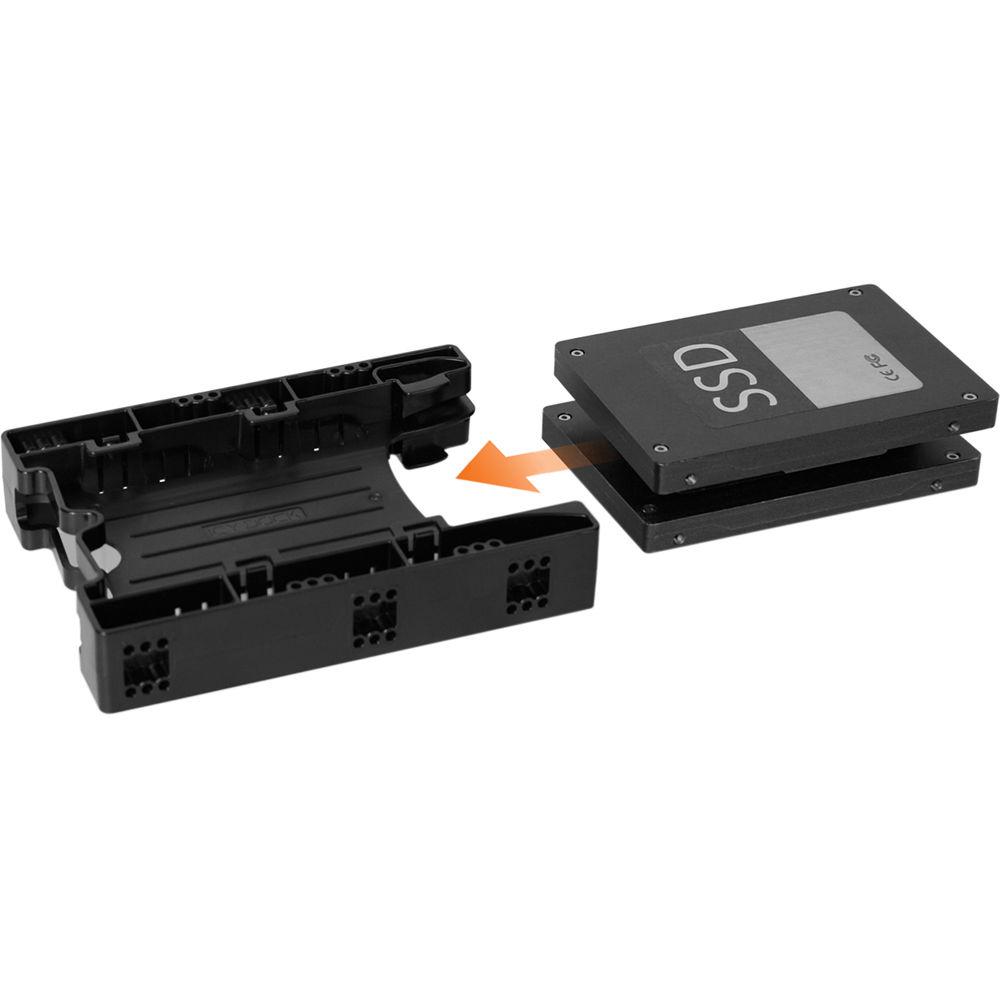

- The EZ-Fit Lite is a user-friendly 2.5" HDD/SSD bracket. It accepts up to two 2.5" SATA or IDE SSD/HDD drives with 7 to 9.5mm drive height, and uses a flex design system to simplify the drive installation process. All you need to do is insert the drive and push inwards until it "clicks." It has self adjusting tabs on the side that automatically conform to different drive heights (7 and 9.5mm) to securely lock it in place. In addition, the eject button allows for quick hard drive swapping, without removing the entire bracket from the chassis.
- Design

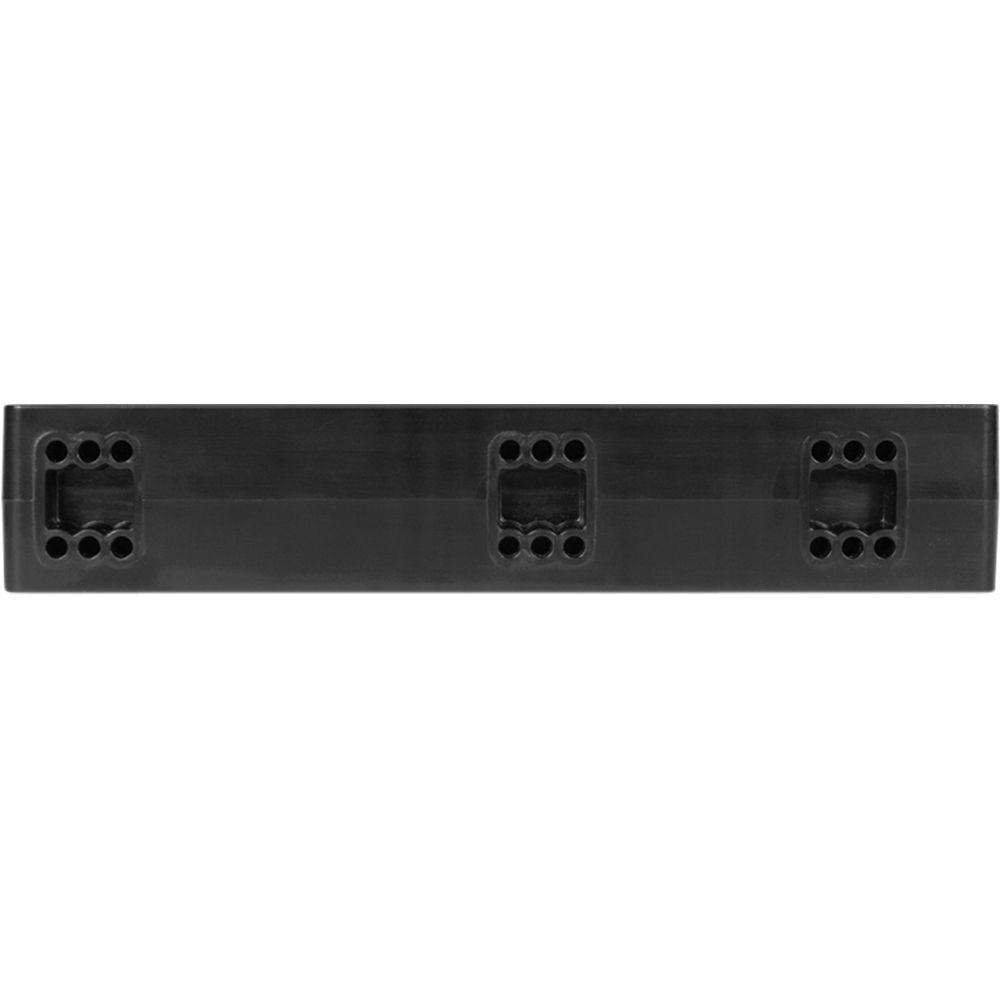

- It provides 60 screw holes to accommodate 3.5" bay installation in practically every computer chassis. In addition, there are 12 different ways to mount the EZ-Fit Lite in your system in comparison to the two positions you get with a standard 3.5" drive. This gives you the option to fine tune and adjust drive installation. There are screw holes located on top of the unit as well as at the bottom to give you extra compatibility. Furthermore, the screw holes provide a backup measure in case of installation failure.
- Lightweight with Cooling
- The EZ-Fit Lite is constructed with robust ABS plastic and fuses desirable traits such as durability and lightweight. 1-piece construction means there are less moving parts to be concerned with, which in turn means it's less likely to break. This makes it cost efficient. The frame has a weightless flexible stabilizer that secures the drive in place and provides shock absorption and anti-vibration properties, which is great for protecting your drives against impact. The open air design allows the drive to be cooled by the fans in the chassis. With its skeletal design, the EZ-Fit Lite allows airflow in all the crucial areas of the drive which enhances drive performance. Elevated ridges on the platform raise the drive just enough to allow heat dispersion keeping your SSD/HDD cooler. Side vents are also included in the bracket to let heat escape.
- Suggested Applications
- Desktop PC, gaming PC, Home Theater PC (HTPC), mini-ITX systems, home server systems.
UPC: 884826002093 In the Box Icy Dock EZ-Fit Lite Dual 2.5" to 3.5" SSD/HDD Mounting Bracket (Black) 4 x Screws Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Icy Dock EZ-Fit Lite Dual 2.5" to 3.5" SSD HDD Mounting Bracket in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIcy Dock MB290SP-B Specs | Structure | Plastic | | Drive Fit | 2 x 2.5" IDE/SATA SSDs/HDDs | | Supported Drive Size | 0.3 to 0.4" (7 to 9.5 mm) | | Device Fit | 1 x 3.5" hard drive bay | | Dimensions (L x W x H) | 134.6 x 105.9 x 25.4 mm (5.30 x 4.17 x 1.00") | | Weight | 2.0 oz (56.7 g) | | | | Package Weight | 0.22 lb | | Box Dimensions (LxWxH) | 6.221 x 4.646 x 1.417" |
Rating92% users recommend this product to others. And what about you?
This product has already been rated by 15 owners. Add your rating and experience with the product.
