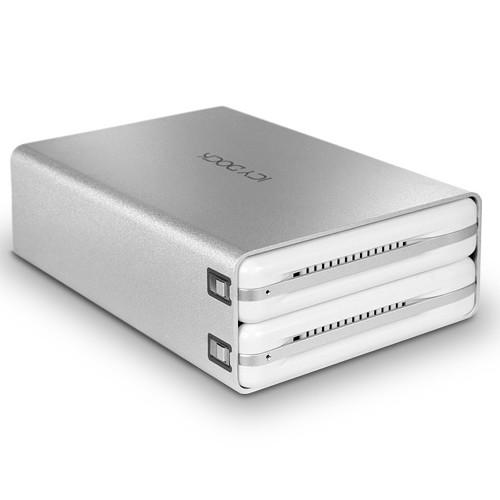

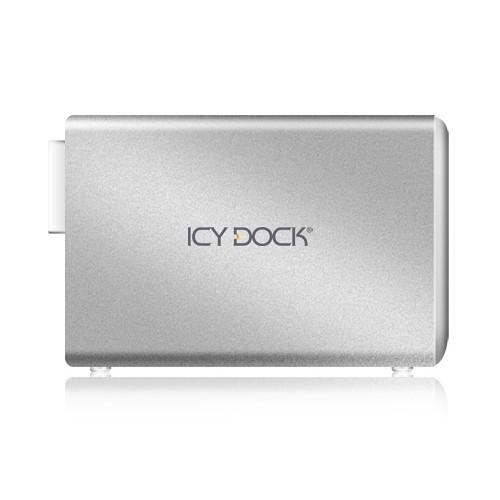

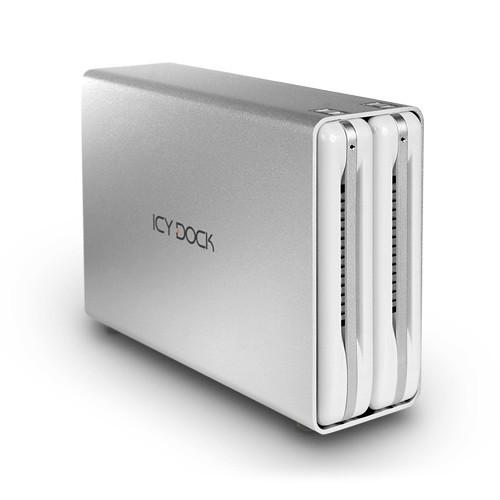

User Manual for Icy Dock ICYRaid 2-Bay USB 3.1 Gen 1 RAID Enclosure Click to enlarge the picture
Contents of the user manual for the Icy Dock ICYRaid 2-Bay USB 3.1
- Product category: Hard Drive Enclosures & Docks Icy Dock
- Brand: Icy Dock
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Icy Dock Hard Drive Enclosures & Docks
 |
User manual for the Icy Dock ICYRaid 2-Bay USB 3.1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Icy Dock product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Icy Dock user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Icy Dock product will considerably shorten its lifespan!
|
Product description The Icy Dock ICYRaid 2-Bay USB 3.0 RAID Enclosure connects to your computer via an included USB 3.0 cable to provide it with two 3.5" bays, so you can build a storage pool of data with optional drives. The bays can accommodate hard drives with a SATA III, II, or I interface as well as 2.5" drives by using a sold separately adapter. Aside from drive support, Icy Dock has outfitted the ICYRaid with a hardware RAID controller that lets you configure your drives in RAID 0, 1, BIG, or JBOD, utilizing a horizontal RAID switch located on the back of the enclosure. To keep up with the fast delivery of data, the enclosure supports UASP technology, which enhances the 5 Gb/s speeds of USB 3.0. Furthermore, a 40mm adjustable fan and aluminum design are on board to cool the drives as well as internal components. - RAID Performance
- The ICYRaid MB662U3-2S R1 is a self-contained hardware dual-bay RAID HDD enclosure that operates independent of your computer. That means it won't share your system resource like a software RAID, and you can connect it to any system that has a USB port to access your data on the go without changing your storage configurations. The MB662U3-2S R1 gives you the flexibility to choose between RAID 0 (FAST - Performance), RAID 1 (SAFE - Protect), BIG, and JBOD mode.
- RAID 0 - you can merge two drives into a single large storage and double the sequential read and write speed up to 420 MB/s in UASP mode (up to 320 MB/s without UASP)
- RAID 1 - is a suitable setting for preventing the loss of data when a single drive fails. Simply remove the faulty hard drive and insert a replacement drive and watch it rebuild via an indicator LED in the rear
- BIG - allows you to combine two drives with different capacities into a single large volume to maximize your storage capacity
- JBOD - saves your data into different drives and reads them independently
- Design

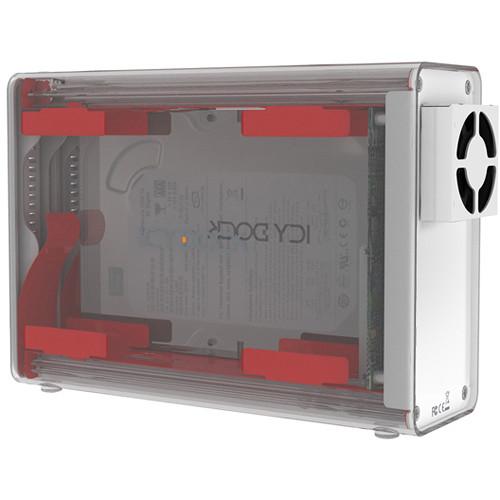

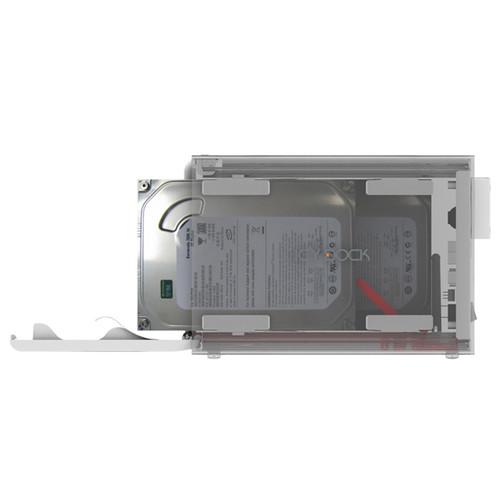

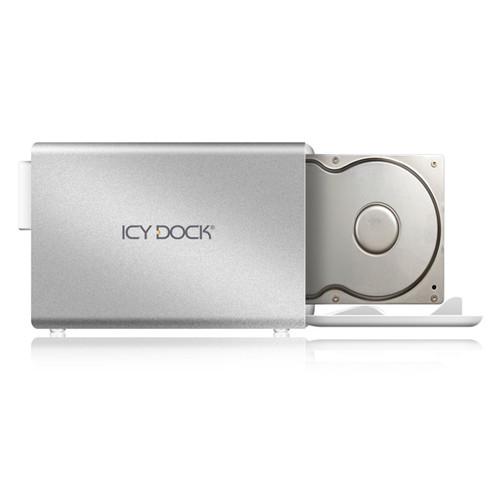

- The ICYRaid MB662U3-2S R1 features a tray-less design that makes any installation a seamless transition. Once you have your hard drives ready, simply open each door, slide in your hard drives, and select a RAID setting. After that, turning on the device will automatically start the process on its own.

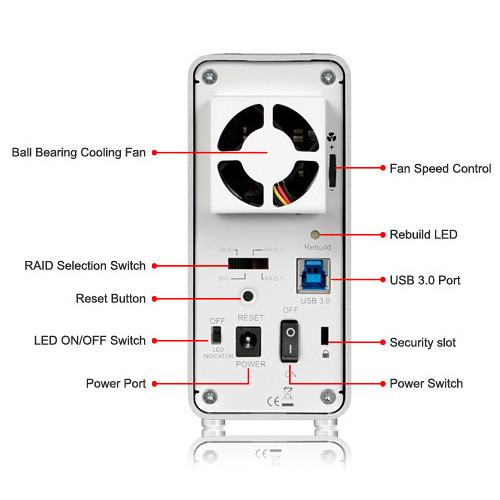

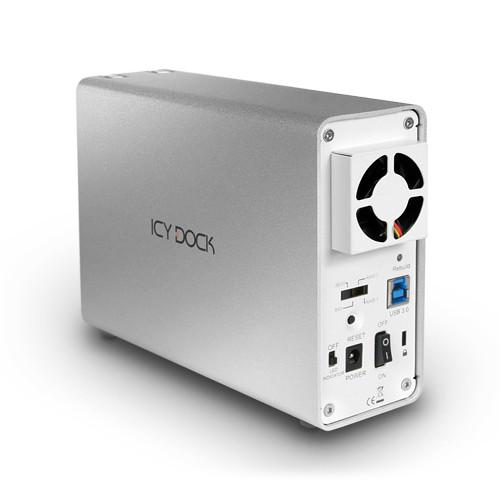

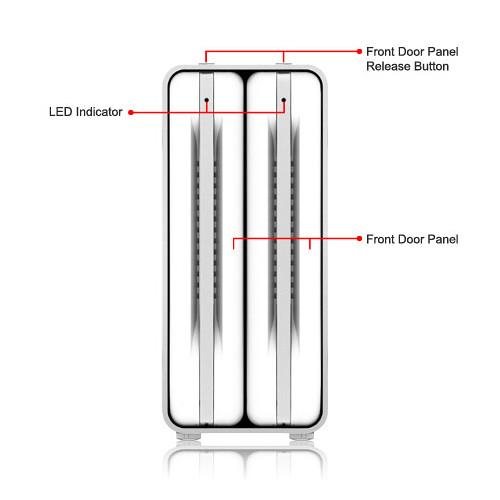

The easy-to-read front LED indicators will indicate when a drive is ejected, accessed, or has failed. When the unit is in the process of rebuilding the RAID table in RAID 1 mode, a rebuilding indicator light in the rear will display. The ICYRaid MB662U3-2S R1 conveniently adds LED control so the front and rear LED indicators can be disabled when needed. This function can be changed via dip switch on the rear panel. Additionally, RAID monitoring software is included for PC and Mac. - SuperSpeed Performance
- Take advantage of USB 3.0 interface with UASP support (PC users require Windows 8 and Host support, Mac supports it natively), which lets users transfer photos, home videos, movies, and music at fast speeds. Moreover, the USB 3.0 interface is also backwards compatible with USB 2.0 devices.
- Cooling

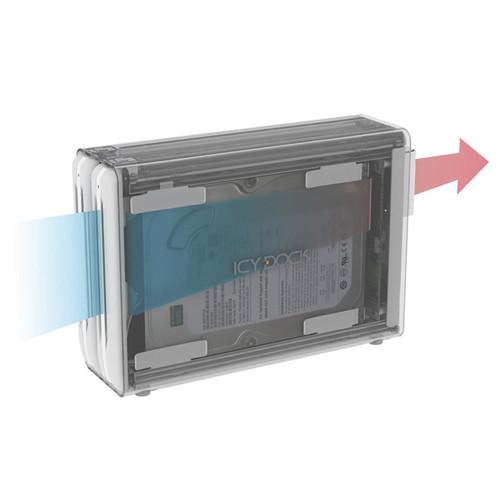

- The ball-bearing 40mm fan with variable fan speed control ensures optimal heat dissipation or quiet operation for a range of applications, such as a recording studio or production room.
UPC: 884826002451 In the Box Icy Dock ICYRaid 2-Bay USB 3.1 Gen 1 RAID Enclosure USB 3.0 Cable Power Adapter Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Icy Dock ICYRaid 2-Bay USB 3.1 Gen 1 RAID Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Icy Dock ICYRaid 2-Bay USB 3.1 Gen 1 RAID Enclosure can be downloaded in PDF format at the link stated below.
Technical parametersIcy Dock MB662U3-2S R1 Specs | Number of Bays | 2 x 3.5" | | Connections | 1 x USB Type-B (USB 3.1 Gen 1 (5 Gb/s)) | | Compatible Drive Interface | SATA III | | RAID Modes | RAID 0, 1, JBOD | | UASP Support | Yes | | Operating System Support | Linux, Windows, macOS/OS X | | | | DC Input Power | 12 VDC at 4 A | | | | Cooling | 1 x PWM 40 mm Fan | | Status Monitoring | LED Indicator | | Dimensions (W x H x D) | 8.1 x 5.3 x 2.4" / 20.5 x 13.4 x 6.1 cm | | Weight | 1.8 lb / 0.8 kg | | | | Package Weight | 3.4 lb | | Box Dimensions (LxWxH) | 8.9 x 8.7 x 3.8" |
