User Manual for Icy Dock ToughArmor 2.5" SATA SAS HDD & SSD Mobile Rack for 3.5" Drive Bay Click to enlarge the picture
Contents of the user manual for the Icy Dock ToughArmor 2.5" SATA SAS
- Product category: Internal Hard Drive Trays Icy Dock
- Brand: Icy Dock
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Icy Dock Internal Hard Drive Trays
 |
User manual for the Icy Dock ToughArmor 2.5" SATA SAS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Icy Dock product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Icy Dock user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Icy Dock product will considerably shorten its lifespan!
|

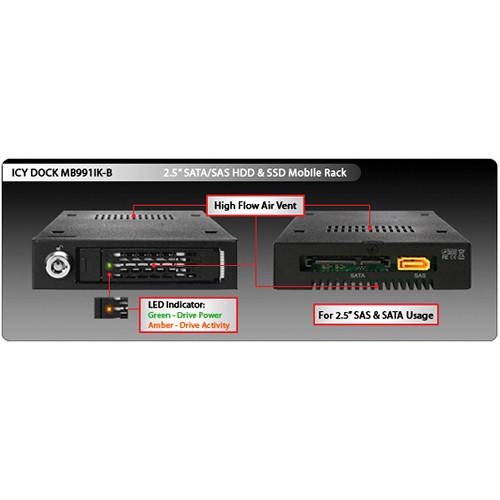

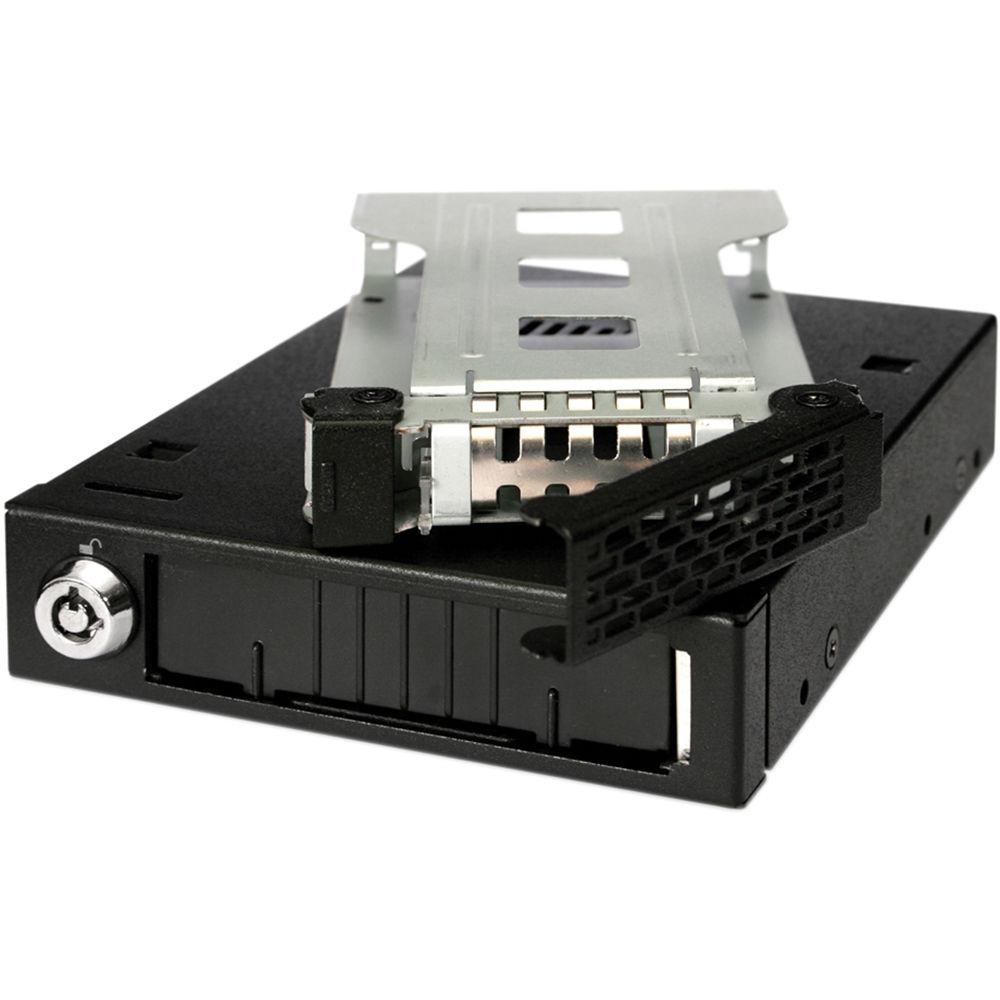

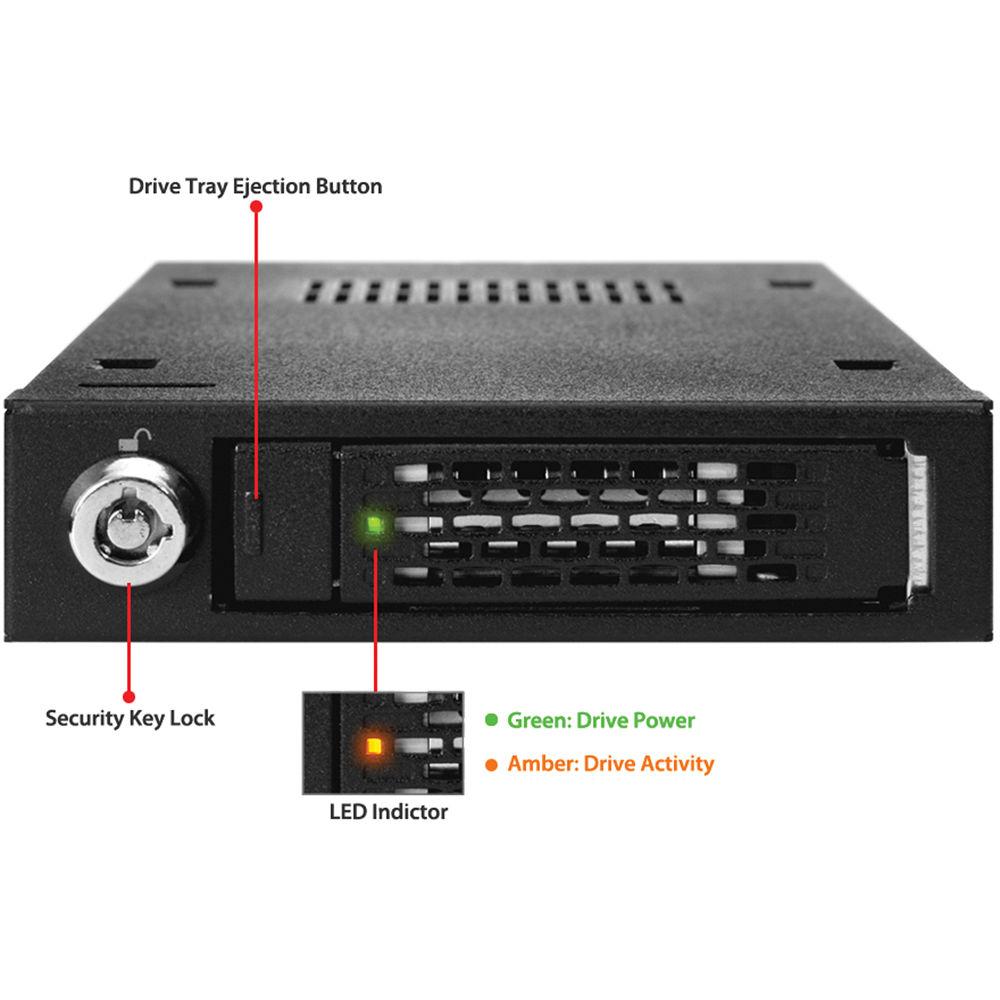

Product description The matte black ToughArmor 2.5" SATA/SAS HDD & SSD Mobile Rack from Icy Dock is a small form factor device for use in 3.5" device bays built specifically for 2.5" SAS hard drives or SSDs. The heavy-duty metal construction can withstand harsh enterprise-type environments. With full metal design, the rack is suitable for industrial and medical devices that may require a flammability rating, as it complies with flammability requirements. The full metal design also allows efficient heat dissipation from hard drives throughout the mobile rack. In addition, the Multi-Flow technology effectively routes airflow correctly for passive cooling in key ventilation slots on the front, rear, top and bottom. The anti-vibration technology and EMI grounding are used to provide a stable environment for the hard drives or SSDs. The front of the mobile rack includes a status LED to indicate when the drive is powered on, off, and accessed. Active Power Technology (APT) allows the status LED to be on only when a hard drive is inserted into the enclosure. The drive is secured by technologies such as the Eagle-hook lock system and metal 2-segment safeguard key. The 2-segment key lock provides extra protection against theft of hard drives, as well as safeguards sensitive data. The full metal, EZ Slide Mini Tray allows interchangeability of data between multiple systems with other compatible ToughArmor products. It makes drive interchangeability and maintenance completely hassle free, in case of a hard drive failure. With a simple swap of the hard drive, the overall down time is reduced, especially if this occurs when it is time-sensitive. It can be used in various enterprise systems including medical, media servers, military and law enforcement deployment, as well as manufacturing conditions such as embedded control systems and factory automation systems. The trays are also designed to accommodate 7 to 15mm height hard drive and SSD, creating a 2.5" hot-swap bay for any standard SAS/SATA hard drives and SSDs. While the tray is not installed in the rack, the anti-dust flap feature helps prevent dust from entering into the mobile rack. - Supports SAS 2.0/SATA 6 Gb/s and hot-swap
- Single SATA 15-pin to power the entire device

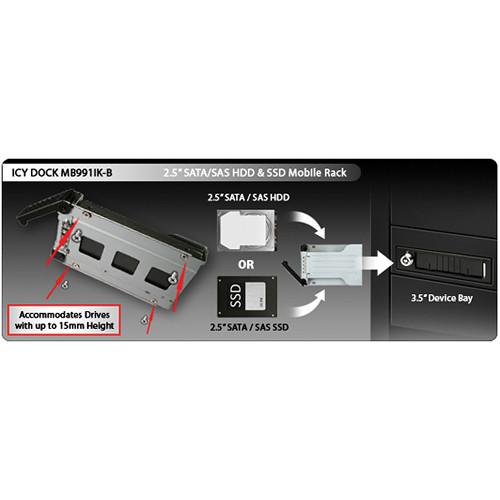

- Fits one 7 to 15mm 2.5" SAS/SATA drives/SSDs in a 3.5" floppy drive bay
- Multi-flow technology provides passive cooling
- Anti-vibration technology creates a safe environment for hard drives or SSDs
- Active Power Technology (APT) individual LEDs only powers up if there is a drive installed in the drive bay
- EMI grounding protects hard drives from electrical damages

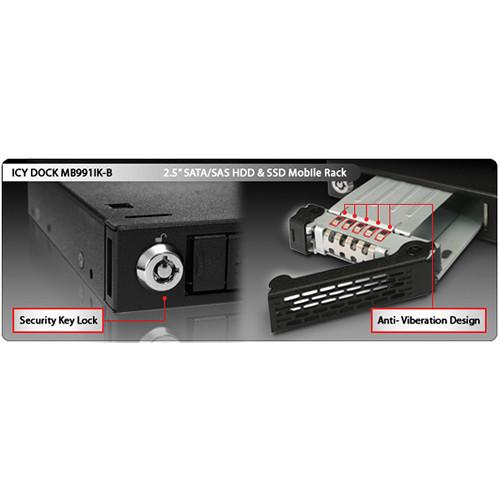

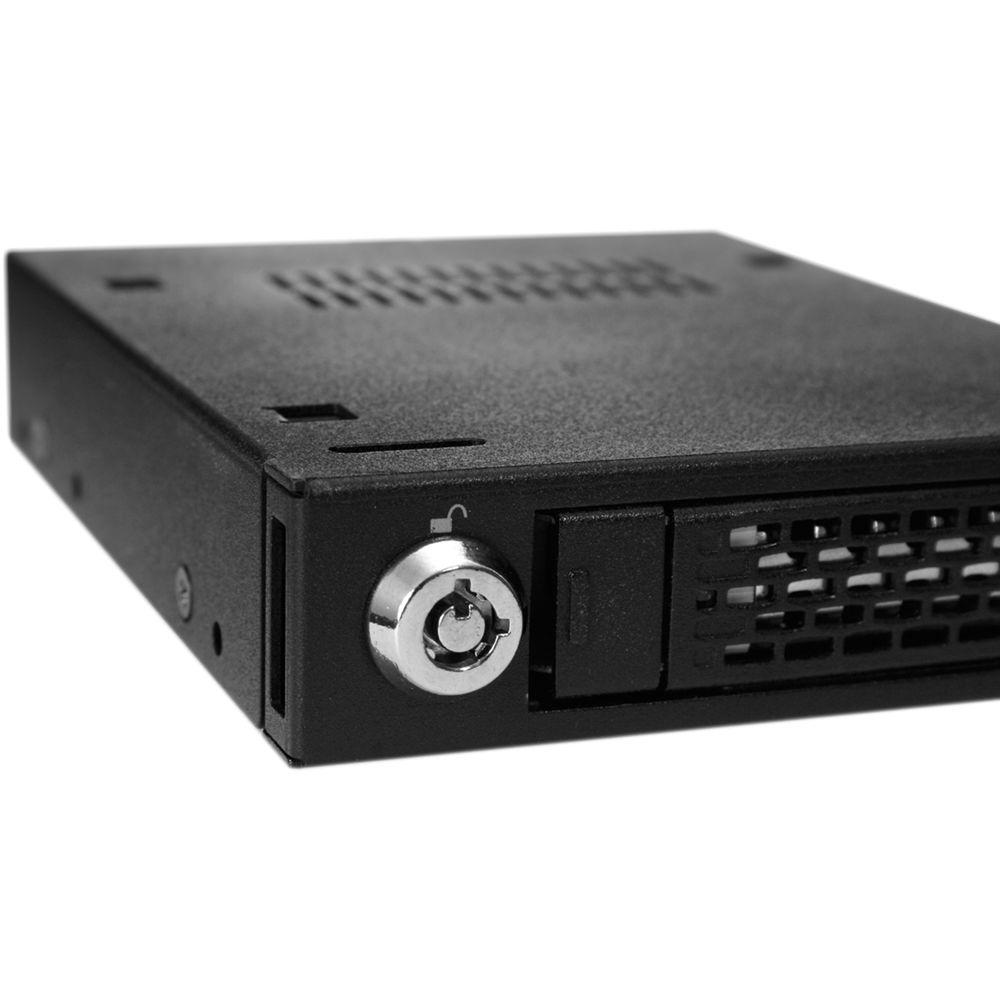

- Eagle-hook lock system and 2-segment safeguard key lock keeps drives secure within the enclosure
- Anti-dust flap prevents dust from entering when your device is not use

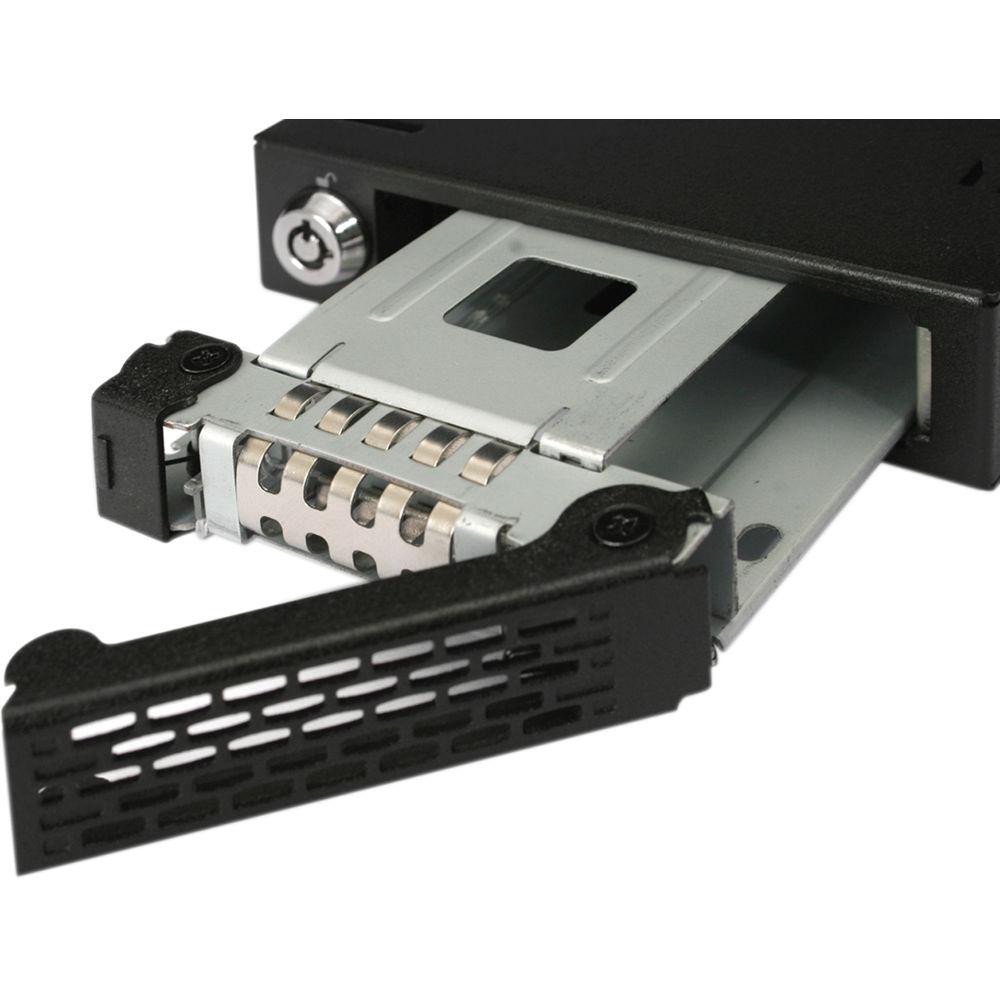

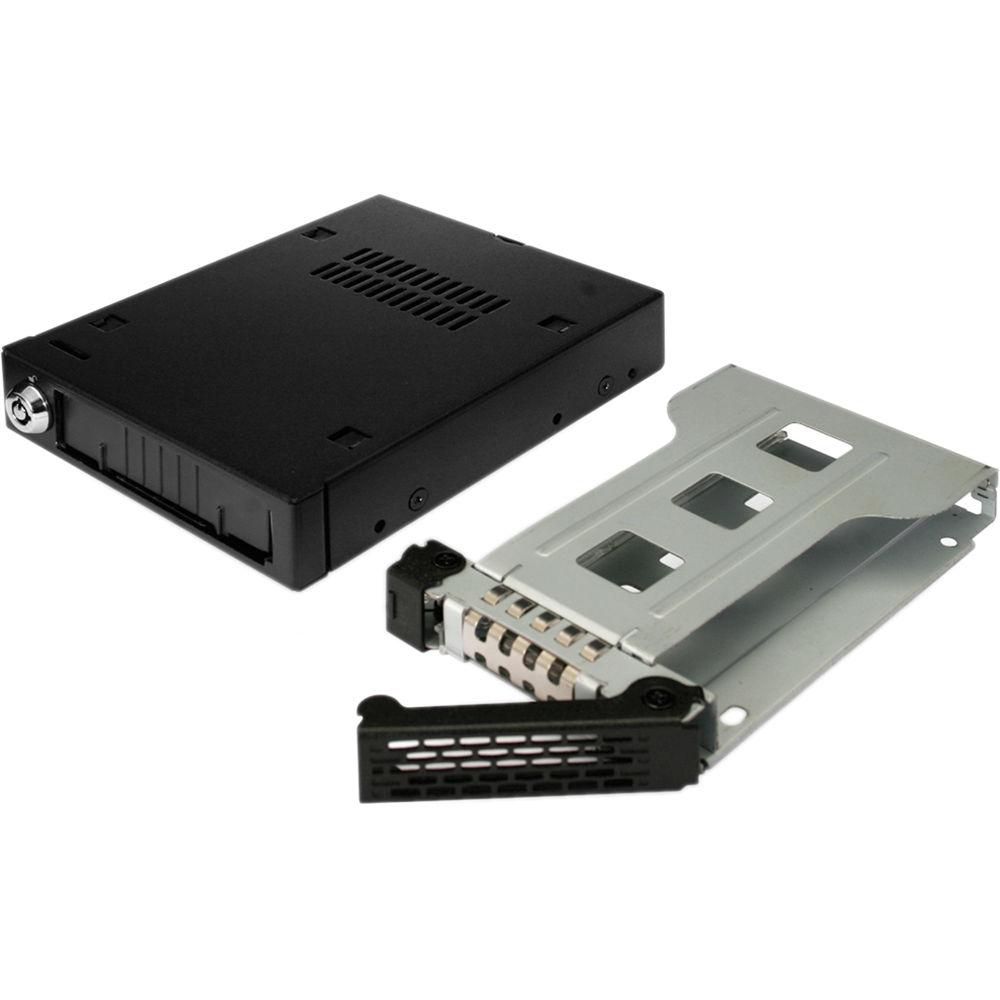

- Removable EZ Slide Mini Tray system for easy maintenance
- Full metal construction is suitable for rugged applications and complies with flammability requirements
UPC: 884826001409 In the Box Icy Dock ToughArmor 2.5" SATA/SAS HDD & SSD Mobile Rack for 3.5" Drive Bay (Matte Black) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Icy Dock ToughArmor 2.5" SATA SAS HDD & SSD Mobile Rack for 3.5" Drive Bay in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

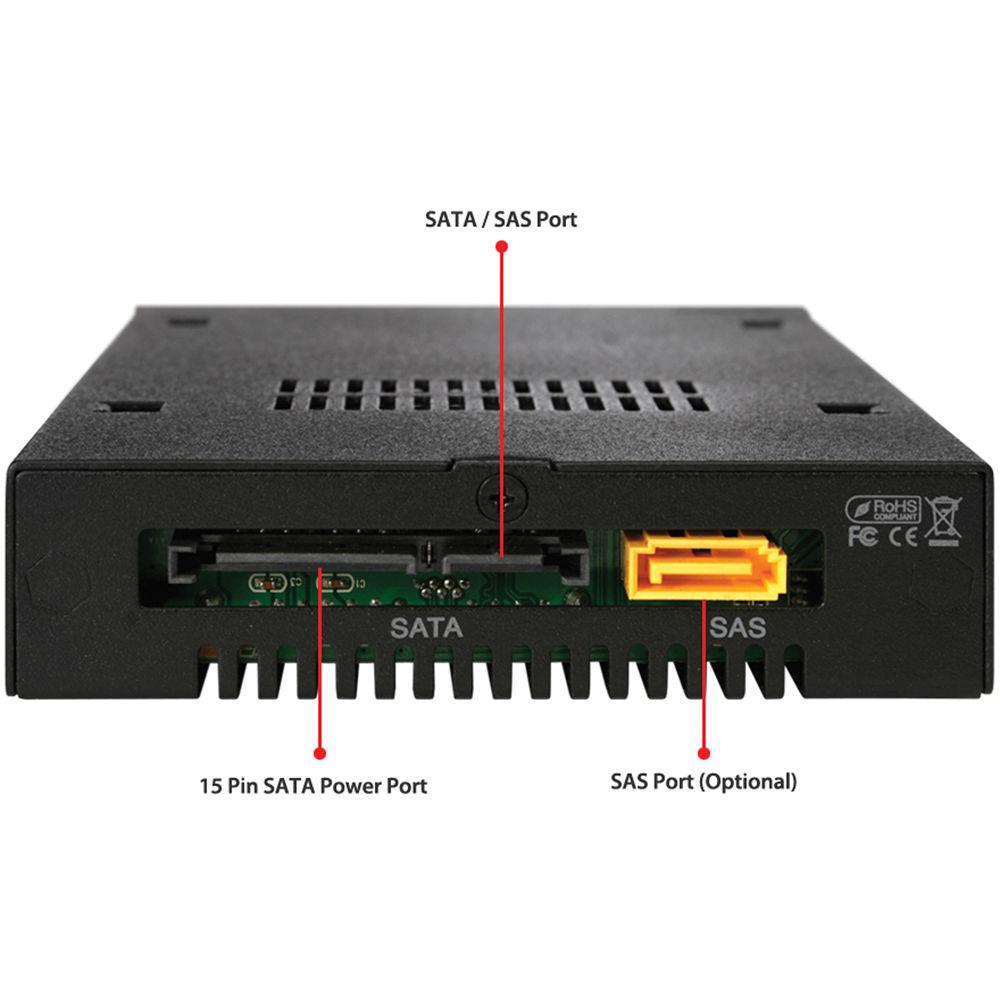

Technical parametersIcy Dock MB991IK-B Specs | Host Interface | 2 x 7-pin SATA (For SAS dual channel) | | Drive Fit | 1 x 2.5" SAS or SATA I/II/III hard drive or SSD (7 to 15 mm drive height) | | Drive Bay | 1 x 3.5" floppy drive bay | | Data Transfer Rates | Up to 6 Gb/s per channel (depending on the hard drive speed) | | Power Input | Single 15-pin SATA power port | | Insert and Extract Connection | Via direct SAS/SATA hard drive | | Structure | Full metal | | Drive Cooling | Metal heat dispersion | | LED Indicators | Device Power: Green
Drive Activity: Amber | | Dimensions | 5.32 x 4.00 x 1.01" (13.51 x 10.16 x 2.56 cm) | | Weight | 14.08 oz (399.16 g) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 6.3 x 4.5 x 1.4" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 32 owners. Add your rating and experience with the product.
