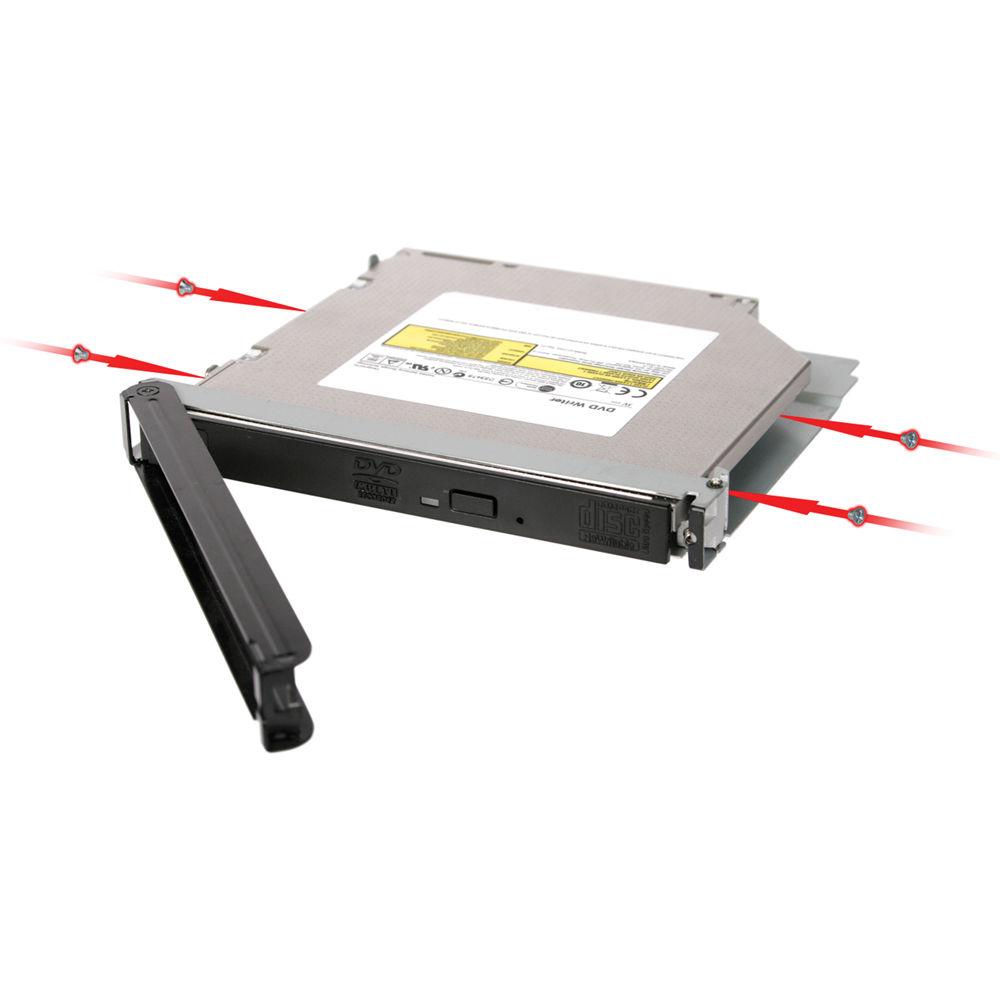

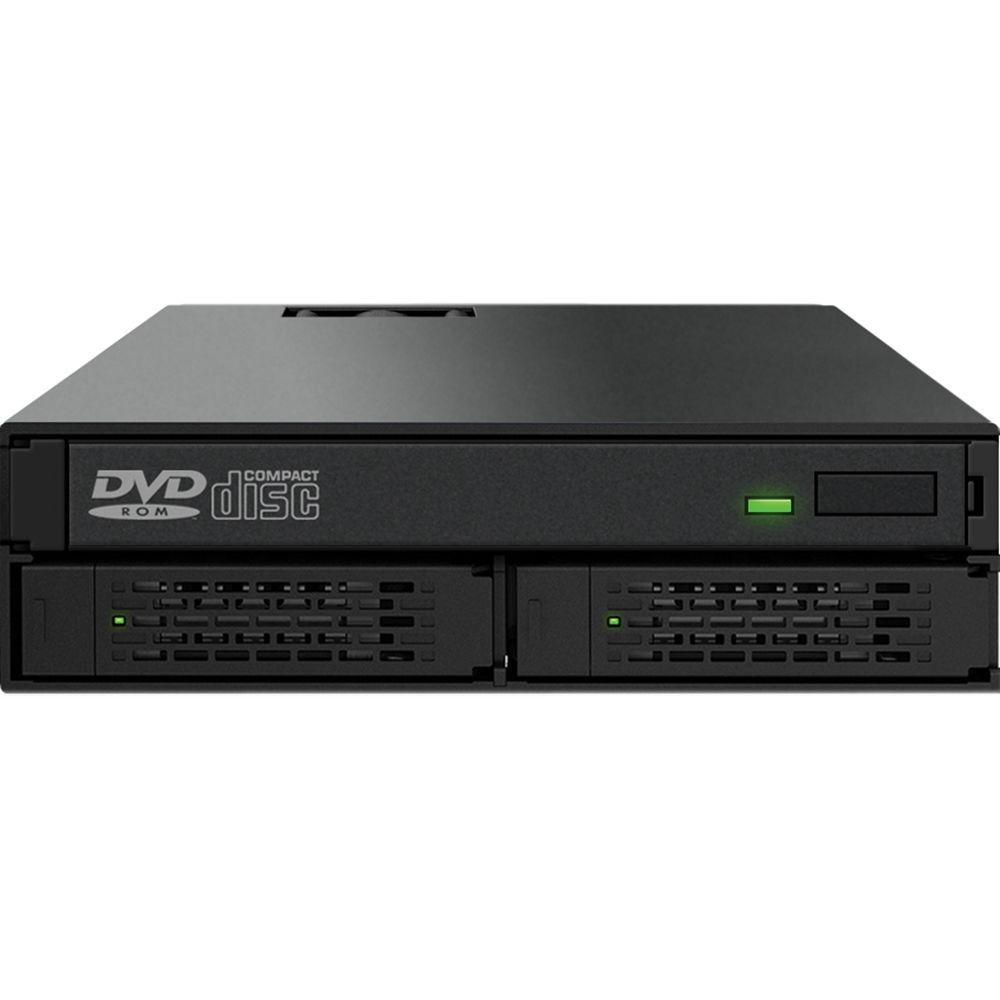

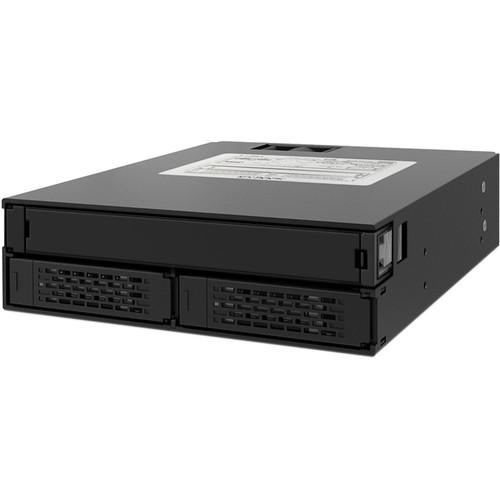

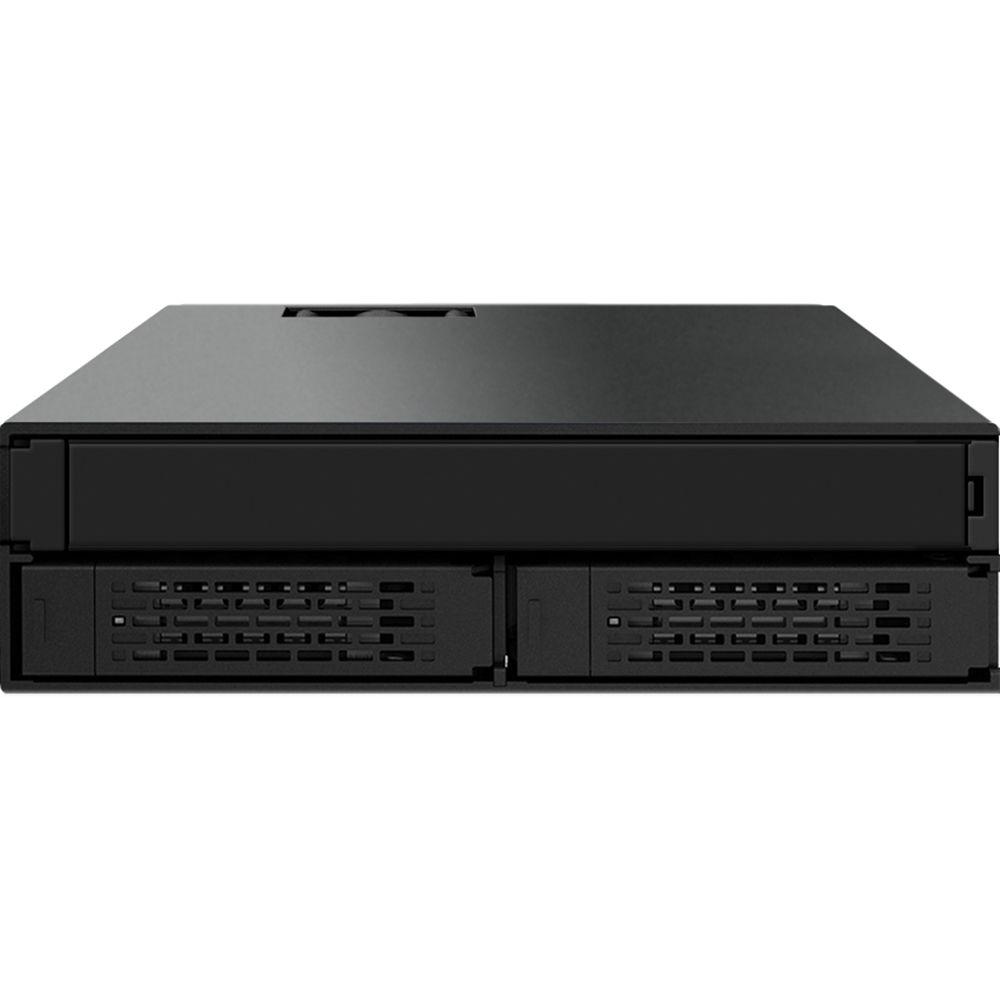

Product description The ToughArmor 2 x 2.5" SAS/SATA HDD + 1 x Slim ODD Rack from Icy Dock is a full metal, dual bay 2.5" SATA/SAS hard drive/SSD mobile rack backplane designed with a Slim Optical Disk Drive (ODD) slot, for use in a single 5.25" device bay. This device is designed for a small form factor system or server such as IPC, HTPC, NAS, Home Servers, and all-in-one computers. Dual 4-pin power connectors are used to ensure secured and consistent power supply to both SATA/SAS drives and the optical drive, whether they are low power consumption 2.5" SATA SSD's or 15,000 rpm 2.5" SAS drives. The dual bay includes a single 40mm cooling fan with on and off switch to assist the drives running at their optimal temperatures, in intense applications. An EZ-ODD tray fits in the Slim Optical Disk Drive slot and is easily removable by use of the provided key, or via the side latch. This allows system integrators to meet their potential client's needs. It utilizes EZ Slide Mini Trays, making drive interchangeability and maintenance hassle-free. Furthermore, the long lasting full metal trays let you easily transport your data from system to system. The device features a full cage design and an added top drive cover that provides an added layer of protection, while moving the drive. The trays are designed to accommodate 7mm, 9.5mm, 12.5mm, and 15mm drives, which gives you the control of your 2.5" hot-swap backplane. Its fan-control allows the potential system to be accommodated properly, depending on the hard drives used. If an SSD is used, the fan can be left off which, shuts off the noise completely from the device. The fan assists in cooling mission critical hard drives. The device body is built with aluminum for tough conditions and provides optimal heat dissipation. Its ventilation slots on the front and back for maximum airflow, keep the drives running cool. The LED is placed on the front of each drive tray to give the user drive status, at all times. - Fits two 2.5" SATA/SAS hard drives or SSDs and a slim Optical Disk Drive (ODD)

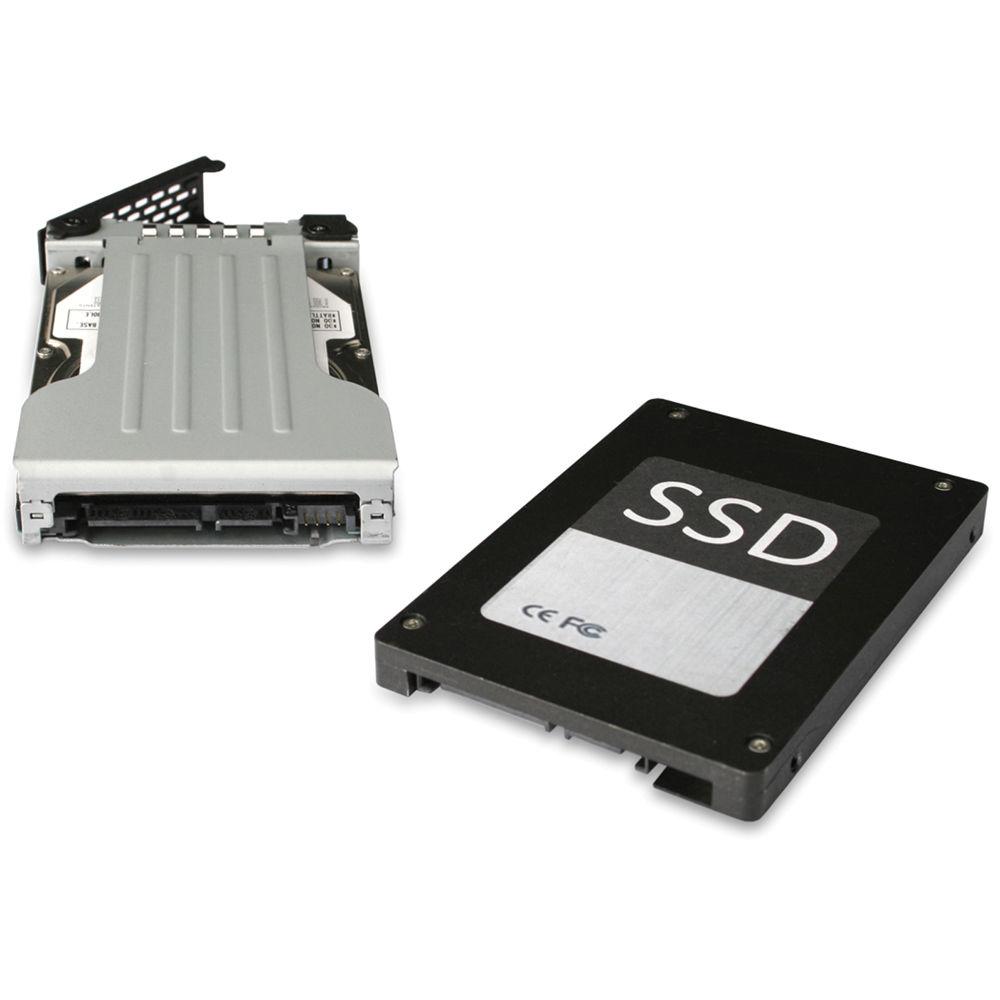

- Accommodates hard drives or SSDs with up to 15mm height
- Supports SATA III and SAS II interface
- Full aluminum body construction

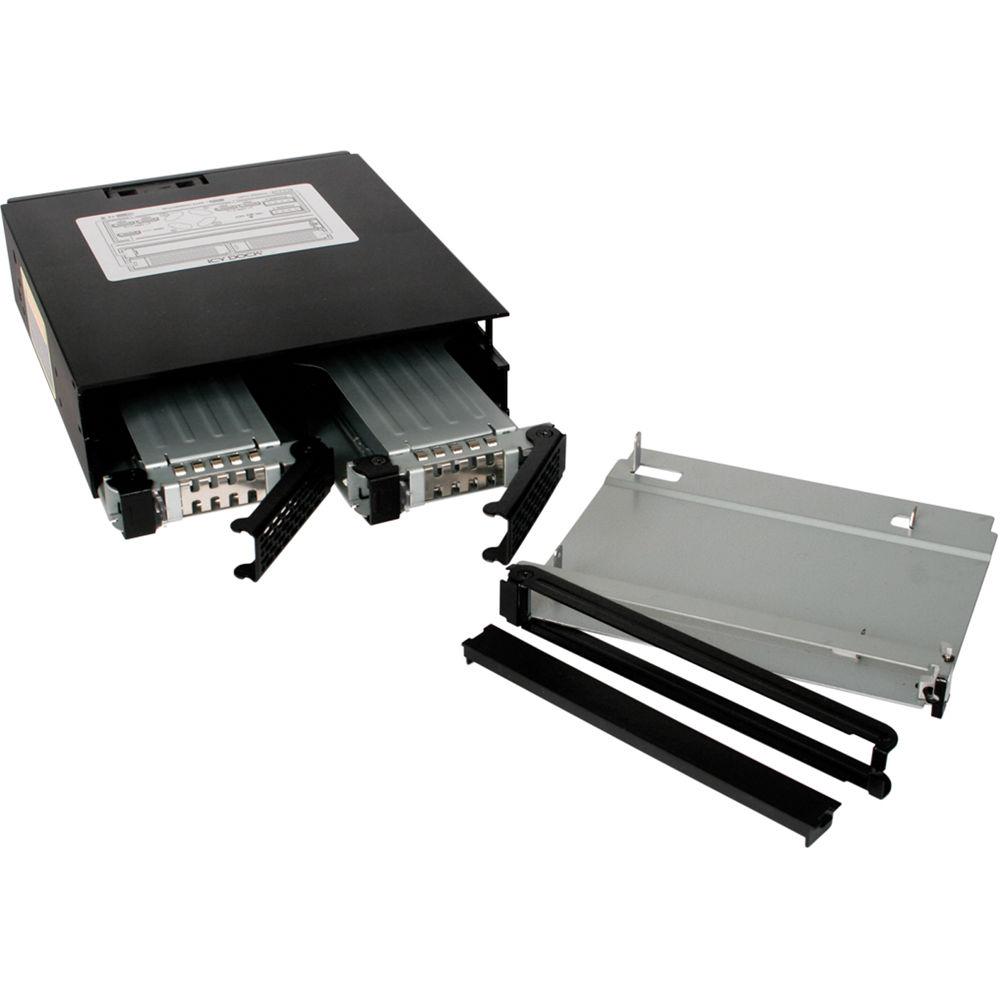

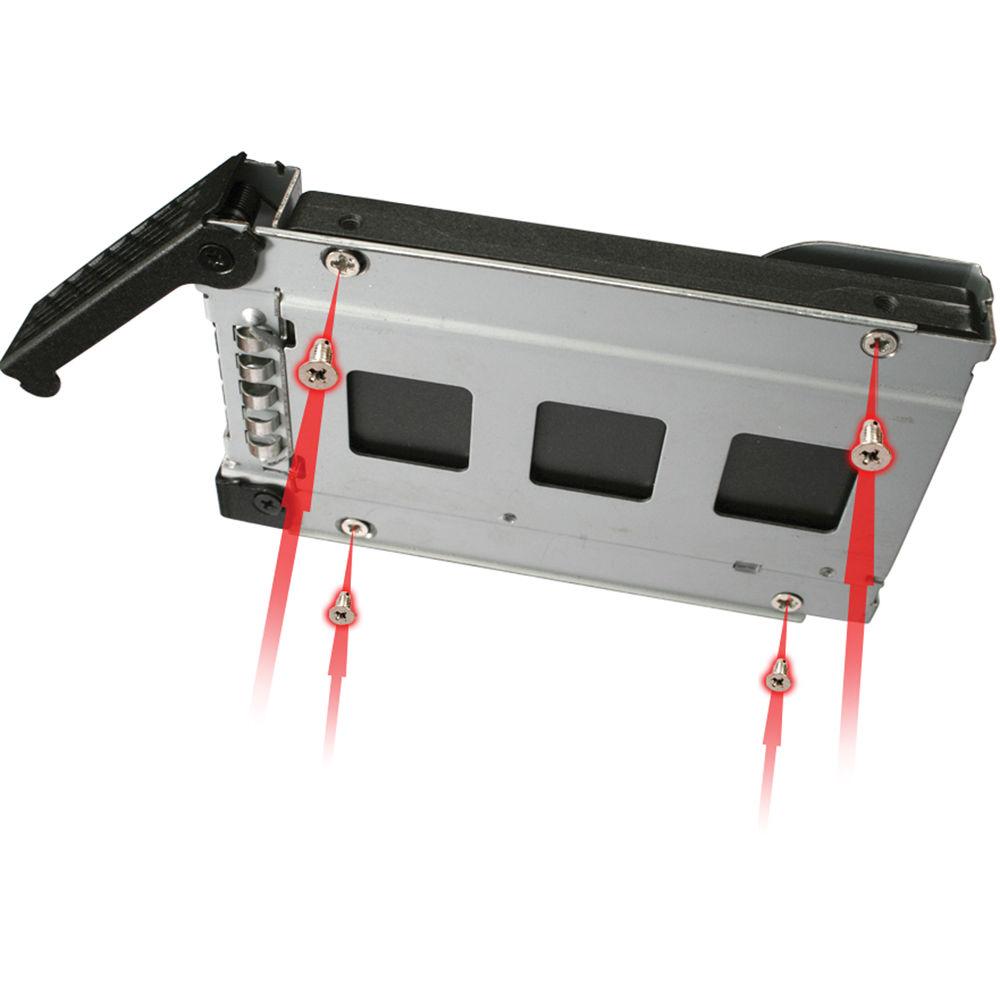

- Full metal, EZ Slide Mini Tray and EZ-ODD tray system with full cage design

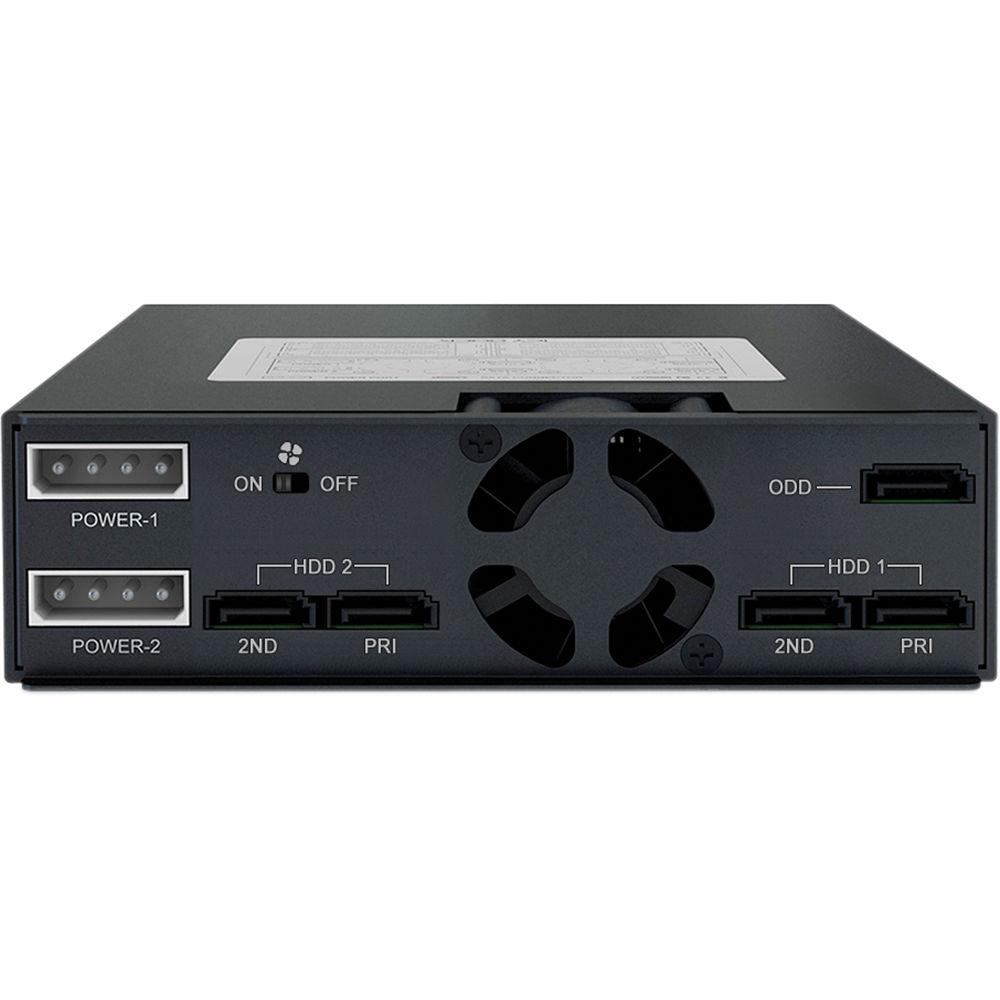

- Two 4-pin power connectors to properly power all components
- Available 40mm cooling fan
- On and off switch for cooling fan, reduce the power usage and fan noise when using SSD
- Status LED on the front for each drive
- Top cover for the tray adds extra drive/ODD protection
- Suitable for a Small Form Factor (SFF) case, IPC, HTPC, NAS, Home Server and all-in-one computers
- Active Power Technology lets device and fan power up, if a drive is installed.
UPC: 884826001744 In the Box Icy Dock ToughArmor 2 x 2.5" SAS/SATA HDD + 1 x Slim ODD Rack Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Icy Dock ToughArmor 2 x 2.5" SAS SATA HDD 1 x Slim ODD Rack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIcy Dock MB994IPO-3SB Specs | Host Interface | 4 x 7-pin SATA | | Drive Fit | 2 x 2.5" SAS/SATA HDDs or SSDs
1 x Slim type ODD | | Drive Bay | Single 5.25" half height device bay | | Transfer Rate | Up to 6 Gb/s Depends on hard drive speed. | | Insert and Extract Connection | Via direct SAS/SATA hard drive | | Structure | Aluminum and SECC | | Power | 2 x 4-pin Molex power ports | | Drive Cooling | 1 x 1.6" (40.0 mm) rear cooling fan + fan power switch
Metal heat dispersion | | LED Indicator | Power On: Solid green
HDD Access: Flashing amber | | Dimensions (L x W x H) | 6.70 x 5.75 x 1.63" (170.18 x 146.05 x 41.40 mm) | | Weight | 1.77 lb (802.85 g) | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 7.638 x 6.142 x 2.126" |
