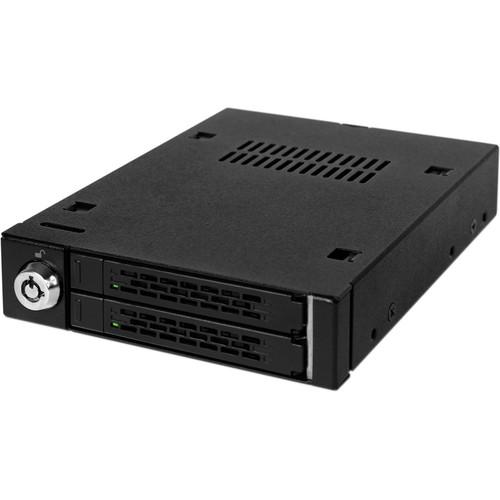

User Manual for Icy Dock ToughArmor 2 x 2.5" SATA Mobile Rack for 3.5" Drive Bay Click to enlarge the picture
Contents of the user manual for the Icy Dock ToughArmor 2 x 2.5"
- Product category: Internal Hard Drive Trays Icy Dock
- Brand: Icy Dock
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Icy Dock Internal Hard Drive Trays
 |
User manual for the Icy Dock ToughArmor 2 x 2.5" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Icy Dock product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Icy Dock user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Icy Dock product will considerably shorten its lifespan!
|

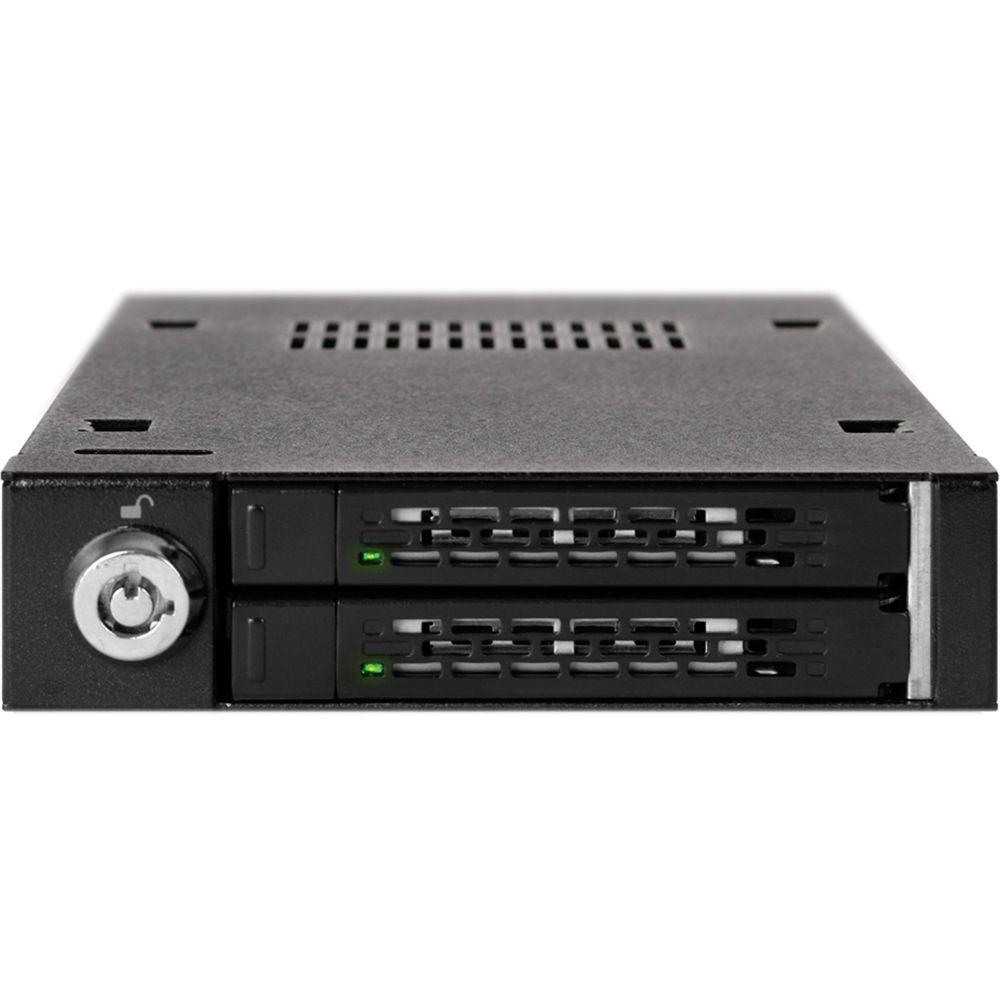

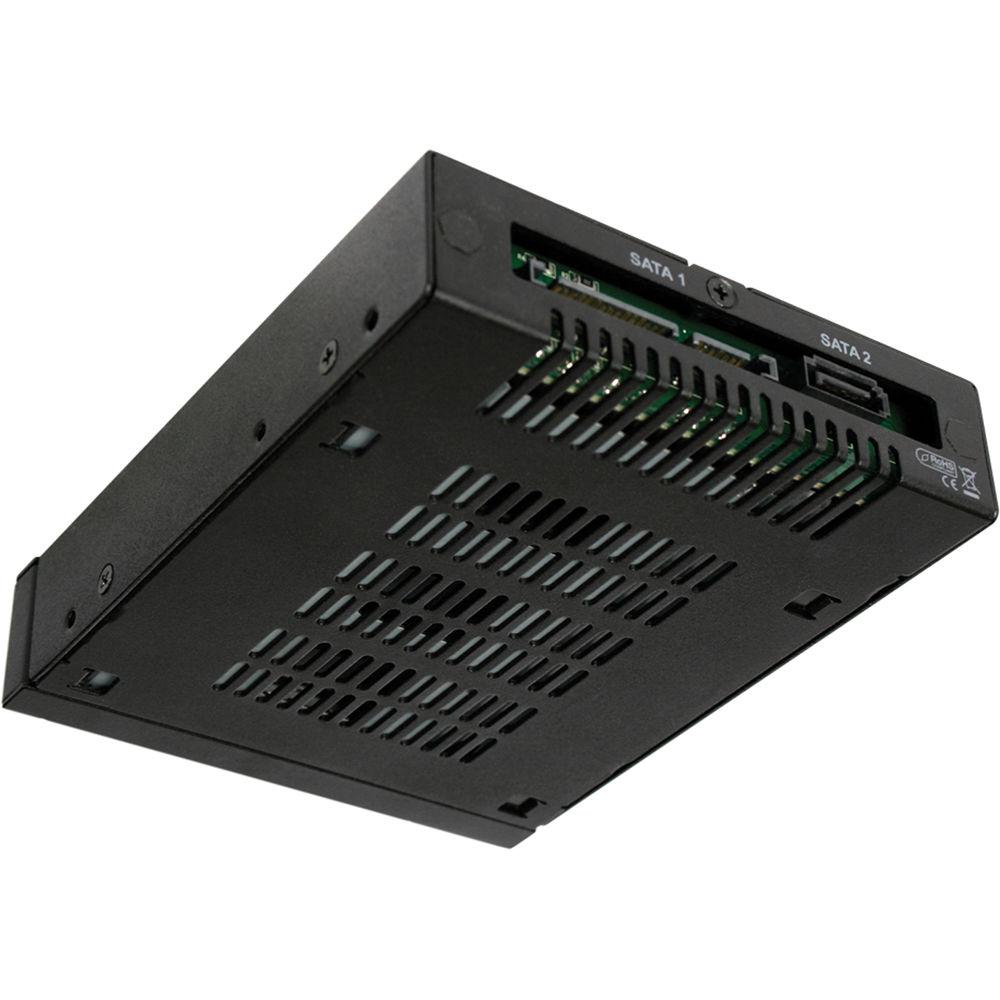

Product description The ToughArmor 2 x 2.5" SATA Mobile Rack For 3.5" Drive Bay from Icy Dock is a small form factor storage system with low power consumption and space-saving benefits. The mobile rack is used in 3.5" drive bays (floppy bays). The ability to house two 2.5" SATA SSDs or HDDs in a single 3.5" drive bay make it suitable for building small RAID 1 backups for SMB workstations or fast RAID 0 arrays for powerful PCs. Utilizing its small form factor, the mobile rack is suitable for use in industrial PCs, SMB SFF servers, mobile DVR systems, or even home servers. The single SATA 15-pin power port keeps cables clutter-free and eases installation, and lets you save space while maintaining the speed and capacity. The small form factor, mobile rack is capable of holding up in harsh environments with the heavy-duty metal construction. It can be used in various systems including military and law enforcement deployment, as well as manufacturing conditions such as embedded control systems and factory automation systems. With a full metal design, the ToughArmor is suitable for industrial and medical devices as it is considered to comply with flammability requirements. The material used offers heat dissipation transfer from hard drives to the mobile rack. Multi-Flow Technology (MFT) effectively routes airflow correctly for passive cooling via ventilation slots on the front, rear, top, and bottom (in multiple locations).The Anti-Vibration Technology (AVT) and EMI grounding are used to provide a stable environment for hard drives or SSDs. LED indicators installed in the front of the mobile rack provide drive status information at all times. Active Power Technology (APT) allows each LED to be on only when a hard drive is inserted into the enclosure. For drive security, the eagle-hook lock system on the tray ensures that hard drives do not eject when not needed. Additionally, the two segment key lock provides protection against theft of hard drives as well as safeguards any sensitive data. The EZ slide micro trays make drive interchangeability and maintenance hassle free. The trays are also designed to accommodate 7 to 9.5mm height hard drives and SSDs, creating a 2.5" hot-swap bay for standard SATA hard drives and SSDs. - Heavy-duty full metal construction for rugged applications in medical and military systems, media servers, and IPCs, approved and used by Tier 1 companies
- Full metal construction complies with flammability requirements
- Supports SATA 6 Gb/s and hot-swap
- Fits two 7 to 9.5mm 2.5" SATA drives/SSDs in a 3.5" floppy drive bay
- Multi-Flow Technology (MFT) provides passive cooling. Airflow vents with metal heat dissipation for drive cooling
- Anti-Vibration Technology (AVT) creates a safe environment for hard drives or SSDs
- Active Power Technology (APT), where the individual led powers up only if there is drive installed in each bay

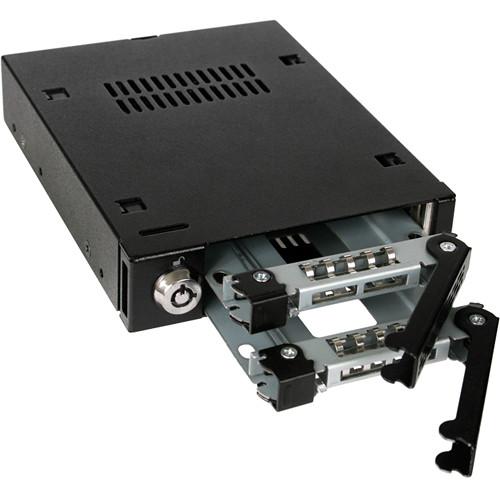

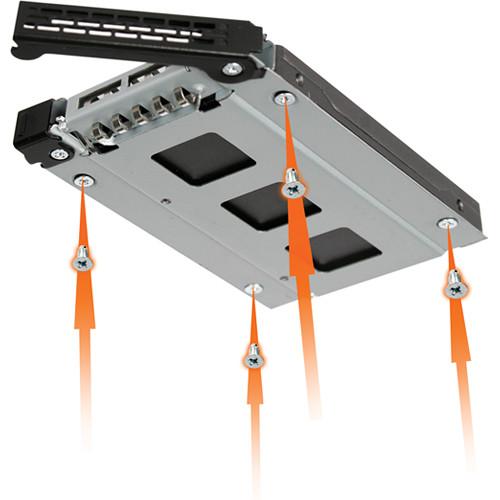

- The EZ slide micro trays make drive interchangeability and maintenance hassle free.
- EMI grounding protects hard drives from electrical damage

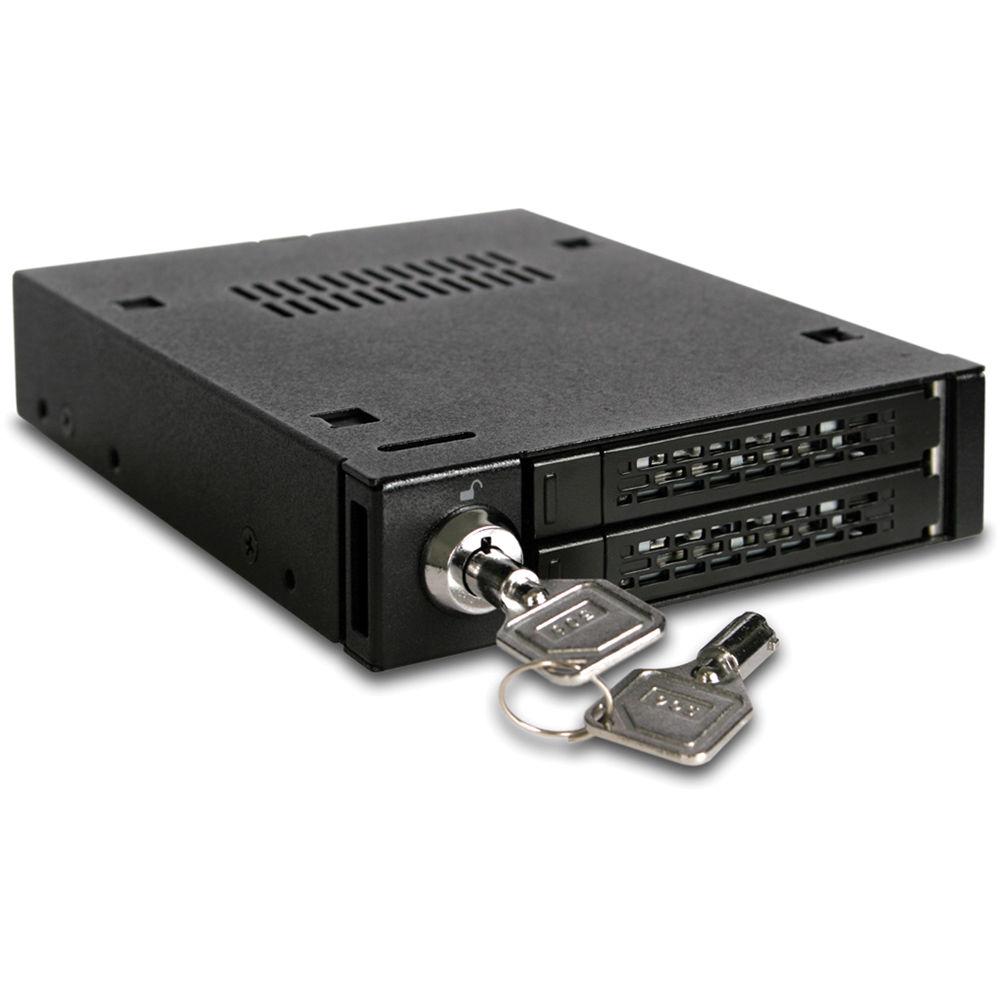

- Eagle-hook lock system and two segment safeguard key lock keeps drives secure within the enclosure

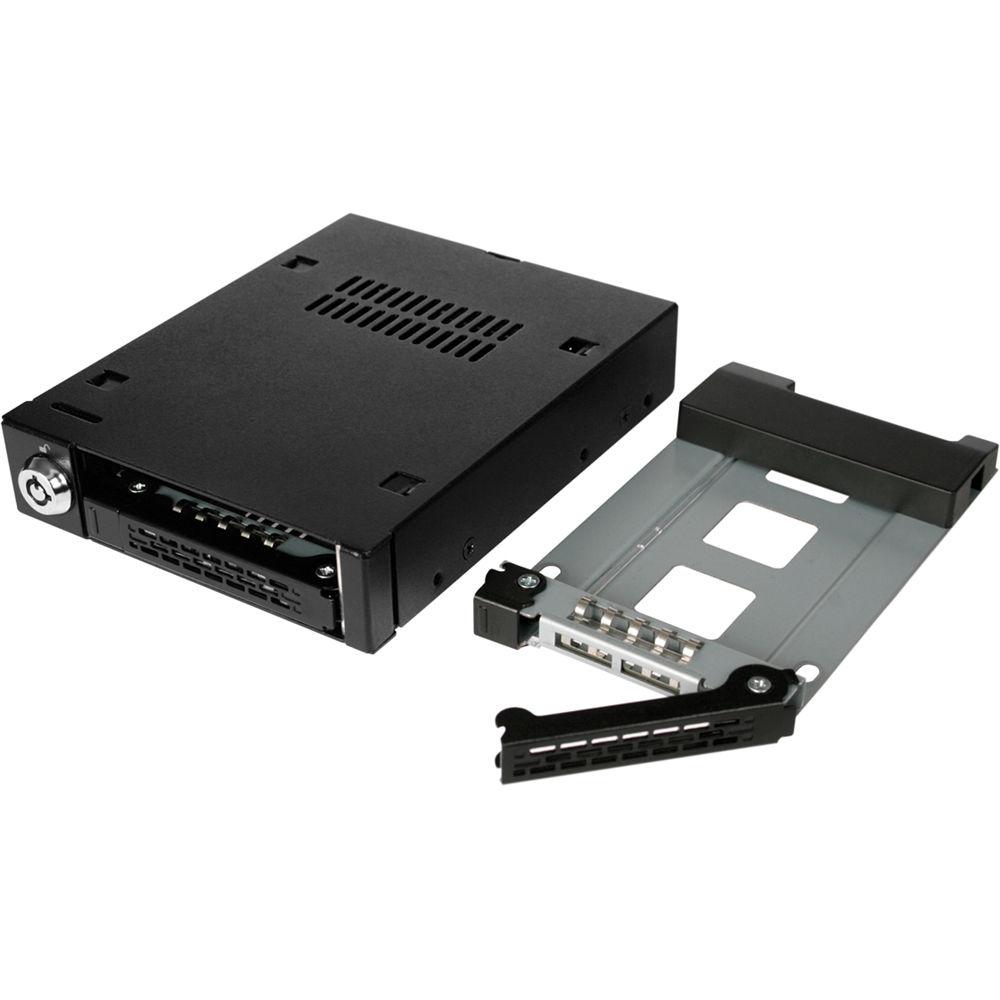

- Removable tray system for easy maintenance
- Single SATA 15-pin port to power an entire device

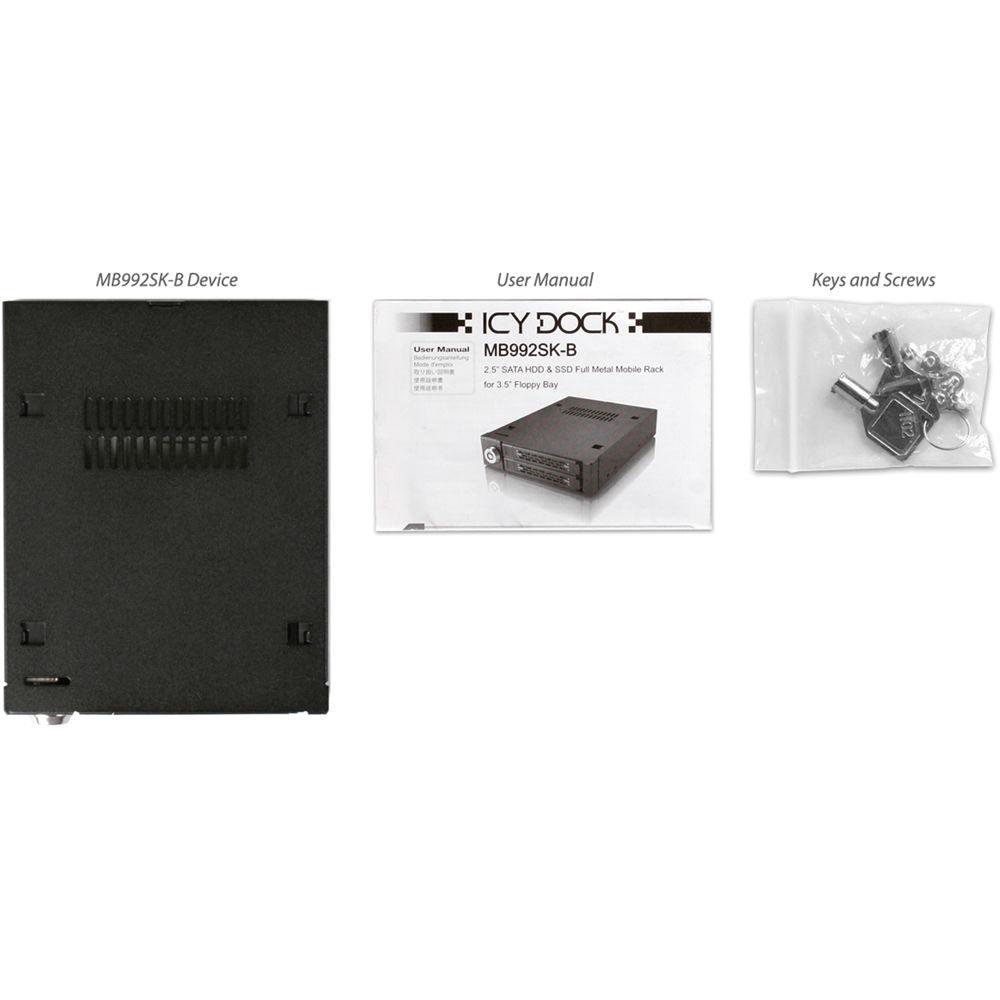

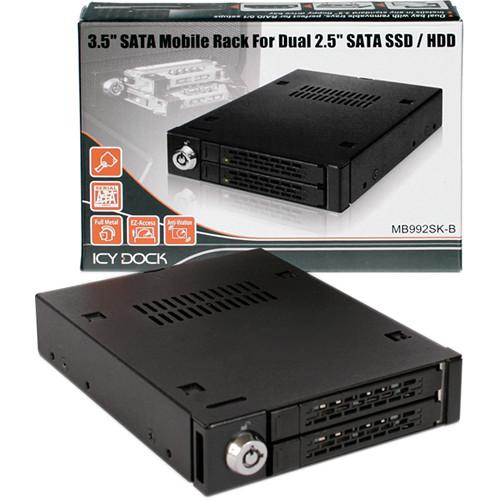

UPC: 884826001751 In the Box Icy Dock ToughArmor 2 x 2.5" SATA Mobile Rack for 3.5" Drive Bay Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Icy Dock ToughArmor 2 x 2.5" SATA Mobile Rack for 3.5" Drive Bay in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

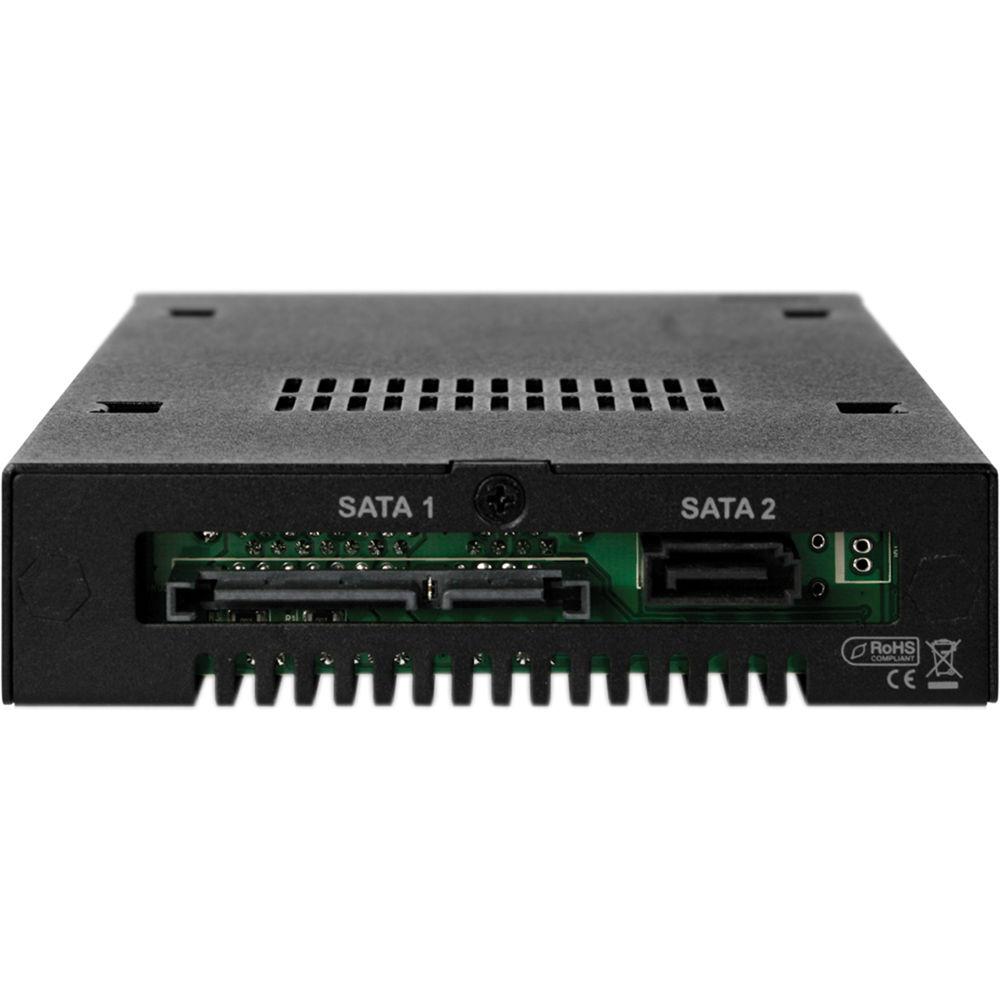

Technical parametersIcy Dock MB992SK-B Specs | Host Interface | 2 x 7-pin SATA | | Power Input | Single 15-pin SATA power port | | Drive Fit | 2 x 2.5" SATA I/II/III SSD or HDD [0.4" (9.5mm) thickness] | | Drive Bay | 3.5" floppy drive bay | | Data Transfer Rates | Up to 6 Gb/s (depending on hard drive speed) | | Insert and Extract Connection | Via direct hard drive SATA | | Structure | Full metal | | Drive Cooling | Airflow vents with metal heat dissipation | | LED Indicators | Power On: Solid green
HDD Access: Flashing amber | | Dimensions (L x W x H) | 5.2 x 3.9 x 1.0" (133.0 x 101.2 x 25.4 mm) | | Weight | 13.2 oz (375.0 g) | | | | Package Weight | 1.02 lb | | Box Dimensions (LxWxH) | 6.378 x 4.488 x 1.417" |
