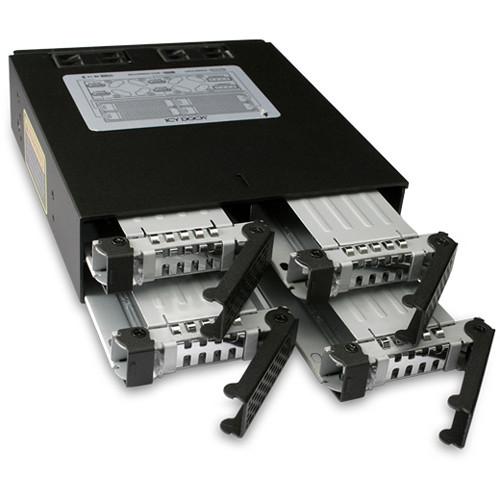

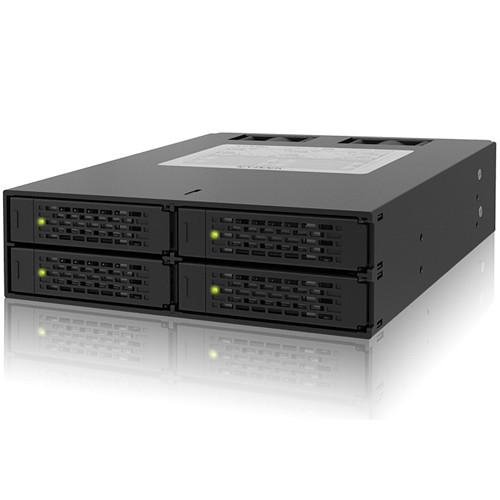

Product description The ToughArmor 4-Bay 2.5" SATA Drive Cage from Icy Dock is designed to fit inside your desktop's 5.25" bay to provide your system with four hot-swap 2.5" storage drive bays. This design allows you to expand the computer's storage capacity with 2.5" internal SSDs and HDDs without opening up the computer case each time to install an internal drive. This cage accommodates drives that are 7mm to 15mm tall and have a SATA interface.

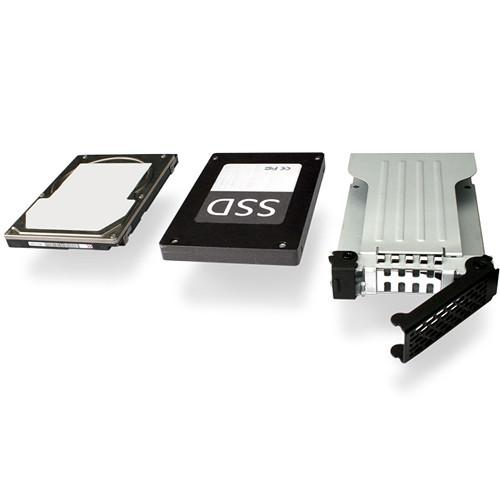

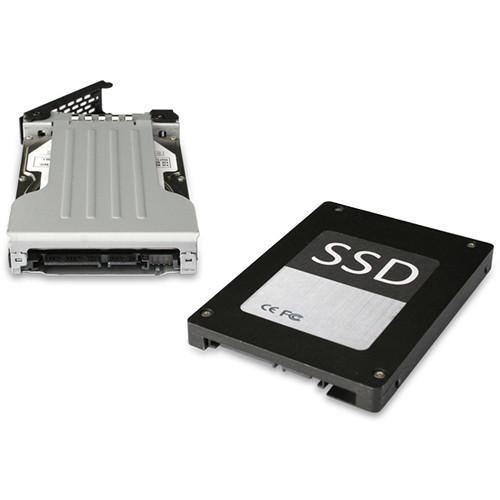

Icy Dock includes EZ-Slide Mini trays so you can quickly mount your drives to the backplane or replace a failed drive. To reduce the amount of cables, this cage powers your drives by utilizing a single 4-pin Molex cable. For cooling, two 40mm fans are on board, and a fan switch lets you turn them off when using SSDs. Furthermore, you may configure the drives in a RAID array to enhance the drive's read and write speeds as well as provide redundancy. Features - Metal construction designed for medical, military, and enterprise environments
- Complies with flammability requirements
- Fits four 7mm to 15mm 2.5" SATA HDDs or SSDs in a single 5.25" bay for RAID applications
- Anti-Vibration Technology (AVT) - creates a safe environment for hard drives or SSDs
- Active Power Technology (APT) - each set of individual LEDs and cooling fans powers up if there is a drive installed in the bay
- Single 4-pin power connector for reducing cable connections

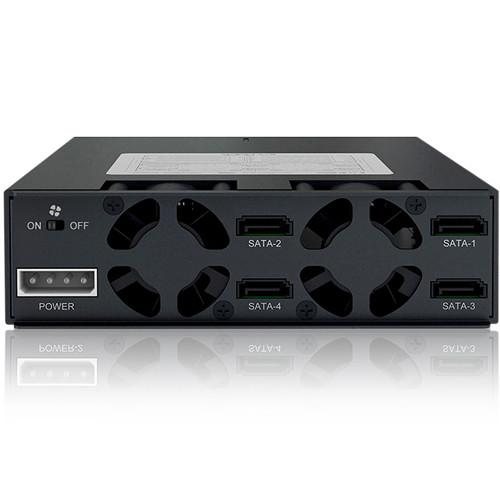

- Dual 40mm cooling fans along with a fan power switch allow you to turn off the fans when using SSDs
- 3-Mode Fan Speed Control - adjust cooling settings (High, Low, or Off)
- Eagle-hook lock system keeps drives secured within the enclosure

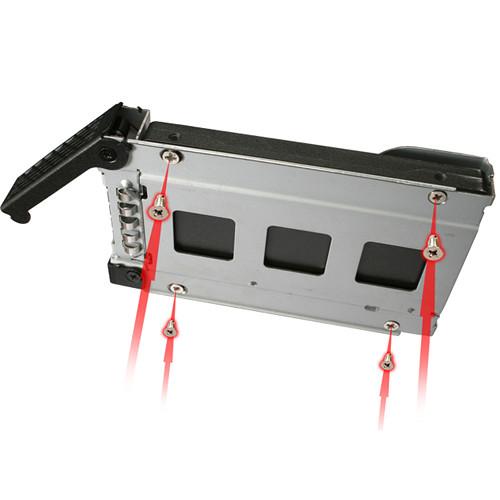

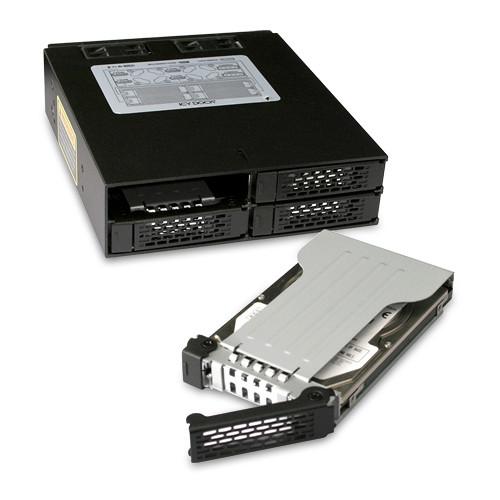

- Removable EZ-Slide Mini tray system for easy maintenance
- Top cover for the tray adds drive protection
- Supports SATA 6 Gbps and hot swapping

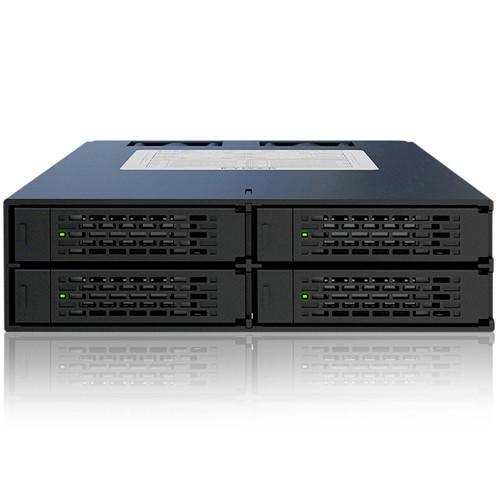

- Status LED on the front for each drive
UPC: 884826001690 In the Box Icy Dock ToughArmor 4-Bay 2.5" SATA Drive Cage for 5.25" Bay Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Icy Dock ToughArmor 4-Bay 2.5" SATA Drive Cage for 5.25" Bay in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIcy Dock MB994SP-4SB-1 Specs | Host Interface | 4 x 7-pin SATA | | Drives Supported | Up to four 2.5" SATA I/II/III SSDs or HDDs | | Compatibility | Single 5.25" half-height device bay | | Transfer Rate | SATA: 6 Gb/s | | Power Input | 1 x 4-pin Molex | | Material of Construction | Aluminum and SECC | | Cooling | Two 40 mm rear fans with a fan power switch | | Operating Temperature | 0°C to 60°C / 32°F to 140°F | | Storage Temperature | -35°C to 70°C / -31°F to 158°F | | LED Indicators | Power: solid green
HDD Access: flashing amber | | Dimensions (L x W x H) | 6.7 x 5.8 x 1.6" / 17.0 x 14.6 x 4.1 cm | | Weight | 1.8 lb / 0.8 kg | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 7.5 x 6.2 x 2.2" |
