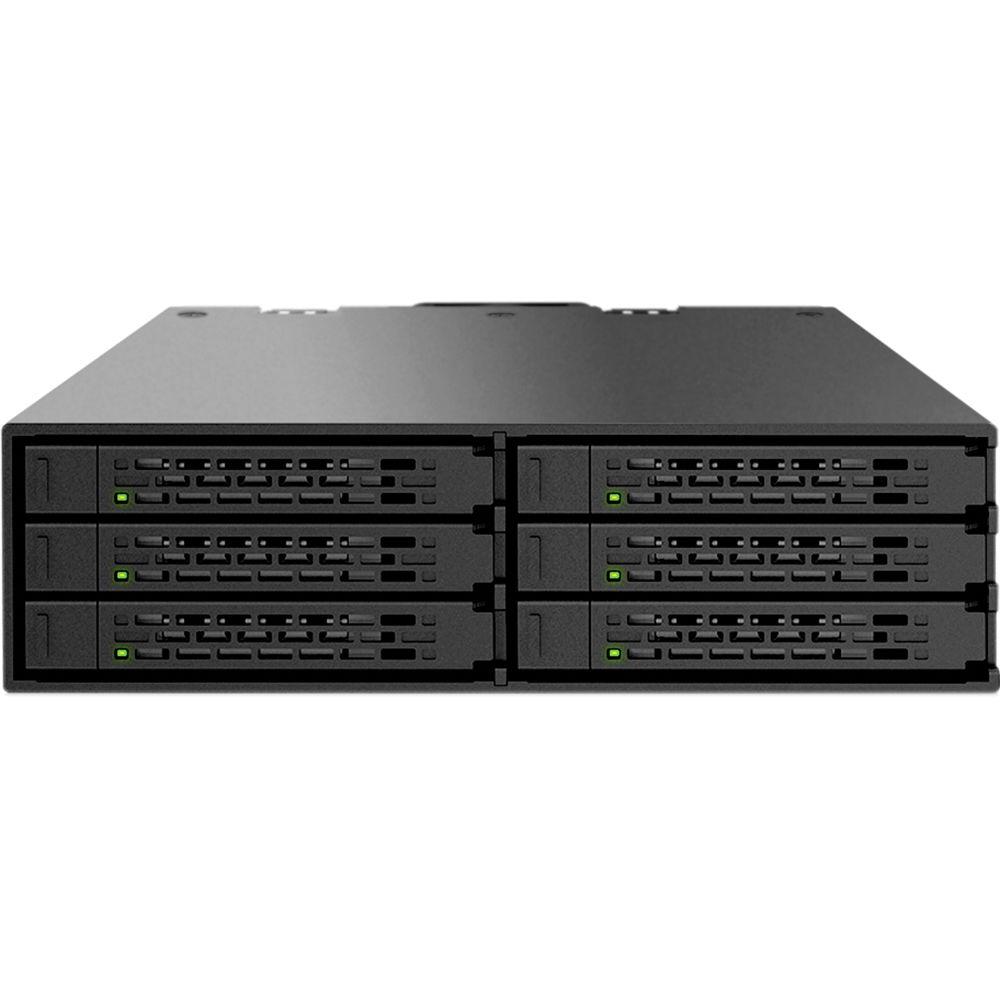

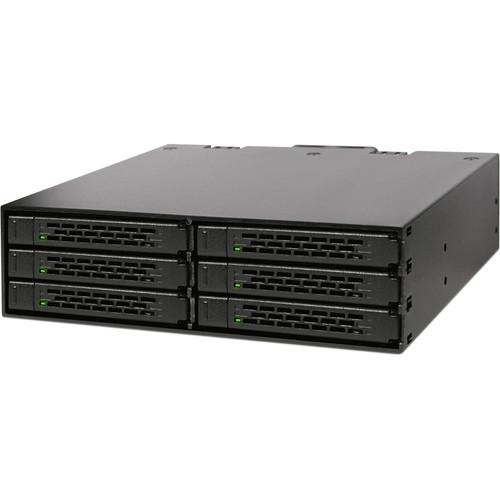

Product description The ToughArmor MB996SP-6SB 6 x 2.5" SATA HDD/SSD Backplane Cage from Icy Dock is an enclosure that fits six 7 to 9.5mm 2.5" SATA hard drives or SSD's in a single 5.25" bay. The enclosure can be used for high performance RAID applications such as building dual RAID 5 arrays or connecting four high performance drives in RAID 0 plus RAID 1 array for back up, all in a single 5.25" device bay. The enclosure is commercially designed for medical and military systems, media servers, IPCs, HTPC, and all-in-one computers, approved and used by Tier 1 companies.
It is useful for powerful small servers, gaming rigs, home servers or HTPC's due to its high capacity and space saving design. The backplane cage is also suitable for users who need non-RAID JBOD storage and save different contents in different drive locations. The device bay supports a wide range of applications. It is capable of holding up in various environments, with a heavy duty, full metal construction. The full metal design is also suitable for industrial and medical devices that may require a flammability rating, as the full metal material is considered to already comply with flammability requirements. In addition, the metal material used grants heat dissipation transfer from the hard drives to the backplane cage.
Anti-Vibration Technology (AVT) and EMI grounding are used to ensure a stable environment for the hard drives or SSD's used, improving reliability. The bay brings more utility to your hard drives or SSDs, as LED's are installed in the front of the mobile rack to provide individual drive status information, at all times. Active Power Technology (APT) allows each LED and the cooling fan to be active only when a hard drive is inserted into the same bay of the enclosure.

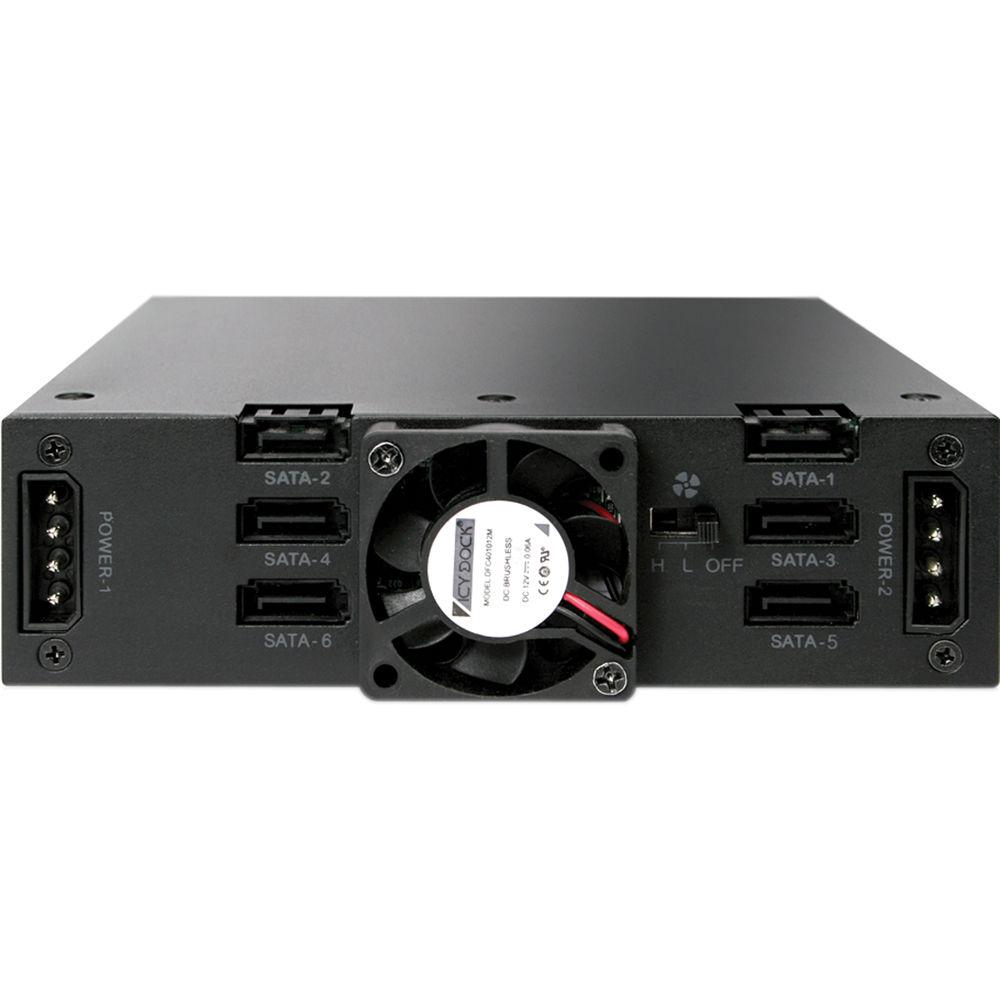

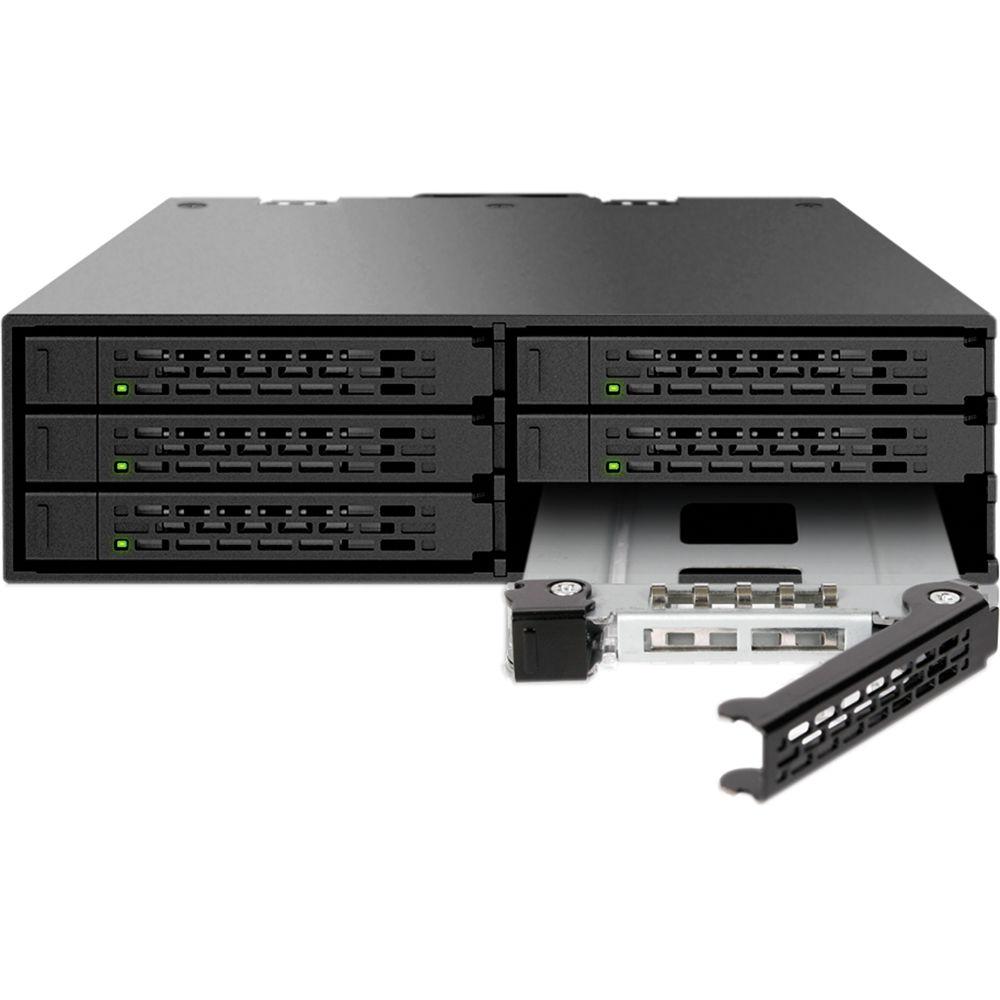

A 40mm cooling fan is placed directly at the center of the rear panel, providing equivalent airflow throughout the entire cage. The fan speed can be adjusted from higher speed or can be completely turned off for silent operation in various situations with the use of a 3-Mode Fan Speed Control. Using the EZ Slide Micro Trays makes drive interchangeability and maintenance completely hassle free. For drive security, the eagle-hook lock system on the tray makes sure that your hard drives will not eject when not needed. The trays can accommodate hard drives and SSDs up to 7 to 9.5mm in height. - Fits 6 x 7 to 9.5mm 2.5" SATA hard drives or SSD's in a single 5.25" bay for high performance RAID applications
- Heavy duty full metal construction, commercially designed for medical and military systems, media servers, and IPCs, approved and used by Tier 1 companies
- Supports SATA 6 Gb/s and hot-swap support
- Suitable for rugged applications and complies to flammability requirements
- Anti-Vibration Technology (AVT) creates a safe environment for hard drives or SSDs
- Active Power Technology (APT), where the individual led and the cooling fan only powers up if there is a drive installed in the bay
- 3-Mode Fan Speed Control adjusts cooling settings (high, low, or off) for your specific needs
- Eagle-hook lock system keeps drives secured within the enclosure
- Switch between ${pin}-pin and 15-pin power connection with included adapter

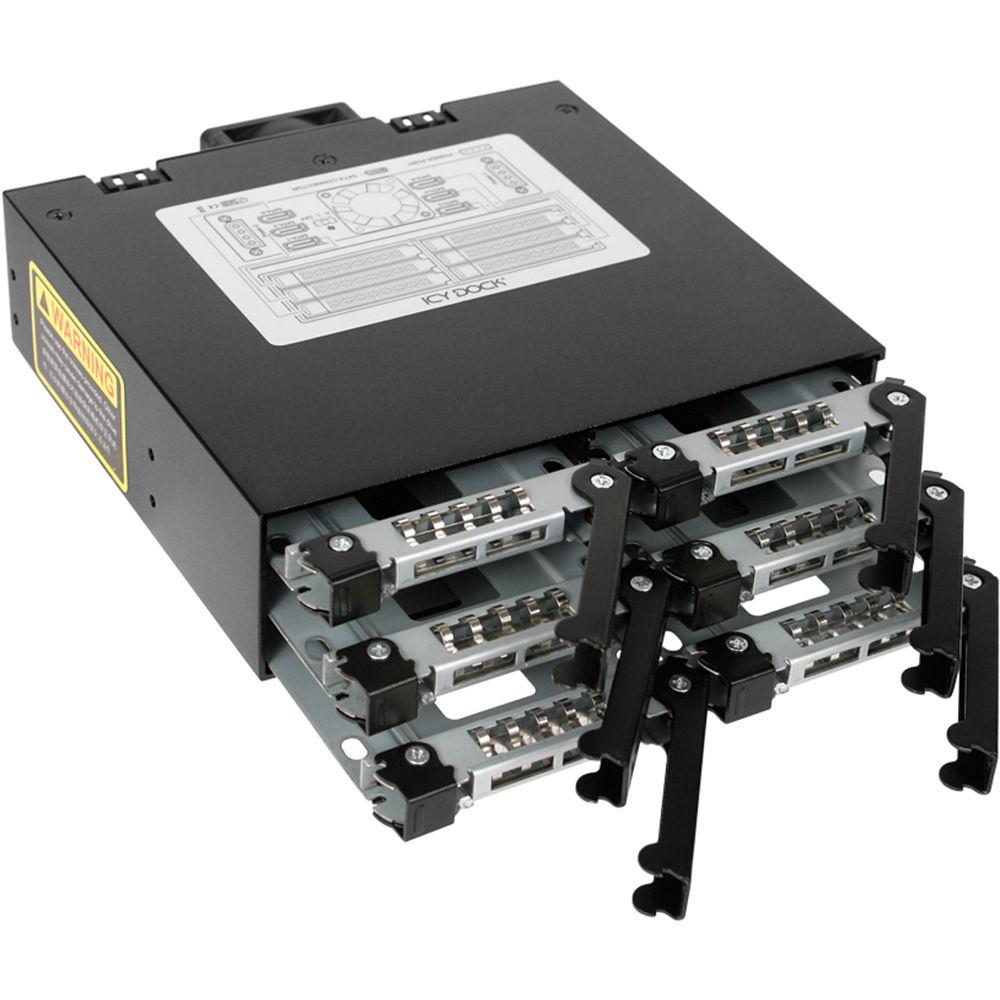

- Removable tray system for easy maintenance

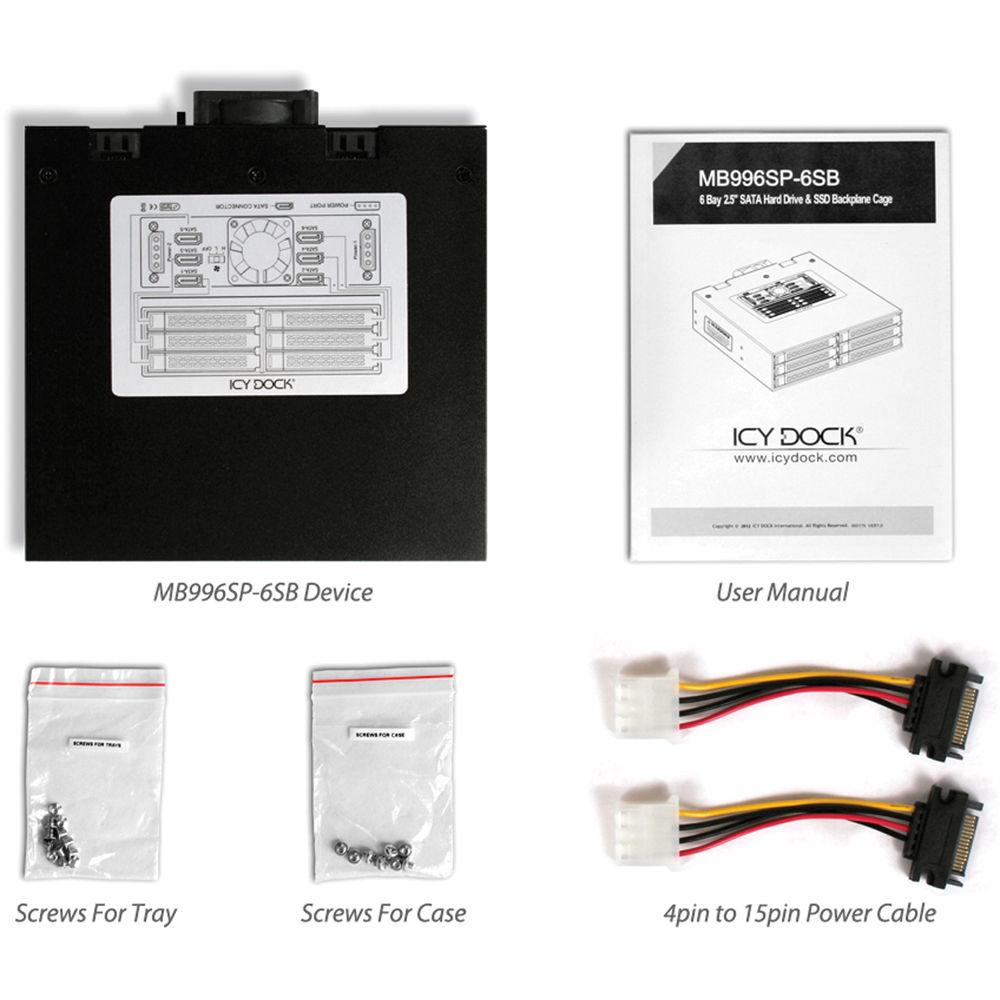

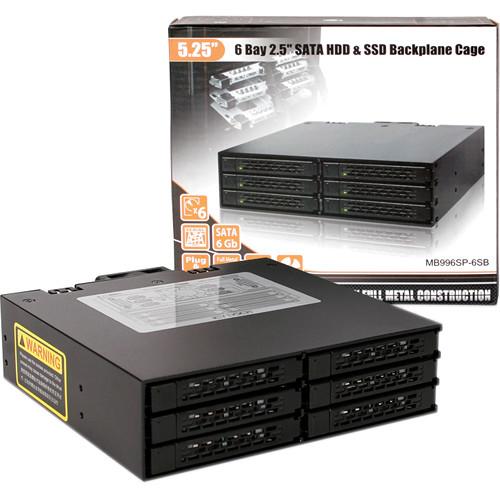

UPC: 884826001874 In the Box Icy Dock ToughArmor MB996SP-6SB 6 x 2.5" SATA HDD/SSD Backplane Cage 4 to 15-Pin Adapter Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Icy Dock ToughArmor MB996SP-6SB 6 x 2.5" SATA HDD SSD Backplane Cage in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIcy Dock MB996SP-6SB Specs | Host Interface | 6 x 7-pin SATA | | Drive Fit | 6 x 2.5" SATA I/II/III SSD or HDD (9.5 mm thickness) | | Transfer Rates | Up to 6 Gb/s Depending on hard drive speed | | Power Input | 2 x 4pin Molex power port or 2 x 15pin SATA power port
(with included 4 to 15-pin adapter cable) | | Insert and Extract Connection | Via direct SATA hard drive connection | | Structure | Aluminum & SECC | | Cooling Fan | 1.57" (40 mm) rear cooling fan with fan switch (high/low/off) | | LED Indicator | Power: Solid green
HDD Access: Flashing amber | | Dimensions | 5.8 x 5.8 x 1.6" (14.8 x 14.6 x 4.1 cm) | | Weight | 1.8 lb (0.8 kg) | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 6.8 x 6.2 x 2.2" |
