User Manual for Icy Dock ToughArmor MB998SP-B 8 x 2.5" SATA HDD SSD Backplane Cage

Click to enlarge the picture
Icy Dock ToughArmor MB998SP-B 8 x 2.5" SATA HDD SSD Backplane Cage Contents of the user manual for the Icy Dock ToughArmor MB998SP-B 8 x
  • Product category: Internal Hard Drive Trays Icy Dock
  • Brand: Icy Dock
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Icy Dock Internal Hard Drive Trays

Icy Dock ToughArmor MB998SP-B 8 x 2.5" SATA HDD SSD Backplane Cage Icy Dock ToughArmor MB998SP-B 8 x 2.5" SATA HDD SSD Backplane Cage Icy Dock ToughArmor MB998SP-B 8 x 2.5" SATA HDD SSD Backplane Cage Icy Dock ToughArmor MB998SP-B 8 x 2.5" SATA HDD SSD Backplane Cage Icy Dock ToughArmor MB998SP-B 8 x 2.5" SATA HDD SSD Backplane Cage Icy Dock ToughArmor MB998SP-B 8 x 2.5" SATA HDD SSD Backplane Cage Icy Dock ToughArmor MB998SP-B 8 x 2.5" SATA HDD SSD Backplane Cage Icy Dock ToughArmor MB998SP-B 8 x 2.5" SATA HDD SSD Backplane Cage
User manual for the Icy Dock ToughArmor MB998SP-B 8 x contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Icy Dock product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Icy Dock user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Icy Dock product will considerably shorten its lifespan!



Product description

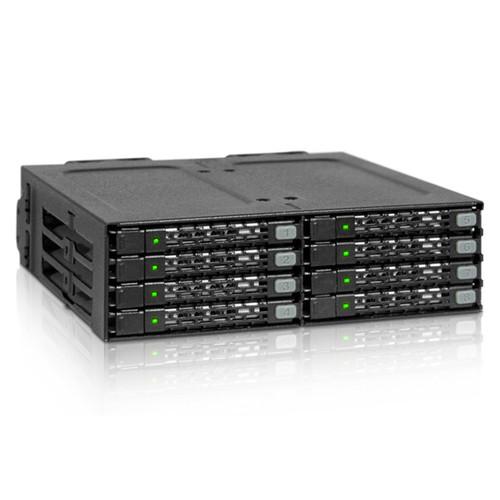

The ToughArmor MB998SP-B 8 x 2.5" SATA HDD/SSD Backplane Cage from Icy Dock is an enclosure that fits eight 7mm 2.5" SATA hard drives or SSD's in a single 5.25" bay. The enclosure can be used for high performance RAID applications such as building dual RAID 5 arrays or connecting four high performance drives in RAID 0 plus RAID 1 array for back up, all in a single 5.25" device bay. The enclosure is commercially designed for medical and military systems, media servers, IPCs, HTPC, and all-in-one computers, approved and used by Tier 1 companies.

It is useful for powerful small servers, gaming rigs, home servers or HTPC's due to its high capacity and space saving design. The backplane cage is also suitable for users who need non-RAID JBOD storage and save different contents in different drive locations. The device bay supports a wide range of applications. It is capable of holding up in various environments, with a heavy duty, full metal construction. The full metal design is also suitable for industrial and medical devices that may require a flammability rating, as the full metal material is considered to already comply with flammability requirements. In addition, the metal material used grants heat dissipation transfer from the hard drives to the backplane cage.

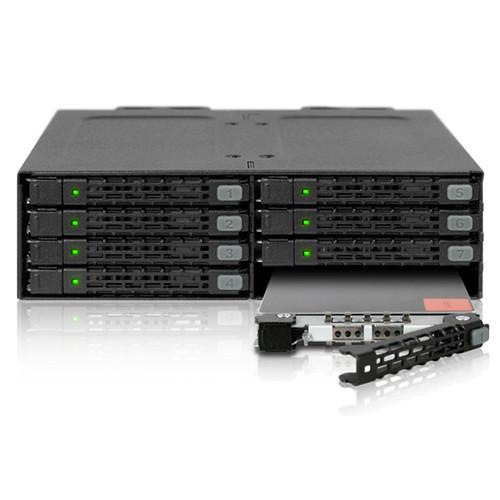

Anti-Vibration Technology (AVT) and EMI grounding are used to ensure a stable environment for the hard drives or SSD's used, improving reliability. The bay brings more utility to your hard drives or SSDs, as LED's are installed in the front of the mobile rack to provide individual drive status information, at all times. Active Power Technology (APT) allows each LED and the cooling fan to be active only when a hard drive is inserted into the same bay of the enclosure.

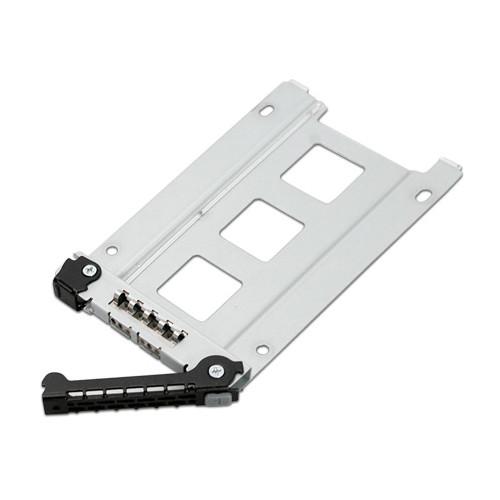

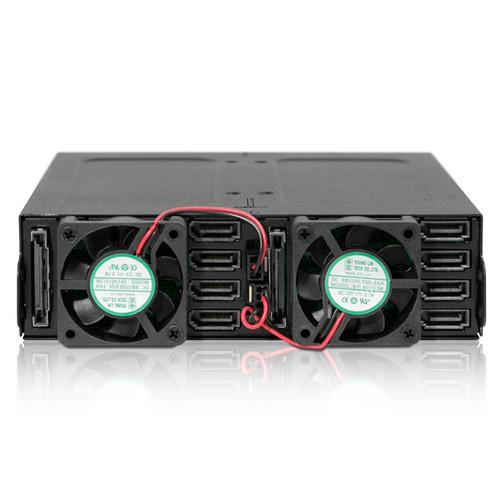

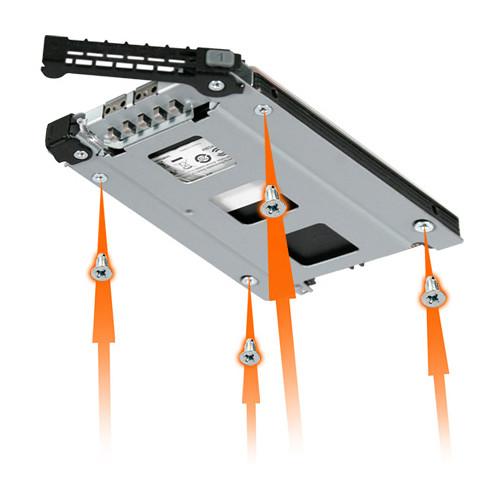

Two 40mm cooling fans placed strategically behind the rear panel provide airflow throughout the entire cage cooling all 8 bays effectively and efficiently. Using the EZ Slide Micro Trays makes drive interchangeability and maintenance completely hassle free. For drive security, the eagle-hook lock system on the tray makes sure that your hard drives will not eject when not needed. The trays can accommodate hard drives and SSDs up to 7mm in height.
  • Fits 8 x 7mm 2.5" SATA hard drives or SSD's in a single 5.25" bay for high performance RAID applications
  • Heavy duty full metal construction, commercially designed for medical and military systems, media servers, and IPCs, approved and used by Tier 1 companies
  • Supports SATA 6 Gb/s and hot-swap support
  • Suitable for rugged applications and complies to flammability requirements
  • Anti-Vibration Technology (AVT) creates a safe environment for hard drives or SSDs
  • Active Power Technology (APT), where the individual led and the cooling fan only powers up if there is a drive installed in the bay
  • Dual 40mm fans keep your drives from overheating
  • Eagle-hook lock system keeps drives secured within the enclosure

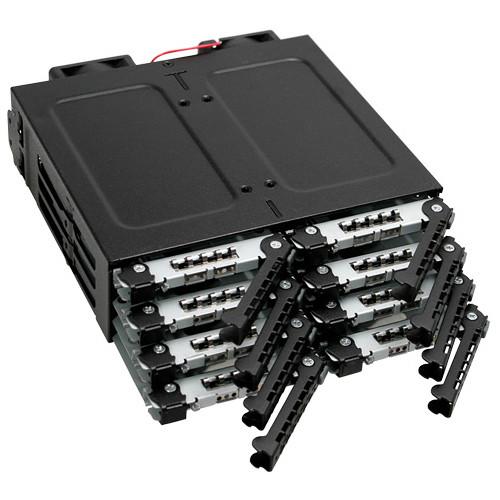

  • Removable tray system for easy maintenance

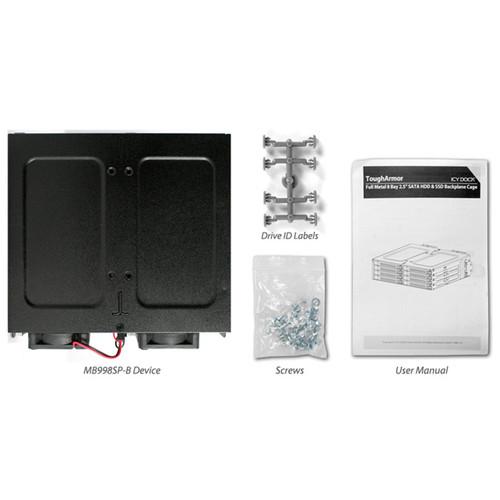

UPC: 884826002376 In the Box Icy Dock ToughArmor MB998SP-B 8 x 2.5" SATA HDD/SSD Backplane Cage
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Icy Dock ToughArmor MB998SP-B 8 x 2.5" SATA HDD SSD Backplane Cage in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Icy Dock MB998SP-B Specs

    Host Interface 8 x 7-pin SATA
    Drive Fit 8 x 2.5" SATA I/II/III SSD or HDD (7 mm drive height)
    Transfer Rates Up to 6 Gb/s Depending on hard drive speed
    Power Input 2 x 15pin SATA power port
    Insert and Extract Connection Via direct SATA hard drive connection
    Structure Metal
    Cooling Fan Dual 1.57" (40 mm) rear cooling fans
    LED Indicator Power: Solid green
    HDD Access: Flashing amber
    Dimensions 5.8 x 5.6 x 1.6" (14.6 x 14.2 x 4.1 cm)
    Weight 1.9 lb (0.9 kg)
    Package Weight 2.2 lb
    Box Dimensions (LxWxH) 6.535 x 6.299 x 2.205"
