iDEA VISION SpiderMount 220 Basic Kit

Search your instruction manual in PDF to download

User Manual for iDEA VISION SpiderMount 220 Basic Kit

Click to enlarge the picture
iDEA VISION SpiderMount 220 Basic Kit Contents of the user manual for the iDEA VISION SpiderMount 220 Basic Kit
  • Product category: Camera & Camcorder Mounts iDEA VISION
  • Brand: iDEA VISION
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for iDEA VISION Camera & Camcorder Mounts

iDEA VISION SpiderMount 220 Basic Kit iDEA VISION SpiderMount 220 Basic Kit iDEA VISION SpiderMount 220 Basic Kit iDEA VISION SpiderMount 220 Basic Kit iDEA VISION SpiderMount 220 Basic Kit iDEA VISION SpiderMount 220 Basic Kit iDEA VISION SpiderMount 220 Basic Kit iDEA VISION SpiderMount 220 Basic Kit iDEA VISION SpiderMount 220 Basic Kit
User manual for the iDEA VISION SpiderMount 220 Basic Kit contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any iDEA VISION product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official iDEA VISION user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a iDEA VISION product will considerably shorten its lifespan!



Product description

  • C3 VacuMount - Rigging within seconds

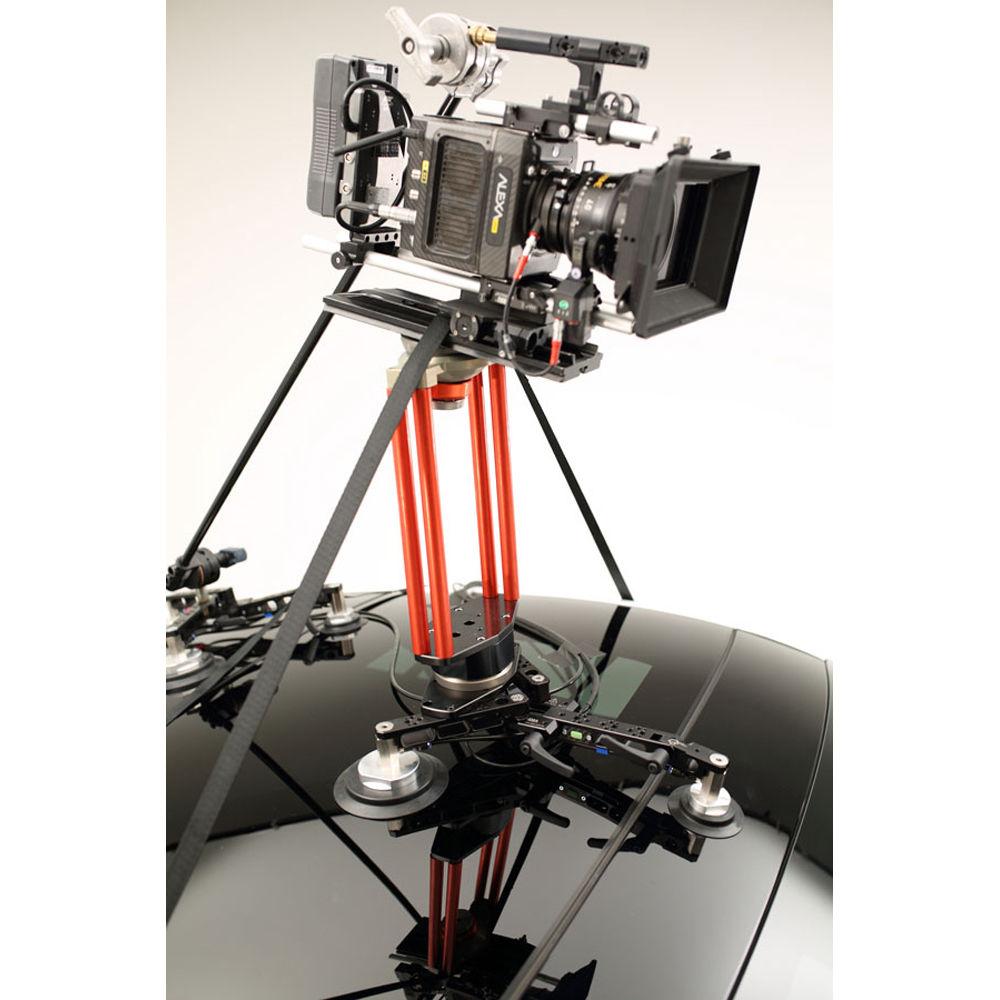

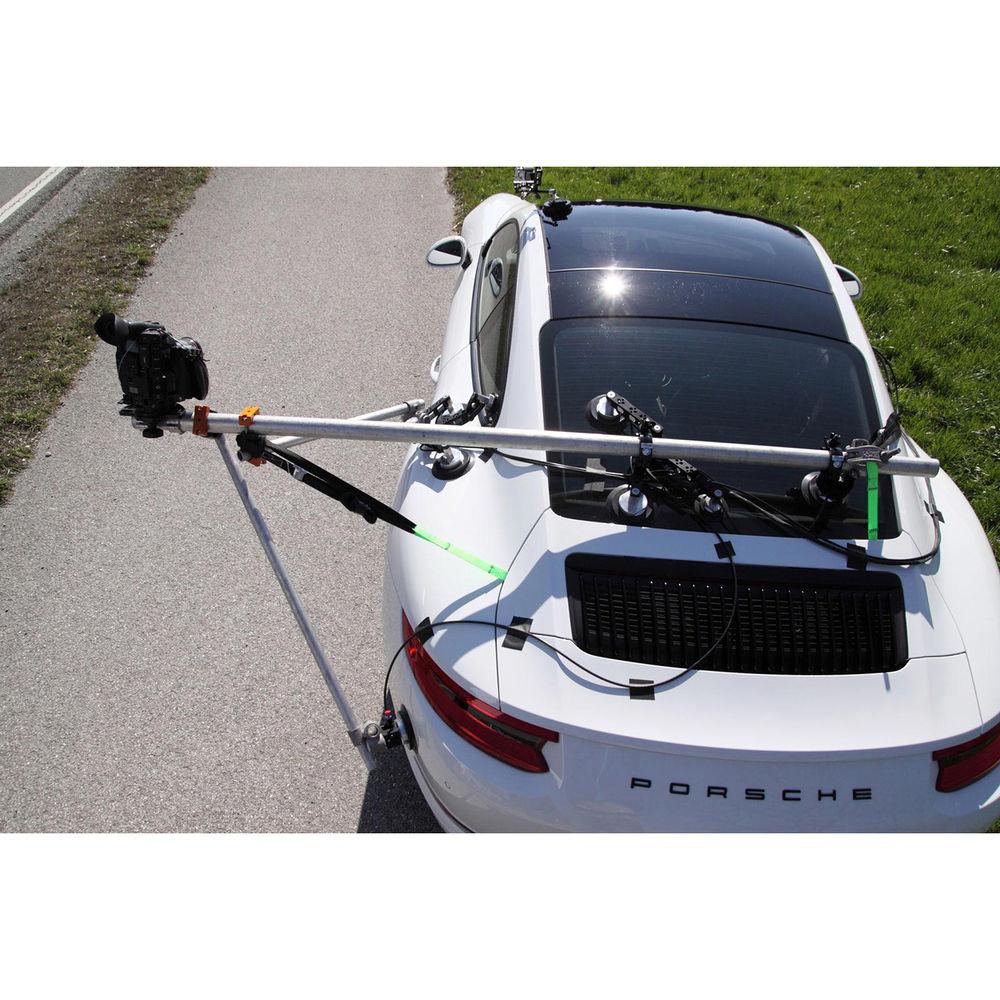

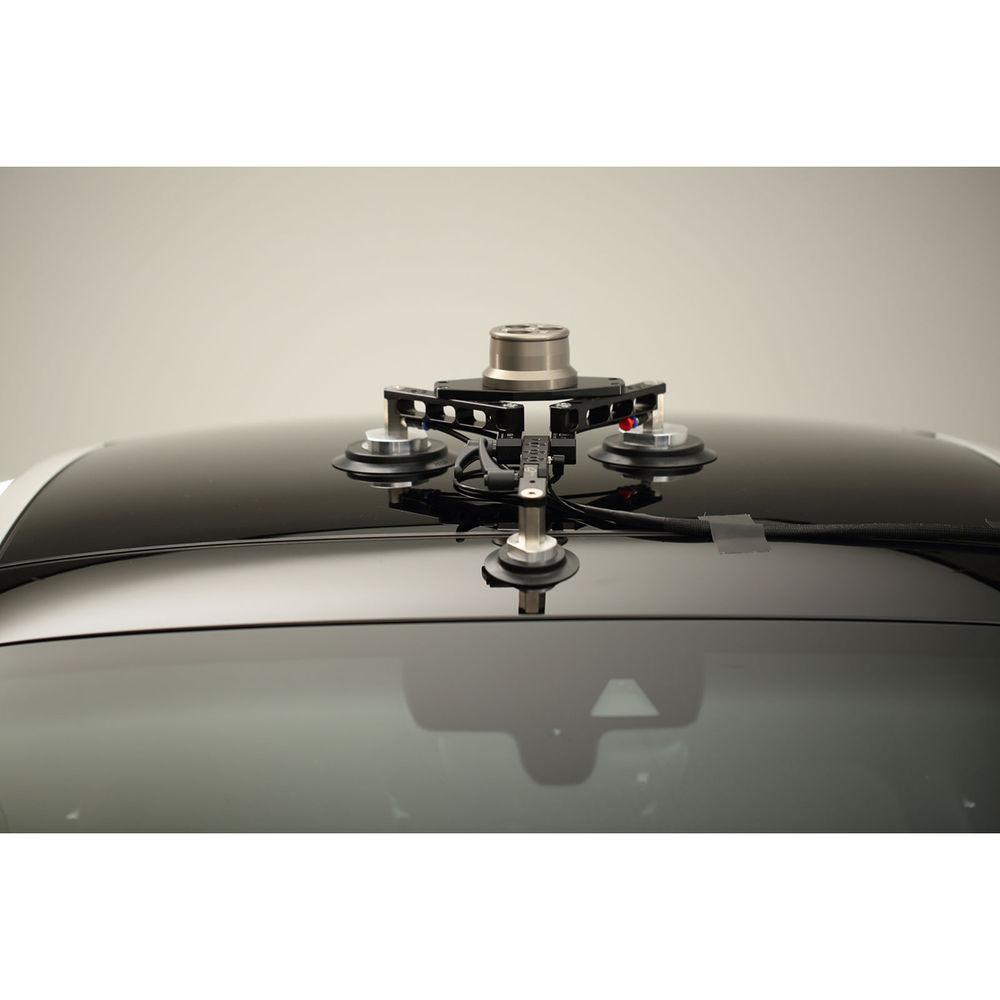

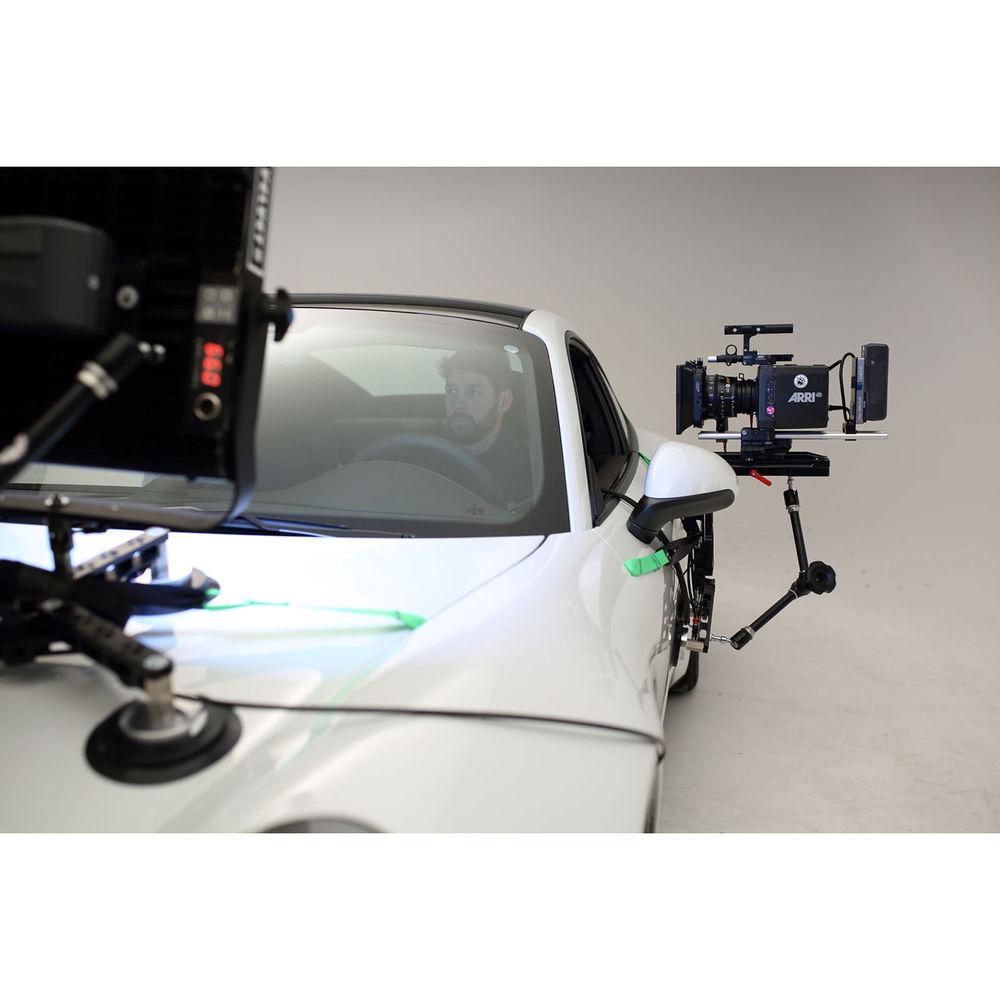

The iDEA VISION SpiderMount 220 Basic Kit is a lightweight, flexible articulating suction cup mounting system that features an active pump for secure mounting. It is well suited for mounting cameras, gimbals, and lights, or as a foundation for more complex rigs. It features a unique joint design that allows it to wrap around edges and corners and mount on all smooth surfaces including windows, cars, walls, and more.

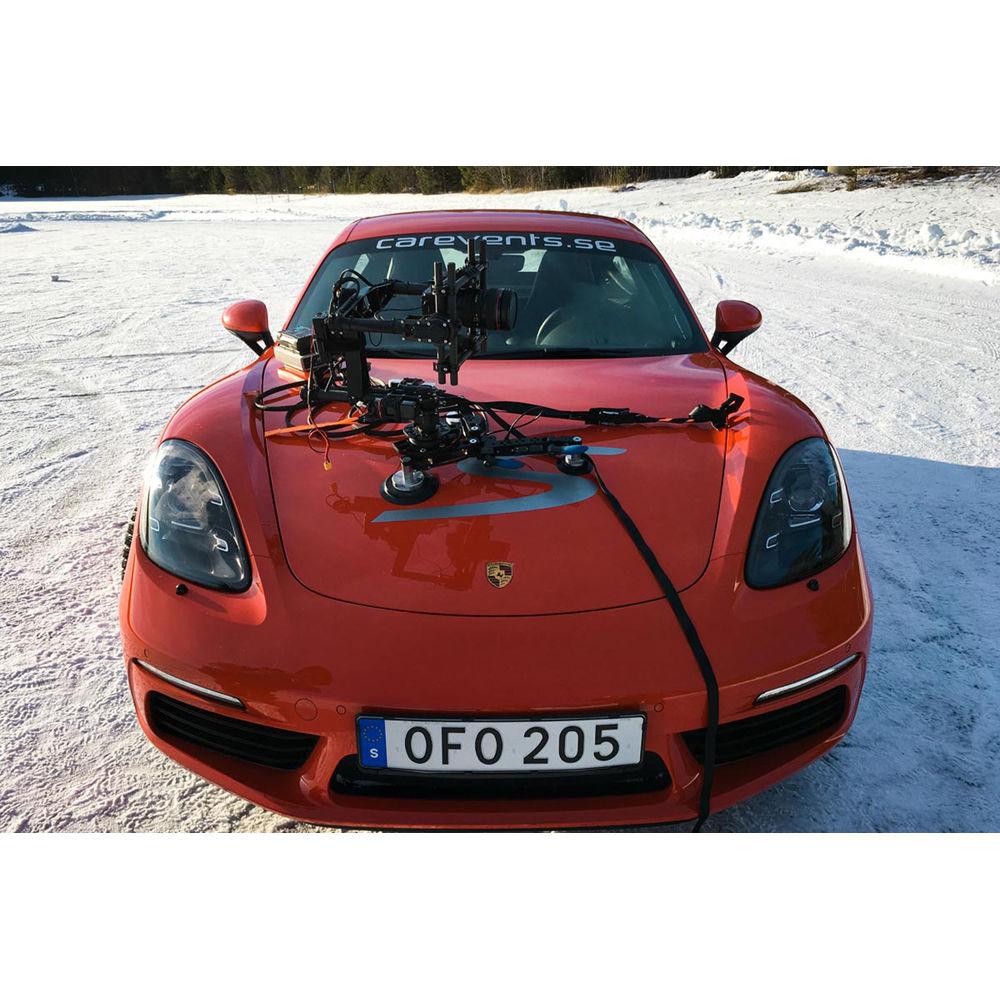

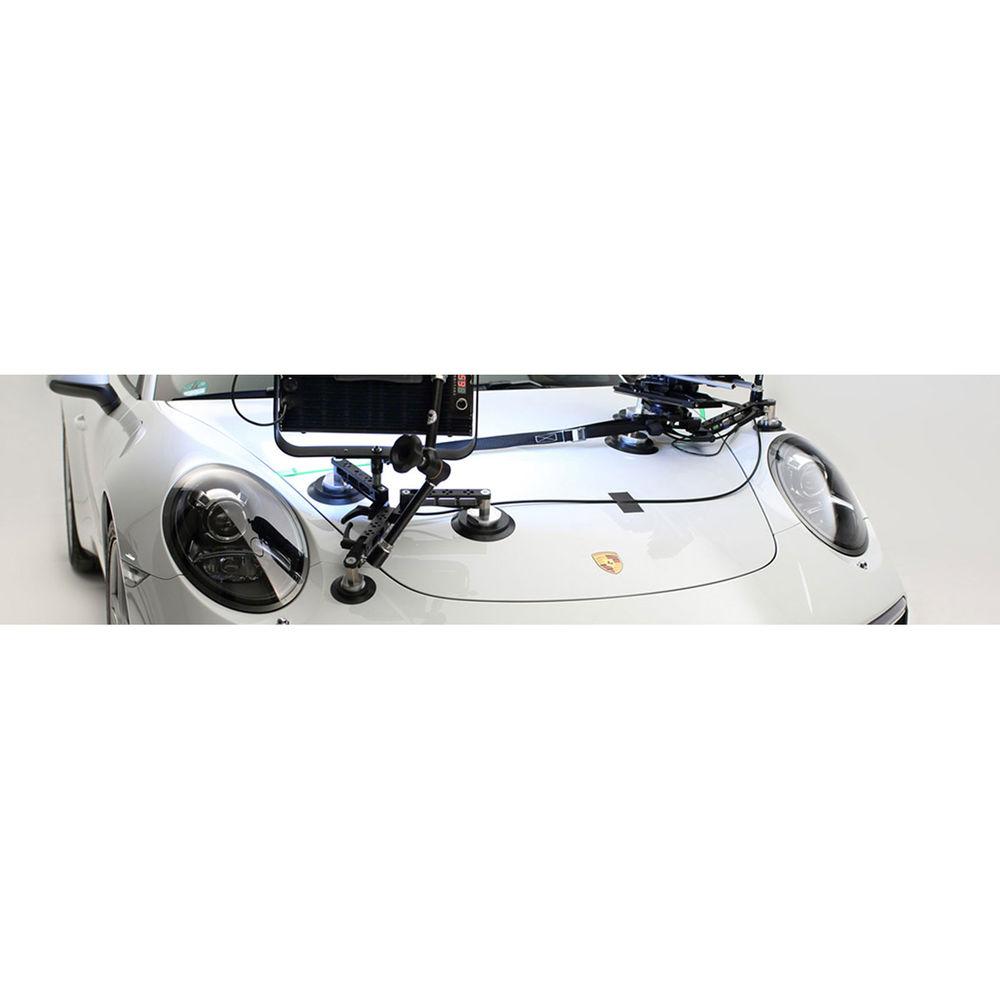

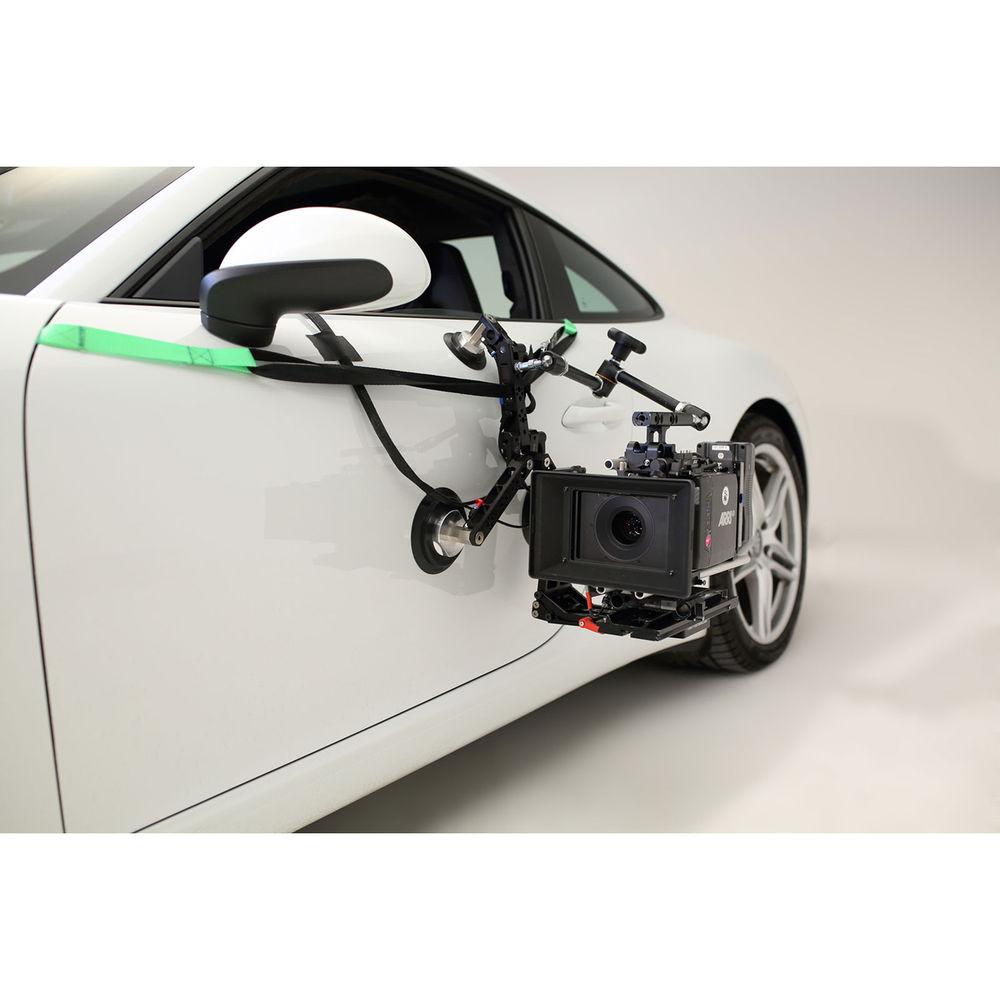

The SpiderMount 220 features a footprint with a nominal diameter of just under 19", but it can adapt to working on the overhang of surfaces, such as when mounting two of the arms to the hood of a car while the third leg mounts on the side. A variety of threaded mounting holes runs along each arm, providing attachment points for accessories or safety lines. The included vacuum pump runs off 11 to 30 VDC, and can be powered by a car lighter adapter or a standard cine-style battery.

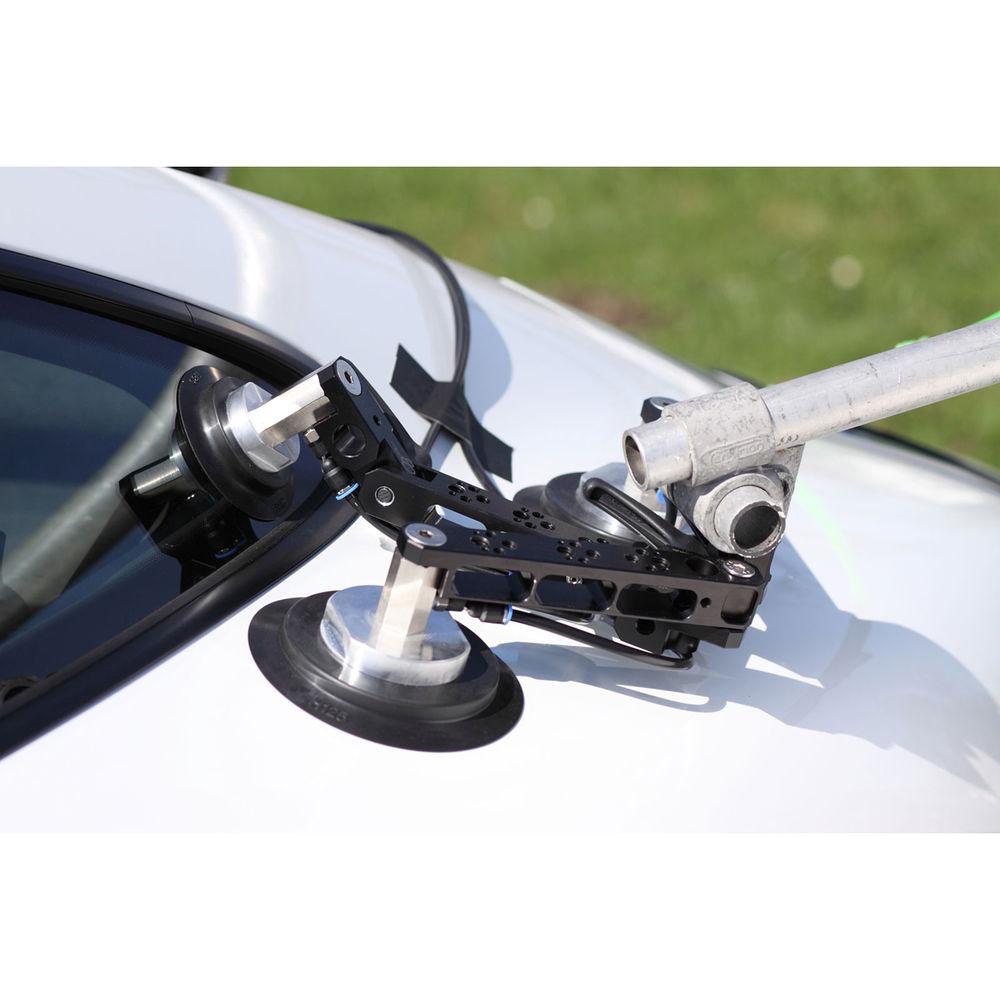

  • Locking levers permit the SpiderMount 220's arms to pivot and articulate when loosened, and then hold fast when the levers are tightened.
  • Three suction cups carry a maximum payload up to 220 lb, depending on the application and configuration.

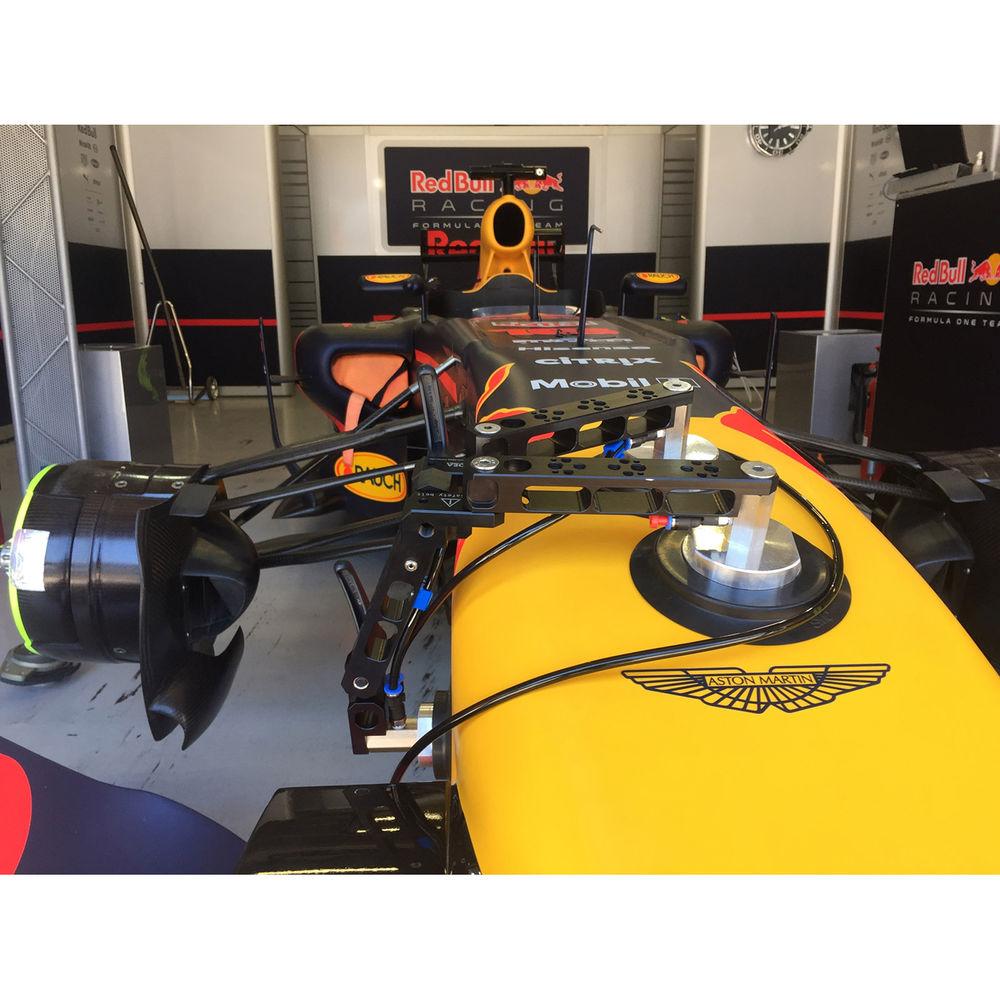

  • The SpiderMount 220 can be mounted on smooth surfaces either horizontally, vertically, or over an edge.
  • Threaded accessory mounting holes are integrated into each arm of the SpiderMount 220. These holes include 1/4"-20, 3/8"-16, M8, and 16mm.
  • The vacuum pump system can be powered from a variety of 11 to 30 VDC sources including a V-Mount battery or car lighter socket using the included cable. A D-Tap to 3-Pin XLR cable (not included) will allow you to use batteries/power sources with a D-Tap to power the pump.
UPC: 810001720124 In the Box iDEA VISION SpiderMount 220 Basic Kit
  • Vacuum Pump System
  • DC Power Cable
  • Control/Air Cable
  • 2 x Gutter Hook
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the iDEA VISION SpiderMount 220 Basic Kit in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    iDEA VISION Spidermount 220 Specs

    Payload 220 lb / 99.79 kg (Max)
    Accessory Mounting Threads 20 x 1/4"-20
    9 x 3/8"-16
    10 x M8
    3 x 16 mm
    Power Input: 11 to 30 VDC
    Draw: 0.7 A (Max)
    Consumption: 8.5 W (Max)
    Noise 65 dB
    Operating Temperature 14 to 176°F / -10 to 80°C
    Certifications CE
    RoHS
    Electronics: IP54
    Structure: 1P62
    Footprint Diameter 18.9" / 48.01 cm
    Dimensions 7.2 x 4.2 x 2.3" / 18.29 x 10.67 x 5.84 cm
    Weight 6.5 lb / 2.95 kg
