User Manual for IDP SMART-31S Single-Sided ID Card Printer Kit Click to enlarge the picture
Contents of the user manual for the IDP SMART-31S Single-Sided ID Card Printer
- Product category: ID Card Printers IDP
- Brand: IDP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IDP ID Card Printers
|
User manual for the IDP SMART-31S Single-Sided ID Card Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IDP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IDP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IDP product will considerably shorten its lifespan!
|
Product description A Guide to Purchasing an ID Card Printer Read More The IDP SMART-31S Single-Sided ID Card Printer Kit utilizes direct dye sublimation to produce sharp images at resolutions of 300, 600, and 1200 dpi. It offers single-sided printing in a compact package that only weighs 7.5 pounds. Boosted speeds of up to 720 cards per hour are possible when using monochrome ribbons, while full-color printing can be achieved at a rate of 156 cards per hour. The printer accepts standard CR-80 size cards with thickness of 15 or 30 mil. The input hopper accepts up to 80 cards. The output hopper supports up to 25 cards. The kit includes one ribbon, one cleaning card kit, and a 100-card pack. Features - Offers single-sided, edge-to-edge printing
- Resolutions of 300, 600, and 1200 dpi that can achieve sharp and clean prints with fine detail
- Can produce up to 156 cards per hour when printing in full color
- Monochrome printing speeds of up to 720 cards per hour
- Supports CR-80 size cards with a thickness of 15 or 30 mil
- The input hopper accepts up to 80 cards
- The output hopper holds up to 25 cards
- Connect to your computer via the USB port

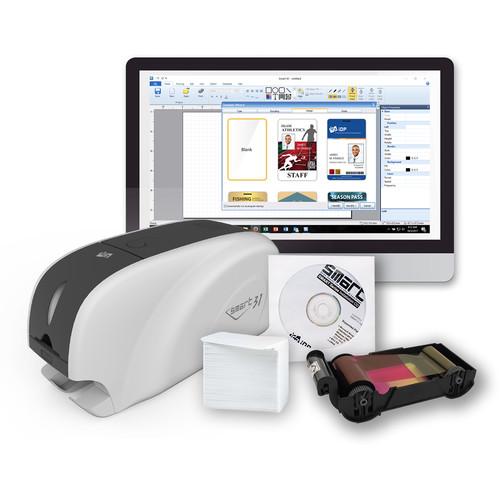

In the Box IDP SMART-31S Single-Sided ID Card Printer Kit USB Cable Power Supply Driver Disc 1 x Ribbon 1 x Cleaning Card Kit 100-Card Pack Limited 3-Year Printer Warranty Limited 2-Year Printhead Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IDP SMART-31S Single-Sided ID Card Printer Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIDP SMART-31S Specs | | | Print Type | Direct Dye Sublimation | | Print Area | Edge to Edge | | Resolutions | Color and Monochrome
300 dpi
Monochrome Only
600 dpi
1200 dpi | | Duplex Printing | No | | Print Speed | Monochrome
5 Seconds per Card (720 Cards per Hour)
YMCKO
23 Seconds per Card (156 Cards per Hour) (max) | | Document Feeding | Automatic | | Encoding | Magnetic
ISO 7811 (Track I, II, III Read/Write, HiCo/LoCo)
JIS II
Contact
ISO 7816 A/B/C Card, ISO 7816 1/2/3/4 Microprocessor Card
Contactless
ISO 14443 (Type A/ B), MIFARE, DESFIRE, iCLASS, ISO 18092(NFC), Felica | | | | Size | ISO CR-80 | | Thickness | 0.38 mm (15 mil)
0.76 mm (30 mil) | | | | Input | Input Hopper
80 Cards | | Output | Output Hopper
25 Cards | | | | Connectivity | USB | | RAM | 64MB | | Interface | 1 x LED Button | | Supported Operating Systems | Windows 7, 8, 10 Mac OS Linux | | | | Power Supply | 24 VDC | | Power Consumption | 48 W | | | | Certification | CB, CE, FCC, KC, CCC | | Temperature | 59 - 95°F / 15 - 35°C | | Humidity | 35 - 70% | | Dimensions (W x H x L) | 6.8 x 7.5 x 14.8" / 172 x 190 x 377 mm | | Weight | 7.5 lb / 3.4 kg | | | | Package Weight | 12.57 lb | | Box Dimensions (LxWxH) | 19.15 x 12.0 x 11.1" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 06 owners. Add your rating and experience with the product.
