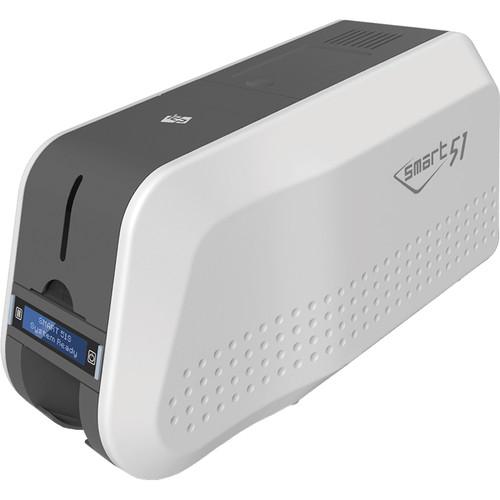

User Manual for IDP SMART-51S Single-Sided ID Card Printer Bundle Click to enlarge the picture
Contents of the user manual for the IDP SMART-51S Single-Sided ID Card Printer
- Product category: ID Card Printers IDP
- Brand: IDP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IDP ID Card Printers
|
User manual for the IDP SMART-51S Single-Sided ID Card Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IDP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IDP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IDP product will considerably shorten its lifespan!
|
Product description A Guide to Purchasing an ID Card Printer Read More With notable improvements over the SMART-50, the SMART-51S Single-Sided ID Card Printer from IDP utilizes dye sublimation and thermal transfer processes to produce sharp images at resolutions of 300 dpi. It offers single-sided printing in a compact package that weighs only 10 lb, featuring an edge-to-edge print area that reproduces your entire image onto the card without cropping. Boosted speeds of up to 720 cards per hour are possible when using monochrome ribbons, while full-color printing can be achieved at a rate of 212 cards per hour.The printer accepts standard CR-80 size cards, featuring an adjustment lever that allows you to set the supported thickness between 15 and 40 mil. For simplified operation, the input and output hoppers are positioned on the same side of the printer. The input feeder accepts up to 100 cards when closed, but can be used with its lid open to allow you to safely stack up to 200 cards. The output hopper supports up to 40 cards and is removable, so you can slide it out to easily retrieve your cards.For displaying status and settings, a small two-line LCD display is located right below the input hopper. Two control buttons can be used to turn on the printer, cycle through different information, and activate a cleaning mode. The printer connects to a computer via USB, featuring a utility tool for calibrating the print area and color density. Included in the SMART-51S bundle are a YMCKO ribbon for producing approximately 250 images, 100 PVC cards, a long sleeve cleaning card for maintenance, and a USB camera for capturing pictures that can be included on your ID badges. -
- Offers single-sided, edge-to-edge printing that leaves a thin border around the image
- Resolutions of 300 dpi that can achieve sharp and clean prints with fine detail
- Can produce up to 212 cards per hour when printing in full color
- Monochrome printing speeds of up to 720 cards per hour
- Supports CR-80 size cards with a thickness between 15 and 40 mil
- Input hopper accepts 100 cards with the lid closed and 200 cards with the top open
- Removable output hopper holds up to 40 cards and slides out for easy retrieval
- Two-line LCD display with control buttons for viewing printer and ribbon information
- USB port in the back for connecting to computer; cable included with product
UPC: 813013021647 In the Box IDP SMART-51S Single-Sided ID Card Printer Bundle YMCKO Ribbon (~250 Images) 100 x PVC Cards Long Sleeve Cleaning Card USB Camera USB Cable Power Supply Installation CD with Driver Limited 3-Year Warranty on Printer Limited 2-Year Warranty on Printhead Table of Contents
|
Upload User Manual
Have you got an user manual for the IDP SMART-51S Single-Sided ID Card Printer Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIDP SMART-51S Specs | | | Printing Technology | Dye sublimation | | Maximum Resolution | 300 dpi | | Duplex Printing | No | | Ribbon Options | YMCKO
YMCKOK
YMCFKO
HYMCKO
KO
K
W
B
R
MG
MS
SO | | | | Print Speed | YMCKO: 212 cards/hour
Monochrome: 720 cards/hour | | Print Area | Edge-to-edge | | Card Sizes | ISO CR-80, 2.125 x 3.37" (5.40 x 8.56 cm) | | Card Thickness | 15 to 40 mil (0.38 to 1.0 mm) | | Card Type | PVC
PET
Composite PVC | | Capacity | Input Hopper: 100 cards / 200 cards with cover open
Output Hopper: 40 cards | | | | Computer Interface | USB | | Compatible Operating Systems | Windows 7, 8, and 10
Mac OS
Linux | | | | Display | 2-line LCD screen | | Control Panel | 2 x LED buttons | | Memory (RAM) | 64 MB | | Operating Conditions | Temperature: 59 to 95°F (15 to 35°C)
Humidity: 35 to 70% | | Power Requirements | 100 to 220 VAC, 50/60 Hz | | Power Consumption | 48 W | | Dimensions (W x L x H) | 6.5 x 15.4 x 8.3" (16.5 x 39.0 x 21.0 cm) | | Weight | 10.0 lb (4.5 kg) |
