User Manual for IDP SMART-51S Single-Sided ID Card Printer for CR-79 Cards Kit Click to enlarge the picture
Contents of the user manual for the IDP SMART-51S Single-Sided ID Card Printer
- Product category: ID Card Printers IDP
- Brand: IDP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IDP ID Card Printers
|
User manual for the IDP SMART-51S Single-Sided ID Card Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IDP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IDP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IDP product will considerably shorten its lifespan!
|

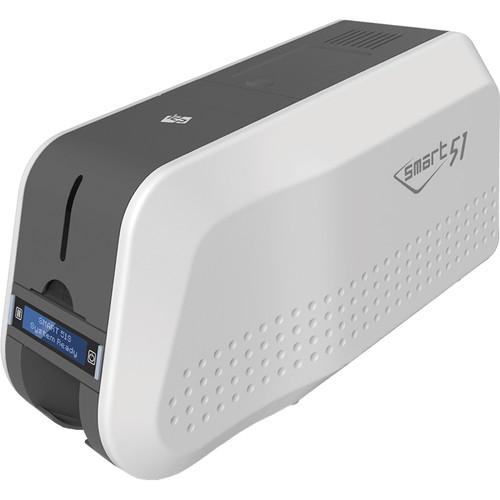

Product description A Guide to Purchasing an ID Card Printer Read More With notable improvements over the SMART-50, the SMART-51S Single-Sided ID Card Printer from IDP utilizes dye sublimation and thermal transfer processes to produce sharp images at resolutions of 300 dpi. It offers single-sided printing in a compact package that weighs 10 lb, featuring an edge-to-edge print area that reproduces your entire image onto the card without cropping. Boosted speeds of up to 720 cards per hour are possible when using monochrome ribbons, while full-color printing can be achieved at a rate of 212 cards per hour.The printer accepts CR-79 size cards, featuring an adjustment lever that allows you to set the supported thickness between 15 and 40 mil. For simplified operation, the input and output hoppers are positioned on the same side of the printer. The input feeder accepts up to 200 cards, while the output hopper fits 40 cards and slides out of the printer so you can easily retrieve your cards.For displaying status and settings, a small two-line LCD display is located right below the input hopper. Two control buttons can be used to turn on the printer, cycle through different information, and activate a cleaning mode. The printer connects to a computer via USB, featuring a utility tool for calibrating the print area and color density. Included in the SMART-51S kit are a YMCKO ribbon for producing approximately 250 images, 100 PVC cards, and a long sleeve cleaning card for maintaining your printer. -
- Offers single-sided, edge-to-edge printing that leaves a thin border around the image
- Resolutions of 300 dpi that can achieve sharp and clean prints with fine detail
- Can produce up to 212 cards per hour when printing in full color
- Monochrome printing speeds of up to 720 cards per hour
- Supports CR-79 size cards with a thickness between 15 and 40 mil
- Input hopper accepts 200 cards at once
- Removable output hopper holds up to 40 cards and slides out for easy retrieval
- Two-line LCD display with control buttons for viewing printer and ribbon information
- USB port in the back for connecting to computer; cable included with product
UPC: 813013021692 In the Box IDP SMART-51S Single-Sided ID Card Printer for CR-79 Cards Kit YMCKO Ribbon (~250 Images) 100 x PVC Cards Long Sleeve Cleaning Card USB Cable Power Supply Installation CD with Driver Limited 3-Year Warranty on Printer Limited 2-Year Warranty on Printhead Table of Contents
|
Upload User Manual
Have you got an user manual for the IDP SMART-51S Single-Sided ID Card Printer for CR-79 Cards Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIDP SMART-51S Specs | Printing Technology | Dye sublimation | Maximum Resolution | 300 dpi | Duplex Printing | No | Ribbon Options | YMCKO YMCKOK YMCFKO HYMCKO KO K W B R MG MS SO | | Print Speed | YMCKO: 212 cards/hour Monochrome: 720 cards/hour | Print Area | Edge-to-edge | Card Sizes | ISO CR-79, 2.05 x 3.30" (5.21 x 8.39 cm) | Card Thickness | 15 to 40 mil (0.38 to 1.0 mm) | Card Type | PVC PET Composite PVC | Capacity | Input Hopper: 200 cards Output Hopper: 40 cards | | Computer Interface | USB | Compatible Operating Systems | Windows 7, 8, and 10 Mac OS Linux | | Display | 2-line LCD screen | Control Panel | 2 x LED buttons | Memory (RAM) | 64 MB | Operating Conditions | Temperature: 59 to 95°F (15 to 35°C) Humidity: 35 to 70% | Power Requirements | 100 to 220 VAC, 50/60 Hz | Power Consumption | 48 W | Dimensions (W x L x H) | 6.5 x 15.4 x 8.3" (16.5 x 39.0 x 21.0 cm) | Weight | 10.0 lb (4.5 kg) |
