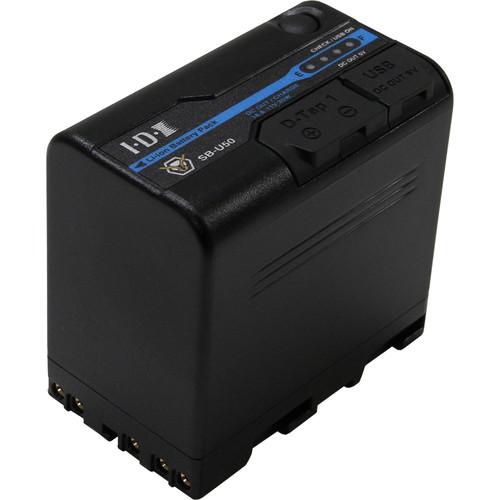

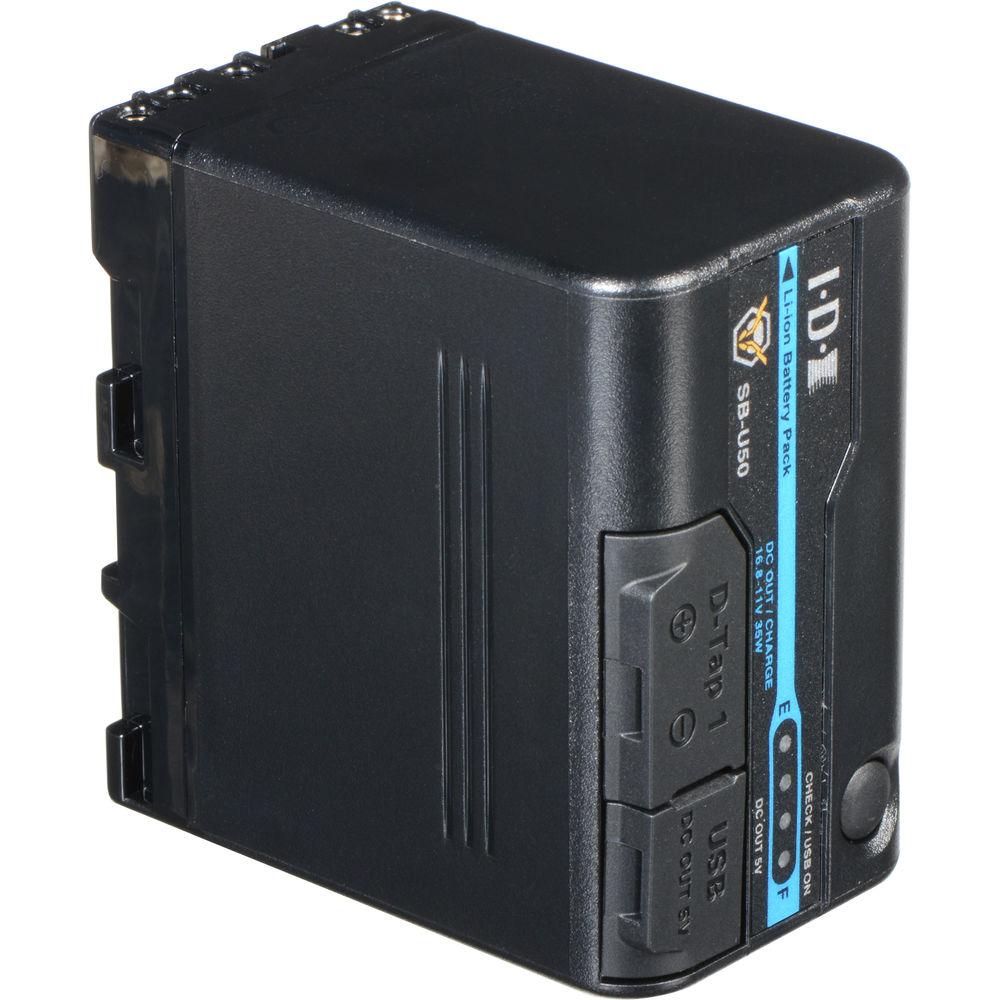

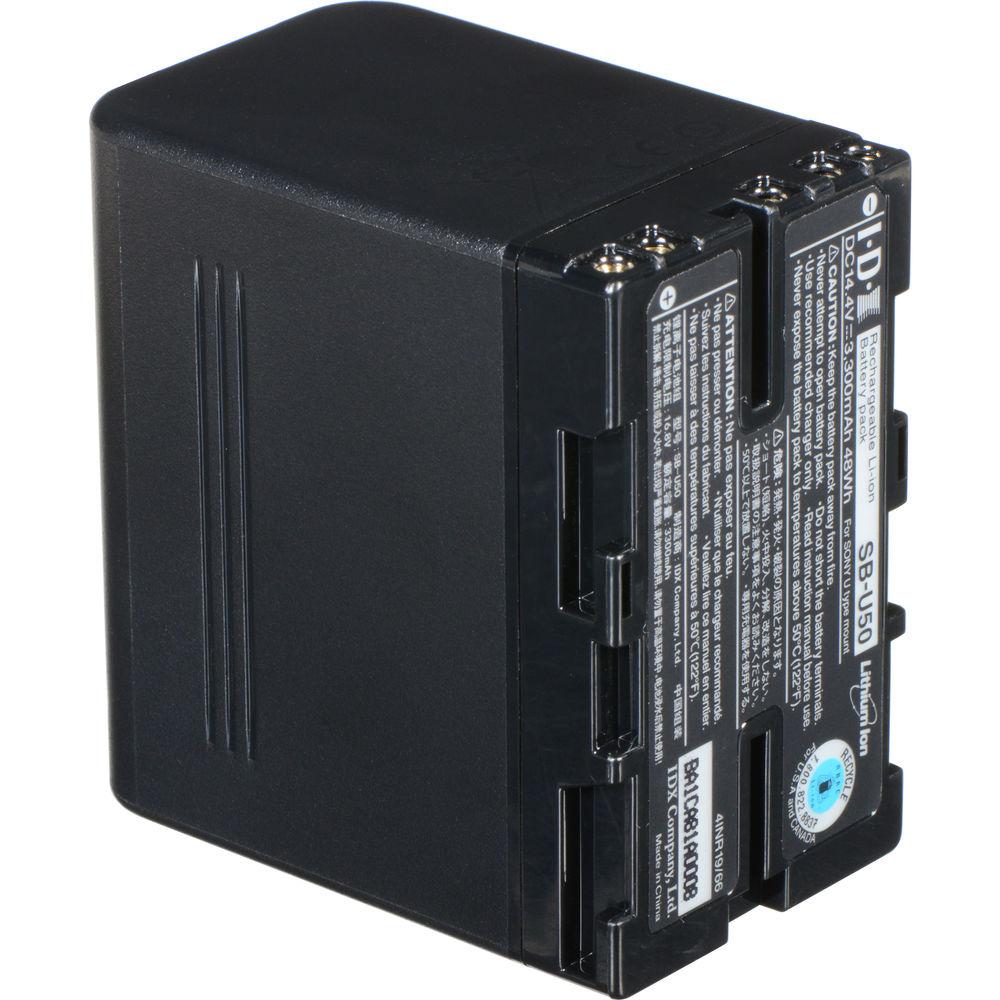

User Manual for IDX System Technology 14.4V Li-Ion Battery for Sony BP-U Mount Cameras Click to enlarge the picture
Contents of the user manual for the IDX System Technology 14.4V Li-Ion Battery
- Product category: On Camera Batteries IDX System Technology
- Brand: IDX System Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IDX System Technology On Camera Batteries
 |
User manual for the IDX System Technology 14.4V Li-Ion Battery contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IDX System Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IDX System Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IDX System Technology product will considerably shorten its lifespan!
|

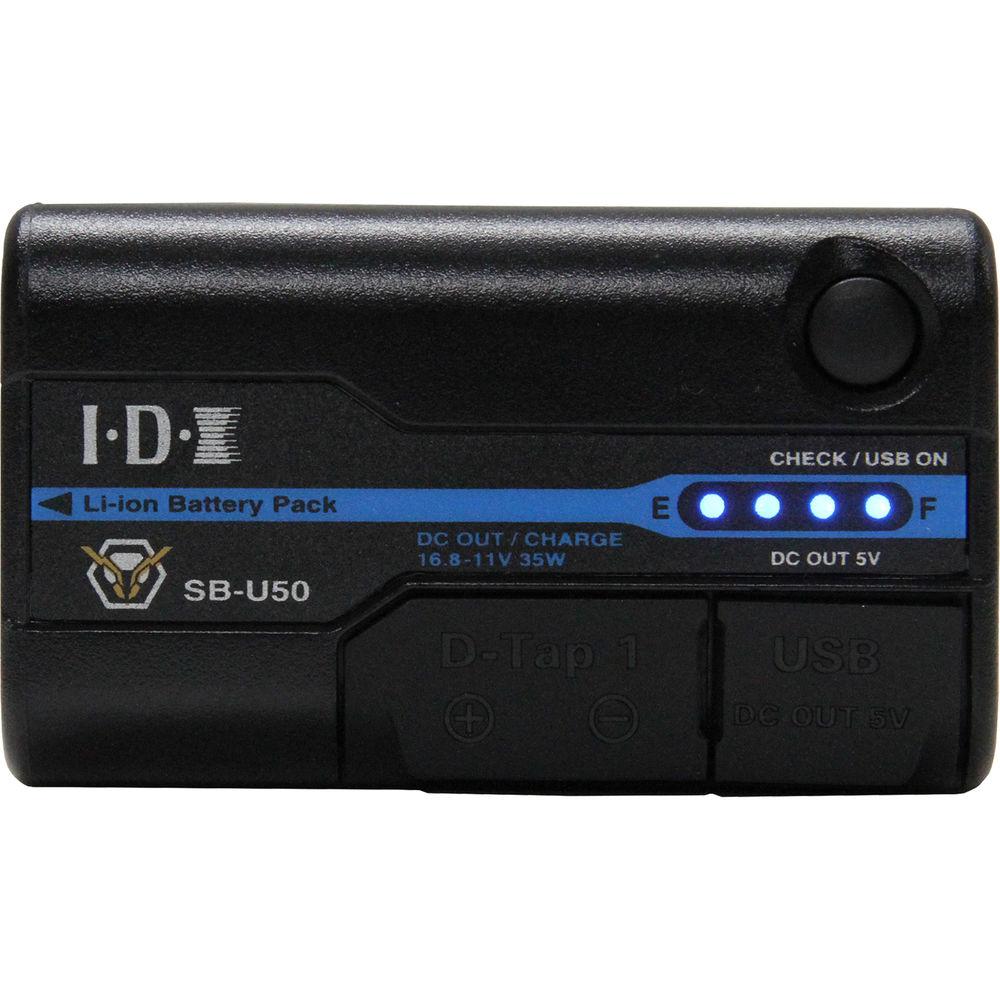

Product description This 48Wh IDX 14.4V Li-Ion Battery for Sony BP-U Mount Cameras provides power for your Sony FS7, FS5, and PMW-series cameras. It incorporates a USB port and D-Tap Advanced power port which can be used for powering your accessories. A four-LED gauge indicates the charge state of your battery. The battery's internal circuitry provides over-charge, over-discharge, and high load overcurrent protection. - This battery is compatible with and powers Sony FS5, FS7, and PMW-series cameras.

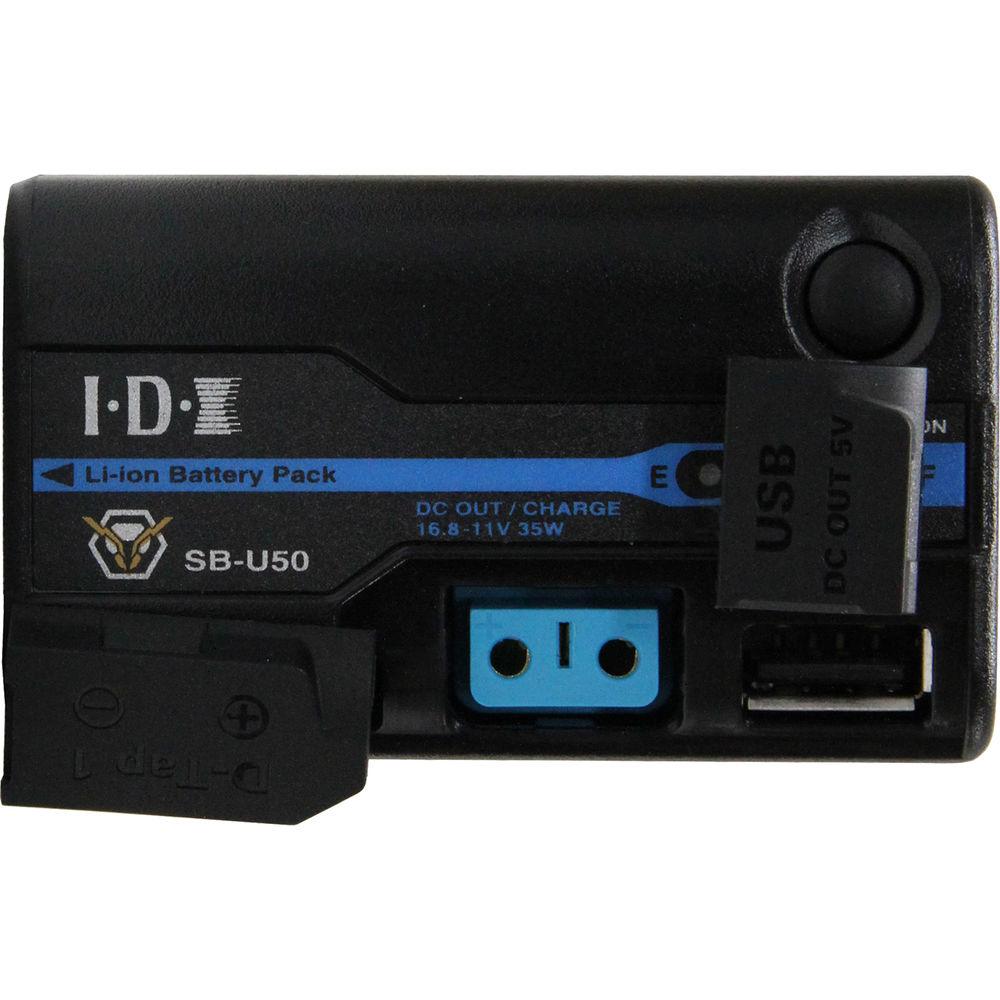

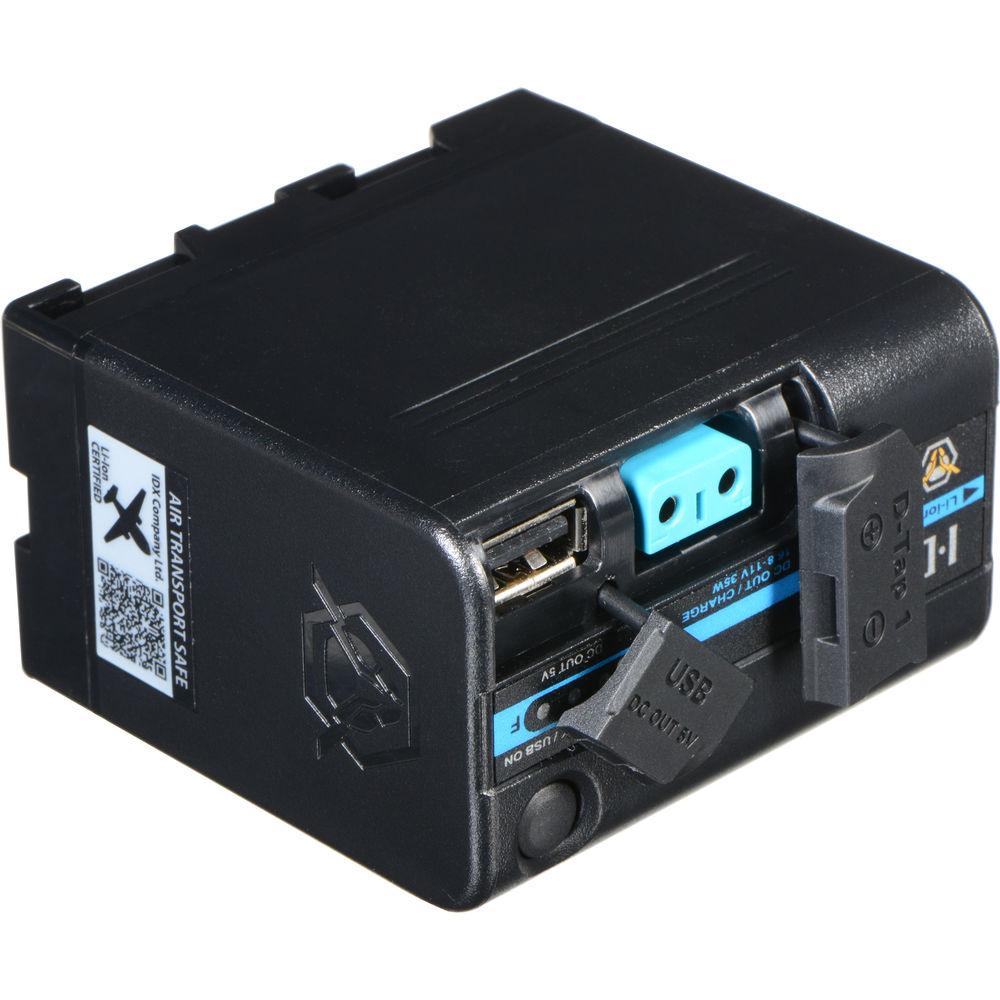

- It incorporates a USB port and D-Tap Advanced power port which can be used for powering your accessories.
- The D-Tap Advanced port is compatible with D-Tap plugs for power output. However, with a compatible charger (not included), you can charge the battery via the D-Tap Advanced port.
- The USB output port is not a data port and is only for power. It provides 5V at 2.3A. It is an A-type connector and becomes active when you push and hold the CHECK/USB ON button for longer than three seconds. It will turn off once the cable has been removed or no power has been drawn for more than 30 minutes.
UPC: 825781012963 In the Box IDX System Technology 14.4V Li-Ion Battery for Sony BP-U Mount Cameras (48Wh) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IDX System Technology 14.4V Li-Ion Battery for Sony BP-U Mount Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIDX System Technology SB-U50 Specs | Mount / Series Type | Sony BP-U Series | | Chemistry | Lithium-Ion | | Capacity (Wh) | 48 Wh | | Amp-Hours | 3300 mAh | | Output Voltage | 14.4 VDC | | Maximum Load | 35 W, 3.2 A | | Accessory Port | 1 x D-Tap Advanced
1 x USB Type-A | | USB Output | 5 V, 2.3 A | | Charging Voltage | 16.8 VDC | | Storage Temperature | -4 to 122°F / -20 to 50°C | | Charging Temperature | 32 to 104°F / 0 to 40°C | | Discharging Temperature | -4 to 113°F / -20 to 45°C | | Dimensions (W x H x D) | 1.6 x 2.6 x 2.7" / 41.5 x 65.9 x 69.5 mm | | Weight | 0.5 lb / 226.8 g | | | | Package Weight | 0.665 lb | | Box Dimensions (LxWxH) | 3.2 x 3.0 x 2.15" |
