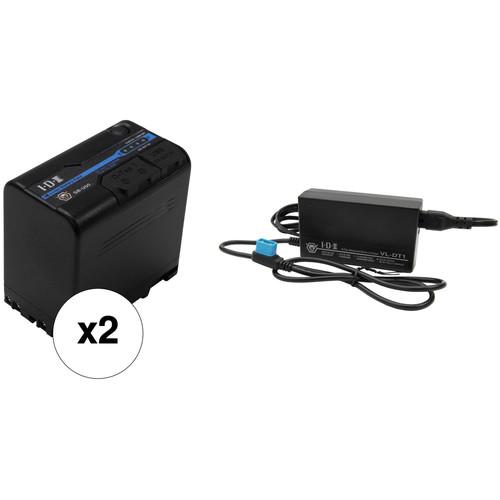

Product description The IDX 2 x 48Wh 14.4V Li-Ion Battery Kit with D-Tap Advanced Battery Charger is a B&H kit that provides you with two 48Wh BP-U-type batteries and a battery charger. Each battery features a D-Tap Advanced port that can provide power for accessories or can be used to charge the battery via the included D-Tap Advanced charger.
The 2A charger allows you to charge just one battery at a time. It provides charge only to the D-Tap Advanced port and will not, in the course of normal use, fit into a standard D-Tap port. It monitors the cells in your battery and can charge at an accelerated rate compared to a trickle charger. - 2 x IDX System Technology 14.4V Li-Ion Battery for Sony BP-U Mount Cameras (48Wh) This 48Wh IDX 14.4V Li-Ion Battery for Sony BP-U Mount Cameras provides power for your Sony FS7, FS5, and PMW-series cameras. It incorporates a USB port and D-Tap Advanced power port which can be used for powering your accessories. A four-LED gauge indicates the charge state of your battery. The battery's internal circuitry provides over-charge, over-discharge, and high load overcurrent protection.
- This battery is compatible with and powers Sony FS5, FS7, and PMW-series cameras.
- It incorporates a USB port and D-Tap Advanced power port which can be used for powering your accessories.
- The D-Tap Advanced port is compatible with D-Tap plugs for power output. However, with a compatible charger (not included), you can charge the battery via the D-Tap Advanced port.
- The USB output port is not a data port and is only for power. It provides 5V at 2.3A. It is an A-type connector and becomes active when you push and hold the CHECK/USB ON button for longer than three seconds. It will turn off once the cable has been removed or no power has been drawn for more than 30 minutes.
UPC: 825781012963 - IDX System Technology D-Tap Advanced Port Battery Charger The IDX D-Tap Advanced Port Battery Charger charges Endura V-mount lithium-ion batteries with the D-Tap Advanced port. The charger plugs into one battery at a time and its 3-pin design allows it to monitor the status of your battery as it charges.
- Charges a single battery via its D-Tap Advanced port
UPC: 825781012956 In the Box - 2 x 14.4V Li-Ion Battery for Sony BP-U Mount Cameras (48Wh) xeczeryufyysvxfuteysvcaattzwzdtsyqzsw
- Limited 2-Year Warranty
- D-Tap Advanced Port Battery Charger
Table of Contents
|
Upload User Manual
Have you got an user manual for the IDX System Technology 2 x 48Wh 14.4V Li-Ion Battery Kit with D-Tap Advanced Battery Charger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x IDX System Technology 14.4V Li-Ion Battery for Sony BP-U Mount Cameras (48Wh)
| Mount / Series Type | Sony BP-U Series | | Chemistry | Lithium-Ion | | Capacity (Wh) | 48 Wh | | Amp-Hours | 3300 mAh | | Output Voltage | 14.4 VDC | | Maximum Load | 35 W, 3.2 A | | Accessory Port | 1 x D-Tap Advanced
1 x USB Type-A | | USB Output | 5 V, 2.3 A | | Charging Voltage | 16.8 VDC | | Storage Temperature | -4 to 122°F / -20 to 50°C | | Charging Temperature | 32 to 104°F / 0 to 40°C | | Discharging Temperature | -4 to 113°F / -20 to 45°C | | Dimensions (W x H x D) | 1.6 x 2.6 x 2.7" / 41.5 x 65.9 x 69.5 mm | | Weight | 0.5 lb / 226.8 g | | | | Box Dimensions (LxWxH) | 3.2 x 3.0 x 2.15" | - IDX System Technology D-Tap Advanced Port Battery Charger
| Input Voltage | AC: 100 to 240 V, 50/60 Hz | | Charge Current | 2 A | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions | 4.3 x 1.3 x 2.4" / 10.92 x 3.30 x 6.10 cm | | Weight | 0.5 lb / 0.2 kg | | | | Box Dimensions (LxWxH) | 7.0 x 4.4 x 2.85" |
