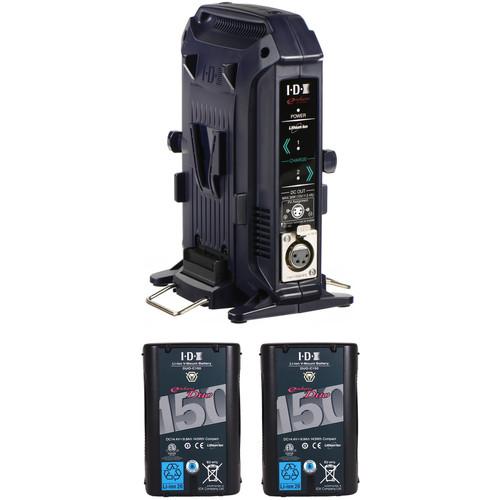

User Manual for IDX System Technology 2x DUO-150 V-Mount Batteries & 2-Ch Charger Power Supply Kit

• Product category: On Camera Batteries IDX System Technology
• Brand: IDX System Technology
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for IDX System Technology On Camera Batteries

Product description

• 2 x IDX System Technology DUO-C150 143Wh High-Load Battery with D-Tap Advanced, Standard D-Tap & USB Port The IDX DUO-C150 143Wh High-Load Battery with D-Tap Advanced, Standard D-Tap & USB Port features a V-mount and is only 2.3" thick, but packs 143Wh of capacity to power your professional devices. It is well suited for digital cinema cameras and camera stabilizer systems where long runtimes are required. Battery data information displays in most camera's viewfinders.

  The DUO-C150 can handle a combined load of up to 14A among its V-mount, D-Tap outputs, and USB port. One of the D-Taps can also be used to charge the battery, although that requires an optional charger that is not included. Designed with battery circuit protection against overcharge, over-discharge, over-current, and exposure to high temperatures, providing protection to your battery from the rigors of production. A 5-LED battery life indicator on the side of the battery provides a quick visual indication of charge state of your battery.
  Key Features
  • • Suitable for handheld gimbal, aerial, run-and-gun, and other productions that need a high-power-draw battery in a small package
    • The battery data displays in the viewfinder system of most cameras, and the addition of an SMBUS enables RED cameras to display this information as well
    • Handles up to 14A loads
    • Two unregulated D-tap accessory outputs at 50W each
    • USB port
    • Battery circuit protection
    • 5-LED battery life indicator
    • Fully compatible with all IDX Endura V-mount chargers
  UPC: 825781013076
• IDX System Technology VL-2X 2-Channel V-Mount Charger & Power Supply The IDX VL-2X 2-Channel V-Mount Charger & Power Supply supports lithium-ion and NiCad batteries and features three modes of operation. Charger mode provides sequential charging, automatically switching to the second battery after fully charging the first. It delivers up to 2.7A of quick-charge current without the noise of a typical charger thanks to a fanless design. Power Supply mode offers up to 36W of DC power via a 4-pin XLR output. Power Base mode allows you to power the XLR output off of attached batteries, without having to connect the charger to a power outlet. The three modes can only be used independently.

  This portable desktop charger is designed with reliable internal safety features that protect both the battery and charger from damage should faulty or misused batteries be placed on the charger. It will automatically stop charging if any attached battery reaches an overvoltage condition.
  Charge Times for Select IDX Batteries
  • DUO-C190:
    7 hours for one / 14 hours for two

    DUO-150:
    5 hours for one / 10 hours for two

    CUE-D150:
    5 hours for one / 10 hours for two

    ELITE:
    4.5 hours for one / 9.4 hours for two

    E-HL10DS:
    3.4 hours for one / 7.2 hours for two

    DUO-C95:
    3.4 hours for one / 7.2 hours for two

    DUO-95:
    3.3 hours for one / 7 hours for two

    CUE-D95:
    3.3 hours for one / 7 hours for two

    E-HL9:
    3.2 hours for one / 6.4 hours for two

    CUE-D75:
    3 hours for one / 6 hours for two

    NP-L7S:
    3 hours for one / 6 hours for two
  UPC: 825781012918

• 2 x DUO-C150 143Wh High-Load Battery with D-Tap Advanced, Standard D-Tap & USB Port zayccaczysecdyrrqcxssrtwvsec
• Limited 2-Year Warranty

• VL-2X 2-Channel V-Mount Charger & Power Supply

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x IDX System Technology DUO-C150 143Wh High-Load Battery with D-Tap Advanced, Standard D-Tap & USB Port

  Mount / Series Type	V-Mount
  Chemistry	Lithium-Ion
  Capacity (Wh)	143 Wh
  Amp-Hours	9.9 Ah
  Output Voltage	14.4 VDC
  Maximum Load	14 A
  Accessory Port	2 x D-Tap 1 x USB Type-A
  Maximum Load (Accessory Port)	80 W ( D-Tap )
  USB Output	5 V, 2.3 A
  Dimensions (W x H x D)	3.8 x 5.7 x 2.3" / 9.7 x 14.5 x 5.8 cm
  Weight	2 lb / 0.9 kg

  Box Dimensions (LxWxH)	7.0 x 4.5 x 2.8"

• IDX System Technology VL-2X 2-Channel V-Mount Charger & Power Supply

  Mount Type	2 x V-mount
  Supported Chemistries	Lithium-ion and NiCad
  Charging Type	Sequential
  Input Voltage	100-240 VAC, 50/60 Hz
  Power Consumption	140 VA max.
  Quick Charge Current	2.7 A max.
  DC Output	4-pin XLR / 36 W max.
  Operating Temperature	23 to 104°F / -5 to 40°C
  Dimensions	3.4 x 4.2 x 5" / 9 x 11 x 13 cm
  Weight	Approx. 0.95 lb / 430 g

  Box Dimensions (LxWxH)	8.4 x 8.1 x 4.1"
