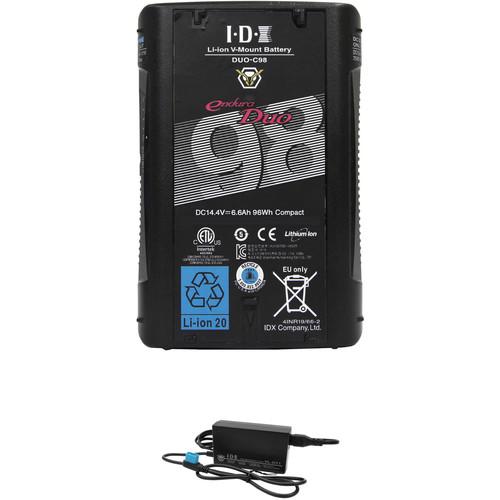

User Manual for IDX System Technology 96Wh Lithium-Ion V-Mount Battery with D-Tap Advanced Charger Kit Click to enlarge the picture
Contents of the user manual for the IDX System Technology 96Wh Lithium-Ion V-Mount
- Product category: On Camera Batteries IDX System Technology
- Brand: IDX System Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IDX System Technology On Camera Batteries
|
User manual for the IDX System Technology 96Wh Lithium-Ion V-Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IDX System Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IDX System Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IDX System Technology product will considerably shorten its lifespan!
|
Product description This Kit of an IDX 96Wh Lithium-Ion V-Mount Battery with D-Tap Advanced Charger includes an IDX DUO-C98 battery and IDX D-Tap Advanced charger. This kit provides you with a powerful V-mount battery and simple charger with built-in lithium-ion cell charge protection. The battery features a 96Wh capacity, supports a 10A draw, and a compact design well suited for handheld, gimbals and aerial setups. It incorporates a USB power port, standard D-Tap, and a D-Tap advanced port, which allows you to charge the battery using the included D-Tap Advanced Charger.
The D-Tap and D-Tap Advanced are unregulated and support an 50W draw each. Four LED indicator lights show the charge state of the battery. The D-Tap Advanced is a blue color, which helps differentiate it from a standard D-Tap, and it accepts a 3-pin plug for charging, which a conventional D-Tap will not. The included charger plugs into the D-Tap Advanced port on the battery for charging and can work with worldwide power, 100 to 240 VAC at 50/60 Hz. - IDX System Technology DUO-C98 96Wh High-Load Battery with D-Tap Advanced, Standard D-Tap & USB Port The IDX DUO-C98 96Wh High-Load Battery with D-Tap Advanced, Standard D-Tap & USB Port features a V-mount and is only 2.3" thick, but packs 96Wh of capacity to power your professional devices. It is well suited for handheld gimbal and aerial applications, as well as run-and-gun productions where size and weight can become an issue. Battery data information displays in most camera's viewfinders.
The DUO-C98 can handle a combined load of up to 10A among its V-mount, D-Tap outputs, and USB port. One of the D-Taps can also be used to charge the battery, although that requires an optional charger that is not included. Designed with battery circuit protection against overcharge, over-discharge, over-current, and exposure to high temperatures, providing protection to your battery from the rigors of production. A 5-LED battery life indicator on the side of the battery provides a quick visual indication of charge state of your battery. - Key Features
-
- Suitable for handheld gimbal, aerial, run-and-gun, and other productions that need a high-power-draw battery in a small package
- The battery data displays in the viewfinder system of most cameras, and the addition of an SMBUS enables RED cameras to display this information as well
- Handles up to 10A loads
- Two unregulated D-tap accessory outputs at 50W each
- USB port
- Battery circuit protection
- 5-LED battery life indicator
- Fully compatible with all IDX Endura V-mount chargers
UPC: 825781012994 - IDX System Technology D-Tap Advanced Port Battery Charger The IDX D-Tap Advanced Port Battery Charger charges Endura V-mount lithium-ion batteries with the D-Tap Advanced port. The charger plugs into one battery at a time and its 3-pin design allows it to monitor the status of your battery as it charges.
- Charges a single battery via its D-Tap Advanced port
UPC: 825781012956 In the Box - DUO-C98 96Wh High-Load Battery with D-Tap Advanced, Standard D-Tap & USB Port ddqbxeqt
- Limited 2-Year Warranty
- D-Tap Advanced Port Battery Charger
Table of Contents
|
Upload User Manual
Have you got an user manual for the IDX System Technology 96Wh Lithium-Ion V-Mount Battery with D-Tap Advanced Charger Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - IDX System Technology DUO-C98 96Wh High-Load Battery with D-Tap Advanced, Standard D-Tap & USB Port
| Mount / Series Type | V-Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 96 Wh | | Amp-Hours | 6.6 Ah | | Output Voltage | 14.4 VDC | | Maximum Load | 10 A | | Accessory Port | 2 x D-Tap
1 x USB Type-A | | Maximum Load (Accessory Port) | 50 W, 5.4 A ( D-Tap ) | | USB Output | 5 V, 2.3 A | | Storage Temperature | -4 to 122°F / -20 to 50°C | | Charging Temperature | 32 to 104°F / 0 to 40°C | | Discharging Temperature | -4 to 122°F / -20 to 50°C | | IP Rating | None | | Dimensions (W x H x D) | 3.8 x 5.7 x 1.5" / 9.7 x 14.5 x 3.8 cm | | Weight | 1.4 lb / 0.6 kg | | | | Box Dimensions (LxWxH) | 6.95 x 4.5 x 1.95" | - IDX System Technology D-Tap Advanced Port Battery Charger
| Input Voltage | AC: 100 to 240 V, 50/60 Hz | | Charge Current | 2 A | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions | 4.3 x 1.3 x 2.4" / 10.92 x 3.30 x 6.10 cm | | Weight | 0.5 lb / 0.2 kg | | | | Box Dimensions (LxWxH) | 7.0 x 4.4 x 2.85" |
