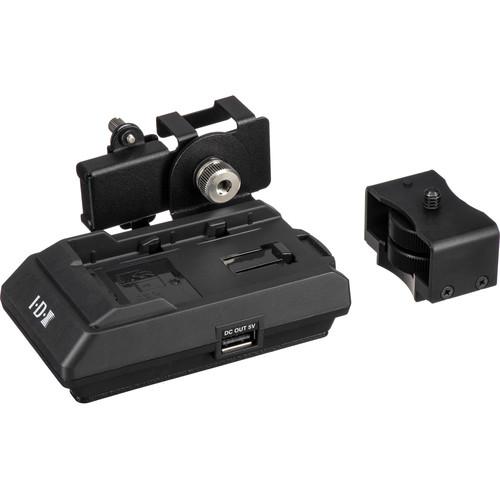

User Manual for IDX System Technology Battery Adapter for CW-1 TX Transmitter Click to enlarge the picture
Contents of the user manual for the IDX System Technology Battery Adapter for
- Product category: Wireless Transmission IDX System Technology
- Brand: IDX System Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IDX System Technology Wireless Transmission
|
User manual for the IDX System Technology Battery Adapter for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IDX System Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IDX System Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IDX System Technology product will considerably shorten its lifespan!
|
Product description Power your CW1-TX Transmitter with an SSL-JVC50 battery using this dedicated Battery Adapter from IDX. The adapter features a cold shoe on the bottom and a receptacle on the side that holds the transmitter, so you can camera-mount the entire setup as a single unit.
The cold shoe is secured into a 1/4"-20 mounting thread on the bottom of the adapter by a 1/4"-20 screw that comes out of its other end. It can be removed to reveal the mounting thread to allow other ways of mounting the adapter. It can also be flipped over and attached into a sled on the bottom of the adapter, in which case it will provide you with a 1/4"-20 screw to use to mount the adapter.
The adapter features a USB output and plugs into the CW-1 transmitter via a USB connection. You can use the USB-to-mini-USB cable included with the CW-1 system. The SSL-JVC50 battery is sold separately. UPC: 825781012505 In the Box IDX System Technology Battery Adapter for CW-1 TX Transmitter (SSL-JVC50) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IDX System Technology Battery Adapter for CW-1 TX Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIDX System Technology A-CWJ-TX Specs | Supported Battery | JVC or 3rd-party SSL-JVC50 | | Input Voltage | 6 - 9 VDC | | Power Output | 5 VDC USB | | Dimensions | 4.4 x 1.3 x 2.3" (11 x 3 x 6 cm) | | Weight | Approx. 0.55 lb (8.8 oz) | | | | Package Weight | 0.86 lb | | Box Dimensions (LxWxH) | 7.95 x 6.2 x 3.2" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 06 owners. Add your rating and experience with the product.
