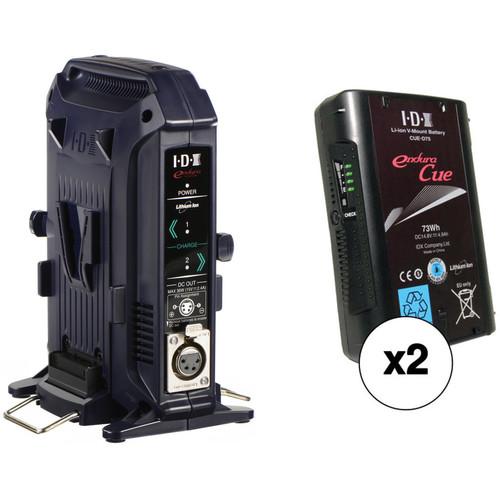

Product description This IDX System Technology CUE-D75 73Wh V-Mount 2-Battery Kit with Dual-Battery Charger from B&H provides 14.8V of power for your camcorder or other professional video accessories with V-mounts. This kit includes two CUE-D75 73Wh Li-Ion V-mount batteries and a dual-bay, fanless, sequential charger. The charger takes approximately three hours to fully charge one CUE-D75 battery, and approximately six hours to charge both batteries. See below for more information on the individual items in this kit. - 2 x IDX System Technology CUE-D75 73Wh Li-Ion V-Mount Battery Power your camera or other pro video equipment with the IDX CUE-D75 73Wh Li-Ion V-Mount Battery. The battery can supply up to 16.8 VDC to the plate, and can also provide up to 50W to power accessories through the integrated D-tap output. CUE series batteries feature an internal pack design, which cradles each cell and isolates it in order to enhance reliability and safety. IDX CUE-D batteries should be charged using IDX-branded chargers; third party chargers may not charge CUE-D batteries correctly. UPC: 825781012772
- IDX System Technology VL-2X 2-Channel V-Mount Charger & Power Supply The IDX VL-2X 2-Channel V-Mount Charger & Power Supply supports lithium-ion and NiCad batteries and features three modes of operation. Charger mode provides sequential charging, automatically switching to the second battery after fully charging the first. It delivers up to 2.7A of quick-charge current without the noise of a typical charger thanks to a fanless design. Power Supply mode offers up to 36W of DC power via a 4-pin XLR output. Power Base mode allows you to power the XLR output off of attached batteries, without having to connect the charger to a power outlet. The three modes can only be used independently.
This portable desktop charger is designed with reliable internal safety features that protect both the battery and charger from damage should faulty or misused batteries be placed on the charger. It will automatically stop charging if any attached battery reaches an overvoltage condition. - Charge Times for Select IDX Batteries
- DUO-C190:
7 hours for one / 14 hours for two
DUO-150:
5 hours for one / 10 hours for two
CUE-D150:
5 hours for one / 10 hours for two
ELITE:
4.5 hours for one / 9.4 hours for two
E-HL10DS:
3.4 hours for one / 7.2 hours for two
DUO-C95:
3.4 hours for one / 7.2 hours for two
DUO-95:
3.3 hours for one / 7 hours for two
CUE-D95:
3.3 hours for one / 7 hours for two
E-HL9:
3.2 hours for one / 6.4 hours for two
CUE-D75:
3 hours for one / 6 hours for two
NP-L7S:
3 hours for one / 6 hours for two UPC: 825781012918 In the Box - 2 x CUE-D75 73Wh Li-Ion V-Mount Battery
- Limited 2-Year Warranty
- VL-2X 2-Channel V-Mount Charger & Power Supply
Table of Contents
|
Upload User Manual
Have you got an user manual for the IDX System Technology CUE-D75 73Wh V-Mount 2-Battery Kit with Dual-Battery Charger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x IDX System Technology CUE-D75 73Wh Li-Ion V-Mount Battery
| Mount / Series Type | V-Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 73 Wh | | Output Voltage | 14.8 VDC | | Maximum Load | 4.9 A | | Accessory Port | 1 x D-Tap | | Storage Temperature | 32 to 104°F / 0 to 40°C | | Charging Temperature | 32 to 104°F / 0 to 40°C | | Discharging Temperature | -4 to 113°F / -20 to 45°C | | Dimensions (W x H x D) | 3.8 x 5.8 x 1.5" / 97.0 x 146.0 x 38.0 mm | | Weight | 1.4 lb / 0.6 kg | | | | Box Dimensions (LxWxH) | 7.0 x 4.4 x 2.0" | - IDX System Technology VL-2X 2-Channel V-Mount Charger & Power Supply
| Mount Type | 2 x V-mount | | Supported Chemistries | Lithium-ion and NiCad | | Charging Type | Sequential | | Input Voltage | 100-240 VAC, 50/60 Hz | | Power Consumption | 140 VA max. | | Quick Charge Current | 2.7 A max. | | DC Output | 4-pin XLR / 36 W max. | | Operating Temperature | 23 to 104°F / -5 to 40°C | | Dimensions | 3.4 x 4.2 x 5" / 9 x 11 x 13 cm | | Weight | Approx. 0.95 lb / 430 g | | | | Box Dimensions (LxWxH) | 8.4 x 8.1 x 4.1" |
