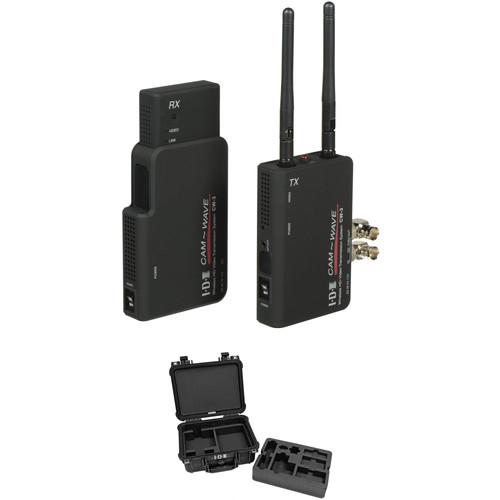

Product description This B&H Kit features the IDX CW-3 1080p60 3G-SDI Wireless Transmission System and a compact yet robust Case Cruzer Custom Case. The transmitter/receiver system wirelessly transmits a 1080p60, 4:2:2, 10-bit signal up to 164' line-of-sight with no signal loss and less than 1ms latency, and a maximum of 380' in optimal line-of-sight conditions. The system includes an AC adapter for the receiver while the transmitter can be powered with one of the supplied D-Tap cables. The custom carry case is a compact two-tier Pelican 1400 case that fits the transmitter and receiver and many accessories between the two tiers. - IDX System Technology CW-3 3G-SDI Wireless Video Transmission System The CW-3 3G-SDI Wireless Video Transmission System from IDX transmits 1080p60 video up to 164' line-of-sight with no quality loss and less than 1 ms latency and up to a maximum of 380' in optimal line-of-sight conditions. The transmitter/receiver system features 3G-SDI input/output and has a compact design that's suitable for gimbal and drone operations. A shoe mount is included for mounting the transmitter on a camera.
- Key Features
-
- Uncompressed 1080p60 YCbCr 4:2:2 10-bit wireless transmission with less than 1 ms latency
- 3G/HD-SDI input/output, GPI output on transmitter for tally
- Up to 164' transmission line-of-sight with no quality loss; up to 380' in optimal line-of-sight conditions
- WHDI (MIMO/OFDM) technology
- Dynamic Frequency Selection (DFS) channels (less congested frequencies) on 5 GHz frequency band
- Conforms to major technical and environmental standards, including FCC, CE, and RoHS specifications
UPC: 825781012727 - IDX System Technology Case Cruzer Custom Case for CW-1 Kit B This Case Cruzer Custom Case from IDX is a two-tier Pelican 1400 case that safely fits your entire CW-1 Kit B transmission system.
The top tier fits the transmitter and receiver and their power adapters, two batteries, right-angle HDMI adapter, and shoe-mount to 1/4"-20 screw adapter. The bottom tier will hold a battery charger, AC adapter, HDMI cable, and power cables. UPC: 825781012680 In the Box - CW-3 3G-SDI Wireless Video Transmission System xyscuadectcaexuftuxaevba
- CW-3 Transmitter
- CW-3 Receiver
- Set of Transmitter Antennas
- AC Adapter for Receiver
- 2 x D-Tap Cables
- 2 x SDI Cables
- Shoe Mount
- Screw Cap
- Limited 2-Year Warranty
- Case Cruzer Custom Case for CW-1 Kit B
Table of Contents
|
Upload User Manual
Have you got an user manual for the IDX System Technology CW-3 1080p60 3G-SDI Wireless Transmission System & Pelican Case Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - IDX System Technology CW-3 3G-SDI Wireless Video Transmission System
| Transmission Range | Up to 164' / 50 m Line-of-Sight without Quality Loss; Up to 380' / 115 m maximum Line-of-Sight | | Input/Output | Transmitter:
1 x 3G/HD-SDI Input
1 x 3G/HD-SDI Loop-Out
1 x GPI Output
Receiver:
1 x 3G/HD-SDI Output | | Frequency | 5190, 5230, 5270, 5310, 5510, 5550, 5670 MHz (U.S.) | | Frequency Selection | Automatic / DFS | | Transmit Method | WHDI (MIMO) | | Encryption | WPA2-PSK (AES) | | Modulation | OFDM | | Latency | Zero Frame (<1 ms) | | Video Formats | 3G-SDI:
YCbCr 4:2:2: 10-Bit
1080p60/59.94/50
HD-SDI:
YCbCr 4:2:2: 10-Bit
1080p30/29.97/25/24/23.98
1080i60/59.94/50
720p59.94/50 (Sony PsF Not Supported) | | Power Requirements | 7-17 VDC | | Power Consumption | Transmitter: 8 W (Max), Receiver: 10 W (Max) | | Dimensions | Transmitter:
4.3 x 2.7 x 1" / 11 x 6.9 x 2.5 cm
Receiver:
6 x 2.9 x 1" / 15.4 x 7.4 x 2.5 cm
Antenna:
4.3 x 0.4 x 0.4" / 10.8 x 1 x 1 cm | | Weight | Transmitter:
0.3 lb / 150 g
Receiver:
0.4 lb / 165 g | | | | Box Dimensions (LxWxH) | 12.8 x 8.7 x 5.45" | - IDX System Technology Case Cruzer Custom Case for CW-1 Kit B
| Case | Case Cruzer (Pelican 1400 equivalent) | | Material | Custom Cut Foam: Cross-linked polyethylene | | Dimensions | Exterior: 13.3 x 11.6 x 6" (34 x 29.5 x 15 cm)
Interior: 12.1 x 9.1 x 5.1" (30.7 x 23 x 13 cm) | | Weight | Approx. 4.3 lb (2 kg)
With CW-1 Kit B: approx. 7.9 lb (3.6 kg) | | | | Box Dimensions (LxWxH) | 13.9 x 12.3 x 6.25" |
