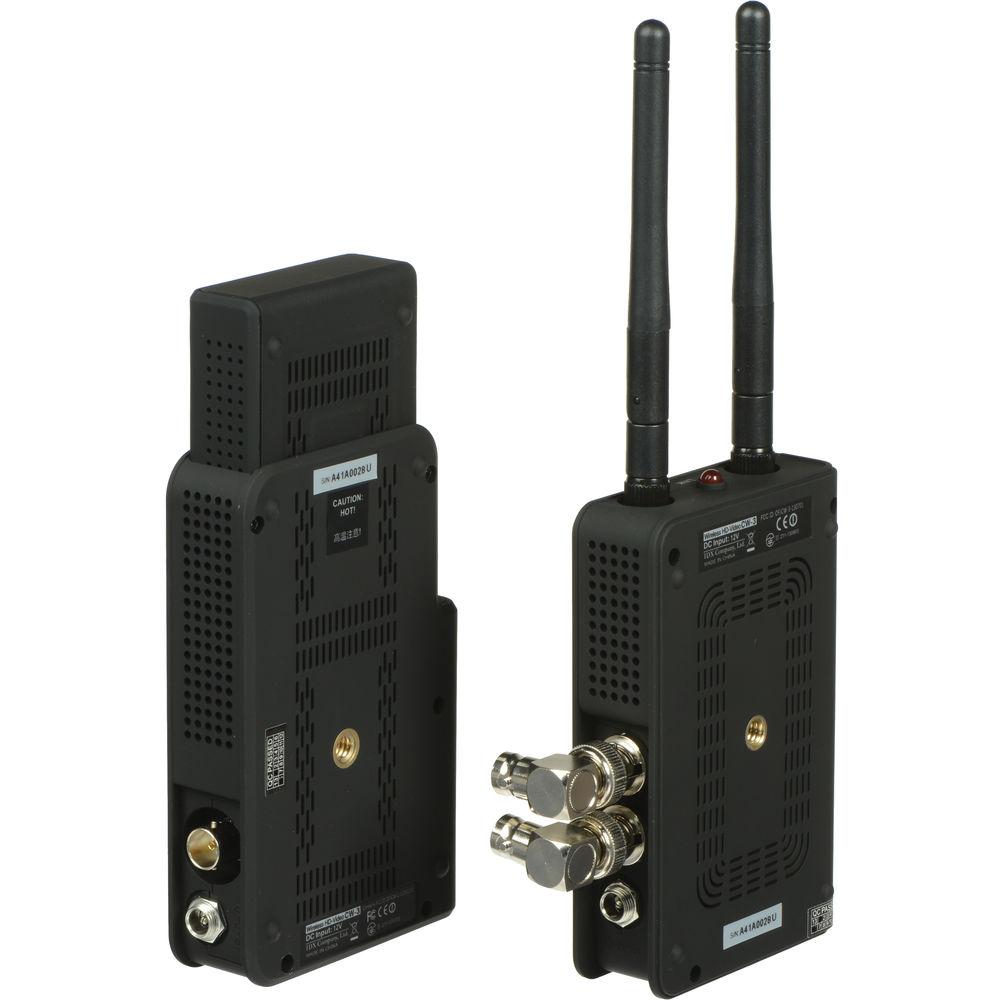

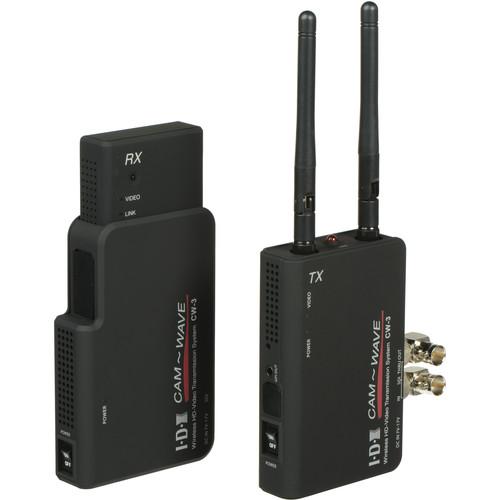

Product description The CW-3 3G-SDI Wireless Video Transmission System from IDX transmits 1080p60 video up to 164' line-of-sight with no quality loss and less than 1 ms latency and up to a maximum of 380' in optimal line-of-sight conditions. The transmitter/receiver system features 3G-SDI input/output and has a compact design that's suitable for gimbal and drone operations. A shoe mount is included for mounting the transmitter on a camera. - Key Features
-
- Uncompressed 1080p60 YCbCr 4:2:2 10-bit wireless transmission with less than 1 ms latency
- 3G/HD-SDI input/output, GPI output on transmitter for tally
- Up to 164' transmission line-of-sight with no quality loss; up to 380' in optimal line-of-sight conditions
- WHDI (MIMO/OFDM) technology
- Dynamic Frequency Selection (DFS) channels (less congested frequencies) on 5 GHz frequency band
- Conforms to major technical and environmental standards, including FCC, CE, and RoHS specifications

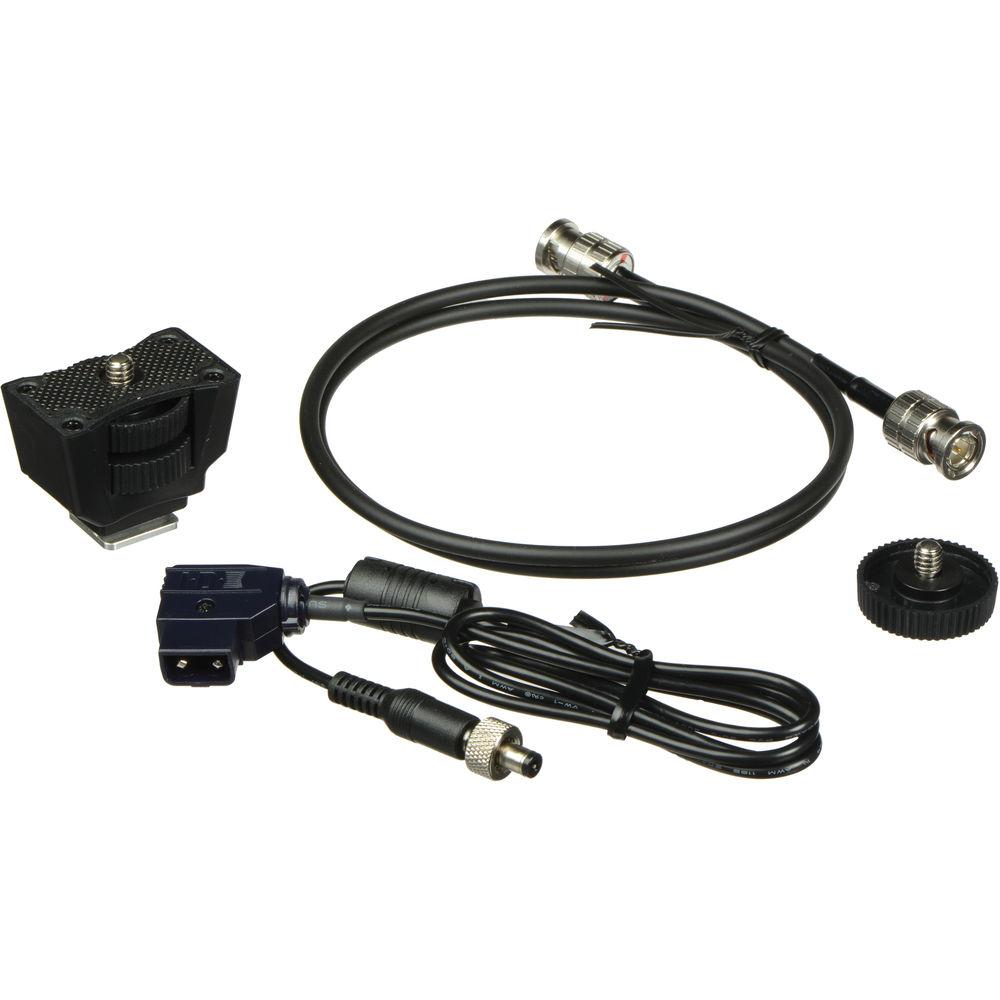

UPC: 825781012727 In the Box IDX System Technology CW-3 3G-SDI Wireless Video Transmission System CW-3 Transmitter CW-3 Receiver Set of Transmitter Antennas AC Adapter for Receiver 2 x D-Tap Cables 2 x SDI Cables Shoe Mount Screw Cap Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IDX System Technology CW-3 3G-SDI Wireless Video Transmission System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIDX System Technology CW-3 Specs | Transmission Range | Up to 164' / 50 m Line-of-Sight without Quality Loss; Up to 380' / 115 m maximum Line-of-Sight | | Input/Output | Transmitter:
1 x 3G/HD-SDI Input
1 x 3G/HD-SDI Loop-Out
1 x GPI Output
Receiver:
1 x 3G/HD-SDI Output | | Frequency | 5190, 5230, 5270, 5310, 5510, 5550, 5670 MHz (U.S.) | | Frequency Selection | Automatic / DFS | | Transmit Method | WHDI (MIMO) | | Encryption | WPA2-PSK (AES) | | Modulation | OFDM | | Latency | Zero Frame (<1 ms) | | Video Formats | 3G-SDI:
YCbCr 4:2:2: 10-Bit
1080p60/59.94/50
HD-SDI:
YCbCr 4:2:2: 10-Bit
1080p30/29.97/25/24/23.98
1080i60/59.94/50
720p59.94/50 (Sony PsF Not Supported) | | Power Requirements | 7-17 VDC | | Power Consumption | Transmitter: 8 W (Max), Receiver: 10 W (Max) | | Dimensions | Transmitter:
4.3 x 2.7 x 1" / 11 x 6.9 x 2.5 cm
Receiver:
6 x 2.9 x 1" / 15.4 x 7.4 x 2.5 cm
Antenna:
4.3 x 0.4 x 0.4" / 10.8 x 1 x 1 cm | | Weight | Transmitter:
0.3 lb / 150 g
Receiver:
0.4 lb / 165 g | | | | Package Weight | 2.78 lb | | Box Dimensions (LxWxH) | 12.8 x 8.7 x 5.45" |
