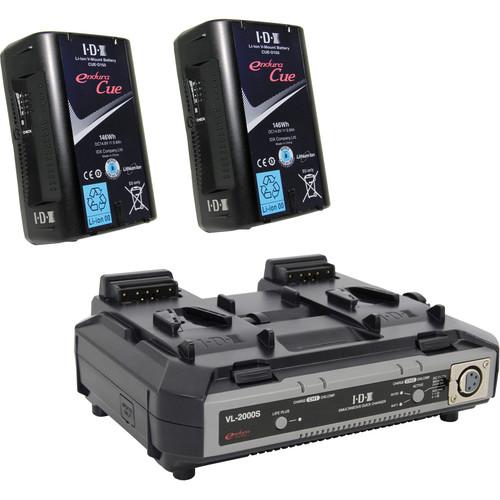

User Manual for IDX System Technology Dual Endura Cue 147Wh Battery & Charger with XLR Out V-Mount Kit Click to enlarge the picture
Contents of the user manual for the IDX System Technology Dual Endura Cue
- Product category: On Camera Batteries IDX System Technology
- Brand: IDX System Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IDX System Technology On Camera Batteries
|
User manual for the IDX System Technology Dual Endura Cue contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IDX System Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IDX System Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IDX System Technology product will considerably shorten its lifespan!
|
Product description This Kit packages two Endura Cue 147Wh Lithium-Ion V-Mount Batteries with an Endura Simultaneous Dual Quick Charger from IDX.
The Endura Cue batteries support up to a 10A draw and offer a D-Tap output. The Endura Quick Charger provides simultaneous charging at 3A (and charges a single battery at 4A). The Quick Charger also has a 4-pin XLR DC power output that supplies up to 100W of power at 15V/6.7A. - IDX System Technology VL-2000S Simultaneous Quick Charger with 100W DC Output (2-Channel) The VL-2000S Quick Charger from IDX is a simultaneous 2-channel Li-ion V-Mount battery charger with a 100W DC output (4-pin XLR). Supporting LIFE PLUS mode, the VL-2000S can extend battery life up to 20%. It features Power Base mode. This mode gives you the ability to utilize the mounted batteries for powering equipment via the 4-pin XLR output. Low voltage batteries are safely charged with the Recovery Charge mode. The charger also houses energy efficient circuitry that will automatically power down the charger when inactive. UPC: 825781012949
- 2 x IDX System Technology CUE-D150 147Wh Li-Ion V-Mount Battery Power your camera or other pro video equipment with the IDX CUE-D150 147Wh Li-Ion V-Mount Battery. The battery can supply up to 16.8 VDC to the plate, and can also provide up to 50W to power accessories through the integrated D-tap output. CUE series batteries feature an internal pack design, which cradles each cell and isolates it in order to enhance reliability and safety. IDX CUE-D batteries should be charged using IDX-branded chargers; third party chargers may not charge CUE-D batteries correctly. UPC: 825781012789
In the Box - VL-2000S Simultaneous Quick Charger with 100W DC Output (2-Channel) cdbcqdzaxbsvyyfwssfrayfubbuya
- Limited 3-Year Warranty
- 2 x CUE-D150 147Wh Li-Ion V-Mount Battery
Table of Contents
|
Upload User Manual
Have you got an user manual for the IDX System Technology Dual Endura Cue 147Wh Battery & Charger with XLR Out V-Mount Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - IDX System Technology VL-2000S Simultaneous Quick Charger with 100W DC Output (2-Channel)
| Channels | 2 | | Interface | V-Mount | | Chemistry | Li-ion | | AC Input Voltage | 100 to 240 VAC; 50/60 Hz | | DC Output | Via 4-pin XLR: 100 W @ 15 VDC/6.7 A | | Quick Charge Current | 1 Battery: 4 A
2 Batteries: 3 A | | Dimensions | 7.16 x 3.24 x 9.05" (18.19 x 8.23 x 22.98 cm) | | Weight | 2.64 lb (1.19 kg) | | | | Box Dimensions (LxWxH) | 11.1 x 9.9 x 3.95" | - 2 x IDX System Technology CUE-D150 147Wh Li-Ion V-Mount Battery
| Mount / Series Type | V-Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 147 Wh | | Output Voltage | 14.8 VDC | | Maximum Load | 10 A | | Accessory Port | 1 x D-Tap | | Storage Temperature | 32 to 104°F / 0 to 40°C | | Charging Temperature | 32 to 104°F / 0 to 40°C | | Discharging Temperature | -4 to 113°F / -20 to 45°C | | Dimensions (W x H x D) | 3.8 x 5.8 x 2.3" / 97.0 x 146.0 x 58.0 mm | | Weight | 2.2 lb / 1 kg | | | | Box Dimensions (LxWxH) | 7.0 x 4.45 x 2.8" |
