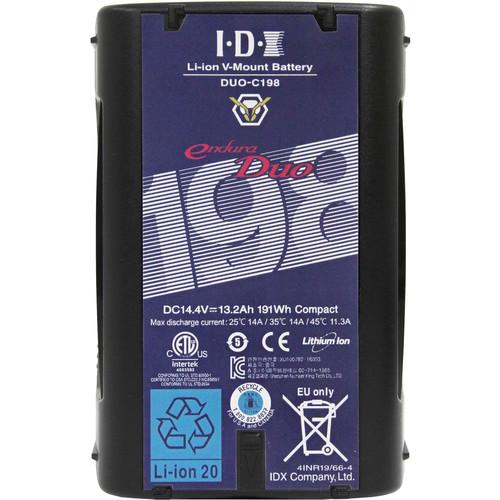

User Manual for IDX System Technology DUO-C198 191Wh High-Load Battery with D-Tap Advanced, Standard D-Tap & USB Port Click to enlarge the picture
Contents of the user manual for the IDX System Technology DUO-C198 191Wh High-Load
- Product category: On Camera Batteries IDX System Technology
- Brand: IDX System Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IDX System Technology On Camera Batteries
|
User manual for the IDX System Technology DUO-C198 191Wh High-Load contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IDX System Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IDX System Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IDX System Technology product will considerably shorten its lifespan!
|
Product description The IDX DUO-C198 191Wh High-Load Battery with D-Tap Advanced, Standard D-Tap & USB Port features a V-mount and is only 2.3" thick, but packs 191Wh of capacity to power your professional devices. It is well suited for digital cinema cameras and camera stabilizer systems where long runtimes are required. Battery data information displays in most camera's viewfinders.
The DUO-C198 can handle a combined load of up to 14A among its V-mount, D-Tap outputs, and USB port. One of the D-Taps can also be used to charge the battery, although that requires an optional charger that is not included. Designed with battery circuit protection against overcharge, over-discharge, over-current, and exposure to high temperatures, providing protection to your battery from the rigors of production. A 5-LED battery life indicator on the side of the battery provides a quick visual indication of charge state of your battery. - Key Features
-
- Suitable for handheld gimbal, aerial, run-and-gun, and other productions that need a high-power-draw battery in a small package
- The battery data displays in the viewfinder system of most cameras, and the addition of an SMBUS enables RED cameras to display this information as well
- Handles up to 14A loads
- Two unregulated D-tap accessory outputs at 50W each
- USB port
- Battery circuit protection
- 5-LED battery life indicator
- Fully compatible with all IDX Endura V-mount chargers
UPC: 825781013007 In the Box IDX System Technology DUO-C198 191Wh High-Load Battery with D-Tap Advanced, Standard D-Tap & USB Port Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IDX System Technology DUO-C198 191Wh High-Load Battery with D-Tap Advanced, Standard D-Tap & USB Port in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIDX System Technology DUO-C198 Specs | Mount / Series Type | V-Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 191 Wh | | Amp-Hours | 13.2 Ah | | Output Voltage | 14.4 VDC | | Maximum Load | 14 A | | Accessory Port | 2 x D-Tap
1 x USB Type-A | | Maximum Load (Accessory Port) | 80 W, 5.4 A ( D-Tap ) | | USB Output | 5 V, 2.3 A | | Storage Temperature | -4 to 122°F / -20 to 50°C | | Charging Temperature | 32 to 104°F / 0 to 40°C | | Discharging Temperature | -4 to 122°F / -20 to 50°C | | IP Rating | None | | Dimensions (W x H x D) | 3.8 x 5.7 x 2.3" / 9.7 x 14.5 x 5.8 cm | | Weight | 2.4 lb / 1.1 kg | | | | Package Weight | 2.62 lb | | Box Dimensions (LxWxH) | 6.95 x 4.4 x 2.7" |
