Product description

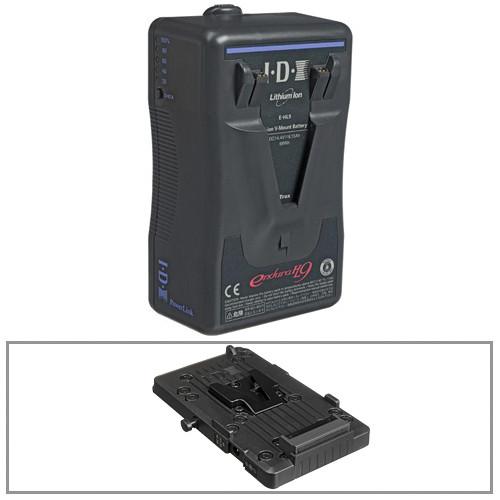

• IDX System Technology E-HL9 Lithium Ion V-Mount Battery The IDX E-HL9 is a lithium ion, V-Mount battery. It offers 88Wh for 14.4VDC equipment in a compact package.
  Capacity
  • With a continuous draw of up to 10 Amps, the E-HL9 has an impressive capacity using highly durable cell technology. High-load capacity results in 50% higher discharge rate for this series.
  Low Temperature Discharge
  • Advanced low temperature discharge characteristics prohibit a voltage drop off down to -4 degrees Fahrenheit in extreme environment conditions.
  Lifecycle
  • Longer overall lifecycle operators can expect about 10% longer battery viability when the 500-cycle level is reached.
  PowerLink
  • PowerLink technology allows two E-HL9 batteries to be docked together, doubling capacity up to 176Wh for longer run times and high power needs.
  Digi-View
  • Digi-View gives the camera operator an accurate display of the E-HL9's remaining capacity, shown via the camera's viewfinder.
  Power Indication
  • 5 Power Status LEDs are located on the side of the E-HL9 for a quick and accurate check of remaining capacity, shown in increments of 20%.
  BMS
  • BMS is a unique software package that enables users to monitor the history and condition of their batteries to increase their life span. BMS gathers battery data and provides PC access to a comprehensive database, invaluable when managing large fleets of ELITE, E-10 and E-HL9 batteries.
  Circuit Protection
  • Battery circuit protection ensures the E-HL9 is fully protected against common causes of battery misuse, guarding against over charge, over discharge, over current and exposure to high temperatures.
  UPC: 825781012208
• IDX System Technology Single Channel V-Mount Charger For safe, portable, and reliable charging of your IDX ENDURA V-Mount batteries, the IDX Single Channel V-Mount Charger is slightly thicker than a V-Mount battery plate, yet allows you to charge a single battery virtually anywhere there is an AC outlet. Designed specifically to charge ENDURA series batteries, this plate and its power supply can fit into most camera cases, while larger fast chargers usually require their own case.

  The charger features an LED indicator that lights when the battery is charging and is dark when the battery is charged to 90% capacity. The charger takes advantage of the built-in overcharge protection of ENDURA series batteries to safely charge your ENDURA batteries. It includes a US-plug-style AC power adapter that accepts worldwide power, and you can source a cigarette lighter adapter that can also power the charger.
  • Charges ENDURA batteries up to 90% capacity
  • LED indication for a visual confirmation of the charge mode
  • Worldwide power adapter
  • Ultra slim profile for minimal storage space requirements
  • Lightweight, rugged construction
  UPC: 825781012420

• E-HL9 Lithium Ion V-Mount Battery dswdsbtdaztyy
• Battery
• Limited 1-Year Warranty

• Single Channel V-Mount Charger dswdsbtdaztyy

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• IDX System Technology E-HL9 Lithium Ion V-Mount Battery

  Mount / Series Type	V-Mount
  Chemistry	Lithium-Ion
  Capacity (Wh)	88 Wh
  Amp-Hours	6150 mAh
  Output Voltage	14.4 VDC
  Dimensions (W x H x D)	3.4 x 5.5 x 2.3" / 85.0 x 140.0 x 58.0 mm
  Weight	1.6 lb / 0.7 kg

  Box Dimensions (LxWxH)	6.7 x 4.1 x 2.9"

• IDX System Technology Single Channel V-Mount Charger

  Input Voltage	AC adapter: 100 to 240 VAC 50/60 Hz Charge plate: DC 12 V +/- 5%
  Output Voltage	12 VDC
  Output Current	3 A
  Power Consumption	23 W maximum
  Operating Temperature	32 to 104° F / 0 to 40° C
  Cable Length	Approximately 59.7" / 1.5 m
  Dimensions (W x H x D)	V-Mount charger: 3.3 x 1.1 x 5.6" / 83.82 x 28 x 142.24 mm AC adapter: 1.8 x 1.5 x 2.9" / 45.72 x 38.1 x 73.66 mm
  Weight	Approximately 0.79 lb / 360 g

  Box Dimensions (LxWxH)	7.5 x 5.3 x 4.6"
