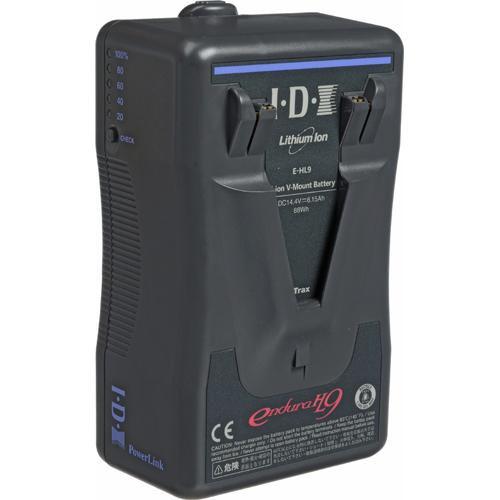

User Manual for IDX System Technology E-HL9 Lithium Ion V-Mount Battery Click to enlarge the picture
Contents of the user manual for the IDX System Technology E-HL9 Lithium Ion
- Product category: On Camera Batteries IDX System Technology
- Brand: IDX System Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IDX System Technology On Camera Batteries
|
User manual for the IDX System Technology E-HL9 Lithium Ion contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IDX System Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IDX System Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IDX System Technology product will considerably shorten its lifespan!
|
Product description The IDX E-HL9 is a lithium ion, V-Mount battery. It offers 88Wh for 14.4VDC equipment in a compact package. - Capacity
- With a continuous draw of up to 10 Amps, the E-HL9 has an impressive capacity using highly durable cell technology. High-load capacity results in 50% higher discharge rate for this series.
- Low Temperature Discharge
- Advanced low temperature discharge characteristics prohibit a voltage drop off down to -4 degrees Fahrenheit in extreme environment conditions.
- Lifecycle
- Longer overall lifecycle operators can expect about 10% longer battery viability when the 500-cycle level is reached.
- PowerLink
- PowerLink technology allows two E-HL9 batteries to be docked together, doubling capacity up to 176Wh for longer run times and high power needs.
- Digi-View
- Digi-View gives the camera operator an accurate display of the E-HL9's remaining capacity, shown via the camera's viewfinder.
- Power Indication
- 5 Power Status LEDs are located on the side of the E-HL9 for a quick and accurate check of remaining capacity, shown in increments of 20%.
- BMS
- BMS is a unique software package that enables users to monitor the history and condition of their batteries to increase their life span. BMS gathers battery data and provides PC access to a comprehensive database, invaluable when managing large fleets of ELITE, E-10 and E-HL9 batteries.
- Circuit Protection
- Battery circuit protection ensures the E-HL9 is fully protected against common causes of battery misuse, guarding against over charge, over discharge, over current and exposure to high temperatures.
UPC: 825781012208 In the Box IDX System Technology E-HL9 Lithium Ion V-Mount Battery Battery Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IDX System Technology E-HL9 Lithium Ion V-Mount Battery in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIDX System Technology H-EL9 Specs | Mount / Series Type | V-Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 88 Wh | | Amp-Hours | 6150 mAh | | Output Voltage | 14.4 VDC | | Dimensions (W x H x D) | 3.4 x 5.5 x 2.3" / 85.0 x 140.0 x 58.0 mm | | Weight | 1.6 lb / 0.7 kg | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 6.7 x 4.1 x 2.9" |
