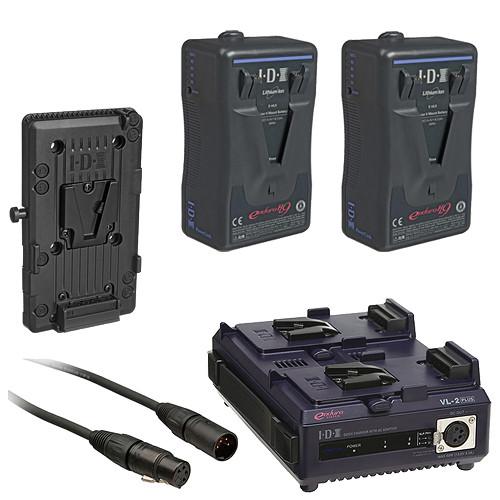

User Manual for IDX System Technology E-HL9 V-Mount Dual Battery with Charger, V-Mount Conversion Plate, and XLR Cable Kit

• Product category: On Camera Batteries IDX System Technology
• Brand: IDX System Technology
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for IDX System Technology On Camera Batteries

Product description

• 2 x IDX System Technology E-HL9 Lithium Ion V-Mount Battery The IDX E-HL9 is a lithium ion, V-Mount battery. It offers 88Wh for 14.4VDC equipment in a compact package.
  Capacity
  • With a continuous draw of up to 10 Amps, the E-HL9 has an impressive capacity using highly durable cell technology. High-load capacity results in 50% higher discharge rate for this series.
  Low Temperature Discharge
  • Advanced low temperature discharge characteristics prohibit a voltage drop off down to -4 degrees Fahrenheit in extreme environment conditions.
  Lifecycle
  • Longer overall lifecycle operators can expect about 10% longer battery viability when the 500-cycle level is reached.
  PowerLink
  • PowerLink technology allows two E-HL9 batteries to be docked together, doubling capacity up to 176Wh for longer run times and high power needs.
  Digi-View
  • Digi-View gives the camera operator an accurate display of the E-HL9's remaining capacity, shown via the camera's viewfinder.
  Power Indication
  • 5 Power Status LEDs are located on the side of the E-HL9 for a quick and accurate check of remaining capacity, shown in increments of 20%.
  BMS
  • BMS is a unique software package that enables users to monitor the history and condition of their batteries to increase their life span. BMS gathers battery data and provides PC access to a comprehensive database, invaluable when managing large fleets of ELITE, E-10 and E-HL9 batteries.
  Circuit Protection
  • Battery circuit protection ensures the E-HL9 is fully protected against common causes of battery misuse, guarding against over charge, over discharge, over current and exposure to high temperatures.
  UPC: 825781012208
• IDX System Technology VL-2 Battery Charger/Power Supply The VL-2 is a two-channel, sequential Li-Ion (Lithium-Ion) fast charger with a built-in 60W power supply. Up to two Li-Ion Endura V-mount batteries can be charged in 5 hours.
  Portability
  • The VL-2 offers a lightweight design (3.3lbs) with a convenient built-in handle.
  V-Mount
  • The highly reliable V-Mount, battery mount is becoming more and more prevalent on many new broadcast and professional camcorders. In response, IDX has adapted the design of their batteries and chargers to with the V-Mount design.

  Condition Indicator
  • An LED condition indicator is offers a quick glance of each batteries charge status.
  Battery Chemistries
  • The optional A-E2NP allows the VL-2 to charge NP style batteries of any one of the following chemistries:
  • Li-Ion (Lithium Ion)
  • NiCd (Nickel Cadmium)
  • NiMH (Nickel Metal Hydride)
  Power Supply
  • A standard 4-Pin Canon type connector is available on the front panel for 60 watts of DC power.
  • Red (charging)
  • Green (complete/trickle)
  • Orange (battery fault)
  World-Wide AC Power
  • As with all IDX chargers, the VL-2's power switch is recessed to prevent an accidental loss of power. A world-wide, auto-sensing AC power (AC 100-240V) operation is standard.
  UPC: 825781012109
• IDX System Technology CA-4XLR 4-pin XLR Male to 4-pin XLR Female Cable - 10' The IDX CA-4XLR is a 10' 4-Pin XLR power extension cable. It features a 4-Pin XLR male connector on one end and a female 4-Pin XLR connector on the other end. This allows the user to extend the distance between the power source and the equipment an extra 10'. UPC: 825781080603
• IDX System Technology P-V2 V-Mount Camera Plate The IDX P-V2 is a battery mounting plate adapter for the IDX Endura system batteries. The P-V2 easily converts any professional camera to a V-Mount. A two-Pin DC-out connector allows an on-camera light to receive power from the on camera battery. Note: This Mount will not work with the Sony HDW-700A
  D-Tap
  • The P-V2 includes a 2-Pin D-Tap connector for powering on-camera lights.
  Digi-View
  • Allows the remaining battery capacity percentage to be displayed in the viewfinder of cameras designed to support battery data.
  UPC: 825781026403

• 2 x E-HL9 Lithium Ion V-Mount Battery dryxerfduzccfrscuuxfubcsq
• Battery
• Limited 1-Year Warranty

• VL-2 Endura-type Lithium-Ion Battery Charger, 2-Channel Sequential Charging, with 60-Watt Power Supply

• CA-4XLR 4-pin XLR Male to 4-pin XLR Female Power Cable - 10'

• P-V2 V-Mount Camera Plate
