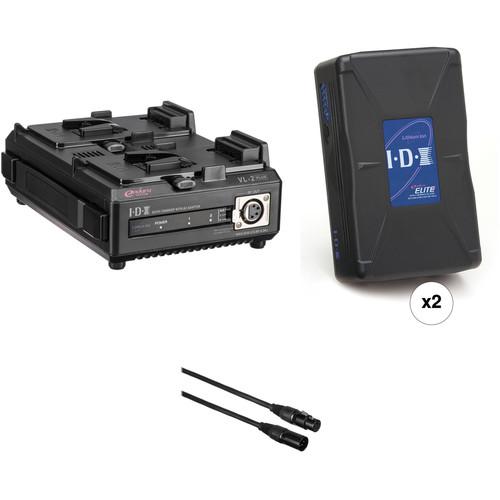

Product description The IDX E1422 Endura Elite Starter Kit includes two Endura Elite 14.8V, 68Wh V-mount batteries, 2-channel sequential charger that doubles as a 60W power supply, and a 10 ft 4-pin XLR power extension cable. The batteries are ideal for run-and-gun starter applications requiring lighter setups and not demanding extended battery life. - 2 x IDX System Technology ENDURA ELITE 14.8V 136Wh Lithium-Ion V-Mount Battery The IDX ENDURA ELITE offers a 9.2Ah, 136Wh capacity to support the higher loads of HD cameras.
- Dual Power Cartridges
- Two identical PC-14 power cartridges are housed inside the outer casing of the ELITE. This design allows for an easy exchange of cartridges, reducing the cost of replacement batteries.
- Battery Protection
- Built into Individual Power Cartridges:
Overcharge (reset)
Over-discharge (reset)
Overcurrent (reset)
Temperature protection (non reset) - Digi-View
- Digi-View gives the camera operator an accurate display of the ELITES's remaining capacity, shown via the camera's viewfinder.
- LED Indicators
- Five LEDs are located on the side of the ELITE with 10 settings to display remaining battery capacity. This is done in increments of 10% by full/flashing combination of the five LEDs.
- Battery Circuit Protection
- Battery circuit protection ensures the ELITE is fully protected against common causes of battery misuse, guarding against overcharge, over-discharge, overcurrent, and exposure to high temperatures. This high level of protection is built into both PC-14 power cartridges.
- Charging Options
- The ELITE can be charged using IDX sequential or simultaneous ENDURA chargers (VL-2SPLUS or VL-4S series).
UPC: 825781082010 - IDX System Technology VL-2 Battery Charger/Power Supply The VL-2 is a two-channel, sequential Li-Ion (Lithium-Ion) fast charger with a built-in 60W power supply. Up to two Li-Ion Endura V-mount batteries can be charged in 5 hours.
- Portability
- The VL-2 offers a lightweight design (3.3lbs) with a convenient built-in handle.
- V-Mount
- The highly reliable V-Mount, battery mount is becoming more and more prevalent on many new broadcast and professional camcorders. In response, IDX has adapted the design of their batteries and chargers to with the V-Mount design.
- Condition Indicator
- An LED condition indicator is offers a quick glance of each batteries charge status.
- Battery Chemistries
- The optional A-E2NP allows the VL-2 to charge NP style batteries of any one of the following chemistries:
- Li-Ion (Lithium Ion)
- NiCd (Nickel Cadmium)
- NiMH (Nickel Metal Hydride)
- Power Supply
- A standard 4-Pin Canon type connector is available on the front panel for 60 watts of DC power.
- Red (charging)
- Green (complete/trickle)
- Orange (battery fault)
- World-Wide AC Power
- As with all IDX chargers, the VL-2's power switch is recessed to prevent an accidental loss of power. A world-wide, auto-sensing AC power (AC 100-240V) operation is standard.
UPC: 825781012109 - IDX System Technology CA-4XLR 4-pin XLR Male to 4-pin XLR Female Cable - 10' The IDX CA-4XLR is a 10' 4-Pin XLR power extension cable. It features a 4-Pin XLR male connector on one end and a female 4-Pin XLR connector on the other end. This allows the user to extend the distance between the power source and the equipment an extra 10'. UPC: 825781080603
In the Box - 2 x ENDURA ELITE 14.8V 136Wh Lithium-Ion V-Mount Battery uraxxuyrxvtbsvabvdxcvuedcrydx
- Limited 1-Year Warranty
- VL-2 Endura-type Lithium-Ion Battery Charger, 2-Channel Sequential Charging, with 60-Watt Power Supply
- CA-4XLR 4-pin XLR Male to 4-pin XLR Female Power Cable - 10'
Table of Contents
|
Upload User Manual
Have you got an user manual for the IDX System Technology E1422 Endura Elite Starter Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x IDX System Technology ENDURA ELITE 14.8V 136Wh Lithium-Ion V-Mount Battery
| Mount / Series Type | V-Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 136 Wh | | Capacity per Section (Wh) | 68 Wh | | Output Voltage | 14.8 VDC | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Charging Temperature | 32 to 104°F / 0 to 40°C | | Discharging Temperature | -4 to 122°F / -20 to 50°C | | Dimensions (W x H x D) | 3.9 x 6.7 x 2.8" / 100.0 x 170.0 x 70.0 mm | | Weight | 2.8 lb / 1.3 kg | | | | Box Dimensions (LxWxH) | 10.9 x 8.4 x 3.8" | - IDX System Technology VL-2 Battery Charger/Power Supply
| Power Supply | Yes | | Battery Bays | 2 | | Type of Charging | Sequential | | Diagnostics | None | | Connections/Interface | Endura V-Mount (x 2)
4-Pin XLR (x 1) | | Power Requirements | 100-240 Volts AC, 50 or 60 Hz | | Dimensions (WxHxD) | 5.94 x 3.1 x 8.34 inches
151 x 79 x 212 mm | | Weight | 2 lbs.
950g | | | | Box Dimensions (LxWxH) | 9.764 x 9.449 x 3.622" | - IDX System Technology CA-4XLR 4-pin XLR Male to 4-pin XLR Female Cable - 10'
| | | Box Dimensions (LxWxH) | 8.1 x 6.35 x 1.9" |
