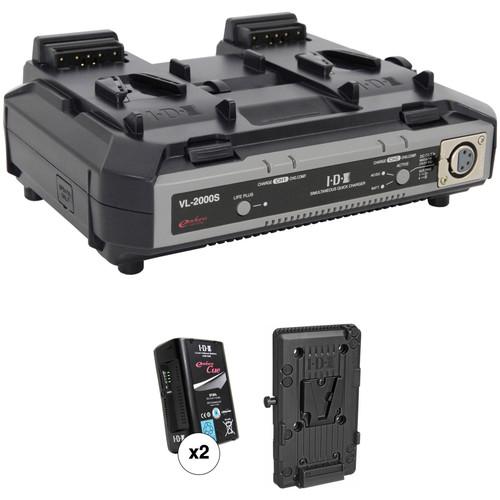

User Manual for IDX System Technology Endura CUE-95 Power Kit with 2-Channel Charger and Battery Plate

• Product category: On Camera Batteries IDX System Technology
• Brand: IDX System Technology
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for IDX System Technology On Camera Batteries

Product description

• 2 x IDX System Technology CUE-D95 91Wh Li-Ion V-Mount Battery
  • Product Demo
  Power your camera or other pro video equipment with the IDX CUE-D95 91Wh Li-Ion V-Mount Battery. The battery can supply up to 16.8 VDC to the plate, and can also provide up to 50W to power accessories through the integrated D-tap output. CUE series batteries feature an internal pack design, which cradles each cell and isolates it in order to enhance reliability and safety. IDX CUE-D batteries should be charged using IDX-branded chargers; third party chargers may not charge CUE-D batteries correctly. UPC: 825781012765
• IDX System Technology VL-2000S Simultaneous Quick Charger with 100W DC Output (2-Channel)
  • Product Demo
  The VL-2000S Quick Charger from IDX is a simultaneous 2-channel Li-ion V-Mount battery charger with a 100W DC output (4-pin XLR). Supporting LIFE PLUS mode, the VL-2000S can extend battery life up to 20%. It features Power Base mode. This mode gives you the ability to utilize the mounted batteries for powering equipment via the 4-pin XLR output. Low voltage batteries are safely charged with the Recovery Charge mode. The charger also houses energy efficient circuitry that will automatically power down the charger when inactive. UPC: 825781012949
• IDX System Technology P-V2 V-Mount Camera Plate
  • Product Demo
  The IDX P-V2 is a battery mounting plate adapter for the IDX Endura system batteries. The P-V2 easily converts any professional camera to a V-Mount. A two-Pin DC-out connector allows an on-camera light to receive power from the on camera battery. Note: This Mount will not work with the Sony HDW-700A
  D-Tap
  • The P-V2 includes a 2-Pin D-Tap connector for powering on-camera lights.
  Digi-View
  • Allows the remaining battery capacity percentage to be displayed in the viewfinder of cameras designed to support battery data.
  UPC: 825781026403

• 2 x CUE-D95 91Wh Li-Ion V-Mount Battery fuyrtvwxbdtxxvvvtasx
• Limited 2-Year Warranty

• VL-2000S Simultaneous Quick Charger with 100W DC Output (2-Channel)

• P-V2 V-Mount Camera Plate

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x IDX System Technology CUE-D95 91Wh Li-Ion V-Mount Battery

  Mount / Series Type	V-Mount
  Chemistry	Lithium-Ion
  Capacity (Wh)	91 Wh
  Output Voltage	14.4 VDC
  Maximum Load	6.3 A
  Accessory Port	1 x D-Tap
  Storage Temperature	32 to 104°F / 0 to 40°C
  Charging Temperature	32 to 104°F / 0 to 40°C
  Discharging Temperature	-4 to 113°F / -20 to 45°C
  Dimensions (W x H x D)	3.8 x 5.8 x 2.3" / 97.0 x 146.0 x 58.0 mm
  Weight	1.8 lb / 0.8 kg

  Box Dimensions (LxWxH)	6.95 x 4.4 x 2.85"

• IDX System Technology VL-2000S Simultaneous Quick Charger with 100W DC Output (2-Channel)

  Channels	2
  Interface	V-Mount
  Chemistry	Li-ion
  AC Input Voltage	100 to 240 VAC; 50/60 Hz
  DC Output	Via 4-pin XLR: 100 W @ 15 VDC/6.7 A
  Quick Charge Current	1 Battery: 4 A 2 Batteries: 3 A
  Dimensions	7.16 x 3.24 x 9.05" (18.19 x 8.23 x 22.98 cm)
  Weight	2.64 lb (1.19 kg)

  Box Dimensions (LxWxH)	11.1 x 9.9 x 3.95"

• IDX System Technology P-V2 V-Mount Camera Plate

  Battery and Power	Sony V-Mount D-Tap (Power Tap)
  Mount Type	This plate mounts directly rear of full size camcorders
  Voltage	12-14.4 VDC

  Box Dimensions (LxWxH)	6.0 x 5.0 x 2.0"
