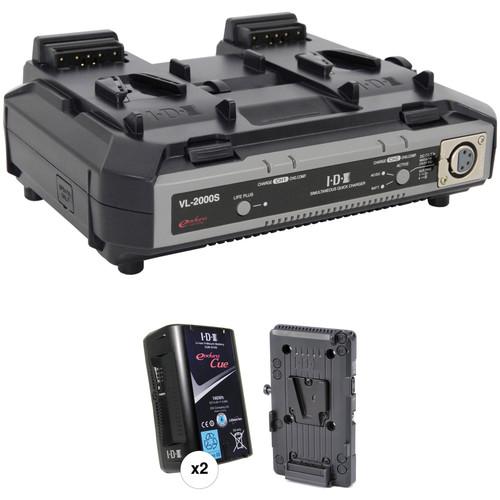

Product description This 2-battery IDX Endura Cue-D150 V-Mount Power Kit from B&H can provide continuous power for your Blackmagic Design URSA camcorder. Included in this kit are 2 Cue-D150 series 146 Wh V-Mount batteries, a 2-bay simultaneous charger, and a V-Mount Adapter Plate for powering the Blackmagic Design URSA camcorder and a D-Tap accessory. While one battery provides power the camera and accessories, you can charge the other battery and make sure it's ready to replace the spent battery. See below for more information on the individual items in this kit. - 2 x IDX System Technology CUE-D150 147Wh Li-Ion V-Mount Battery Power your camera or other pro video equipment with the IDX CUE-D150 147Wh Li-Ion V-Mount Battery. The battery can supply up to 16.8 VDC to the plate, and can also provide up to 50W to power accessories through the integrated D-tap output. CUE series batteries feature an internal pack design, which cradles each cell and isolates it in order to enhance reliability and safety. IDX CUE-D batteries should be charged using IDX-branded chargers; third party chargers may not charge CUE-D batteries correctly. UPC: 825781012789
- IDX System Technology VL-2000S Simultaneous Quick Charger with 100W DC Output (2-Channel) The VL-2000S Quick Charger from IDX is a simultaneous 2-channel Li-ion V-Mount battery charger with a 100W DC output (4-pin XLR). Supporting LIFE PLUS mode, the VL-2000S can extend battery life up to 20%. It features Power Base mode. This mode gives you the ability to utilize the mounted batteries for powering equipment via the 4-pin XLR output. Low voltage batteries are safely charged with the Recovery Charge mode. The charger also houses energy efficient circuitry that will automatically power down the charger when inactive. UPC: 825781012949
- IDX System Technology V-Mount Adapter Plate for Blackmagic URSA & URSA Mini This IDX V-Mount Adapter Plate attaches directly to the rear of a Blackmagic URSA or URSA Mini camera and allows you to power the camera with V-Mount batteries. It also features an unregulated D-Tap output for powering accessories. UPC: 825781012796
In the Box - 2 x CUE-D150 147Wh Li-Ion V-Mount Battery vfffzyyqxtzads
- Limited 2-Year Warranty
- VL-2000S Simultaneous Quick Charger with 100W DC Output (2-Channel)
- V-Mount Adapter Plate for Blackmagic URSA & URSA Mini
Table of Contents
|
Upload User Manual
Have you got an user manual for the IDX System Technology Endura Cue-D150 V-Mount 2-Battery Kit for Blackmagic URSA in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x IDX System Technology CUE-D150 147Wh Li-Ion V-Mount Battery
| Mount / Series Type | V-Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 147 Wh | | Output Voltage | 14.8 VDC | | Maximum Load | 10 A | | Accessory Port | 1 x D-Tap | | Storage Temperature | 32 to 104°F / 0 to 40°C | | Charging Temperature | 32 to 104°F / 0 to 40°C | | Discharging Temperature | -4 to 113°F / -20 to 45°C | | Dimensions (W x H x D) | 3.8 x 5.8 x 2.3" / 97.0 x 146.0 x 58.0 mm | | Weight | 2.2 lb / 1 kg | | | | Box Dimensions (LxWxH) | 7.0 x 4.45 x 2.8" | - IDX System Technology VL-2000S Simultaneous Quick Charger with 100W DC Output (2-Channel)
| Channels | 2 | | Interface | V-Mount | | Chemistry | Li-ion | | AC Input Voltage | 100 to 240 VAC; 50/60 Hz | | DC Output | Via 4-pin XLR: 100 W @ 15 VDC/6.7 A | | Quick Charge Current | 1 Battery: 4 A
2 Batteries: 3 A | | Dimensions | 7.16 x 3.24 x 9.05" (18.19 x 8.23 x 22.98 cm) | | Weight | 2.64 lb (1.19 kg) | | | | Box Dimensions (LxWxH) | 11.1 x 9.9 x 3.95" | - IDX System Technology V-Mount Adapter Plate for Blackmagic URSA & URSA Mini
| Auxiliary Output | 1x D-Tap, unregulated 12 - 17 VDC, 50 W max | | Dimensions | 3.3 x 5.6 x 0.5" (8.3 x 14.2 x 1.2 cm) | | Weight | 6 oz (170 g) | | | | Box Dimensions (LxWxH) | 5.7 x 4.2 x 1.0" |
