IDX System Technology Endura Cue-D150 V-Mount

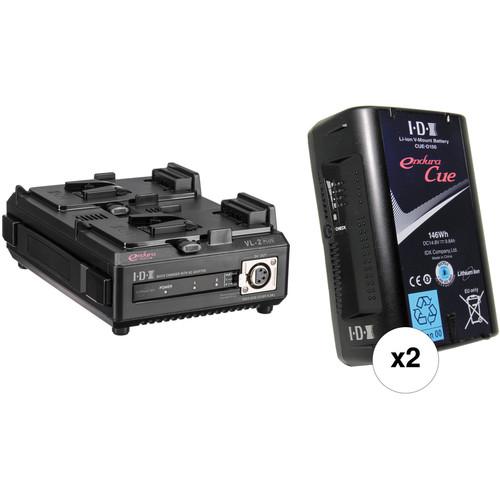

User Manual for IDX System Technology Endura Cue-D150 V-Mount 2-Battery Kit with 2-Bay Charger

• Product category: On Camera Batteries IDX System Technology
• Brand: IDX System Technology
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for IDX System Technology On Camera Batteries

Product description

• 2 x IDX System Technology CUE-D150 147Wh Li-Ion V-Mount Battery
  • Product Demo
  Power your camera or other pro video equipment with the IDX CUE-D150 147Wh Li-Ion V-Mount Battery. The battery can supply up to 16.8 VDC to the plate, and can also provide up to 50W to power accessories through the integrated D-tap output. CUE series batteries feature an internal pack design, which cradles each cell and isolates it in order to enhance reliability and safety. IDX CUE-D batteries should be charged using IDX-branded chargers; third party chargers may not charge CUE-D batteries correctly. UPC: 825781012789
• IDX System Technology VL-2 Battery Charger/Power Supply
  • Product Demo
  The VL-2 is a two-channel, sequential Li-Ion (Lithium-Ion) fast charger with a built-in 60W power supply. Up to two Li-Ion Endura V-mount batteries can be charged in 5 hours.
  Portability
  • The VL-2 offers a lightweight design (3.3lbs) with a convenient built-in handle.
  V-Mount
  • The highly reliable V-Mount, battery mount is becoming more and more prevalent on many new broadcast and professional camcorders. In response, IDX has adapted the design of their batteries and chargers to with the V-Mount design.

  Condition Indicator
  • An LED condition indicator is offers a quick glance of each batteries charge status.
  Battery Chemistries
  • The optional A-E2NP allows the VL-2 to charge NP style batteries of any one of the following chemistries:
  • Li-Ion (Lithium Ion)
  • NiCd (Nickel Cadmium)
  • NiMH (Nickel Metal Hydride)
  Power Supply
  • A standard 4-Pin Canon type connector is available on the front panel for 60 watts of DC power.
  • Red (charging)
  • Green (complete/trickle)
  • Orange (battery fault)
  World-Wide AC Power
  • As with all IDX chargers, the VL-2's power switch is recessed to prevent an accidental loss of power. A world-wide, auto-sensing AC power (AC 100-240V) operation is standard.
  UPC: 825781012109

• 2 x CUE-D150 147Wh Li-Ion V-Mount Battery bxrftvefrdycubttaeeftyxqvdtsrava
• Limited 2-Year Warranty

• VL-2 Endura-type Lithium-Ion Battery Charger, 2-Channel Sequential Charging, with 60-Watt Power Supply bxrftvefrdycubttaeeftyxqvdtsrava

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x IDX System Technology CUE-D150 147Wh Li-Ion V-Mount Battery

  Mount / Series Type	V-Mount
  Chemistry	Lithium-Ion
  Capacity (Wh)	147 Wh
  Output Voltage	14.8 VDC
  Maximum Load	10 A
  Accessory Port	1 x D-Tap
  Storage Temperature	32 to 104°F / 0 to 40°C
  Charging Temperature	32 to 104°F / 0 to 40°C
  Discharging Temperature	-4 to 113°F / -20 to 45°C
  Dimensions (W x H x D)	3.8 x 5.8 x 2.3" / 97.0 x 146.0 x 58.0 mm
  Weight	2.2 lb / 1 kg

  Box Dimensions (LxWxH)	7.0 x 4.45 x 2.8"

• IDX System Technology VL-2 Battery Charger/Power Supply

  Power Supply	Yes
  Battery Bays	2
  Type of Charging	Sequential
  Diagnostics	None
  Connections/Interface	Endura V-Mount (x 2) 4-Pin XLR (x 1)
  Power Requirements	100-240 Volts AC, 50 or 60 Hz
  Dimensions (WxHxD)	5.94 x 3.1 x 8.34 inches 151 x 79 x 212 mm
  Weight	2 lbs. 950g

  Box Dimensions (LxWxH)	9.764 x 9.449 x 3.622"
